1. Arahan Keselamatan Penting
Read all instructions before installing or using this electric fireplace. Failure to follow these instructions may result in electric shock, fire, or personal injury.
- Always unplug the fireplace when not in use or before cleaning.
- Do not operate any fireplace with a damaged cord or plug, or if the heater malfunctions or has been dropped or damaged in any manner.
- Jangan gunakan tali di bawah permaidani. Jangan tutup tali dengan permaidani lempar, pelari, atau penutup yang serupa. Susun kord jauh dari kawasan lalu lintas dan di mana ia tidak akan tersandung.
- Untuk mengelakkan kebakaran yang mungkin berlaku, jangan sekat saluran masuk atau ekzos udara dalam apa jua cara. Jangan gunakan pada permukaan lembut, seperti katil, di mana bukaan mungkin tersumbat.
- This fireplace is hot when in use. To avoid burns, do not let bare skin touch hot surfaces. Keep combustible materials, such as furniture, pillows, bedding, papers, clothes, and curtains at least 3 feet (0.9 m) from the front of the fireplace and away from the sides and rear.
- The fireplace is equipped with an overheating protection feature that automatically cuts off power if the heater becomes excessively hot. If this occurs, unplug the unit, wait 10-15 minutes for it to cool down, and then plug it back in.
- Jangan masukkan atau biarkan objek asing memasuki sebarang bukaan pengudaraan atau ekzos kerana ini boleh menyebabkan kejutan elektrik atau kebakaran, atau merosakkan pendiang api.
- Gunakan perapian ini hanya seperti yang dijelaskan dalam manual ini. Sebarang penggunaan lain yang tidak disyorkan oleh pengeluar boleh menyebabkan kebakaran, kejutan elektrik, atau kecederaan pada orang.
2. Produk Lebihview
The Valuxhome MEF36 is a 36-inch recessed electric fireplace designed for in-wall installation, providing supplemental heating and ambient flame effects. It features a realistic log set and crystal media, multiple flame and fuel bed color options, and convenient control via a touch screen panel or remote control.
Ciri-ciri Utama:
- Dimensi: Overall 36"W x 5.5"D x 21.65"H. Recessed 31.57"W x 5.12"D x 20.28"H.
- Pemanasan: 750W/1500W settings, 5120 BTUs, heats up to 400 sq ft.
- Kesan Nyalaan: 3 flame colors, 3 fuel bed colors, 5 variable flame brightness levels.
- Media: Faux fire logs and decorative colored crystals.
- Kawalan: Touch screen panel and remote control (up to 11.5ft range).
- Termostat: Adjustable temperature from 62°F to 86°F.
- Pemasa: Auto-shut off timer from 1 hour to 9 hours.
- Keselamatan: Perlindungan terlalu panas.
Figure 2.1: Dimensional diagram of the Valuxhome MEF36 electric fireplace.
Figure 2.2: Included media (crystals and logs) and remote control.
3. Pemasangan
This electric fireplace is designed for in-wall recessed or flush-mounted installation. Professional installation is recommended. Ensure the power supply is disconnected before beginning installation.
3.1 Penyediaan Tapak
- Choose a suitable location for installation, ensuring adequate clearance from combustible materials.
- Construct a wall frame with an opening that matches the recessed dimensions of the fireplace: 31.57"W x 5.12"D x 20.28"H. Ensure the depth is sufficient for the unit.
- If necessary, move existing wall studs to accommodate the required opening size.
- Ensure a 120V AC power outlet is available within reach of the 6ft power cable, or prepare for hard-wired installation as per local electrical codes.
3.2 Mounting the Fireplace
- Carefully insert the fireplace into the prepared wall opening.
- Use the hanger brackets located on both sides of the unit to secure the firebox in place.
- Fasten the firebox using the 6 provided screws to ensure it is firmly mounted within the wall frame.
- Once the firebox is secured, attach the front glass panel to the unit. Refer to the detailed diagrams in the included manual for precise screw locations and assembly steps.
- Connect the power cord to a standard 120V AC outlet or complete the hard-wiring connection.
Figure 3.1: Recessed installation guide with required wall opening dimensions.

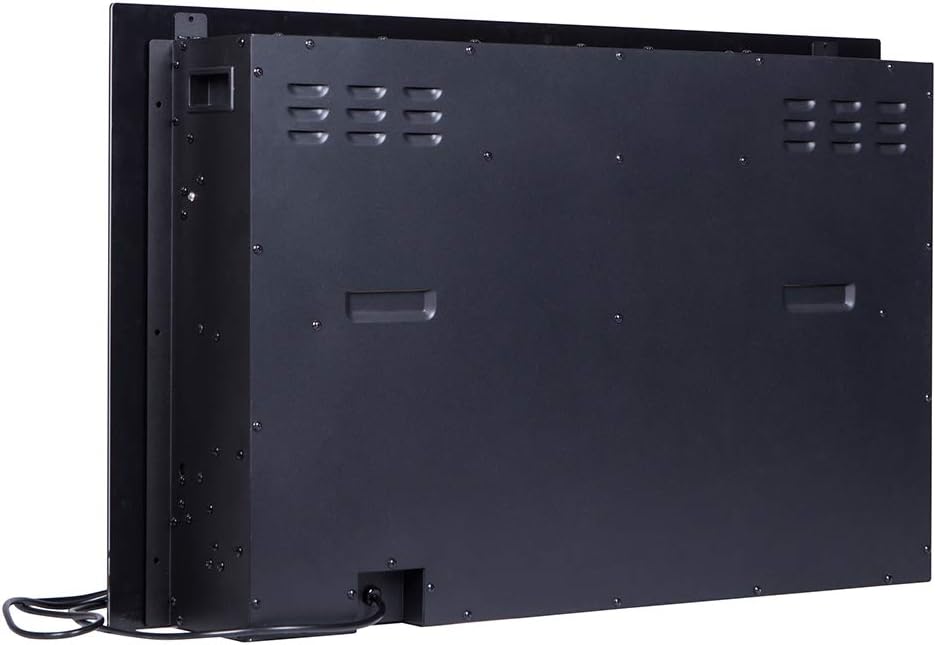

Rajah 3.2: Belakang view of the fireplace, illustrating power connection and mounting points.
4. Operasi
The Valuxhome MEF36 electric fireplace can be operated using the touch screen control panel on the unit or the included remote control.
4.1 Hidupkan/Mati Kuasa
- Tekan ke kuasa button on the touch screen or remote to turn the fireplace on or off.
4.2 Fungsi Pemanasan
- Tahap Haba: Tekan ke Pemanas button to cycle between 750W and 1500W heating modes. The fan operates smoothly with low noise.
- Kawalan Suhu: Gunakan Suhu buttons to set the desired room temperature between 62°F and 86°F. The fireplace will automatically maintain the set temperature.
- Pemasa: Tekan ke Pemasa button to set an auto-shut off time from 1 hour to 9 hours.
4.3 Flame and Fuel Bed Effects
- Warna nyalaan: Tekan ke Warna Api butang untuk mengitari 3 warna nyalaan yang berbeza.
- Fuel Bed Color: Tekan ke Warna Katil Bahan Api button to cycle through 3 different fuel bed colors.
- Brightness/Dimmer: Gunakan Lebih malap button to adjust the flame brightness through 5 variable levels.
- The flame can be operated with or without heat, allowing for year-round ambiance.
Figure 4.1: Remote control and touch screen panel functions.

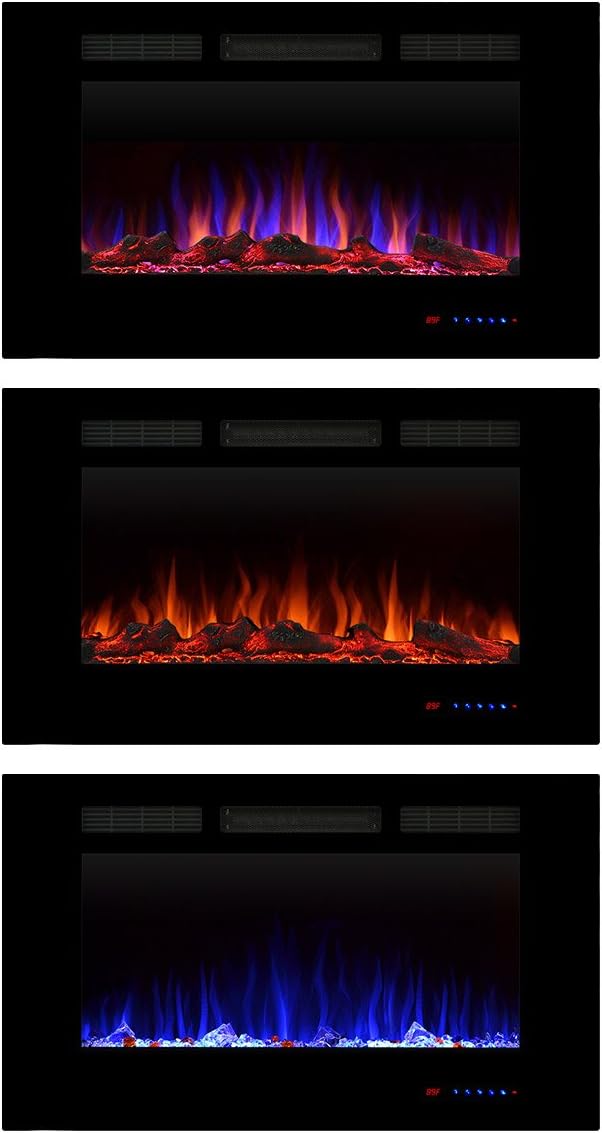

Gambar 4.2: Cthamples of multi-color flame and fuel bed options.
Video 4.1: Demonstration of the Valuxhome electric fireplace's flame effects and features. This video showcases the realistic resin log, colored crystals, touch screen control panel, and various flame color options.
5. Penyelenggaraan
Penyelenggaraan tetap memastikan jangka hayat dan prestasi optimum perapian elektrik anda.
- Pembersihan: Sentiasa cabut plag perapian sebelum membersihkan. Gunakan yang lembut, damp cloth to wipe down the exterior surfaces. Do not use abrasive cleaners or sprays.
- Panel Kaca: Clean the glass panel with a soft cloth and a non-abrasive glass cleaner.
- Bolong Udara: Periodically check and clean the air intake and exhaust vents to ensure they are free from dust and debris, which can impede airflow and cause overheating.
- Kord Kuasa: Inspect the power cord regularly for any signs of damage. If the cord is damaged, discontinue use and contact customer support.
6. Penyelesaian masalah
If you experience issues with your Valuxhome electric fireplace, refer to the following common problems and solutions:
| Masalah | Kemungkinan Punca | Penyelesaian |
|---|---|---|
| Perapian tidak menyala. | Tiada kuasa, kord kuasa tidak dipasang, pemutus litar tersandung. | Pastikan kord kuasa dipasang dengan selamat ke soket yang berfungsi. Periksa pemutus litar isi rumah. |
| Heater stops working, but flames are still on. | Perlindungan terlalu panas diaktifkan. | Unplug the unit and wait 10-15 minutes for it to cool down. Check for any blocked air vents. Plug back in. |
| Alat kawalan jauh tidak berfungsi. | Bateri mati, halangan, di luar julat. | Replace the 2 AAA batteries in the remote. Ensure no obstructions between the remote and the fireplace. Operate within 11.5ft range. |
| Flame effect is dim or inconsistent. | Tetapan kecerahan adalah rendah. | Adjust the brightness level using the Dimmer button on the remote or touch screen. |
If the problem persists after attempting these solutions, please contact Valuxhome customer support.
7. Spesifikasi
| Ciri | Perincian |
|---|---|
| Jenama | Valuxhome |
| Nama Model | Electric Fireplace (MEF36) |
| Sumber Kuasa | Elektrik Bertali |
| Dimensi Produk (Keseluruhan) | 5.5"D x 36"W x 21.65"H |
| Recessed Dimensions | 31.57"W x 5.12"D x 20.28"H |
| bahan | kaca |
| Jenis Selesai | kaca |
| Jenis Pemasangan | Wall Mount (Recessed) |
| Keluaran Haba | 5120 Unit Terma British |
| Liputan Pemanasan | 400 kaki persegi |
| Penggunaan Kuasa | 750W / 1500W |
| Ciri Khas | Timer, Remote Control, Touch Screen, Overheating Protection |
| warna | Hitam |
| Jenis Bilik | Bilik tidur, ruang tamu |
| Jenis Pengudaraan | Vent percuma |
| Komponen yang Disertakan | Manual, Remote Control, Screws, Log Set, Crystals |
| Berat Barang | 54 paun |
| Bateri untuk Alat Jauh | 2 bateri AAA diperlukan (tidak termasuk) |
| UPC | 842880171018 |
8. Waranti dan Sokongan
This Valuxhome electric fireplace comes with a Waranti Terhad. For specific details regarding warranty coverage, duration, and terms, please refer to the warranty card included in your product packaging or contact Valuxhome customer support directly.
Sokongan Pelanggan:
For technical assistance, troubleshooting beyond this manual, or warranty claims, please contact Valuxhome customer support through their official webtapak atau maklumat hubungan yang diberikan dalam dokumentasi produk anda.
