Manual Pengguna Penimbang Dapur Digital ACCUweight 211

pengenalan

Thank you for choosing the ACCUweight 211 Digital Kitchen Scale. This manual provides important information regarding the setup, operation, maintenance, and troubleshooting of your new kitchen scale. Please read it thoroughly before use to ensure proper functionality and to extend the lifespan of your device. This scale is designed for precise measurement of food ingredients and other small items, offering high accuracy and multiple convenient features.

Maklumat Keselamatan

• Do not immerse the scale in water or other liquids. The scale is not waterproof.
• Bersihkan skala dengan iklanamp kain. Jangan gunakan pembersih yang kasar.
• Place the scale on a hard, flat, and stable surface for accurate measurements. Avoid soft or uneven surfaces.
• Jangan bebankan skala melebihi kapasiti maksimum 5 kg (11 lbs).
• Avoid dropping the scale or subjecting it to strong impacts, as this may damage the internal sensors.
• Jauhkan skala dari suhu yang melampau dan cahaya matahari langsung.
• Tanggalkan bateri jika penimbang tidak akan digunakan untuk tempoh yang lama bagi mengelakkan kebocoran.
• Penimbang ini bertujuan untuk kegunaan rumah sahaja.

Produk Selesaiview

The ACCUweight 211 is a compact and durable digital kitchen scale featuring a high-precision sensor and a backlit LCD display. It is constructed with a high-quality stainless steel platform and an ABS plastic frame.

Rajah 1: Atas view of the ACCUweight 211 Digital Kitchen Scale. It features a brushed stainless steel weighing platform, a backlit LCD display, and two control buttons: Z/T (Zero/Tare) and UNIT.

Ciri-ciri Utama:

• Penderia Ketepatan Tinggi: Measures with 1g resolution, minimum capacity 3g, maximum capacity 5kg.
• Multifunctional Units: Easily switch between g, kg, lb, oz, ml, and milk.ml.
• Fungsi Tare: Allows you to subtract the weight of a container for net weight measurement.
• Paparan LCD dengan lampu latar: Menyediakan bacaan yang jelas dalam pelbagai keadaan pencahayaan.
• Fungsi Automatik: Conserves battery power by automatically turning off after 180 seconds of inactivity.
• Low Battery & Overload Indication: Alerts you to battery status and potential overload.
• Pembinaan Tahan Lama: Stainless steel platform and ABS plastic frame.
• Anti-Fingerprint & Easy to Clean: Designed for simple maintenance.

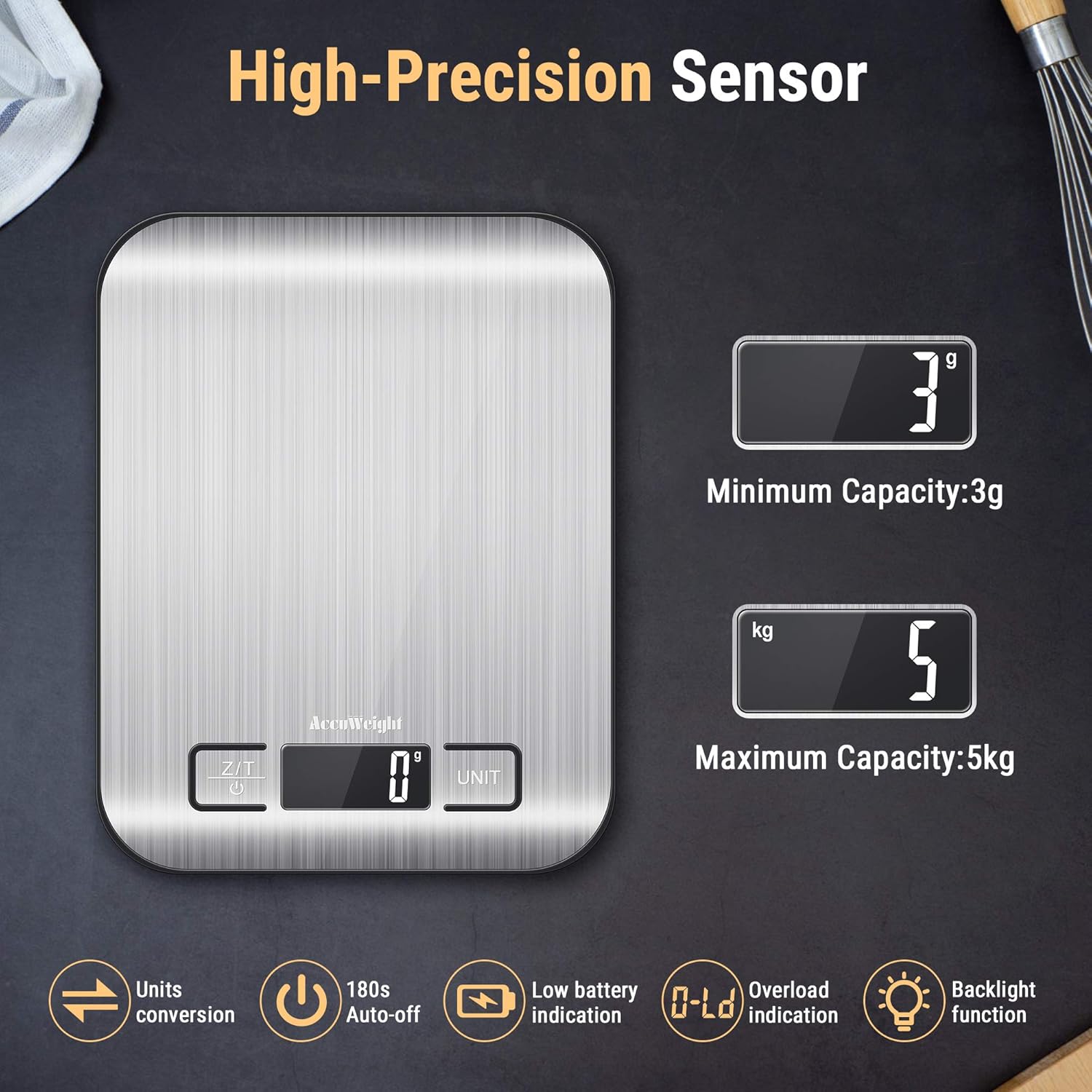

Figure 2: Illustration highlighting the high-precision sensor, showing a minimum capacity of 3g and a maximum capacity of 5kg. Icons also indicate unit conversion, 180s auto-off, low battery indication, overload indication, and backlight function.

Persediaan

Pemasangan Bateri:

1. Cari petak bateri di bahagian bawah penimbang.
2. Buka penutup petak bateri.
3. Masukkan 2 x bateri AAA, pastikan kekutuban yang betul (+/-) seperti yang ditunjukkan di dalam petak.
4. Tutup penutup petak bateri dengan selamat.

Nota: For optimal performance, use new batteries. If the scale displays a "Lo" indicator, replace the batteries.

Arahan Operasi

1. Hidupkan/Mati Kuasa:

• Untuk menghidupkan penimbang, tekan butang Z / T button. The display will show "8888" and then "0g" (or the last used unit).
• Untuk mematikan penimbang, tekan dan tahan Z / T button for 3 seconds. The scale will also automatically turn off after 180 seconds of inactivity.

2. Unit Conversion:

• Dengan penimbang dihidupkan, tekan butang UNIT button to cycle through the available units: g, kg, lb, oz, ml, and milk.ml.
• Unit yang dipilih akan dipaparkan pada skrin LCD.

Figure 3: The scale demonstrating quick unit conversion, displaying various units such as grams (g), kilograms (kg), pounds (lb), ounces (oz), milliliters (ml), and milk milliliters (milk.ml).

3. Tare Function:

The tare function allows you to weigh ingredients in a container by subtracting the container's weight. This is useful for measuring multiple ingredients in the same bowl.

1. Place an empty container on the center of the scale platform. The display will show the container's weight.
2. Tekan ke Z / T button. The display will reset to "0g" (or the current unit).
3. Add the ingredients you wish to weigh into the container. The display will show the net weight of the ingredients.
4. You can repeat the tare process multiple times to add different ingredients sequentially.

Figure 4: A visual representation of the tare function. First, an empty bowl is weighed (e.g., 230g). Then, the tare button is pressed to zero the scale. Finally, pet food is added, and only the weight of the food (e.g., 694g) is displayed.

4. Weighing Items:

1. Pastikan penimbang berada di atas permukaan yang rata dan stabil dan dihidupkan, memaparkan "0g".
2. Place the item(s) to be weighed directly onto the center of the stainless steel platform.
3. Baca berat yang dipaparkan pada skrin LCD.

5. Milk and Liquid Measuring:

The scale includes specific units for measuring liquids like water (ml) and milk (milk.ml), which account for their different densities for more accurate volume estimation.

• Place an empty container on the scale and use the tare function to zero it.
• Tekan ke UNIT button until "ml" or "milk.ml" is displayed.
• Pour the liquid into the container. The display will show the volume in the selected unit.

Figure 5: The scale in use, measuring milk being poured into a bowl of cereal. The display shows the volume in milliliters (ml).

Penyelenggaraan

Pembersihan:

• Lap permukaan skala dengan lembut, damp kain segera selepas digunakan.
• For stubborn stains, use a mild detergent on the damp cloth, then wipe with a clean, damp kain.
• Do not use abrasive cleaners, harsh chemicals, or immerse the scale in water.
• Ensure the scale is completely dry before storage.

Figure 6: A hand wiping the stainless steel surface of the scale with a yellow sponge, illustrating its anti-fingerprint and easy-to-clean design.

Storan:

• Simpan skala di tempat yang sejuk dan kering.
• Elakkan meletakkan objek berat pada penimbang apabila tidak digunakan.
• If storing for an extended period, remove the batteries.

Menyelesaikan masalah

Spesifikasi

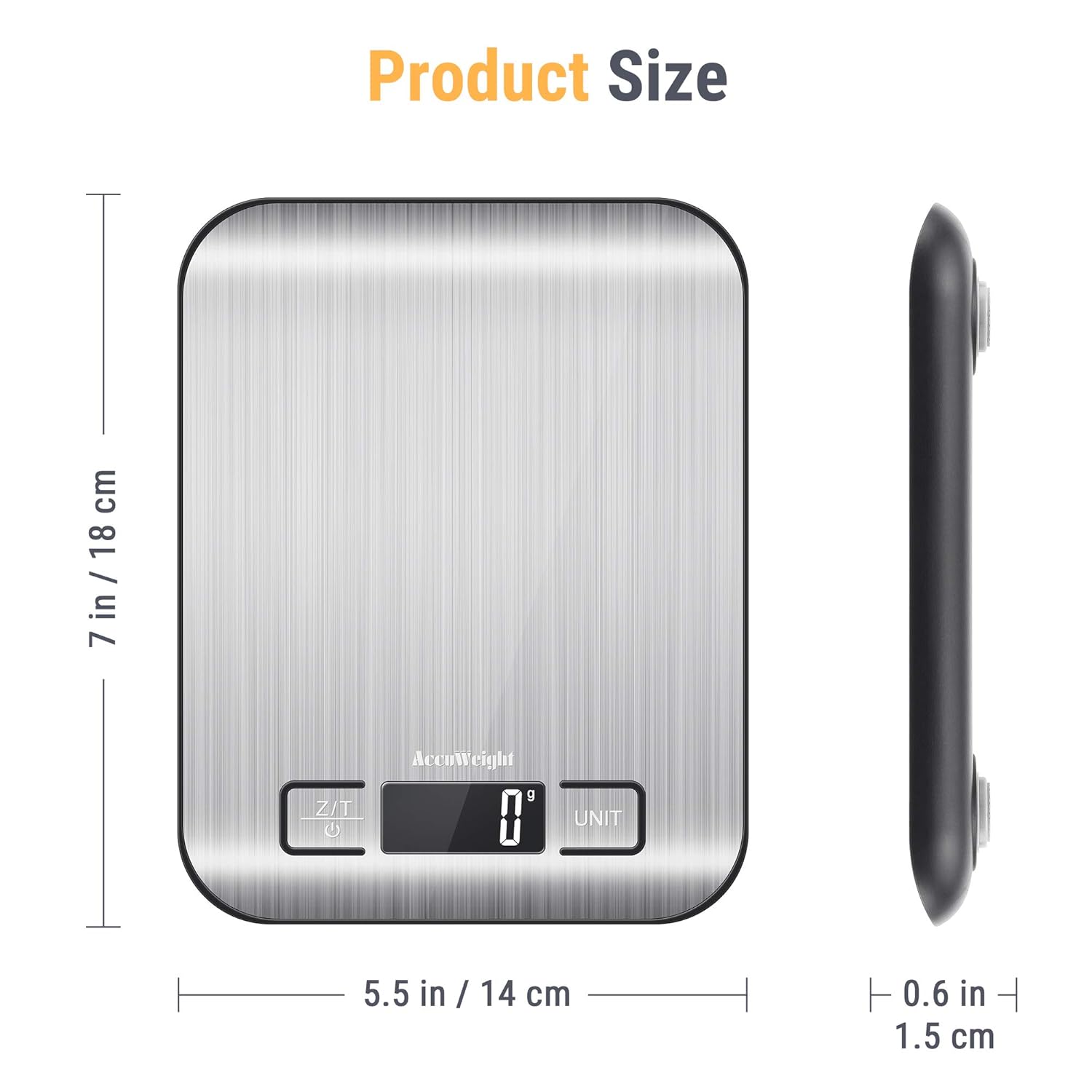

Figure 7: Diagram illustrating the dimensions of the ACCUweight 211 Digital Kitchen Scale: 7 inches (18 cm) in length, 5.5 inches (14 cm) in width, and 0.6 inches (1.5 cm) in thickness.

Waranti dan Sokongan

ACCUWEIGHT products are manufactured to high-quality standards. For warranty information or technical support, please refer to the contact details provided with your purchase or visit the official ACCUWEIGHT webtapak. Sila simpan bukti pembelian anda untuk sebarang tuntutan waranti.

Nota: Availability of spare parts is currently unavailable as per product information.
