Masterforce FlexPower 400 CFM 20-Volt Cordless Brushless Leaf Blower

pengenalan

The Masterforce FlexPower 400 CFM 20-Volt Cordless Brushless Leaf Blower is designed for efficient and powerful outdoor cleaning. Featuring a brushless motor, it delivers superior performance, extended run time, and a longer motor life compared to traditional brushed motors. Its lightweight and balanced design, along with a removable tube, ensures ease of use and convenient storage. This manual provides essential information for the safe and effective operation, maintenance, and troubleshooting of your leaf blower.

Image: The Masterforce FlexPower 400 CFM 20-Volt Cordless Brushless Leaf Blower, shown with its main body and attached blower tube.

Maklumat Keselamatan

AMARAN: Baca semua amaran dan arahan keselamatan sebelum mengendalikan produk ini. Kegagalan mematuhi amaran dan arahan boleh mengakibatkan renjatan elektrik, kebakaran dan/atau kecederaan serius.

• Sentiasa pakai peralatan pelindung diri (PPE) yang sesuai, termasuk pelindung mata, perlindungan pendengaran dan sarung tangan, semasa mengendalikan blower.
• Jauhkan kanak-kanak, orang ramai dan haiwan peliharaan sekurang-kurangnya 50 kaki (15 meter) dari kawasan operasi.
• Jangan kendalikan blower dalam keadaan basah atau hujan.
• Ensure the blower tube is securely attached before operation.
• Jangan sekali-kali menghalakan muncung blower kepada orang atau haiwan.
• Do not operate the blower if any parts are damaged or missing.
• Use only Masterforce FlexPower 18-Volt or 20-Volt battery packs (sold separately) with this tool.
• Simpan blower di tempat yang kering dan selamat dari jangkauan kanak-kanak.

Ciri dan Komponen Produk

Familiarize yourself with the key features of your Masterforce Leaf Blower:

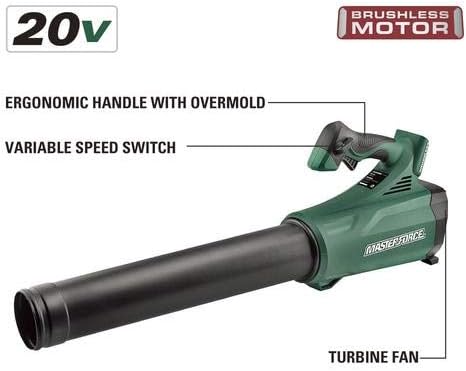

Image: A diagram highlighting the main components of the Masterforce Leaf Blower, including the Ergonomic Handle with Overmold, Variable Speed Switch, and Turbine Fan.

• Motor tanpa berus: Provides up to 10x longer motor life, up to 30% more power, and up to 1.5x more run time.
• Variable Speed Trigger Switch: Allows for maximum control over airflow.
• Ergonomic Handle with Overmold: Designed for comfortable grip and reduced fatigue.
• Turbine Fan: Optimized for high air volume and speed.
• Removable Tube: Untuk penyimpanan dan pengangkutan yang mudah.

Image: An infographic detailing the benefits of Brushless Motor Technology, including longer motor life, more power, and more run-time.

Persediaan

1. Attaching the Blower Tube

1. Align the blower tube with the air outlet on the main body of the blower.
2. Tolak tiub dengan kuat ke saluran keluar sehingga ia berbunyi klik pada tempatnya, pastikan ia dipasang dengan selamat.
3. To remove, press the release button (if present) and pull the tube off.

2. Memasang Pek Bateri

This tool is compatible with all Masterforce FlexPower 18-Volt or 20-Volt battery packs (NiCd or Lithium-Ion), including models 252-8024, 252-8028, 252-8029, 252-8030, 252-8031, 252-8032, 252-8033, 252-8034, 252-8035, 252-8040, 252-8041.

1. Pastikan blower dimatikan.
2. Slide a charged Masterforce FlexPower battery pack into the battery port on the blower until it locks securely into place.
3. To remove the battery, press the battery release button and slide the battery pack out.

Arahan Operasi

Bermula dan Berhenti

1. Pastikan bateri dicas sepenuhnya dan dipasang dengan betul.
2. To start the blower, press and hold the variable speed trigger switch. The blower will start at a low speed.
3. To increase the airflow, press the trigger further. The variable speed trigger allows for precise control of air volume and speed.
4. Untuk menghentikan blower, lepaskan suis picu.

Petua Operasi Am

• Always start blowing debris from the outer edges of the area and work towards the center.
• Use a sweeping motion to effectively move leaves and debris.
• For stubborn debris, use short bursts of full power.
• Avoid blowing debris towards open windows, vehicles, or other objects that could be damaged.

Penyelenggaraan

Pembersihan

• Disconnect the battery pack before performing any cleaning or maintenance.
• Lap bahagian luar blower dengan kain bersih,amp kain. Jangan gunakan detergen atau pelarut yang kuat.
• Bersihkan sebarang serpihan dari lubang pengambilan udara untuk memastikan aliran udara yang betul dan mencegah pemanasan melampau.
• Inspect the blower tube for any blockages and remove them if necessary.

Penyimpanan

• Remove the battery pack from the blower before storing.
• Simpan blower di tempat yang sejuk dan kering, jauh dari cahaya matahari langsung dan kelembapan.
• For compact storage, the blower tube can be removed.
• Keep the blower out of reach of children and unauthorized persons.

Menyelesaikan masalah

Spesifikasi

Waranti dan Sokongan

Masterforce products are built to high-quality standards. For warranty information, technical support, or service inquiries, please refer to the documentation included with your purchase or visit the official Masterforce webtapak. Simpan resit pembelian anda sebagai bukti pembelian untuk tuntutan waranti.

For further assistance, please contact Masterforce Customer Service.
