1. Arahan Keselamatan Penting
Please read these instructions carefully before using the appliance and keep them for future reference. Always observe safety information.
- Perkakas ini bertujuan untuk kegunaan domestik sahaja.
- Do not immerse the iron or its power cord in water or other liquids.
- Sentiasa cabut palam seterika daripada salur keluar kuasa apabila mengisi dengan air, mengosongkan atau apabila tidak digunakan.
- Do not leave a hot iron unattended.
- Jauhkan seterika dan kordnya daripada kanak-kanak.
- Pastikan voltage yang ditunjukkan pada perkakas sepadan dengan vol utama andatage.
- Jangan kendalikan seterika jika ia telah terjatuh, jika terdapat tanda-tanda kerosakan yang boleh dilihat, atau jika ia bocor.
- Letakkan seterika pada permukaan yang stabil dan tahan panas semasa berehat.
2. Produk Lebihview
The SEVERIN BA 3261 steam iron is designed for efficient and comfortable ironing. It features a robust stainless steel soleplate, powerful steam functions, and user-friendly controls.
Komponen Utama:
- Stainless Steel Soleplate: Durable and glides smoothly over fabrics.
- Tangki Air: Transparent and detachable for easy filling, with a water level indicator. Capacity: 175 ml.
- Dail Kawalan Suhu: For selecting appropriate ironing temperatures for different fabrics.
- Steam Buttons: For variable steam and powerful steam shot functions.
- Muncung Semburan: Untuk melembapkan lipatan degil.
- Butang Bersih Sendiri: Untuk mengekalkan prestasi besi.
- Kord Kuasa Fleksibel: Designed for ease of movement during ironing.
- Lampu Penunjuk: Shows when the iron is heating up or ready for use.
Imej: Atas view of the iron, highlighting the control panel and water tank.

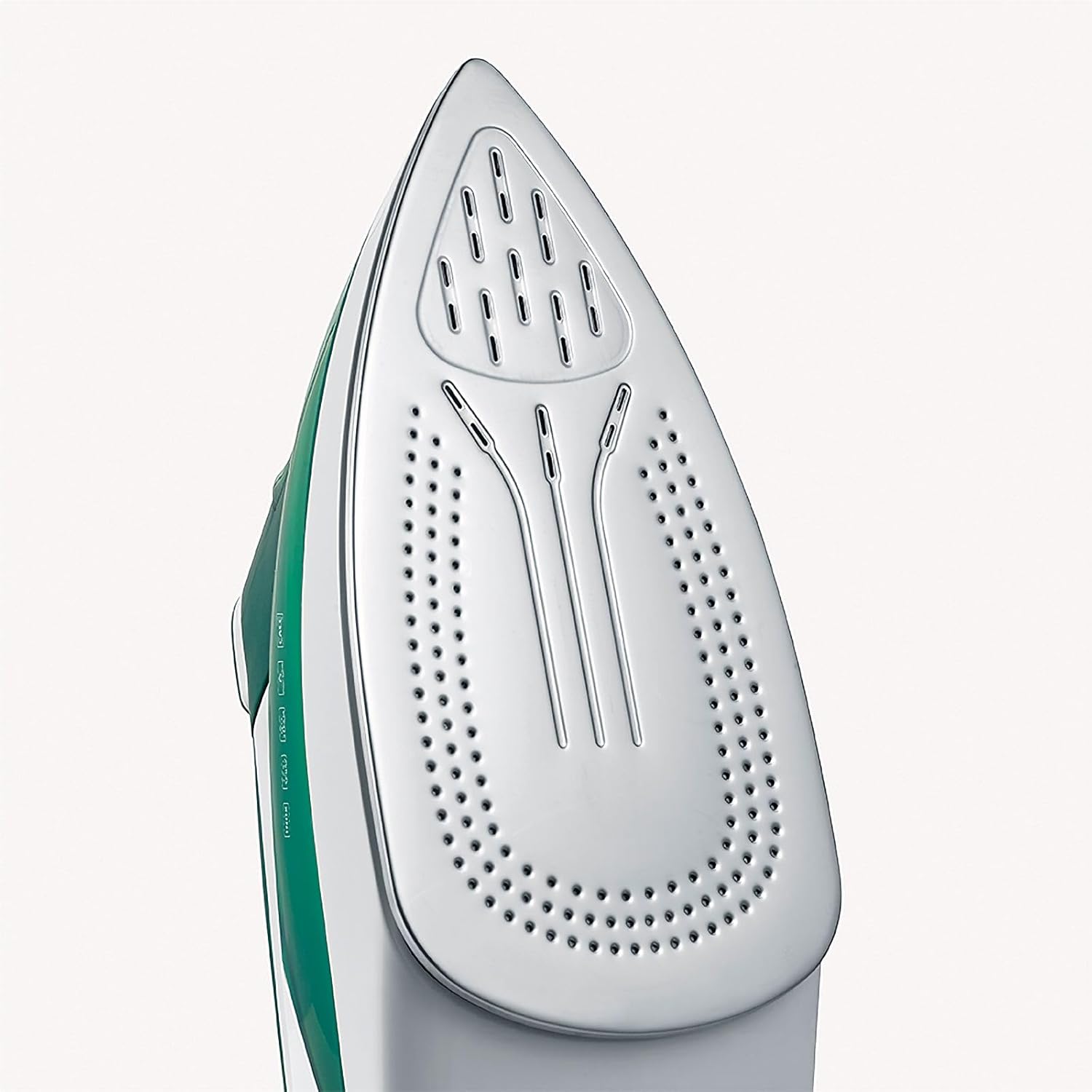

Image: The stainless steel soleplate with numerous steam vents.
3. Persediaan
3.1 Membongkar
- Keluarkan seterika dari bungkusannya dengan berhati-hati.
- Tanggalkan sebarang filem atau pelekat pelindung daripada plat tapak.
- Jauhkan bahan pembungkus daripada kanak-kanak.
3.2 Mengisi Tangki Air
- Pastikan seterika dicabut dari salur keluar kuasa.
- Remove the transparent water tank by gently pulling it out.
- Fill the water tank with clean tap water up to the 'MAX' level indicator. For areas with hard water, consider using a mixture of tap water and distilled water (50/50) to prolong the life of the anti-calc system.
- Reinsert the water tank firmly until it clicks into place.

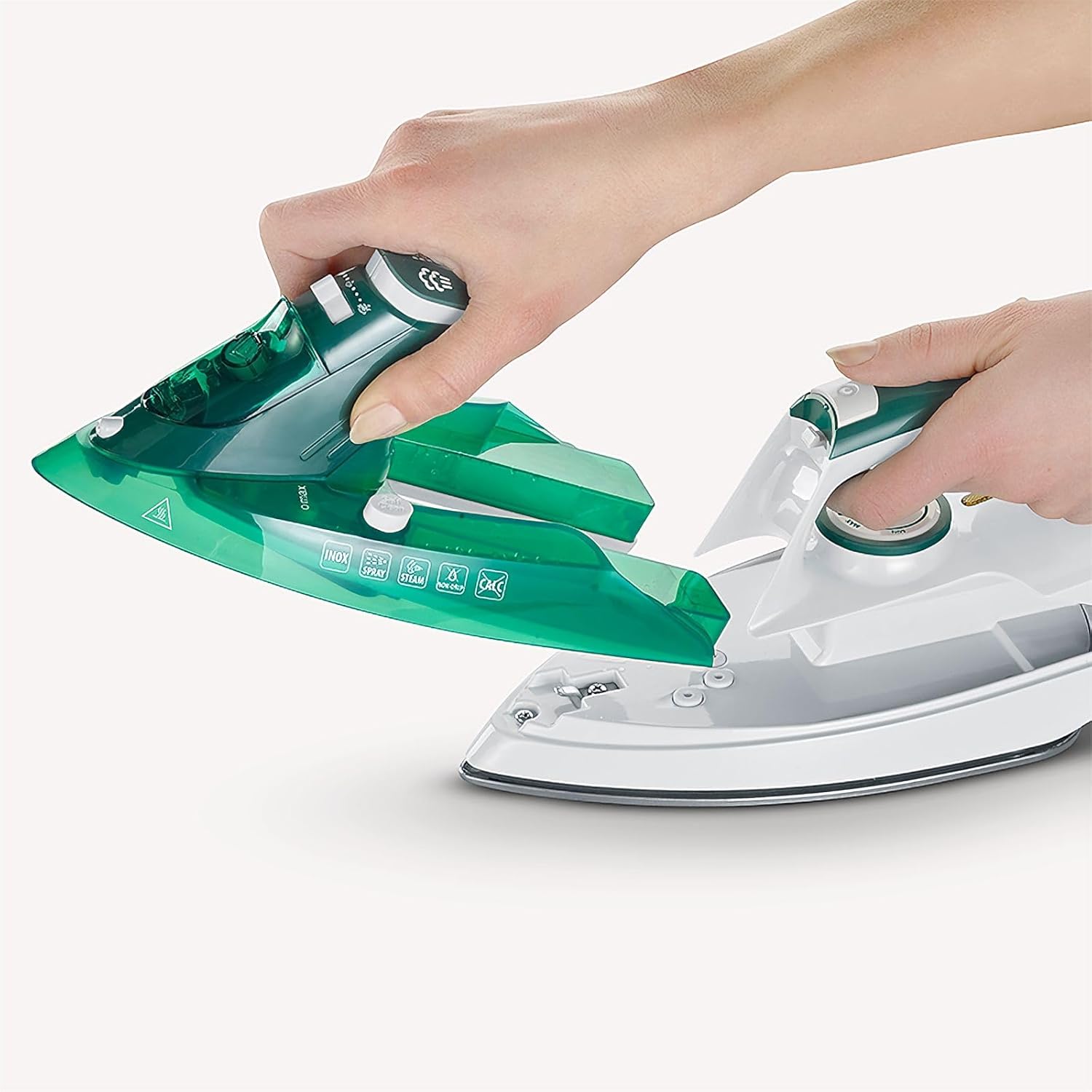

Image: Detachable water tank for easy filling.
3.3 Penggunaan Awal
- Palamkan seterika ke dalam salur keluar kuasa yang sesuai.
- Tetapkan dail kawalan suhu kepada tetapan maksimum.
- Allow the iron to heat up until the indicator light turns off, signaling it has reached the desired temperature.
- For the first use, iron an old piece of fabric to remove any manufacturing residues. Steam may be released during this process.
4. Arahan Operasi
4.1 Pemilihan Suhu
- Refer to the fabric care label on your garment.
- Turn the temperature control dial to the appropriate setting for the fabric type (e.g., synthetic, silk, wool, cotton, linen).
- Always start with lower temperatures for delicate fabrics and increase as needed.
4.2 Menyeterika wap
- Pastikan tangki air diisi.
- Set the temperature control dial to a steam-suitable setting (usually indicated by steam symbols on the dial).
- Once the indicator light turns off, press the steam button for continuous variable steam up to 30 g/min.
- For stubborn creases, use the Power Steam Shot function (up to 85 g/min) by pressing the steam shot button. Wait a few seconds between shots to allow the iron to reheat.
- The NonDrip anti-drip function prevents water stains at low temperatures.
4.3 Menyeterika Kering
- Ensure the water tank is empty or the steam function is turned off.
- Set the temperature control dial to the desired setting.
- Proceed with ironing as usual.
4.4 Mengukus Menegak
The iron can be used for vertical steaming of hanging garments or curtains.
- Gantung pakaian pada penyangkut.
- Hold the iron vertically a few centimeters away from the fabric.
- Press the steam shot button to release bursts of steam.
Image: Demonstrating vertical steaming on a hanging garment.
5. Penyelenggaraan dan Pembersihan
5.1 Fungsi Pembersihan Kendiri
The iron features a self-cleaning function to remove mineral deposits and maintain optimal steam performance. Perform this function regularly, especially in hard water areas.
- Isi tangki air ke paras MAX.
- Pasangkan seterika dan tetapkan suhu maksimum.
- Setelah lampu penunjuk padam, cabut plag seterika.
- Pegang seterika secara mendatar di atas singki.
- Press and hold the Self-Clean button. Hot water and steam will be expelled from the soleplate, carrying impurities with it.
- Teruskan sehingga tangki air kosong.
- Pasang semula seterika dan biarkan ia panas untuk mengeringkan tapak seterika.
5.2 Sistem Anti-Kalk
The integrated anti-calc system helps to reduce limescale build-up. Regular self-cleaning further supports this system.
5.3 Membersihkan Tapak Tapak
- Pastikan seterika dicabut dan sejuk sepenuhnya.
- Lap plat tapak dengan iklanamp kain dan pembersih tidak kasar jika perlu.
- Do not use abrasive pads or harsh chemicals, as these can damage the soleplate.
5.4 Penyimpanan
- Sentiasa kosongkan tangki air selepas setiap penggunaan.
- Benarkan seterika sejuk sepenuhnya.
- Wrap the power cord around the designated rubber storage area.
- Simpan seterika tegak di tempat yang selamat dan kering.
Image: The flexible power cord connection, designed for durability and ease of use.
6. Penyelesaian masalah
If you encounter issues with your SEVERIN BA 3261 steam iron, please refer to the following common problems and solutions:
| Masalah | Kemungkinan Punca | Penyelesaian |
|---|---|---|
| Besi tidak panas. | Not plugged in; power outlet faulty; temperature dial set to 'OFF' or too low. | Periksa sambungan kuasa; cuba soket yang berbeza; laraskan dail suhu. |
| Tiada wap atau wap yang tidak mencukupi. | Water tank empty; temperature too low for steam; steam vents blocked; calcification. | Fill water tank; increase temperature; perform self-cleaning; use distilled water. |
| Air bocor dari tapak tapak. | Temperature too low for steam (anti-drip not active); water tank overfilled; iron tilted too much. | Increase temperature; do not overfill; keep iron horizontal during steam ironing. |
| Serpihan putih pada pakaian. | Limescale deposits. | Perform self-cleaning; use distilled water or a mix. |
7. Spesifikasi
- Jenama: SEVERIN
- model: BA 3261
- Wattage: 2400 W
- Kapasiti Tangki Air: 175 ml
- Bahan Tapak: Keluli Tahan Karat
- Variable Steam Output: Sehingga 30 g/min
- Pukulan Wap: Sehingga 85 g/min
- Product Dimensions (L x W): 28.5 x 12 cm
- Berat Barang: 1.3 kg
- Voltage: 230 Volt
- Kekerapan: 50 Hz
- Ciri Khas: Anti-Calc System, Anti-Drip Function, Self-Cleaning, Transparent Water Tank with Level Indicator, Rubber Storage Space
- Negara Asal: China
8. Waranti dan Sokongan
SEVERIN products are manufactured to high-quality standards. This product comes with a standard warranty as per local regulations. For specific warranty terms and conditions, please refer to the warranty card included with your purchase or visit the official SEVERIN webtapak.
Ketersediaan Alat Ganti: Spare parts for this appliance are available for a duration of 1 year within the EU.
For technical support, service, or spare parts inquiries, please contact SEVERIN customer service or your local retailer. Always provide the model number (BA 3261) when contacting support.
You can find more information and contact details on the official SEVERIN webtapak: www.severin.com
