Manual Pengguna Gerbang Wi-Fi TUYA Pintar SASWELL SASWG-04-RF-WIFI(TY)

1. Pengenalan

Thank you for choosing the SASWELL SASWG-04-RF-WIFI(TY) Smart TUYA Wi-Fi Gateway. This manual provides detailed instructions for the installation, operation, and maintenance of your new gateway. Please read this manual thoroughly before use to ensure proper functionality and to maximize the benefits of your smart home system. Keep this manual for future reference.

2. Produk Lebihview

The SASWELL SASWG-04-RF-WIFI(TY) is a smart Wi-Fi gateway designed to connect your compatible SASWELL and Tuya-integrated RF devices to your home Wi-Fi network, enabling remote control and smart automation via the Tuya app. It acts as a central hub for communication between your smart devices and the internet.

Rajah 2.1: Depan view of the SASWELL SASWG-04-RF-WIFI(TY) Smart TUYA Wi-Fi Gateway. The gateway is white with a rectangular shape and perforated sides for ventilation. The front panel features three indicator lights for AP/WiFi, RF, and Power, along with the SASWELL logo.

Rajah 2.2: Dimensions of the SASWELL SASWG-04-RF-WIFI(TY) Smart TUYA Wi-Fi Gateway. The gateway measures approximately 125mm in width, 80mm in height, and 26mm in depth.

Lampu Penunjuk:

• AP/WiFi Indicator: Shows the status of the Wi-Fi connection and Access Point mode.
• Penunjuk RF: Indicates the status of the Radio Frequency communication with connected devices.
• Penunjuk Kuasa: Menyala apabila peranti dihidupkan.

3. Ciri-ciri Utama

• Seamless integration with Tuya WiFi products.
• Supports connection with up to ten SEA801-DF1 devices.
• Operates on a WiFi frequency of 2.412 GHz-2.484 GHz.
• Powered by a DC 5~12V 1A connection.
• Enables remote control and scheduling of connected devices via the Tuya app.

4. Keserasian

This gateway is designed to work exclusively with Tuya WiFi integrated products. Specifically, it is compatible with the SASWELL SEA801-DF1 thermostat. Please ensure that any devices you intend to connect are compatible with the Tuya platform and the gateway's RF communication protocol.

Rajah 4.1: The SASWELL Gateway (left) shown in conjunction with the SEA801-DF1 thermostat (right). The image indicates that the gateway must be used with the SEA801-DF1, which is sold separately.

5. Panduan Persediaan

5.1 Kandungan Pakej

Before proceeding with the setup, please verify that your package contains the following items:

• SASWELL SASWG-04-RF-WIFI(TY) Smart TUYA Wi-Fi Gateway
• Power Adapter (UK standard)
• Manual Pengguna (dokumen ini)

5.2 Sambungan Awal

1. Hidupkan kuasa: Connect the provided power adapter to the gateway's power input port and then plug it into a standard electrical outlet. The Power indicator light should illuminate.
2. Sambungan Rangkaian: Ensure your Wi-Fi router is powered on and broadcasting a 2.4GHz network. The gateway will automatically attempt to connect to a configured network or enter pairing mode.

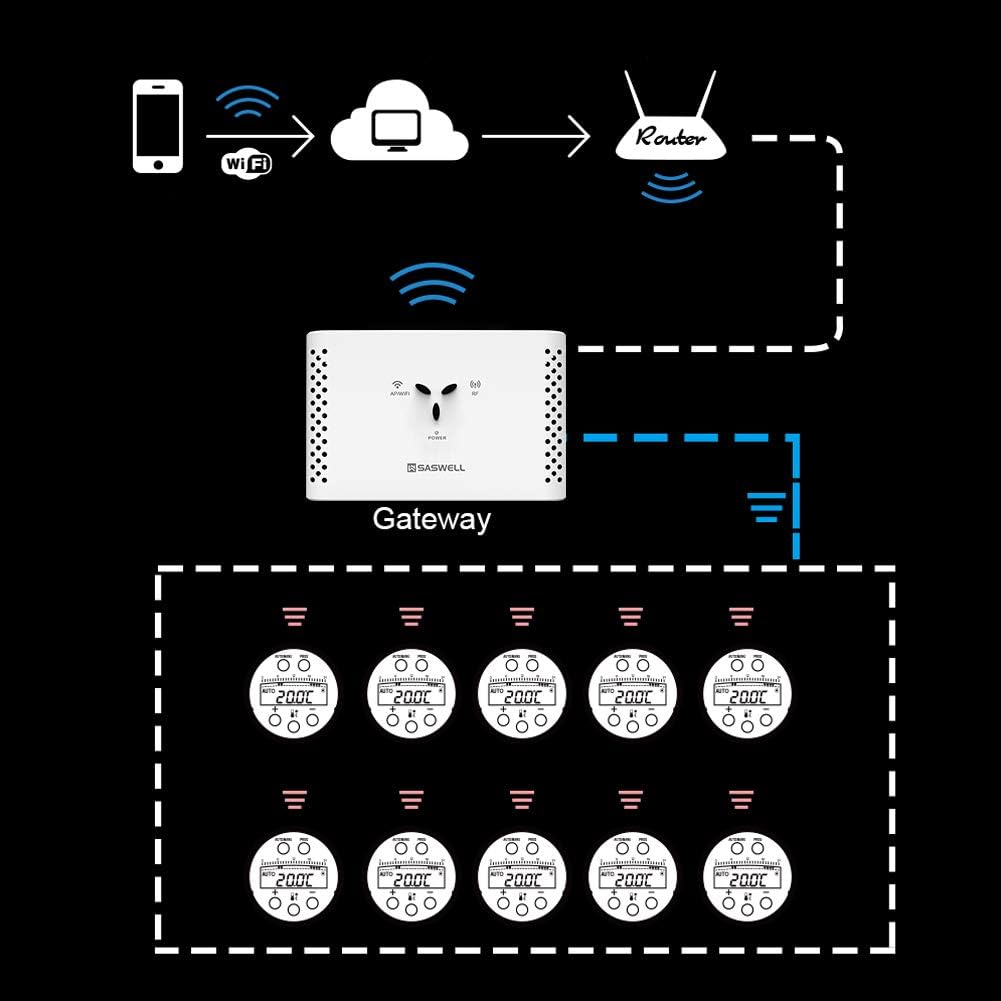

Rajah 5.1: Network connection diagram illustrating how the gateway connects to your home network. A smartphone connects to the cloud via Wi-Fi and a router, which then communicates with the gateway. The gateway subsequently controls up to ten connected devices.

5.3 Pairing with Tuya App

To control your gateway and connected devices, you will need the Tuya Smart or Smart Life app (available on iOS and Android app stores).

1. Muat turun Aplikasi: Muat turun dan pasang aplikasi Tuya Smart atau Smart Life pada telefon pintar anda.
2. Daftar/Log Masuk: Buka aplikasi dan daftar akaun baharu atau log masuk dengan akaun sedia ada.
3. Tambah Peranti: Ketik ikon '+' di penjuru kanan sebelah atas aplikasi untuk menambah peranti baharu.
4. Pilih Jenis Peranti: Choose 'Gateway' or 'Other' and follow the on-screen instructions to select your specific gateway model.
5. Masukkan Butiran Wi-Fi: When prompted, enter your 2.4GHz Wi-Fi network name and password.
6. Confirm Pairing Mode: Ensure the gateway's AP/WiFi indicator is blinking rapidly (or as indicated by the app for pairing mode).
7. Berpasangan Lengkap: Follow the remaining steps in the app to complete the pairing process. Once successful, you can add compatible RF devices (like the SEA801-DF1) to the gateway within the app.

6. Arahan Operasi

Once the gateway is successfully paired with the Tuya app and your compatible devices are added, you can begin controlling them remotely.

• Kawalan Jauh: Use the Tuya app to adjust settings, schedules, and modes for your connected thermostats or other RF devices from anywhere with an internet connection.
• Automasi: Create smart scenes and automations within the Tuya app to have your devices respond to specific conditions (e.g., turn on heating when temperature drops).
• Pengurusan Peranti: Aplikasi ini membolehkan anda view the status of all connected devices, add new ones, or remove existing ones.

Rajah 6.1: Illustration demonstrating the capability of one SASWELL gateway to control up to ten individual valve devices, such as smart radiator thermostats, within a home environment.

7. Penyelenggaraan

To ensure the longevity and optimal performance of your SASWELL Wi-Fi Gateway, follow these simple maintenance guidelines:

• Pembersihan: Gently wipe the device with a soft, dry cloth. Do not use liquid cleaners or abrasive materials.
• penempatan: Place the gateway in a dry, well-ventilated area, away from direct sunlight, heat sources, and excessive moisture. Avoid placing it near large metal objects that could interfere with wireless signals.
• Kemas kini Firmware: Regularly check the Tuya app for any available firmware updates for the gateway. Keeping the firmware updated ensures the best performance and security.
• Bekalan Kuasa: Sentiasa gunakan penyesuai kuasa asal yang disediakan bersama peranti.

8. Penyelesaian masalah

If you encounter issues with your SASWELL Wi-Fi Gateway, refer to the following common problems and solutions:

• Gateway not powering on:
  • Pastikan penyesuai kuasa disambungkan dengan selamat pada kedua-dua pintu pagar dan soket elektrik yang berfungsi.
  • Sahkan alur keluar kuasa berfungsi dengan memasang peranti lain.
• Gerbang tidak bersambung ke Wi-Fi:
  • Confirm your Wi-Fi network is 2.4GHz. The gateway does not support 5GHz networks.
  • Check that your Wi-Fi password is entered correctly in the Tuya app.
  • Ensure the gateway is within range of your Wi-Fi router.
  • Restart your Wi-Fi router and the gateway, then attempt pairing again.
• Connected devices not responding:
  • Verify the gateway is online and connected to Wi-Fi (check AP/WiFi indicator).
  • Ensure the connected device (e.g., SEA801-DF1) is powered on and within range of the gateway.
  • Check the device's battery level if applicable.
  • Re-pair the device with the gateway if necessary.
• App cannot find the gateway during pairing:
  • Make sure the gateway is in pairing mode (AP/WiFi indicator blinking as per app instructions).
  • Temporarily disable 5GHz Wi-Fi on your router during pairing if you have a dual-band router.
  • Ensure your smartphone is connected to the same 2.4GHz Wi-Fi network you are trying to connect the gateway to.

9. Spesifikasi Teknikal

10. Waranti dan Sokongan

SASWELL products are manufactured to high-quality standards. For information regarding warranty coverage, please refer to the warranty card included with your product or visit the official SASWELL website. If you require technical assistance or have questions not covered in this manual, please contact SASWELL customer support through their official channels. Please have your product model number and purchase details ready when contacting support.
