ALLIMITY COV31736202 Remote Control

pengenalan

Thank you for choosing the ALLIMITY COV31736202 Remote Control. This remote is a direct replacement designed for seamless operation with LG DVD Player models DP132, DP132NU, and DP132-NU. It offers all essential functions for controlling your DVD player without the need for complex programming.

Persediaan

The ALLIMITY COV31736202 remote control requires no programming. Simply insert the batteries, and it is ready for use with your compatible LG DVD player.

Pemasangan Bateri

1. Cari petak bateri di belakang alat kawalan jauh.
2. Luncurkan penutup petak bateri ke bawah atau ke arah yang ditunjukkan oleh anak panah untuk membukanya.
3. Insert two AAA alkaline batteries (not included), ensuring the positive (+) and negative (-) terminals match the diagrams inside the compartment.
4. Gantikan penutup petak bateri dengan menggelongsorkannya semula ke kedudukannya sehingga ia berbunyi dengan selamat.

Imej: Belakang view of the ALLIMITY COV31736202 remote control, showing the battery compartment.

Once batteries are installed, the remote is ready to operate your LG DVD player. Ensure there are no obstructions between the remote control and the DVD player's infrared receiver.

Arahan Operasi

This remote control utilizes infrared technology and has an effective range of up to 10 meters. Point the remote directly at your DVD player for optimal performance. Below is a guide to the main functions:

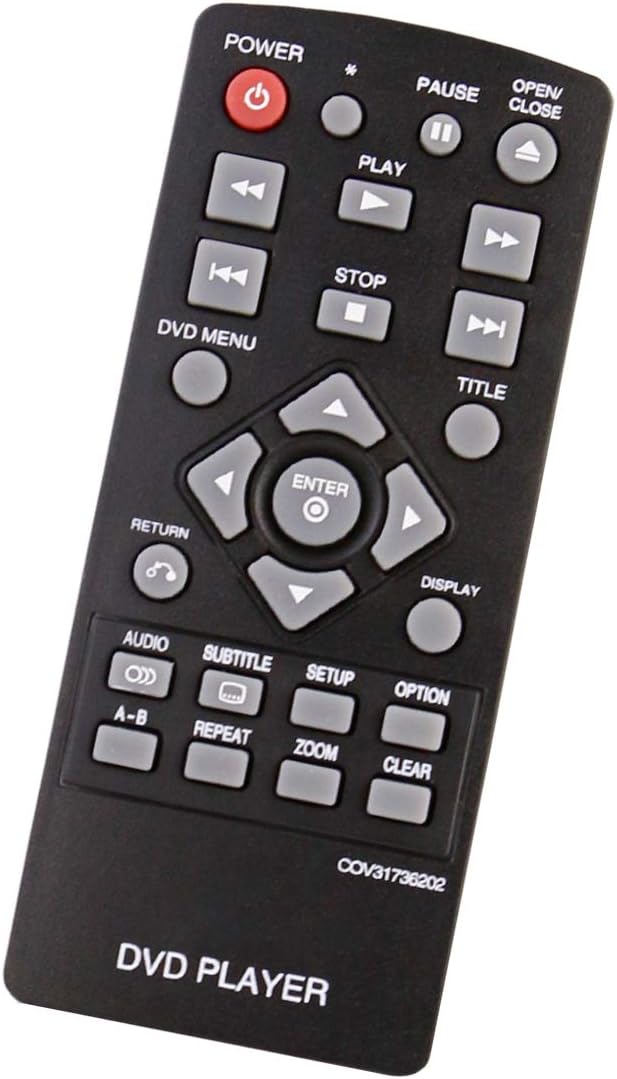

Imej: Depan view of the ALLIMITY COV31736202 remote control, displaying all buttons and their labels.

• KUASA (⑉): Turns the DVD player on or off.
• BUKA/TUTUP (▲): Opens or closes the disc tray.
• BERMAIN (▶): Starts playback of a disc.
• JEDA (⏸): Pauses playback. Press again to resume.
• BERHENTI (■): Stops playback.
• SEBELUMNYA (⏮): Skips to the beginning of the current track/chapter or the previous track/chapter.
• SETERUSNYA (⏭): Skips to the next track/chapter.
• PEMIKIRAN CEPAT (⏪): Rewinds playback.
• CEPAT KE HADAPAN (⏩): Fast forwards playback.
• MENU DVD: Accesses the main menu of the DVD.
• TAJUK: Accesses the title menu of the DVD.
• Tombol NAVIGASI (▲ ▼ ◄ ►): Used to navigate through menus and options.
• MASUK: Confirms a selection in menus.
• KEMBALI (↶): Returns to the previous menu or screen.
• PAPARAN: Shows on-screen display information.
• AUDIO: Changes the audio track or language.
• SUBTITLE: Toggles or selects subtitle options.
• SETUP: Accesses the DVD player's setup menu.
• PILIHAN: Displays additional options during playback.
• AB: Repeats a specific section between point A and point B.
• ULIKAN: Repeats the current track, chapter, or disc.
• ZOOM: Zooms in or out on the video.
• JELAS: Clears an entry or cancels a function.

Penyelenggaraan

Proper care will ensure the longevity and reliable performance of your remote control.

Pembersihan

• Lap alat kawalan jauh dengan kain lembut dan kering.
• Untuk kotoran degil, sedikit dampLap kain dengan air atau larutan pembersih lembut, kemudian lap hingga kering dengan segera.
• Do not use abrasive cleaners, alcohol, or solvents, as these can damage the surface and buttons.

Penggantian Bateri

Replace batteries when the remote's response becomes sluggish or it stops functioning. Always replace both batteries at the same time with new alkaline batteries of the same type (AAA). Do not mix old and new batteries, or different types of batteries.

Penyimpanan

Jika alat kawalan jauh tidak akan digunakan untuk tempoh yang lama, keluarkan bateri untuk mengelakkan kebocoran dan kemungkinan kerosakan pada peranti.

Menyelesaikan masalah

If you experience issues with your remote control, please refer to the following common solutions:

• Jauh tidak bertindak balas:
  • Periksa sama ada bateri dimasukkan dengan betul dengan polariti yang betul.
  • Gantikan bateri dengan yang baru.
  • Ensure there are no obstructions between the remote control and the DVD player's infrared sensor.
  • Make sure you are within the effective operating range (up to 10 meters) and pointing the remote directly at the DVD player.
• Butang tidak berfungsi:
  • Clean the remote control surface and buttons to remove any dirt or residue that might be interfering with button presses.
  • If only specific buttons are not working, it might indicate a hardware issue.
• Operasi sekejap:
  • Ini selalunya menunjukkan kuasa bateri rendah. Gantikan bateri.
  • Ensure consistent line of sight to the DVD player.

Spesifikasi
