Jectse TE-801 Adjustable Helping Hands Magnifying Repair Stand

pengenalan

Thank you for choosing the Jectse TE-801 Adjustable Helping Hands Magnifying Repair Stand. This multi-functional tool is designed to assist with precision tasks such as repairing electrical appliances, carving, laboratory work, and handling jewelry or jade. It features an adjustable magnifying glass, LED lighting, and flexible auxiliary clips to enhance your work efficiency and accuracy.

Please read this manual thoroughly before use to ensure proper operation and maintenance of your device.

Arahan Keselamatan

• Always place the stand on a stable, level surface to prevent tipping.
• Keep the magnifying glass clean to ensure clear vision. Avoid using abrasive cleaners.
• Do not look directly into the LED lights for extended periods to prevent eye strain.
• When soldering, ensure adequate ventilation and wear appropriate personal protective equipment (PPE) such as safety glasses.
• Jauhkan daripada kanak-kanak.
• Disconnect power when not in use or when cleaning.

Kandungan Pakej

Sahkan bahawa semua item yang disenaraikan di bawah terdapat dalam pakej anda:

• 2 x Auxiliary Clips
• 3 x Binaural Knobs
• 6 x Three-Hole Gaskets
• 1 x Welded Frame
• 1 x Welded Pillar
• 4 x Skru
• 3 x Nuts
• 1 x Manual (dokumen ini)
• 1 x Workbench with Magnifying Glass and LED Light

Persediaan dan Perhimpunan

Follow these steps to assemble your Jectse TE-801 Helping Hands Magnifying Repair Stand:

1. Attach the Welded Pillar: Insert the welded pillar into the designated hole on the workbench base. Secure it from underneath with a screw and nut.


   Imej: Sisi view of the assembled stand, highlighting the main pillar connection.
2. Mount the Magnifying Glass and LED Light: The magnifying glass with LED light is pre-attached to a flexible gooseneck arm. Insert the base of this arm into the top of the welded pillar. Tighten the binaural knob to secure its position.


   Imej: Atas view of the stand, illustrating the magnifying glass and LED light attachment.

3. Install Auxiliary Clips: Attach the auxiliary clips to the welded frame using the remaining screws, nuts, and three-hole gaskets. The clips can be positioned as needed. Then, attach the welded frame to the main pillar using the remaining binaural knobs.


   Imej: Bersudut view of the stand, demonstrating the adjustable auxiliary clips.

4. Sambungkan Kuasa: Connect the provided USB power cable to the workbench base and a suitable USB power source (e.g., USB wall adapter, computer USB port).

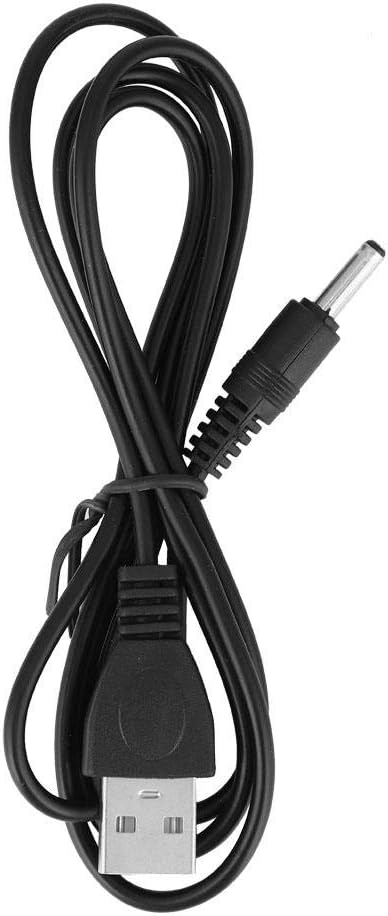

   Image: The USB power cable used to power the LED light.

Image: The Jectse TE-801 Helping Hands Magnifying Repair Stand fully assembled and ready for use.

Arahan Operasi

1. Powering On/Off the LED Light: Once the USB cable is connected to a power source, press the button located on top of the magnifying glass housing to turn the LED light on or off.
2. Adjusting the Magnifying Glass: The magnifying glass is mounted on a flexible gooseneck. Gently bend and position the gooseneck to bring the magnifying glass to the desired height and angle over your workpiece.
3. Using the Auxiliary Clips: The two auxiliary clips are designed to hold small components or circuit boards. Loosen the binaural knobs to adjust the position and angle of the clips. Once positioned, tighten the knobs to secure the clips. The clips can rotate 360 degrees and pivot to hold items firmly.
4. Optimizing Workspace: Adjust the light source and magnifying glass position as needed to ensure optimal visibility and comfort for your specific task.

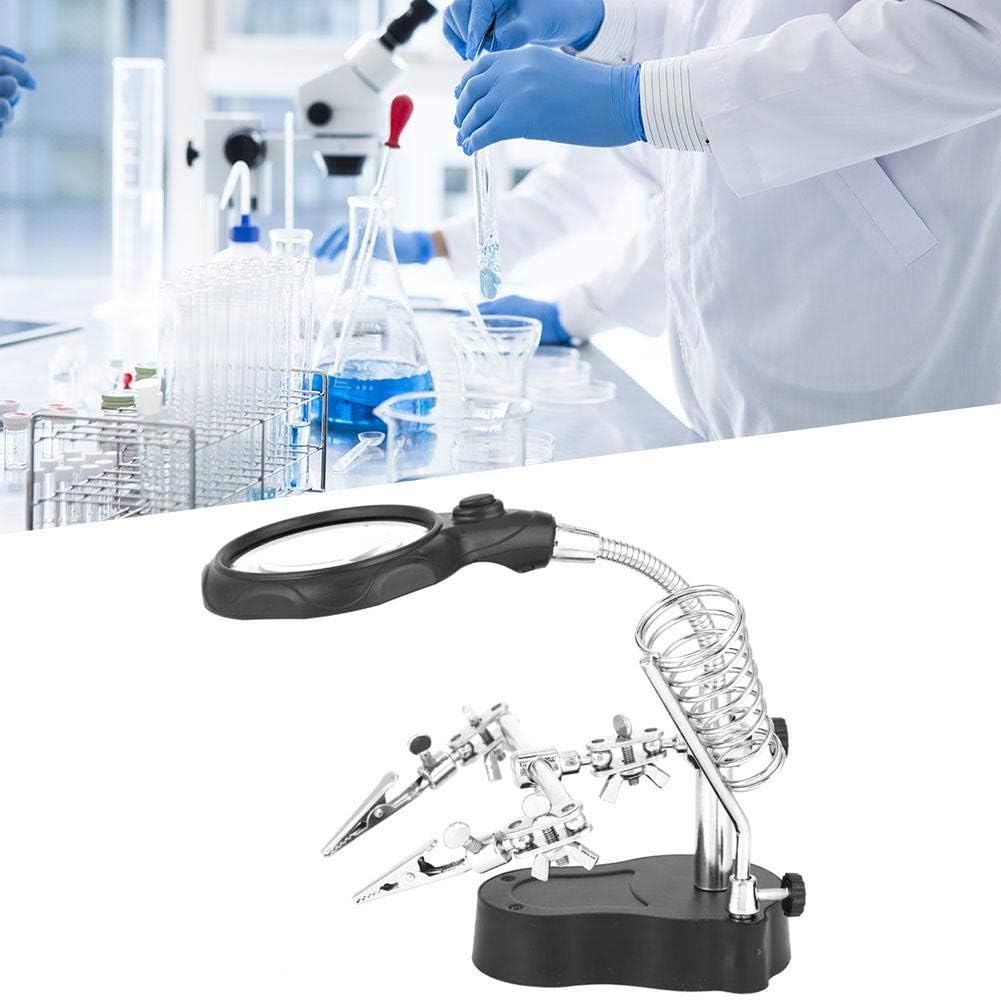

Image: The stand with its magnifying glass and clips positioned for detailed work.

Penyelenggaraan

• Pembersihan: Use a soft, dry cloth to clean the stand and magnifying glass. For the lens, use a lens cleaning solution and a microfiber cloth to avoid scratches. Do not use harsh chemicals or abrasive materials.
• Storan: Simpan unit ini di persekitaran yang bersih dan kering, jauh daripada cahaya matahari langsung dan suhu yang melampau.
• Pemeriksaan: Periodically check all screws and knobs to ensure they are tight.

Menyelesaikan masalah

Spesifikasi

Maklumat Waranti

Specific warranty details for the Jectse TE-801 are not provided in this manual. Please refer to the retailer's return policy or contact Jectse customer support for warranty inquiries.

Sokongan Pelanggan

If you encounter any issues or have questions regarding your Jectse TE-801 Adjustable Helping Hands Magnifying Repair Stand, please contact your point of purchase or visit the official Jectse webtapak untuk sumber sokongan.
