IMILAB CMSXJ16A 1080p 360-Degree Smart Home Security Camera

1. Pengenalan

This manual provides comprehensive instructions for the IMILAB CMSXJ16A Smart Home Security Camera, a product of XIAOMI. It covers setup, operation, maintenance, and troubleshooting to ensure optimal performance and security monitoring. Please read this manual carefully before using the product and retain it for future reference.

2. Produk Lebihview

2.1 Kandungan Pakej

Sahkan bahawa semua item terdapat dalam pakej:

• IMILAB Home Security Camera Basic x 1
• Manual Arahan x 1
• Kabel Kuasa x 1
• Power Adapter (UK/EU/US) x 1
• Wall Mounting Package x 1 (includes screws and wall plugs)

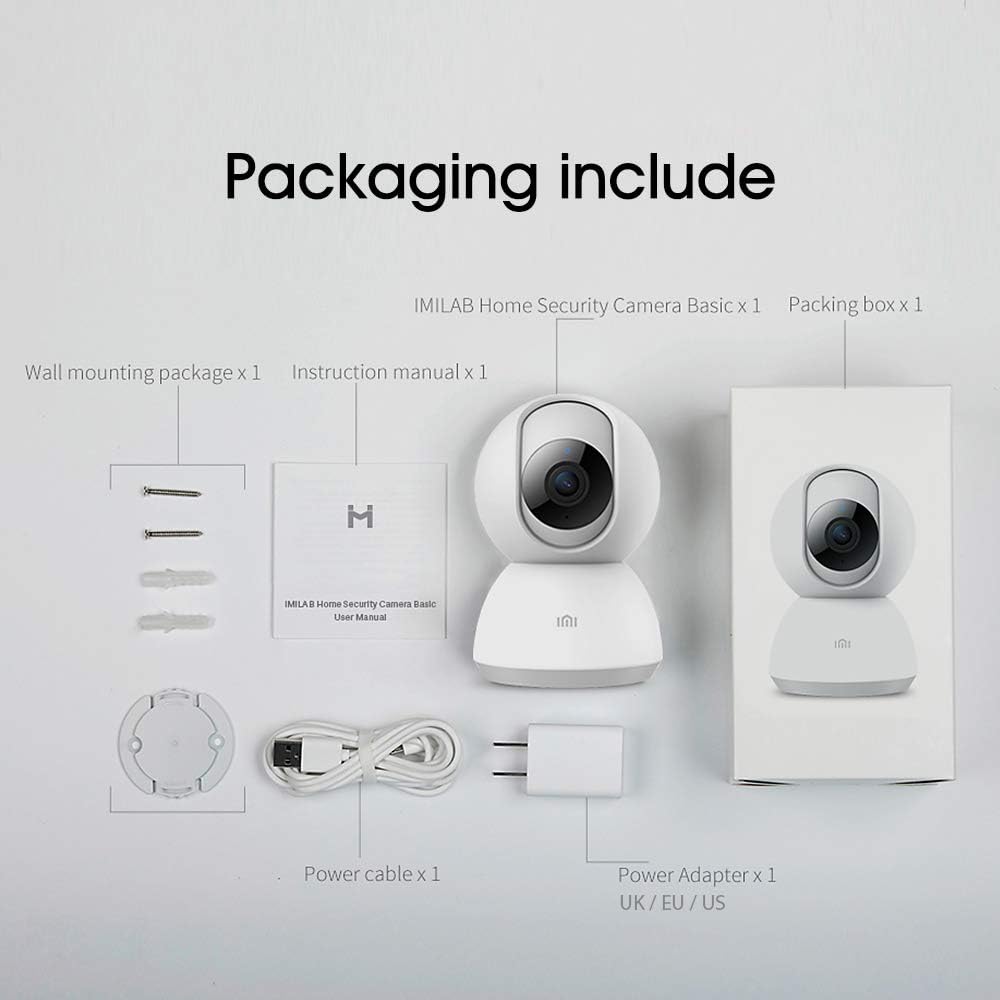

Image: Contents of the IMILAB CMSXJ16A camera package.

2.2 Komponen Kamera

The IMILAB CMSXJ16A camera features a compact, spherical design with a rotating base for 360-degree coverage. Key components include the lens, microphone, speaker, status indicator light, and power port.

Imej: Depan view of the IMILAB CMSXJ16A camera.

2.3 Ciri-ciri Utama

• FHD (1080P) Resolution: Provides clear and detailed image quality.
• Putaran 360°: Menawarkan panorama viewing for comprehensive area coverage.
• Glare-Free Night Vision: Equipped with F2.1 aperture and 8x 940mm infrared LEDs for a visible distance of 10m.
• True Color Night Vision: Maintains full color in low light conditions, even at 100 lumens.
• Pengesanan Manusia AI: Advanced AI reduces unnecessary alerts by 70% for more accurate notifications.
• Crying Baby Notification: Alerts you to the sound of a crying baby.
• Pelbagai Pilihan Storan: Supports cloud storage, up to 64GB Micro TF card, and NAS storage.
• Pengekodan Video H.265: Efficiently compresses video, saving storage space while maintaining quality.

3. Persediaan

3.1 Menghidupkan

1. Connect the power cable to the camera's power port.
2. Palamkan penyesuai kuasa ke soket elektrik standard.
3. The camera will power on, and the status indicator light will begin to flash, indicating it is ready for connection.

3.2 Pemasangan Aplikasi

Download the official IMILAB Home Security app from your smartphone's app store. The app is compatible with Android 4.4 and above, and iOS 8.0 and above.

1. Cari untuk "IMILAB Home Security" in the Google Play Store (for Android) or Apple App Store (for iOS).
2. Muat turun dan pasang apl.
3. Buka apl dan ikut arahan pada skrin untuk membuat akaun atau log masuk.

3.3 Menyambung ke Wi-Fi

Follow the in-app instructions to connect your camera to your home Wi-Fi network. This typically involves scanning a QR code generated by the app with the camera's lens.

3.4 Memasang Kamera

The camera supports wall mounting. Use the provided wall mounting package for secure installation.

1. Choose a suitable location for mounting, ensuring a clear field of view dan akses kepada salur keluar kuasa.
2. Use the mounting base as a template to mark drill holes on the wall.
3. Gerudi lubang dan masukkan palam dinding.
4. Secure the mounting base to the wall with screws.
5. Pasangkan kamera pada tapak pelekap.

4. Arahan Operasi

4.1 Langsung View dan Alat Kawalan Jauh

Once connected, open the IMILAB Home Security app to access the live video feed from your camera. You can remotely control the camera's 360-degree rotation to view different areas of your space.

Image: Live view of the camera feed on mobile devices, demonstrating H.265 encoding efficiency.

4.2 Penglihatan Malam

The camera automatically switches to night vision mode in low light conditions. It features glare-free infrared night vision and true color night vision for clear visibility even in very dim environments.

Image: Demonstration of glare-free and true color night vision capabilities.

4.3 AI Human Detection and Notifications

The camera utilizes AI to detect human movement, significantly reducing false alarms from pets or other non-human movements. You will receive precise notifications on your smartphone when human activity is detected.

Image: AI movement notification interface in the mobile application.

4.4 Crying Baby Detection

Enable the crying baby detection feature in the app to receive alerts if the camera detects the sound of a baby crying, providing an additional layer of monitoring for nurseries.

4.5 Rakaman dan Penyimpanan Video

The camera supports real-time video recording with multiple storage options:

• Storan Awan: Subscribe to cloud services for secure off-site storage of your recordings.
• Micro TF Card: Insert a Micro TF card (up to 64GB, not included) into the camera for local storage.
• Storan NAS: Connect the camera to a Network Attached Storage (NAS) device for expanded local storage capabilities.

Pengekodan Video 4.6 H.265

The camera uses H.265 video encoding, which allows for more efficient compression of video files. This means you can save the same quality video with approximately 50% less file size compared to H.264, optimizing storage and bandwidth usage.

5. Penyelenggaraan

Untuk memastikan ketahanan dan prestasi optimum kamera anda, ikuti garis panduan penyelenggaraan ini:

• Pembersihan: Lap kanta dan badan kamera dengan lembut menggunakan kain lembut dan kering. Jangan gunakan bahan kimia yang keras atau pembersih yang kasar.
• penempatan: Ensure the camera is placed in a stable environment, away from direct sunlight, extreme temperatures, and high humidity.
• Kemas kini Firmware: Regularly check the app for available firmware updates to ensure your camera has the latest features and security enhancements.

6. Penyelesaian masalah

If you encounter issues with your IMILAB CMSXJ16A camera, refer to the following common solutions:

• Camera Not Connecting: Ensure your Wi-Fi network is 2.4GHz (5GHz is not supported). Check Wi-Fi signal strength. Restart the camera and your router.
• Kualiti Imej Lemah: Clean the camera lens. Ensure adequate lighting in the environment. Check your internet connection speed.
• Tiada Pemberitahuan: Verify that notifications are enabled in both the camera app settings and your smartphone's system settings. Check network connectivity.
• Kamera Luar Talian: Check the power connection. Ensure your Wi-Fi network is active and the camera is within range. Restart the camera.
• Micro TF Card Not Detected: Ensure the card is inserted correctly. Format the card through the app if it's new or has issues. Use a compatible Micro TF card (up to 64GB).

7. Spesifikasi

8. Waranti dan Sokongan

For warranty information and technical support, please refer to the official IMILAB webtapak atau hubungi perkhidmatan pelanggan mereka. Simpan resit pembelian anda sebagai bukti pembelian untuk tuntutan waranti.
