ForeverPRO WP3191049 Range Infinite Switch Instruction Manual

1. Produk Lebihview

This manual provides instructions for the installation, operation, and maintenance of the ForeverPRO WP3191049 Infinite Switch. This component is a replacement part designed for use with various Whirlpool range models, controlling the heat output of a 6-inch surface burner.

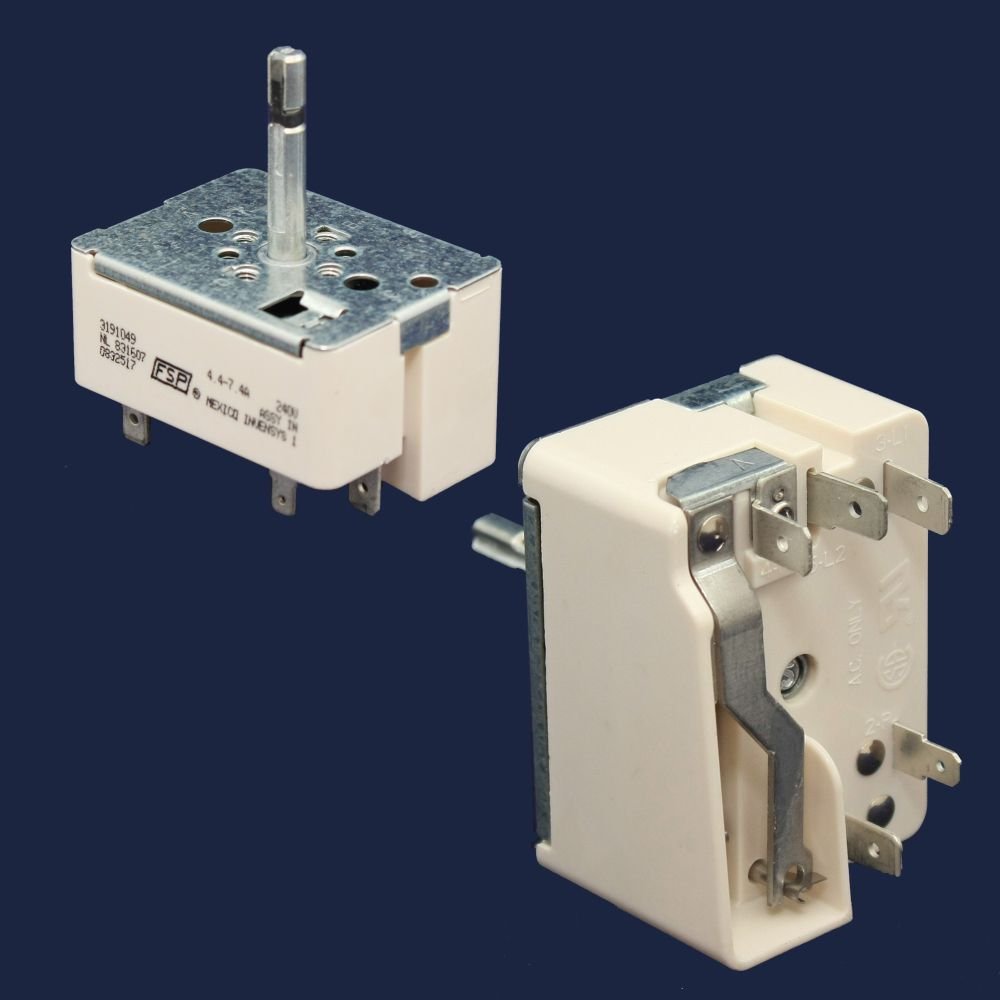

Image 1: The ForeverPRO WP3191049 Infinite Switch. This image displays the switch from two angles, highlighting its shaft, mounting plate, and electrical terminals. The switch is a compact, rectangular component with a metal shaft extending from one side and multiple spade terminals for electrical connections on the other.

2. Maklumat Keselamatan

• Always disconnect power to the appliance at the circuit breaker or fuse box before attempting any installation, repair, or maintenance. Failure to do so can result in serious injury or electrical shock.
• Pakai peralatan pelindung diri yang sesuai, seperti sarung tangan dan cermin mata keselamatan, semasa pemasangan.
• Jika anda tidak pasti tentang sebarang langkah, rujuk juruteknik perkakas yang bertauliah.
• Ensure all electrical connections are secure and correctly wired according to the original appliance configuration.

3. Persediaan dan Pemasangan

This section outlines the general steps for replacing an infinite switch. Specific procedures may vary depending on your range model. Refer to your appliance's service manual for detailed instructions.

1. Putuskan Kuasa: Turn off the power to your range at the main circuit breaker or fuse box. Verify that the power is off before proceeding.
2. Akses Panel Kawalan: Depending on your range model, you may need to remove knobs, screws, or clips to access the rear of the control panel where the infinite switches are located.
3. Pendawaian Dokumen: Before disconnecting any wires, take a clear photograph of the existing switch and its wiring connections. This will serve as a reference for correct reinstallation. Note the position of each wire on the terminals (e.g., L1, L2, H1, H2, P).
4. Keluarkan Suis Lama: Carefully disconnect all wires from the old infinite switch. Then, unmount the switch from the control panel.
5. Pasang Suis Baharu: Mount the ForeverPRO WP3191049 switch into the control panel, ensuring it is securely fastened.
6. Sambungan Pendawaian: Using your photograph as a guide, connect the wires to the corresponding terminals on the new switch. Ensure each connection is tight and secure.
7. Pasang semula: Reattach the control panel and any other components removed during disassembly. Replace knobs.
8. Pulihkan Kuasa dan Ujian: Turn the power back on at the circuit breaker. Test the burner controlled by the new switch to ensure it functions correctly through its full range of heat settings.

4. Arahan Operasi

The infinite switch controls the heat output of a surface burner by regulating the amount of power supplied to the heating element. To operate:

• Turn the corresponding control knob to the desired heat setting (e.g., Low, Medium, High).
• The switch will cycle power to the burner element to maintain the selected temperature.
• Turn the knob to the 'OFF' position when cooking is complete.

5. Penyelenggaraan

The ForeverPRO WP3191049 infinite switch is designed for durability and typically requires minimal maintenance. However, regular inspection can help ensure optimal performance:

• Periksa sambungan pendawaian secara berkala untuk memastikan ia kekal selamat.
• Keep the area around the control panel clean and free from grease or debris.
• If the control knob feels loose or sticky, inspect its connection to the switch shaft.

6. Penyelesaian masalah

If you experience issues with your range's surface burner after installing the new switch, consider the following:

• Pembakar Tidak Memanaskan:
  • Check if the power to the range is on.
  • Verify all wires are securely connected to the switch terminals.
  • Pastikan elemen pembakar itu sendiri tidak rosak.
• Pembakar Tersekat pada Suhu Tinggi atau Rendah:
  • This may indicate a faulty infinite switch. Re-check wiring or consider replacing the switch if other components are ruled out.
• No Power to Range:
  • Periksa pemutus litar atau kotak fius untuk pemutus litar terpelantik atau fius putus.
  • Ensure the range is properly plugged into a working outlet.

For further assistance, contact a qualified appliance repair technician.

7. Spesifikasi

8. Keserasian

The ForeverPRO WP3191049 Infinite Switch is compatible with a wide range of Whirlpool brand ranges. This includes, but is not limited to, the following models:

• GJC3034GB0, GJC3034GQ0, GJC3034GS0, GJC3034GZ0
• GJC3034HB0, GJC3034HB1, GJC3034HB2, GJC3034HB3, GJC3034HB4, GJC3034HB5
• GJC3034HP3, GJC3034HP4, GJC3034HP5
• GJC3034HQ0, GJC3034HQ1, GJC3034HQ2, GJC3034HQ3, GJC3034HQ4, GJC3034HQ5
• GJC3034HT0, GJC3034HT1, GJC3034HT2, GJC3034HT3, GJC3034HT4, GJC3034HT5
• GJC3034LB0, GJC3034LB01, GJC3034LB02, GJC3034LC01, GJC3034LC02, GJC3034LCO
• GJC3034LP0, GJC3034LP01, GJC3034LP02
• GJC3034LQ0, GJC3034LQ01, GJC3034LQ02
• GJC3034LT0, GJC3034LT01, GJC3034LT02
• GJC3034RB00, GJC3034RB01, GJC3034RB02, GJC3034RB03, GJC3034RB04, GJC3034RB05, GJC3034RB06
• GJC3034RC00, GJC3034RC01, GJC3034RC02, GJC3034RC03, GJC3034RC04, GJC3034RC05
• GJC3034RP00, GJC3034RP01, GJC3034RP02, GJC3034RP03, GJC3034RP04, GJC3034RP05
• GJC3034RS00, GJC3034RS01, GJC3034RS02, GJC3034RS03, GJC3034RS04, GJC3034RS05
• GJC3054RB00, GJC3054RB01, GJC3054RB02, GJC3054RB03, GJC3054RB04, GJC3054RB05
• GJC3054RC00
• GJC3054RP00, GJC3054RP01, GJC3054RP02, GJC3054RP03, GJC3054RP04, GJC3054RP05
• GJC3054RS00, GJC3054RS01, GJC3054RS02, GJC3054RS03, GJC3054RS04, GJC3054RS05
• GJC3634GB0, GJC3634GQ0

Always verify compatibility with your specific appliance model before purchasing dan memasang mana-mana bahagian gantian.

9. Waranti dan Sokongan

ForeverPRO stands by the quality of its products. This product comes with a 'No Questions Asked Money Back Guarantee'. For support or warranty inquiries, please contact ForeverPRO directly through their official channels.
