ForeverPRO WP3388229 Access Panel Spring Retainer Instruction Manual

Produk Selesaiview

The ForeverPRO WP3388229 Access Panel Spring Retainer is a high-quality replacement part designed for Whirlpool dryers. This component is crucial for securely holding the dryer's access panel in place, ensuring proper operation and safety. It replaces original part numbers 3388229, 3308, AH344669, EA344669, and PS344669.

This part is compatible with a wide range of Whirlpool dryer models, including but not limited to those listed in the compatibility section.

Maklumat Keselamatan

Before attempting any repair or installation on an appliance, always prioritize safety. Failure to follow these guidelines may result in personal injury or damage to the appliance.

• Putuskan Kuasa: Always unplug the dryer from its power source or turn off the circuit breaker before beginning any work.
• Pakai Alat Pelindung: Gunakan peralatan pelindung diri yang sesuai, seperti sarung tangan dan pelindung mata.
• Rujuk Profesional: Jika anda tidak pasti tentang sebarang langkah atau tidak selesa melakukan pembaikan, rujuk juruteknik perkakas bertauliah.
• Tangani dengan Berhati-hati: Be mindful of sharp edges or moving parts within the appliance.

Pemasangan (Persediaan)

This section provides general instructions for replacing an access panel spring retainer. Specific steps may vary slightly depending on your dryer model. Refer to your dryer's service manual for detailed instructions if available.

Alat yang Diperlukan:

• Screwdriver (Phillips or flathead, depending on dryer model)
• Pliers (optional, for old retainer removal)
• Sarung tangan kerja

Langkah Pemasangan:

1. Prepare the Dryer: Ensure the dryer is unplugged from the electrical outlet. Move the dryer away from the wall to access the rear or side panels if necessary.
2. Locate the Access Panel: Identify the access panel that requires the spring retainer. This is typically located on the front, rear, or side of the dryer, depending on the design.
3. Remove the Old Retainer (if present): Carefully remove any screws or fasteners holding the access panel. Locate the old spring retainer. It may be bent, broken, or missing. Use pliers if needed to carefully dislodge the old retainer from its mounting points.
4. Install the New Retainer: Position the new ForeverPRO WP3388229 spring retainer into the designated slots or holes on the dryer frame or access panel. Ensure it snaps securely into place. The design of the retainer allows it to hold the panel under tension.
5. Reattach the Access Panel: Align the access panel with its mounting points and secure it with the screws or fasteners previously removed. Ensure the panel is flush and stable.
6. Kefungsian Ujian: Once the panel is securely reattached, plug the dryer back into the electrical outlet. Briefly run the dryer to ensure the panel remains secure and there are no unusual noises or vibrations.

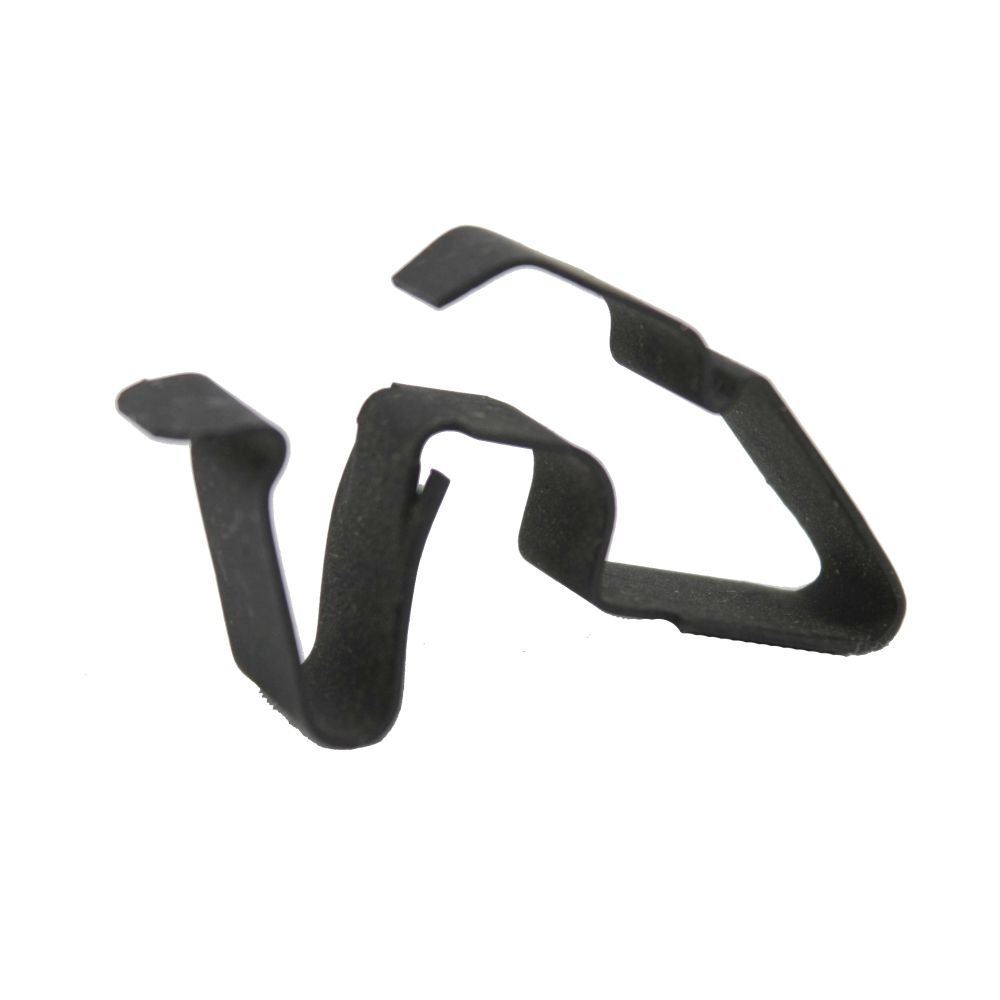

Rajah 1: The ForeverPRO WP3388229 Access Panel Spring Retainer. This image shows the distinct 'W' or 'M' shape of the metal spring clip, designed to provide tension and secure dryer access panels.

Fungsi (Operasi)

The access panel spring retainer functions by applying constant tension to the dryer's access panel, holding it firmly in place. This prevents the panel from rattling or detaching during dryer operation, contributing to the appliance's structural integrity and reducing noise.

Penyelenggaraan

The ForeverPRO WP3388229 Access Panel Spring Retainer is designed for durability and requires minimal maintenance. Periodically, during routine dryer cleaning or inspection, you may:

• Periksa Kerosakan: Check the retainer for any signs of bending, corrosion, or fatigue. If the retainer appears damaged or no longer provides adequate tension, it should be replaced.
• Bersih: If dust or lint accumulates around the retainer, gently wipe it clean with a dry cloth.

Menyelesaikan masalah

If you experience issues related to the access panel after installing the retainer, consider the following:

• Panel is Loose or Rattles:
  • Ensure the retainer is fully seated in its mounting points.
  • Verify that all screws or fasteners holding the access panel are tightened.
  • Inspect the retainer for damage or deformation; if present, replacement may be necessary.
• Difficulty Installing Panel:
  • Confirm the retainer is oriented correctly according to your dryer's design.
  • Ensure no obstructions are preventing the panel from seating properly.

Spesifikasi

Waranti dan Sokongan

ForeverPRO stands behind the quality of its products. This replacement part comes with a No Questions Asked Money Back Guarantee, as stated by the manufacturer. For specific details regarding the warranty period or to initiate a return, please refer to the retailer's return policy or contact ForeverPRO directly.

For customer support or inquiries, please contact the seller, ForeverPRO, through the platform where the purchase was made. They are a USA-based company committed to customer satisfaction.

Polisi Pemulangan: Typically, a 30-day refund/replacement policy is offered for this product.

Keserasian

This part is compatible with most Whirlpool dryers and models from associated brands. A partial list of compatible models includes:

• 1DNET3205TQ0
• 3LMEDC100YW0, 3LMEDC100YW1, 3LMEDC100YW2
• 3LMEDC300YW1, 3LMEDC300YW2
• 3RAED3005TQ0
• 3RMED4905TW0, 3RMED4905TW1, 3RMED4905TW2
• 4GMEDX500YW0, 4GMEDX500YW2
• 4KAED4900BW0, 4KAED4900BW1
• 4KMEDC100BQ0, 4KMEDC100BQ1
• 4KMEDC300BW0, 4KMEDC300BW1
• 4KMEDX505BW0, 4KMEDX505BW1
• 4KNED4400BQ0, 4KNED4400BQ1
• 4KNED4600BQ0, 4KNED4600BQ1
• 7MMEDX550XW0, 7MMEDX550XW1
• 7MMGDX550XW0, 7MMGDX550XW1
• 7MMGDX600BW0
• 7MMGDX700BG0, 7MMGDX700YL0, 7MMGDX700YL1
• MDE17CSAGW0, MDE17CSAYW0, MDE17CSAYW1, MDE17CSAZW0, MDE17CSAZW1
• MDE17CSBGW0, MDE17CSBGW1
• MDE17MNAGW0, MDE17MNAYW0, MDE17MNAYW1, MDE17MNAZW0, MDE17MNAZW1
• MDE17MNBGW0, MDE17MNBGW1
• MDE17PDAYW0, MDE17PDAYW1, MDE17PDAZW0, MDE17PDAZW1
• MDE17PRAYW0, MDE17PRAYW1, MDE17PRAZW0, MDE17PRAZW1
• MDE18CSAGW0, MDE18CSAYW0, MDE18CSAZW0
• MDE18MNAGW0, MDE18MNAYW0, MDE18MNAZW0
• MDE18PDAGW0, MDE18PDAYW0, MDE18PDAZW0
• MDE18PRAYW0, MDE18PRAZW0
• MDE20CSAYW0, MDE20CSAZW0
• MDE20MNAYW0, MDE20MNAZW0
• MDE20PDAGW0, MDE20PDAYW0, MDE20PDAZW0
• MDE20PNAGW0
• MDG17CSAGW0, MDG17CSAWW0, MDG17CSAWW1, MDG17CSAWW2
• MDG17CSBGW0, MDG17CSBGW1, MDG17CSBGW2
• MDG17CSB

This part is also compatible with other brands such as Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, and Roper.
