SYKIK TPMS Real-Time Tire Pressure Monitoring System

pengenalan

This manual provides comprehensive instructions for the installation, operation, and maintenance of your SYKIK TPMS Real-Time Tire Pressure Monitoring System. This system is designed to monitor tire pressure and temperature for vehicles ranging from 4 to 22 wheels, including cars, RVs, and trucks, enhancing driving safety and tire longevity.

Maklumat Keselamatan

• Baca semua arahan dengan teliti sebelum pemasangan dan penggunaan.
• Do not attempt to disassemble or modify the device or sensors.
• Ensure sensors are securely installed to prevent air leakage.
• Always check tire pressure with a calibrated gauge periodically, as TPMS is a monitoring system, not a substitute for regular maintenance.
• Pay attention to all alarms and address them promptly.

Kandungan Pakej

Your SYKIK TPMS package includes the following components:

• TPMS Monitor Display Unit
• 10 Wireless Tire Pressure Sensors (expandable up to 22)
• Rechargeable Battery (for monitor)
• Cigarette Adapter Power Cable
• Antenna (2 sets for flexible installation)
• Sensor Installation Tool (wrench)
• Manual Pengguna

Produk Selesaiview

The SYKIK TPMS provides real-time monitoring of your vehicle's tire pressure and temperature. It features a clear display and various alert functions to ensure safe driving. The system is designed for versatility, supporting a wide range of vehicles.

Imej: SYKIK TPMS monitor displaying tire pressure and temperature, alongside icons representing key features such as wireless monitoring, real-time alerts, anti-interference, and support for up to 22 tires.

Ciri-ciri utama termasuk:

• Pemantauan masa nyata: Continuously displays tire pressure and temperature for all connected tires.
• Keserasian Luas: Supports vehicles with 4 to 22 wheels, suitable for cars, RVs, and trucks.
• Sensor Tanpa Wayar: External sensors transmit data wirelessly, capable of handling 0 to 225 psi.
• Advanced Alert System: Notifies you of high/low pressure, high temperature, fast air leakage, and low sensor/monitor battery.
• Sumber Kuasa Dwi: Monitor can be powered by its internal rechargeable battery or via the included cigarette adapter.
• Enhanced Signal Stability: Special antenna design minimizes interference for reliable data transmission.

Imej: A SYKIK TPMS monitor positioned in a truck cabin, illustrating its real-time monitoring capabilities for large vehicles. The display shows current tire pressure and temperature readings.

Arahan Persediaan

1. Mengecas Monitor

Before first use, fully charge the TPMS monitor using the provided cigarette adapter or a compatible USB power source. The monitor can also operate directly from the cigarette adapter.

2. Memasang Antena

Attach one of the provided antennas to the monitor unit. For optimal signal reception, especially in larger vehicles, consider installing the external antenna outside the cab if necessary.

3. Installing the Sensors

1. Identify the correct tire position for each sensor (e.g., front left, rear right). Sensors are typically labeled or pre-assigned.
2. Remove the existing valve cap from the tire valve stem.
3. Screw the TPMS sensor onto the valve stem clockwise until it is hand-tight.
4. Use the provided wrench to tighten the sensor securely. Ensure it is tight enough to prevent air leakage but do not overtighten.
5. Ulang untuk semua tayar.

Note: The system typically comes pre-paired. If sensors need to be re-paired or new sensors added, refer to the specific pairing instructions in the full manual (not detailed here).

4. Memasang Monitor

Place the monitor in a location within your vehicle where it is easily visible to the driver but does not obstruct your view of the road. Ensure it is securely mounted to prevent movement during driving.

Arahan Operasi

1. Menghidupkan/Mematikan

Press and hold the power button on the monitor to turn it on or off. The monitor will typically auto-start when connected to vehicle power and the ignition is on.

2. Paparan Maklumat

The monitor cycles through the tire positions, displaying the current pressure (in PSI or Bar) and temperature (in °C or °F) for each tire. It updates readings every 3 seconds.

3. Understanding Alerts

The SYKIK TPMS is equipped with various alerts to notify you of abnormal tire conditions. When an alert is triggered, the monitor will display a specific icon, flash the relevant reading, and emit an audible alarm.

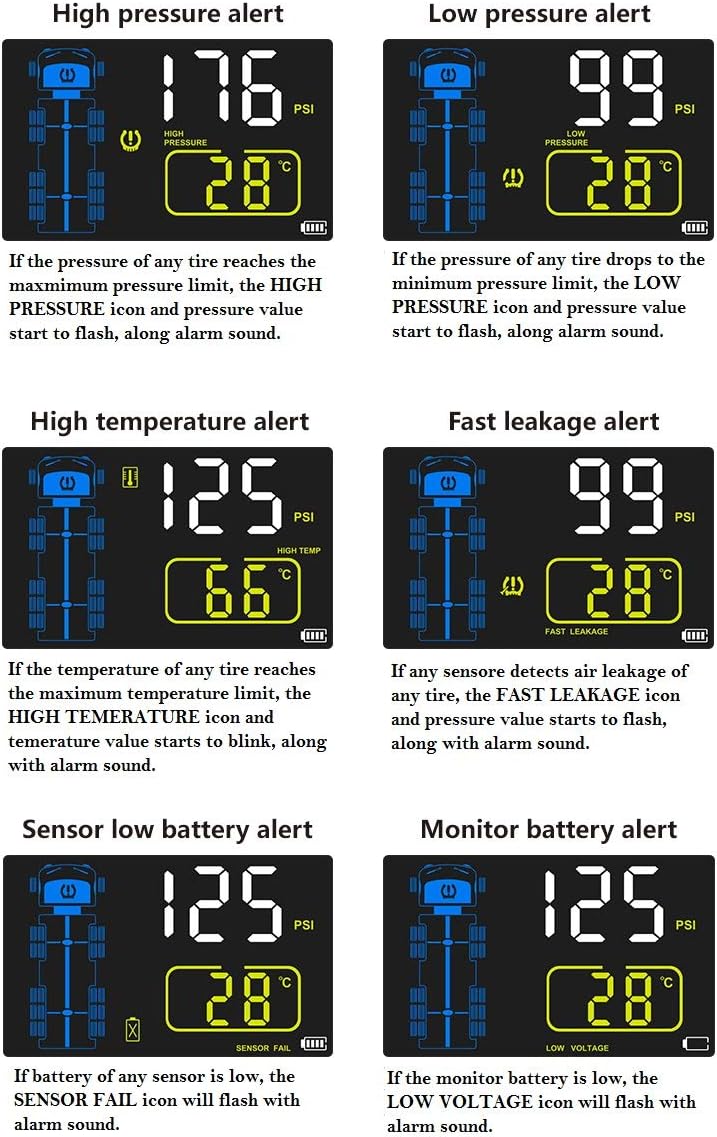

Imej: Visual representation of different alert types on the SYKIK TPMS display. This includes icons and example readings for High Pressure Alert (e.g., 176 PSI), Low Pressure Alert (e.g., 99 PSI), High Temperature Alert (e.g., 125 PSI, 66°C), Fast Leakage Alert (e.g., 99 PSI), Sensor Low Battery Alert, and Monitor Battery Alert.

• Makluman Tekanan Tinggi: Triggered when tire pressure exceeds the preset maximum limit. The "HIGH PRESSURE" icon and pressure value will flash with an alarm sound.
• Makluman Tekanan Rendah: Activated when tire pressure drops below the preset minimum limit. The "LOW PRESSURE" icon and pressure value will flash with an alarm sound.
• Makluman Suhu Tinggi: Occurs if any tire's temperature reaches the maximum preset limit. The "HIGH TEMP" icon and temperature value will blink with an alarm sound.
• Makluman Kebocoran Cepat: Detects rapid air loss. The "FAST LEAKAGE" icon and pressure value will flash with an alarm sound.
• Isyarat Bateri Rendah Sensor: Indicates a sensor battery is low. The "SENSOR FAIL" icon will flash with an alarm sound.
• Monitor Battery Alert: Signals that the monitor's internal battery is low. The "LOW VOLTAGE" icon will flash with an alarm sound.

4. Adjusting Settings (e.g., Alarm Thresholds, Units)

Refer to the full product manual for detailed instructions on how to access and adjust settings such as high/low pressure thresholds, high temperature thresholds, and units of measurement (PSI/Bar, °C/°F). These settings are crucial for customizing the system to your vehicle's specific requirements.

Penyelenggaraan

1. Monitor Battery Charging

The monitor's internal rechargeable battery should be charged regularly, especially if not continuously powered by the vehicle's cigarette adapter. A full charge ensures uninterrupted monitoring.

2. Sensor Battery Replacement

When a "Sensor Low Battery" alert appears, the battery in the affected sensor needs replacement. The sensors use CR123A batteries. Carefully unscrew the sensor, replace the battery, and re-install it securely using the wrench.

3. Pembersihan

Wipe the monitor and sensors with a soft, dry cloth. Do not use abrasive cleaners or solvents, as these can damage the components.

Menyelesaikan masalah

Spesifikasi

Waranti dan Sokongan

Maklumat Waranti

This SYKIK TPMS comes with a Waranti AS 3 TahunSila simpan bukti pembelian anda untuk tuntutan jaminan. Jaminan ini meliputi kecacatan pembuatan dan kerosakan di bawah keadaan penggunaan biasa.

Sokongan Pelanggan

For technical assistance, troubleshooting beyond this manual, or warranty inquiries, please contact SYKIK customer support. Refer to the product packaging or SYKIK's official webtapak untuk maklumat hubungan terkini.
