pengenalan
Welcome to your new MageGee GK710 Pink Gaming Keyboard and Mouse Combo. This manual provides detailed instructions for setup, operation, and maintenance to ensure optimal performance and a satisfying user experience. Please read this manual thoroughly before using the product.
Kandungan Pakej
- MageGee GK710 Pink Gaming Keyboard
- MageGee Pink Gaming Mouse
- Integrated USB Cables
Arahan Persediaan
Menyambung Papan Kekunci dan Tetikus
The MageGee GK710 keyboard and mouse combo utilizes standard USB connections for both devices. No additional drivers are required for basic functionality, making it a plug-and-play solution.
- Locate an available USB 2.0 port on your computer.
- Plug the USB connector from the keyboard into the USB port.
- Plug the USB connector from the mouse into another available USB port.
- Your operating system will automatically detect and install the necessary drivers.
- Peranti-peranti tersebut kini sedia untuk digunakan.
Image: Close-up of the pink gaming mouse, highlighting its USB connection and plug-and-play capability. The mouse features a geometric pattern and illuminated scroll wheel.
Arahan Operasi
Fungsi Papan Kekunci
The GK710 keyboard features a standard 104-key layout with several enhanced functions designed for gaming and productivity.
Kunci Anti-Ghosting
The keyboard supports 19 anti-ghosting keys, allowing simultaneous key presses without conflict. These keys include Q, A, Z, W, S, X, E, D, C, B, Space, Up, Down, Left, Right, Tab, Alt, Ctrl, and Shift.
Kekunci Fungsi Multimedia
Access multimedia controls by pressing the Fn key in combination with the designated function keys (F1-F10).
Image: The MageGee GK710 keyboard displaying the 10 dedicated multimedia function keys located above the F-keys, labeled for quick access to common applications and media controls.
- Fn + F1: Web pelayar
- Fn + F2: Komputer Saya
- Fn + F3: E-mel
- Fn + F4: Music Player
- Fn + F5: Kalkulator
- Fn + F6: Perlahankan suara
- Fn + F7: Kelantangan
- Fn + F8: Trek Sebelumnya
- Fn + F9: Main/Jeda
- Fn + F10: Trek Seterusnya
Pelarasan Lampu Latar
The keyboard features 7 single-color lighting modes. To adjust the backlight:
- Tekan Fn + ESC repeatedly to cycle through brightness levels (Dim, Bright, Breathing, Off).
- The backlight will automatically turn off after 10 minutes of inactivity to conserve energy.
Gaming Mode Features
- Disable WIN Key: Tekan Fn + MENANG to disable the Windows key during gameplay, preventing accidental interruptions. Press again to re-enable.
- WASD Key Swap: Tekan Fn + W to swap the functionality of the WASD keys with the arrow keys. Press again to revert to standard layout.
Fungsi Tetikus
The gaming mouse offers adjustable DPI settings and an aesthetic breathing backlight.
Pelarasan DPI
The mouse supports four adjustable DPI levels. Press the DPI button located on top of the mouse to cycle through the settings. An indicator light will change color to show the current DPI:
- merah: 800 DPI (suitable for web browsing and general tasks)
- hijau: 1600 DPI (ideal for daily use)
- Biru: 2400 DPI (recommended for gaming)
- Ungu: 3200 DPI (for professional gaming requiring high precision)
Lampu Belakang Pernafasan
The mouse features an automatic 7-color breathing backlight that cycles through various colors when connected.
Ciri-ciri Utama
- Reka Bentuk Tahan Lama: Features suspension keycaps and a waterproof, dust-resistant membrane switch for enhanced longevity and easy cleaning.
- Maklum Balas Taktil: The crater structure of the keycaps provides a comfortable and responsive typing experience, crucial for both gaming and extended typing sessions.

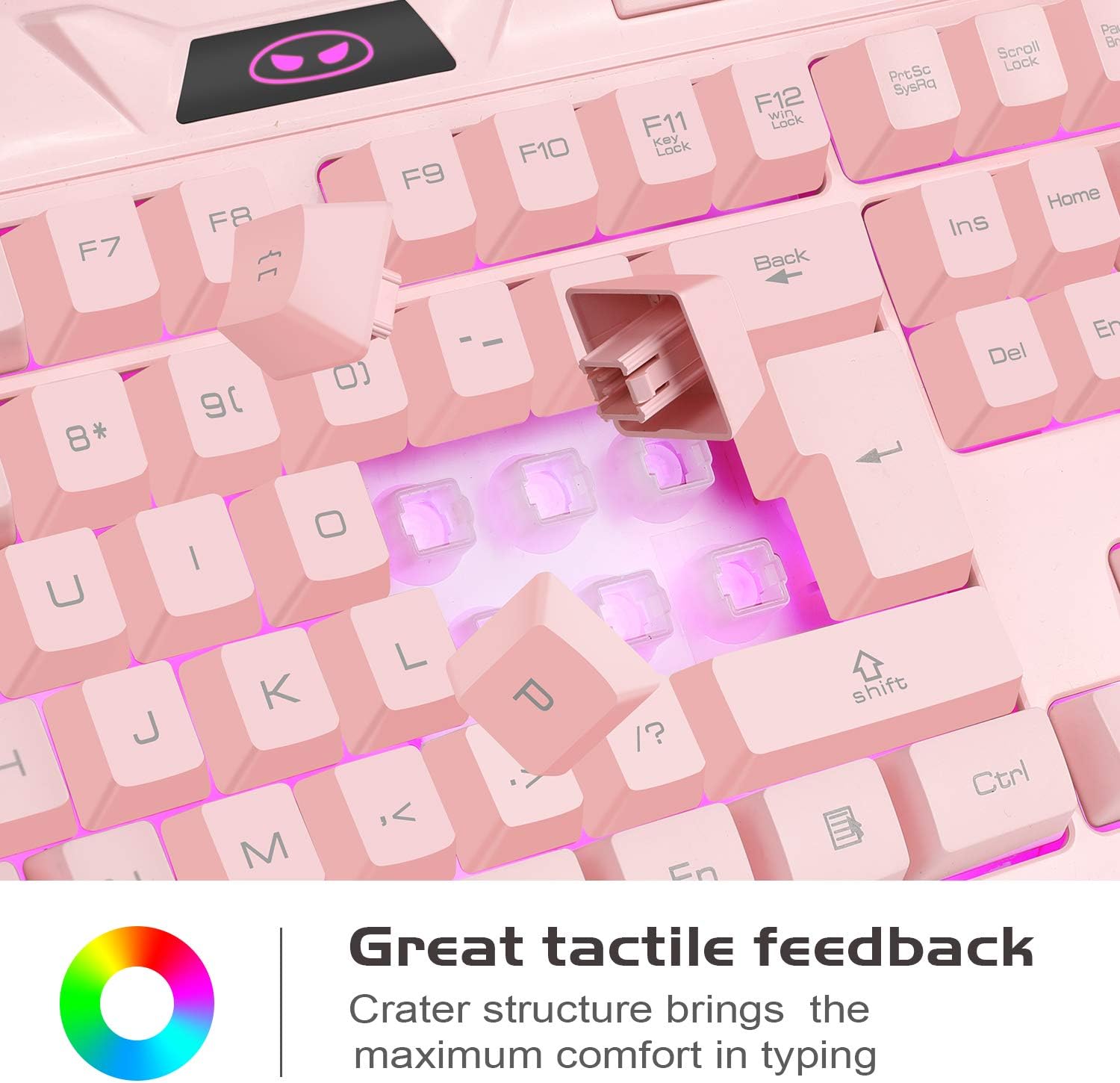

Imej: Dari dekat view of the keyboard's keycaps, illustrating the crater structure designed to provide enhanced tactile feedback during typing.
- Ergonomic Mouse Design: The mouse is contoured for a comfortable grip, reducing fatigue during prolonged use.
- Keserasian Luas: Compatible with a broad range of operating systems including Windows 98/2000/ME/XP/Vista/Win7/Win8 and Linux.
Penyelenggaraan
Membersihkan Papan Kekunci
Due to its waterproof and dust-resistant design, the keyboard is easy to clean and maintain.
- Putuskan sambungan papan kekunci daripada komputer anda sebelum membersihkan.
- Gunakan yang lembut, sedikit damp cloth to wipe down the keycaps and surface.
- For stubborn dirt, a small amount of mild soap can be used, ensuring no liquid enters the USB connector.
- Allow the keyboard to dry completely before reconnecting it to your computer.
Membersihkan Tetikus
- Putuskan sambungan tetikus dari komputer anda.
- Gunakan yang lembut, sedikit damp cloth to gently wipe the surface of the mouse.
- Elakkan menggunakan bahan kimia yang keras atau bahan yang melelas, kerana ini boleh merosakkan kemasan.
- Ensure the mouse is completely dry before reconnecting.
Menyelesaikan masalah
Papan Kekunci atau Tetikus Tidak Memberi Respons
- Pastikan kabel USB dipasang dengan kukuh ke port USB komputer.
- Cuba pasangkan peranti ke port USB yang berbeza pada komputer anda.
- Restart your computer to refresh the USB connections.
- Test the keyboard and mouse on another computer to determine if the issue is with the devices or your system.
Lampu Latar Tidak Berfungsi
- For the keyboard, ensure the backlight is not set to 'Off' mode by pressing Fn + ESC untuk mengitar melalui mod.
- For the mouse, the backlight is automatic and should be on when connected. If not, try reconnecting the mouse.
Keys Not Registering Correctly
- Ensure the WASD keys are not swapped with arrow keys (press Fn + W to toggle this function).
- Clean around the affected keys to remove any debris that might be obstructing key presses.
Spesifikasi
| Ciri | Perincian |
|---|---|
| Model | GK710 |
| Jenis Papan Kekunci | Membran |
| Bilangan Kunci | 104 |
| Anti-Ghosting | 19 keys (Q, A, Z, W, S, X, E, D, C, B, Space, Up, Down, Left, Right, Tab, Alt, Ctrl, Shift) |
| Kekunci Multimedia | 10 (Fn combinations) |
| Lampu latar keyboard | 7 single-color modes, adjustable brightness (Fn+ESC) |
| Tetapan DPI tetikus | 800 / 1200 / 2400 / 3200 DPI |
| Lampu Latar Tetikus | 7-color breathing light |
| Ketersambungan | USB 2.0 berwayar |
| Panjang Kabel | 180 sm (lebih kurang 5.9 kaki) |
| Vol Operasitage | 5V |
| Arus Operasi | 10 mAh |
| Keserasian | Linux, Win XP, Win 2000, Win Vista, Win7, Win8 |
| Dimensi Papan Kekunci | lebih kurang 460mm x 188.5mm x 28.5mm |
| Dimensi Tetikus | lebih kurang 120mm x 70mm x 41mm |
| Berat badan | 1.02 kg (combined package weight) |
Image: Technical diagram illustrating the precise dimensions of both the MageGee GK710 pink gaming keyboard and its accompanying mouse.
Waranti dan Sokongan
For any issues or questions regarding your MageGee GK710 Pink Gaming Keyboard and Mouse Combo, please contact our customer service team. We value your feedback and are committed to providing assistance.
Sila rujuk kepada dokumentasi pembelian anda atau peruncit weblaman web untuk terma jaminan khusus dan maklumat hubungan.
