ARRMA Limitless 6S BLX 4WD RC Roller Street Racer (ARA109011) Instruction Manual

1. Pengenalan

Welcome to the world of high-performance RC racing with your new ARRMA Limitless 6S BLX 4WD RC Roller Street Racer. This manual provides essential information for the setup, operation, maintenance, and troubleshooting of your vehicle. Please read it thoroughly before use to ensure safe and optimal performance.

2. Maklumat Keselamatan

AMARAN: Read the ENTIRE instruction manual to become familiar with the features of the product before operating. Failure to operate the product correctly can result in damage to the product, personal property, and cause serious injury. This is a sophisticated hobby product. It must be operated with caution and common sense and requires some basic mechanical ability. Failure to operate this Product in a safe and responsible manner could result in injury or damage to the product or other property. This product is not intended for use by children without direct adult supervision. Do not use with incompatible components or alter this product in any way outside of the instructions provided by Horizon Hobby, LLC. The product manual contains instructions for safety, operation, and maintenance. It is essential to read and follow all the instructions and warnings in the manual, prior to assembly, setup, or use, in order to operate correctly and avoid damage or serious injury.

• Always operate your RC vehicle in open areas away from people, pets, and obstacles.
• Never operate the vehicle near water unless it is specifically designed for aquatic use.
• Jauhkan tangan, muka dan pakaian yang longgar daripada bahagian yang bergerak.
• Always disconnect the battery when not in use and before performing maintenance.
• Pastikan semua komponen diikat dengan selamat sebelum beroperasi.

3. Apa yang ada di dalam Kotak

• 1:7 Scale ARRMA LIMITLESS RC Street Racer
• Trimmed and decaled body
• Manual Produk

4. Items Required for Operation

The ARRMA Limitless 6S BLX is a roller model, meaning certain electronic components are required to complete the vehicle and make it operational. These items are sold separately:

• Pemancar
• Penerima
• Servo Pemandu
• Kawalan Kelajuan Elektronik (ESC)
• Motor
• 2 x 2S or 3S LiPo Hardcase Batteries (IC5 or EC5 connector type recommended)
• LiPo Balancing Charger
• Charging Bag (for LiPo battery safety)

Image 1: Essential components required to complete the ARRMA Limitless 6S BLX RC Roller.

5. Ciri-ciri Utama

• Designed for extreme power and speed on various road conditions.
• Advanced aerodynamics with a tunable wing, full-width front splitter, and rear diffuser for enhanced downforce and grip.
• Robust 3mm anodized aluminum chassis with a center brace for durability.
• Heavy-duty 4X4 drivetrain with durable steel drive shafts and all-metal diff outdrives and gearbox internals.
• Equipped with dual XL battery trays for extended run times.
• Factory-finished body for immediate use.
• Big bore oil-filled shocks and black-anodized front and rear shock towers for superior handling.
• High-performance dBoots Hoons all-road tires for optimal traction.

Image 2: The ARRMA Limitless 6S BLX 4WD RC Roller Street Racer, showcasing reka bentuk aerodinamiknya.

Imej 3: View of the robust chassis and internal components of the ARRMA Limitless.

6. Panduan Persediaan

6.1. Installing Electronics

1. Pemasangan Motor: Securely mount your chosen brushless motor to the motor mount. Ensure proper gear mesh between the motor pinion and the spur gear. Refer to your motor's manual for specific mounting instructions.
2. Pemasangan ESC: Mount the Electronic Speed Control (ESC) in the designated area, typically near the center of the chassis. Use double-sided tape or screws as appropriate. Connect the ESC to the motor and ensure all wiring is tidy and secured away from moving parts.
3. Steering Servo Installation: Install the steering servo into the servo mount. Connect the servo horn to the steering linkage. Ensure the servo operates freely without binding.
4. Pemasangan Penerima: Mount the receiver in a protected location, typically in a receiver box to shield it from dirt and moisture. Connect the ESC, steering servo, and any other accessories to the appropriate channels on the receiver.
5. Pemasangan Bateri: Place your LiPo batteries into the dual XL battery trays. Secure them firmly using the provided straps to prevent movement during operation. Ensure the battery connectors match the ESC's connectors (IC5 or EC5 recommended).

6.2. Body Preparation and Mounting

The vehicle comes with a factory-finished body. You may need to trim the rear wing for optimal performance or adjust its angle. Use sharp hobby scissors for precise cuts.

Image 4: Adjusting the rear wing for aerodynamic tuning.

6.3. Pemeriksaan Awal

• Verify all screws and fasteners are tight.
• Check suspension travel and ensure shocks are properly filled and functioning.
• Confirm steering operates correctly and is centered.
• Ensure tires are securely mounted and inflated to the recommended pressure (if applicable).

7. Arahan Operasi

7.1. Pre-Run Checklist

• Pastikan bateri dicas sepenuhnya.
• Semak semua sambungan untuk keselamatan.
• Inspect tires for damage and proper seating.
• Verify steering and throttle response from the transmitter.

7.2. Driving Your RC Roller

The ARRMA Limitless is designed for high-speed street racing. Always operate in a safe, open environment free from pedestrians, vehicles, and other obstacles. Start with gentle throttle inputs to familiarize yourself with the vehicle's handling characteristics before attempting high-speed runs.

Image 5: The ARRMA Limitless in action, demonstrating its speed capabilities.

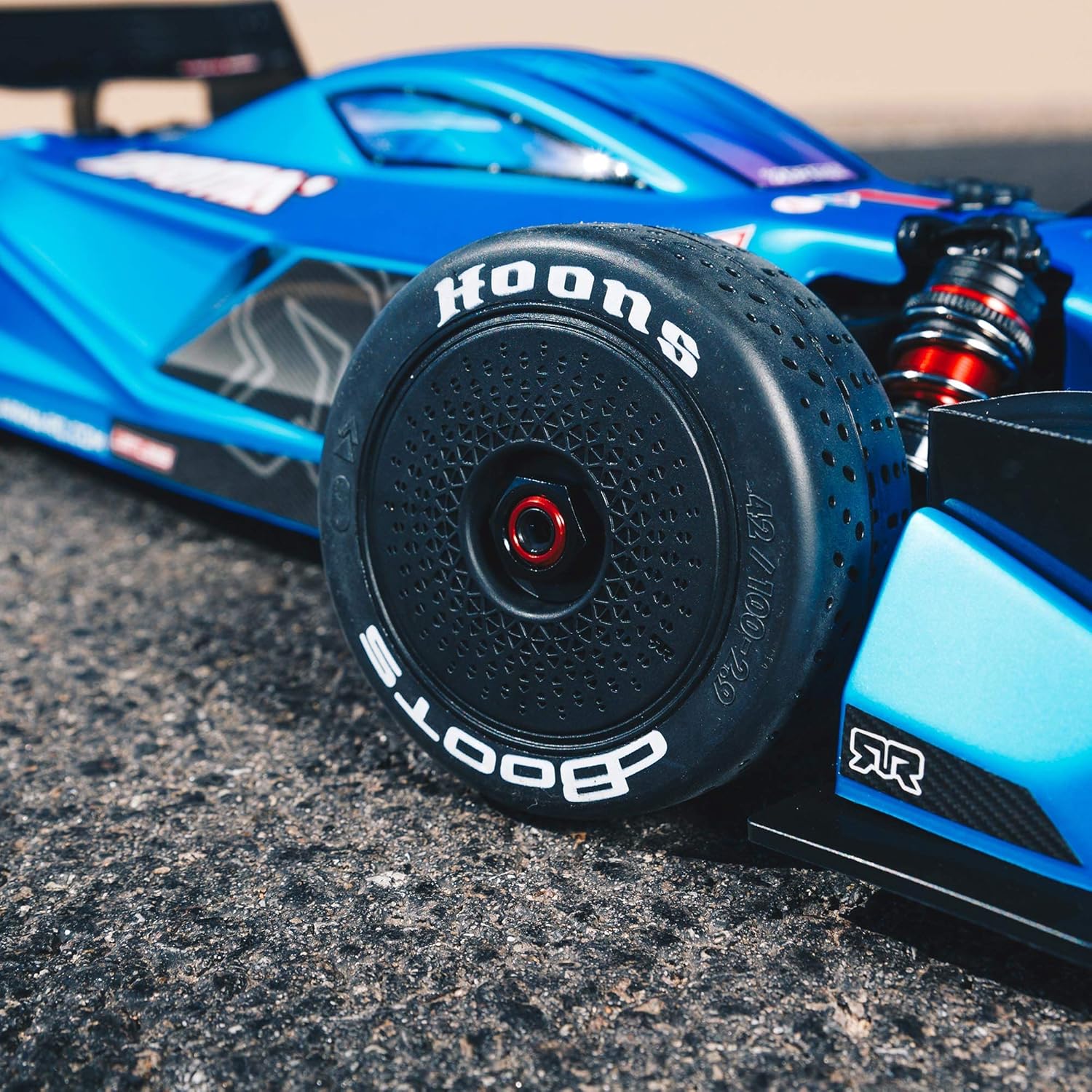

Imej 6: Terperinci view of the dBoots Hoons all-road tires, designed for high-speed grip.

7.3. Post-Run Procedures

• Disconnect and remove batteries from the vehicle.
• Allow the motor and ESC to cool down.
• Inspect the vehicle for any damage or loose parts.
• Clean the vehicle of any dirt or debris.

8. Penyelenggaraan

8.1. Pemeriksaan Berkala

• Chassis: Regularly inspect the aluminum chassis for bends or cracks.
• Kereta api: Check the steel drive shafts, diff outdrives, and gearbox internals for wear. Lubricate moving parts as needed.
• Kejutan: Inspect oil-filled shocks for leaks and ensure smooth operation. Refill or replace shock oil as necessary.
• Tayar: Check dBoots Hoons tires for wear, tears, and proper adhesion to the wheels.
• Pengikat: Periodically check all screws and nuts for tightness, especially after high-speed runs.

8.2. Pembersihan

Use a soft brush or compressed air to remove dirt and debris from the chassis, suspension, and electronics. Avoid using water directly on electronic components.

9. Penyelesaian masalah

10. Spesifikasi

11. Video Produk

12. Waranti dan Sokongan

For warranty information, technical support, or replacement parts, please contact Horizon Hobby, LLC, the manufacturer of your ARRMA Limitless 6S BLX RC Roller. Refer to the official Horizon Hobby website or the included product manual for detailed contact information and warranty terms.

It is crucial to register your product with Horizon Hobby to receive updates and support. Always use genuine ARRMA or Horizon Hobby approved replacement parts to maintain performance and warranty validity.
