FireAvert Gas Stove Auto Shut-Off Device (1/2" Pipe Line) User Manual

1. Pengenalan

The FireAvert Gas Stove Auto Shut-Off Device is designed to enhance kitchen safety by automatically stopping the flow of gas to your stove when a smoke alarm is detected. This system helps prevent kitchen fires caused by unattended cooking, offering an additional layer of protection for your home and family.

This manual provides detailed instructions for the proper installation, operation, and maintenance of your FireAvert device. Please read it thoroughly before installation and use.

Image showing a stove with a pan on fire, with text 'Roughly 1 in 23 occupied households have a cooking fire every year -NFPA' — Figure 1: Statistic highlighting the prevalence of cooking fires, emphasizing the need for safety devices like FireAvert.

Collage of people distracted while cooking, including someone on a phone, sleeping, and with a baby, with text 'It's easy to lose focus while cooking' — Figure 2: Visual representation of common distractions that can lead to unattended cooking and potential fires.

2. Maklumat Keselamatan

Professional Installation for Gas Lines: Installation of the gas solenoid valve must be performed by a qualified and licensed professional (e.g., plumber or gas technician) to ensure compliance with local codes and safety standards. Improper installation can lead to gas leaks, fire, explosion, or serious injury.
Keselamatan Elektrik: Ensure the electrical outlet behind your stove is properly grounded and in good working condition. Do not overload the circuit.
Smoke Detector Functionality: The FireAvert device relies on the audible signal from your existing smoke detector. Ensure your smoke detector is properly installed, maintained, and tested regularly according to the manufacturer's instructions.
Keadaan Persekitaran: Do not use FireAvert in excessively dusty, warm (above 90°F / 32°C), or humid (above 80%) environments.
Prosedur Kecemasan: Familiarize yourself with emergency procedures for gas leaks and fires. Know how to manually shut off your main gas supply.
Kanak-kanak dan Haiwan Kesayangan: Jauhkan peranti dan komponennya daripada kanak-kanak dan haiwan peliharaan.

3. Produk Lebihview

The FireAvert Gas Stove Auto Shut-Off Device consists of a control unit and a gas solenoid valve. The control unit monitors for smoke alarm sounds, and upon detection, signals the solenoid valve to cut off the gas supply to your stove.

FireAvert Gas Stove Auto Shut-Off Device components including the red control unit, gas solenoid valve, and packaging. — Figure 3: Main components of the FireAvert Gas Stove Auto Shut-Off Device.

Komponen:

Unit Kawalan: The red box with an electrical outlet, LED indicator, and microphone. This unit plugs into the wall outlet, and your stove plugs into it.
Injap Solenoid Gas: This valve is installed in your gas line and is controlled by the FireAvert unit to open or close the gas supply.
Penyesuai Kuasa: Connects the control unit to the solenoid valve.

Close-up of the FireAvert control unit and solenoid valve with labels pointing to the LED Indicator, Microphone, and Solenoid. — Rajah 4: Terperinci view of the FireAvert control unit and solenoid valve, highlighting key features.

4. Persediaan dan Pemasangan

Installation involves two main parts: the electrical connection of the control unit and the installation of the gas solenoid valve. The electrical connection can be done by the user, but gas line installation must be performed by a qualified professional.

4.1. Gas Solenoid Valve Installation (Professional Required)

Turn off Gas Supply: The professional will first turn off the main gas supply to the stove.
Install Solenoid Valve: The 1/2" gas solenoid valve will be installed in the gas line leading to your stove. This typically involves cutting the existing gas line and fitting the valve securely. Ensure all connections are leak-tested.
Sambungkan Penyesuai Kuasa: The power adapter from the FireAvert control unit will connect to the solenoid valve.
Restore Gas Supply: After successful installation and leak testing, the gas supply can be restored.

Penting: Do not attempt to install the gas solenoid valve yourself unless you are a qualified and licensed professional.

4.2. Electrical Connection and Syncing (User Installation)

Position the Stove: Carefully pull your gas stove away from the wall to access the electrical outlet.
Plug in FireAvert: Plug the FireAvert control unit into the 110V electrical outlet behind your stove. Ensure it fits securely. The unit is designed to fit in the space behind most stoves.

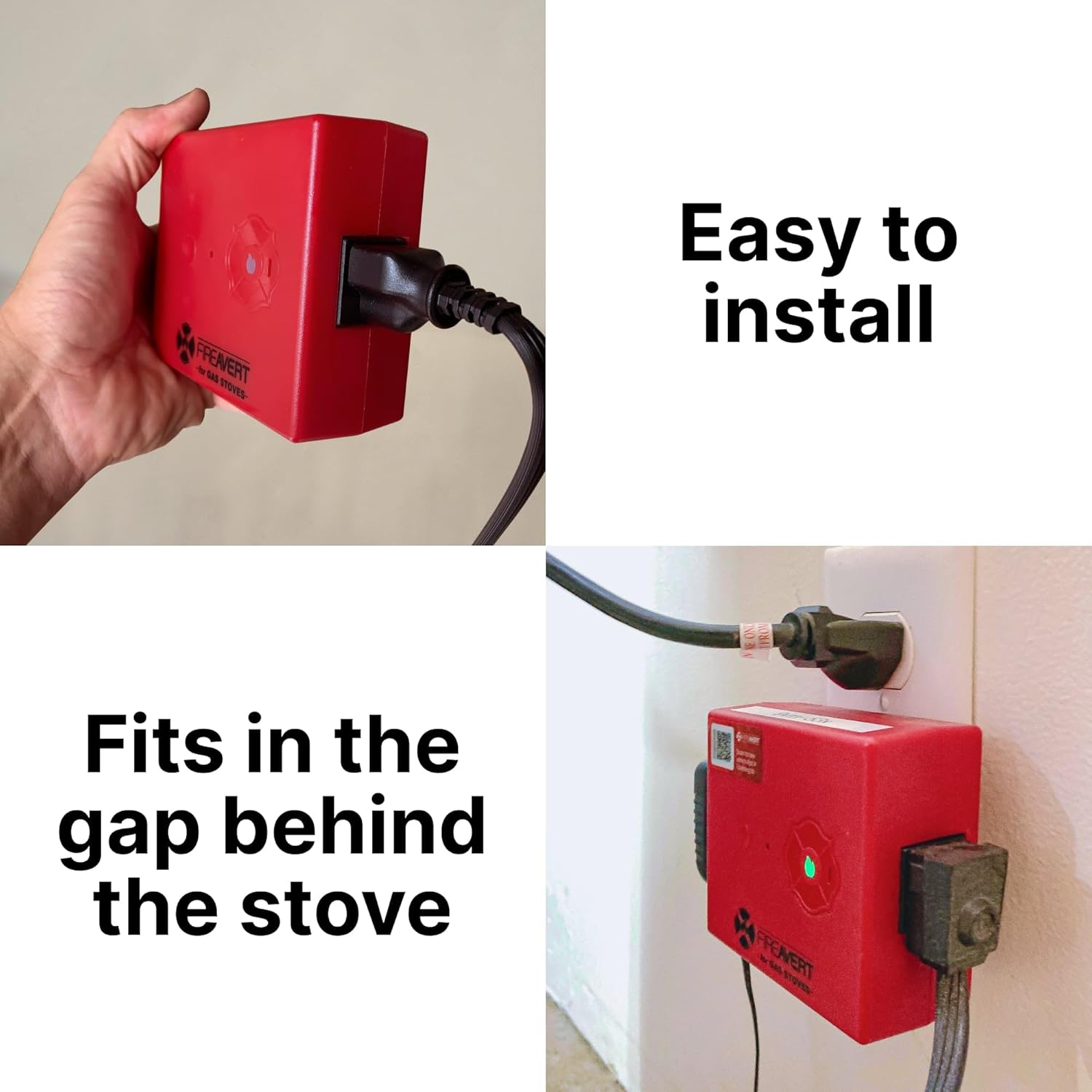

A hand plugging the FireAvert control unit into a wall outlet. — Figure 5: Plugging the FireAvert control unit into the wall outlet.

Connect Stove to FireAvert: Plug your gas stove's power cord into the outlet on the FireAvert control unit.

The FireAvert control unit plugged into a wall outlet with the stove's power cord plugged into the FireAvert unit, positioned behind the stove. — Figure 6: FireAvert unit installed behind the stove, connecting the stove to power.

Sync with Smoke Detector:
- Locate the "Sync" button on the FireAvert control unit.
- Press and hold the "Sync" button. The LED indicator will change color or flash to indicate syncing mode.
- While holding the "Sync" button, activate your smoke detector's test button. The FireAvert unit will listen for the smoke alarm's sound signature.
- Once synced, the LED indicator will confirm successful pairing (e.g., solid green light). Release the "Sync" button.
Kefungsian Ujian: After syncing, test the system by activating your smoke detector. The FireAvert should detect the alarm and shut off the gas supply to your stove. The stove will no longer receive gas.

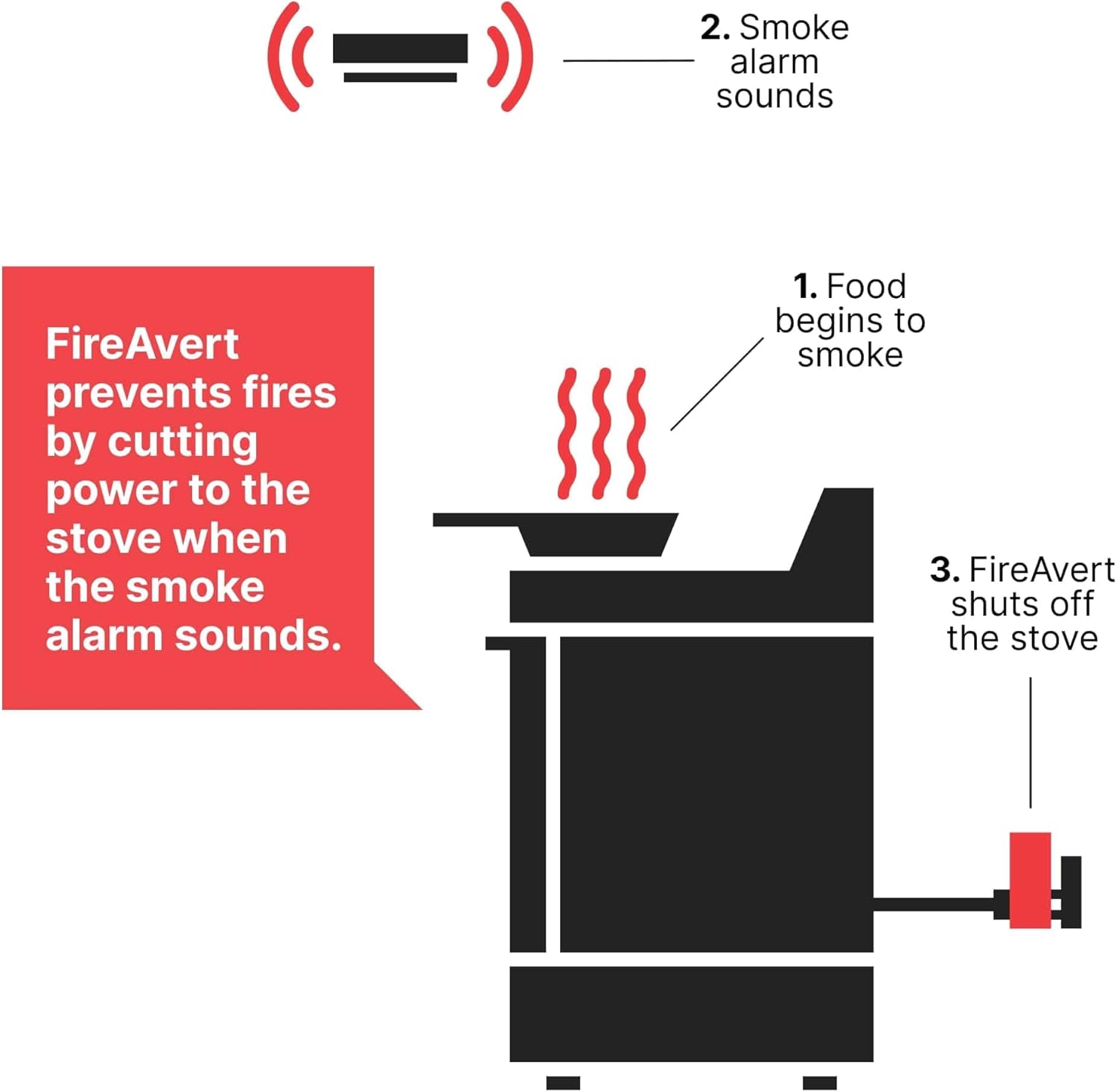

Diagram illustrating the FireAvert operation: 1. Food begins to smoke, 2. Smoke alarm sounds, 3. FireAvert shuts off the stove. — Figure 7: Operational flow of the FireAvert system from smoke detection to gas shut-off.

Push Stove Back: Carefully push your stove back into its original position, ensuring no wires or gas lines are pinched.

5. Arahan Operasi

Once installed and synced, the FireAvert device operates automatically:

Automatic Gas Shut-Off: When your smoke detector sounds an alarm, the FireAvert control unit's microphone detects the specific sound signature.
Gas Flow Interruption: Upon detection, the FireAvert sends a signal to the gas solenoid valve, causing it to close and immediately stop the flow of gas to your stove.
Penunjuk Visual: The LED indicator on the control unit will change to indicate an alarm state (e.g., flashing red).
Menetapkan semula Peranti: After the smoke alarm has ceased and the situation is resolved, you can reset the FireAvert device. Press the reset button on the control unit. This will reopen the gas solenoid valve, restoring gas flow to your stove.

6. Penyelenggaraan

Ujian Biasa: Test your FireAvert device monthly by activating your smoke detector. Ensure the gas flow to your stove is interrupted.
Smoke Detector Maintenance: Follow your smoke detector manufacturer's guidelines for testing and battery replacement.
Pembersihan: Keep the FireAvert control unit clean and free from dust. Use a soft, dry cloth. Do not use liquid cleaners.
Pemeriksaan Alam Sekitar: Periodically check that the device is not exposed to excessive heat, humidity, or dust, which can affect its performance.

7. Penyelesaian masalah

Masalah	Kemungkinan Punca	Penyelesaian
FireAvert does not shut off gas when smoke alarm sounds.	Not properly synced. Smoke detector not functioning. Microphone obstructed or too far from smoke detector.	Re-sync the device with your smoke detector (refer to Section 4.2). Test your smoke detector. Replace batteries or the unit if necessary. Ensure the FireAvert unit is within audible range of the smoke detector and its microphone is clear.
Gas flow is off, but no smoke alarm sounded.	False alarm from smoke detector. External loud noise mimicking alarm. Gangguan kuasa.	Reset the FireAvert device. Consider replacing an older smoke detector prone to false alarms with an optical type, especially in kitchen areas. Check power connection to the FireAvert unit.
FireAvert unit does not fit behind the stove.	Limited clearance behind the stove or unusual outlet placement.	Ensure the unit is oriented correctly. If clearance is insufficient, a specialized extension cord or adapter may be required (contact FireAvert support for recommendations).
LED indicator is not lit or flashing as expected.	Tiada kuasa kepada unit. Unit rosak.	Check the wall outlet and ensure the FireAvert is securely plugged in. Contact FireAvert customer support.

8. Spesifikasi

Ciri	Perincian
Nombor Model	FireAvert-CA
Jenama	FireAvert
Gaya	Gas Connection (1/2" Pipe Line)
warna	merah
Berat Barang	2.22 Paun (lebih kurang 1.01 kg)
Dimensi Produk	0.39 x 0.39 x 0.39 inci (lebih kurang 1 x 1 x 1 cm) - Note: This dimension seems incorrect based on product images, likely refers to packaging or internal component. Actual unit is approx. 3.75 x 3 x 3.75 inches.
Jenis Penggera	Audible (sound isolation sensor)
Kelembapan Operasi	Sehingga 80% (tidak pemeluwapan)
Penarafan Suhu Atas	90 Darjah Celsius (194 Darjah Fahrenheit)
UPC	860001648225
Bateri Diperlukan	Tidak

9. Waranti dan Sokongan

For warranty information, technical support, or assistance with installation, please contact FireAvert customer service.

Webtapak: www.fireavert.com
telefon: 800-877-0870

Please have your model number (FireAvert-CA) and purchase date available when contacting support.
