VINGLI Portable Collapsible Utility Wagon Instruction Manual

1. Pengenalan

Thank you for choosing the VINGLI Portable Collapsible Utility Wagon. This manual provides essential information for the safe and efficient setup, operation, and maintenance of your new utility wagon. Please read these instructions carefully before use and retain them for future reference.

2. Maklumat Keselamatan

Sentiasa patuhi langkah keselamatan berikut untuk mengelakkan kecederaan atau kerosakan pada produk:

• Jangan melebihi kapasiti berat maksimum 150 lbs (68 kg).
• Ensure all wheels are securely attached and brakes are engaged when stationary.
• Do not allow children to play in or around the wagon unsupervised.
• Avoid sharp objects that could puncture or tear the fabric.
• Distribute weight evenly within the wagon to maintain stability.
• Periksa semua skru dan sambungan secara berkala untuk memastikan ia ketat.

3. Arahan Persediaan

3.1. Unfolding the Wagon

1. Remove the wagon from its packaging. It will arrive in a compact, folded state.
2. Gently pull the sides of the wagon outwards until the frame extends fully.
3. Press down firmly on the center base of the wagon until it locks into place, creating a flat bottom.

3.2. Memasang Roda

The wheels are designed for easy, tool-free attachment:

1. Locate the four wheels and the corresponding slots on the wagon's frame.
2. Align each wheel with its slot and push firmly until it clicks securely into place.
3. Ensure all wheels are properly seated and can rotate freely.

3.3. Attaching the Handle

1. Insert the handle into the designated receiver on the front of the wagon frame.
2. Push down until it locks into place.

4. Arahan Operasi

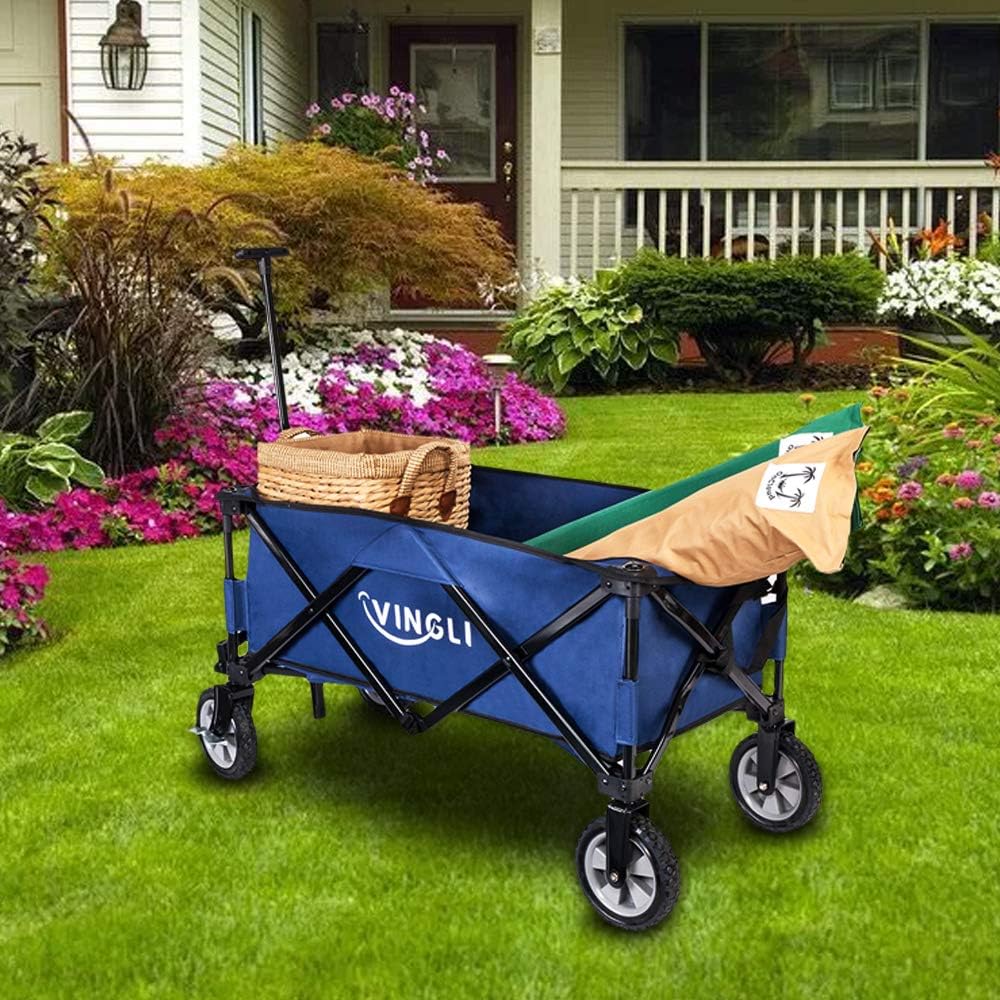

4.1. Melaraskan Pemegang

The pulling handle is telescopic and adjustable to suit your preferred height. To adjust, locate the adjustment mechanism on the handle shaft, press the button or lever, and extend or retract the handle to the desired length (20" to 30"). Release the mechanism to lock it in place.

4.2. Using the Wheels and Brakes

The wagon features heavy-duty rubber wheels that rotate 360 degrees for easy maneuvering. The front wheels are equipped with brakes. To engage a brake, press down on the 'LOCK' lever located near the wheel. To disengage, press the 'UNLOCK' lever.

4.3. Memuatkan Gerabak

The heavy-duty frame supports loads up to 150 lbs. Distribute items evenly to maintain balance and prevent tipping. The spacious interior is suitable for various items.

4.4. Lipat untuk Penyimpanan

To fold the wagon for compact storage, pull up on the fabric tab located in the center of the wagon's base. The sides will collapse inwards. Secure the folded wagon with the integrated carry straps if available.

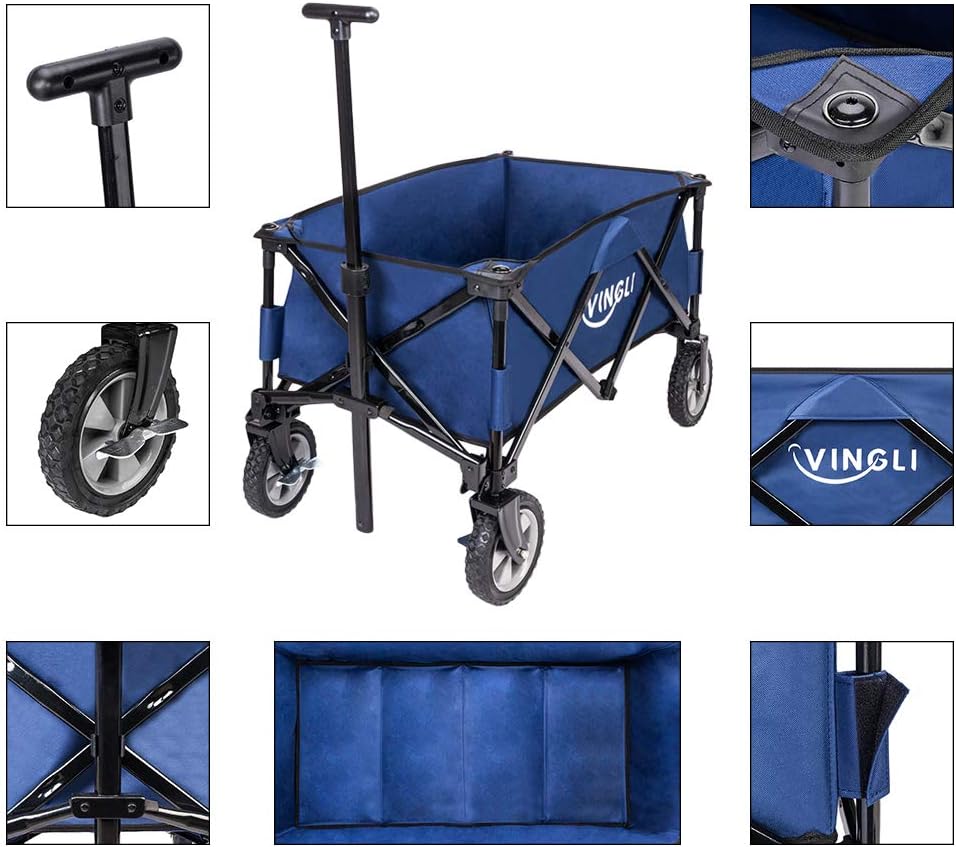

5. Ciri-ciri Produk

• Pemegang boleh laras: Telescopic handle with adjustable length from 20" to 30" for comfortable pulling.
• 360-Degree Wheels: Heavy-duty, durable rubber wheels rotate 360 degrees for easy maneuvering.
• Storan Padat: Folds to approximately 29.5" x 19" x 8" for convenient storage in small spaces.
• Pengangkutan Mudah: Designed for quick setup and folding, ideal for various outdoor and household tasks.
• Pembinaan Tahan Lama: Features a heavy-duty alloy steel frame and durable 600D polyester fabric.
• Kapasiti Tinggi: Supports loads up to 150 lbs.
• Poket Mesh: Includes mesh pockets for additional storage of smaller items.

6. Penyelenggaraan

6.1. Pembersihan

The durable canvas fabric on the wagon can be removed for cleaning. Hand wash with mild soap and water, then air dry. Do not use harsh chemicals or abrasive cleaners.

6.2. Penjagaan Am

Regularly check the wagon's frame and wheel connections. Screws may loosen over time and need to be tightened to ensure continued stability and safe operation.

7. Penyelesaian masalah

• Gerabak tidak boleh dibuka/dilipat dengan lancar: Ensure the center base is fully pushed down/pulled up. Check for any obstructions in the folding mechanism.
• Roda tidak berputar dengan bebas: Check for debris caught in the wheel axles. Ensure wheels are securely attached and not bent.
• Gerabak tidak stabil: Verify that the load is evenly distributed and does not exceed the maximum weight capacity. Check all frame connections for tightness.

8. Spesifikasi

9. Waranti dan Sokongan

For warranty information or customer support, please refer to the product packaging or contact VINGLI customer service directly. Keep your purchase receipt as proof of purchase.
