Relaxdays Chrome Laundry Storage Shelf (Model B07M5F4B37) Instruction Manual

pengenalan

This manual provides instructions for the assembly, use, and maintenance of your Relaxdays Chrome Laundry Storage Shelf. Please read these instructions carefully before assembly and retain them for future reference.

The Relaxdays Laundry Storage Shelf is designed to provide additional storage space above washing machines, dryers, or toilets. It features three shelves for organizing detergents, cleaning supplies, toiletries, and other items. Its compact design is suitable for various bathroom sizes.

Maklumat Keselamatan Penting

• Pastikan semua bahagian ada dan tidak rosak sebelum dipasang.
• Pasang unit pada permukaan yang lembut dan bersih untuk mengelakkan calar.
• Jangan melebihi kapasiti beban maksimum 15 kg.
• Agihkan berat secara merata ke seluruh rak.
• Jauhkan bahagian kecil daripada kanak-kanak semasa pemasangan.
• Periksa semua sambungan secara berkala untuk memastikan ia kekal ketat.
• Do not climb on the shelf or allow children to play on or around it.

Kandungan Pakej

Before beginning assembly, verify that all components are included:

• Shelf frame components (vertical poles, horizontal bars)
• 3 Shelf grids
• Assembly hardware (screws, connectors, feet)
• Manual arahan (dokumen ini)

Note: Decorative items shown in product pictures are not included.

Arahan Perhimpunan

Please follow these steps carefully for proper assembly. It is recommended to assemble the unit with two people.

Step 1: Identify Components and Dimensions

Familiarize yourself with the various parts and the overall dimensions of the shelf. This will help in understanding the assembly process and ensuring the shelf fits your intended space.

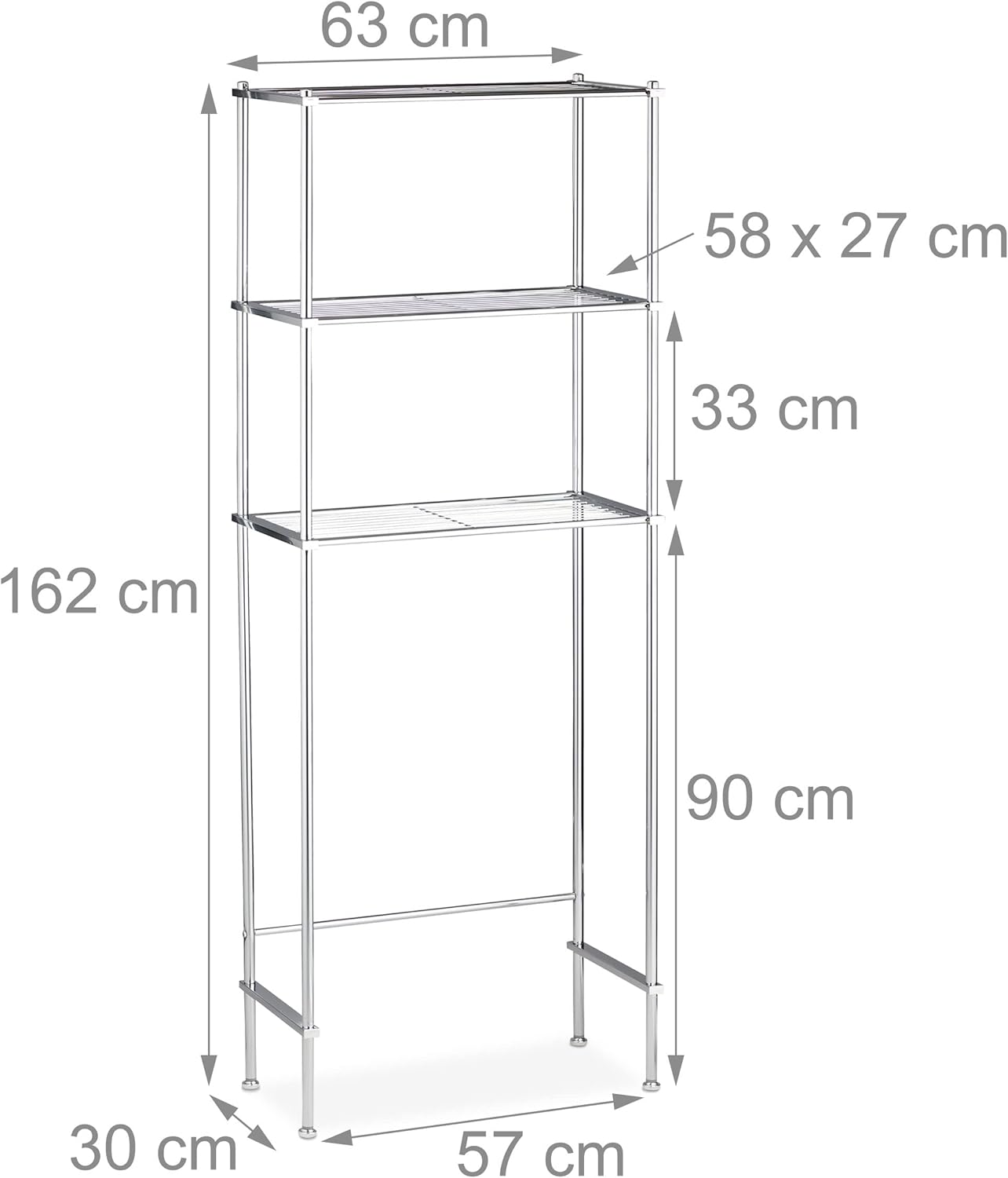

Image: Detailed dimensions of the laundry storage shelf, including overall height, width, depth, and individual shelf measurements.

The shelf measures approximately 162 cm (H) x 63 cm (W) x 30 cm (D). Each shelf is approximately 58 cm (W) x 27 cm (D). The lower shelf is positioned approximately 90 cm from the floor, providing clearance for most washing machines or toilets.

Langkah 2: Pasang Bingkai Asas

1. Attach the adjustable feet to the bottom of the four vertical support poles. Ensure they are securely tightened.

Imej: Jarak dekat view of an adjustable foot, demonstrating how it connects to the vertical pole.

2. Connect the lower horizontal bars to the vertical poles to form the base structure. Use the provided screws and connectors, tightening them firmly but not excessively.

Langkah 3: Pasang Rak

1. Slide the shelf grids into the designated slots on the vertical poles. Ensure each shelf is level and securely seated.

Image: Detail of a shelf corner, illustrating the connection point between the shelf grid and the frame.

2. Repeat for all three shelves, ensuring they are evenly spaced as per the design. The lowest shelf should be approximately 90 cm from the floor.

Langkah 4: Semakan Akhir

Once all components are assembled, gently shake the unit to ensure stability. Adjust the feet if necessary to level the shelf on uneven floors. Place the shelf in its desired location, typically over a washing machine, dryer, or toilet.

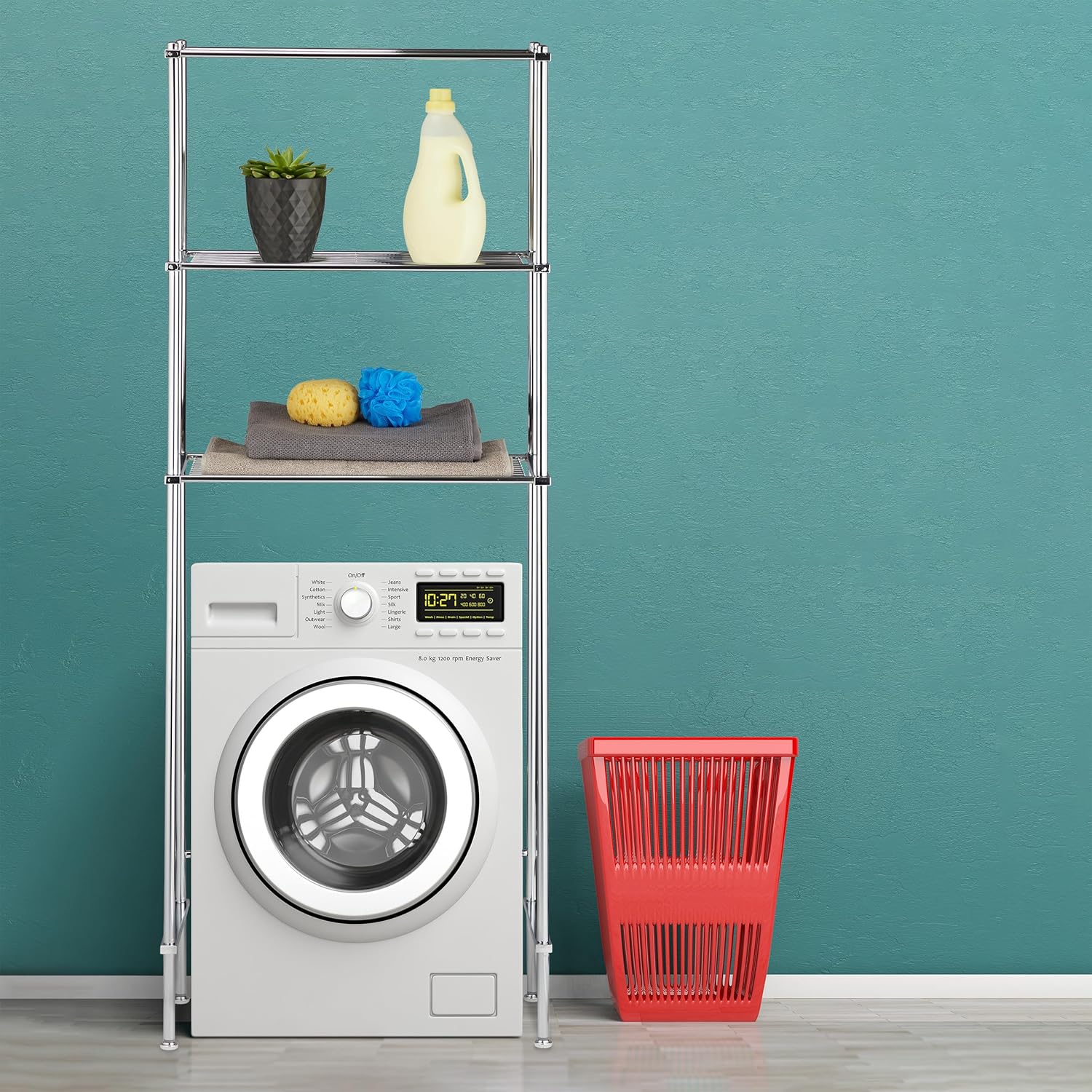

Image: The fully assembled Relaxdays Laundry Storage Shelf positioned above a washing machine, showcasing its intended use and storage capacity.

Garis Panduan Penggunaan

The Relaxdays Laundry Storage Shelf is designed for convenient storage in your laundry room or bathroom.

• penempatan: Position the shelf over your washing machine, dryer, or toilet. Ensure there is adequate clearance for opening appliance doors or accessing the toilet.
• Storan: Utilize the three shelves to store laundry detergents, fabric softeners, cleaning supplies, towels, toiletries, or decorative items.
• Pengagihan Berat: Distribute items evenly across the shelves. Avoid placing heavy objects on only one side or concentrating weight in a single area.
• Beban Maksimum: Do not exceed the maximum recommended load capacity of 15 kg for the entire unit.

Penjagaan dan Penyelenggaraan

To ensure the longevity and appearance of your Relaxdays Laundry Storage Shelf, follow these care instructions:

• Pembersihan: Wipe the chrome finish with a dry, soft cloth. For stubborn marks, a slightly damp kain boleh digunakan, diikuti dengan segera dengan kain kering untuk mengelakkan tompokan air.
• Elakkan Bahan Kimia Keras: Do not use abrasive cleaners, scouring pads, or harsh chemical detergents, as these can damage the chrome finish.
• Pemeriksaan biasa: Periksa semua skru dan sambungan secara berkala untuk memastikan ia kekal ketat. Ketatkan semula jika perlu.
• Persekitaran: While designed for bathroom environments, avoid prolonged exposure to excessive moisture or direct water spray to maintain the finish.

Menyelesaikan masalah

Spesifikasi Produk

Waranti dan Sokongan

For any questions regarding assembly, missing parts, or product functionality, please contact Relaxdays customer support. Please have your model number (B07M5F4B37) ready when contacting support.

Specific warranty details may vary by region and retailer. Please refer to your purchase documentation for warranty information.
