pengenalan
Thank you for choosing the Fimer X 176 Inverter 160 Amp Welding Machine. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new welding equipment. Please read this manual thoroughly before operating the machine and keep it for future reference.
Maklumat Keselamatan
Welding can be dangerous. Always follow safety precautions to prevent injury or damage. This section outlines critical safety guidelines.
- Kejutan elektrik: Can kill. Ensure proper grounding. Do not touch live electrical parts. Wear dry insulating gloves.
- Asap dan Gas: Boleh membahayakan kesihatan anda. Jauhkan kepala anda daripada asap. Gunakan pengudaraan atau ekzos untuk mengeluarkan asap dari zon pernafasan.
- Sinar Arka: Can burn eyes and skin. Wear a welding helmet with a proper shade filter. Wear appropriate protective clothing.
- Kebakaran dan Letupan: Percikan api kimpalan boleh menyebabkan kebakaran atau letupan. Jauhkan bahan mudah terbakar dari kawasan kimpalan. Sediakan alat pemadam api yang sedia ada.
- Bahagian Panas: Boleh menyebabkan melecur teruk. Biarkan peralatan sejuk sebelum disentuh.
- Perentak jantung: Magnetic fields from high currents can affect pacemakers. Consult your doctor before welding.
Kandungan Pakej
Upon unpacking, verify that all items are present and undamaged. If any items are missing or damaged, contact your supplier immediately.
- Fimer X 176 Inverter 160 Amp Mesin Kimpalan
- Pemegang Elektrod dengan Kabel
- Tanah Clamp dengan Kabel
- Shoulder Strap (for portable use)
- Manual Pengguna
Persediaan
Proper setup is crucial for safe and effective welding. Follow these steps carefully.
- Sambungan Kuasa: Ensure the welding machine is switched off. Connect the power cord to a suitable power outlet. The Fimer X 176 typically operates on a standard single-phase power supply. Verify the voltage and current rating of your outlet matches the machine's requirements.
- Tanah Clamp Sambungan: Sambungkan tanah clamp cable to the negative (-) terminal on the front panel of the welding machine. Securely attach the ground clamp to the workpiece or a sturdy metal workbench that is in direct electrical contact with the workpiece. A good ground connection is essential for stable arc and safety.
- Sambungan Pemegang Elektrod: Connect the electrode holder cable to the positive (+) terminal on the front panel of the welding machine. Insert the desired electrode into the electrode holder, ensuring it is firmly gripped.
- Penyediaan Kawasan Kerja: Clear the welding area of any flammable materials. Ensure adequate ventilation. Wear all necessary Personal Protective Equipment (PPE), including a welding helmet, gloves, and protective clothing.

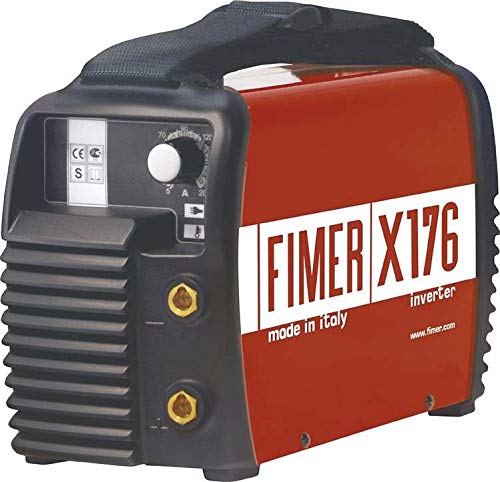

Rajah 1: The Fimer X 176 Inverter 160 Amp Welding Machine. This image shows the compact design of the inverter welder, with the front panel visible, indicating where the electrode holder and ground clamp cables connect. The machine is designed for portability, as suggested by its 'Çanta' (bag/portable) designation.
Arahan Operasi
This section guides you through the basic operation of the Fimer X 176 welding machine for Stick (MMA) welding.
- Hidupkan kuasa: Switch the welding machine on using the power switch, usually located on the rear panel. The indicator light on the front panel should illuminate.
- Tetapkan Arus Kimpalan: Use the current adjustment knob on the front panel to set the desired welding amperage. The appropriate current depends on the electrode diameter and the material thickness. Refer to the electrode manufacturer's recommendations.
- Sediakan Bahan Kerja: Ensure the workpiece is clean and free of rust, paint, or grease. A clean surface promotes a stable arc and quality weld.
- Pukul Lengkungan: With your welding helmet down, gently scratch the electrode tip against the workpiece like striking a match. Once the arc is established, lift the electrode slightly to maintain the arc length. Avoid sticking the electrode. If it sticks, quickly twist it free or release the electrode from the holder.
- Kekalkan Panjang Arka dan Kelajuan Perjalanan: Maintain a consistent arc length (typically equal to the electrode diameter) and a steady travel speed. Observe the molten puddle and adjust your technique to achieve a uniform bead.
- Kimpalan Selesai: To stop welding, simply pull the electrode away from the workpiece. Allow the weld to cool before handling.
- Matikan: After completing your work, switch off the welding machine and disconnect it from the power supply.
Penyelenggaraan
Regular maintenance ensures the longevity and optimal performance of your Fimer X 176 welding machine.
- Pembersihan: Periodically clean the machine's exterior with a dry, soft cloth. Use compressed air to blow out dust and metal particles from the ventilation openings. Ensure the machine is disconnected from power before cleaning.
- Pemeriksaan Kabel: Regularly inspect all cables (power, electrode, ground) for cuts, cracks, or damaged insulation. Replace damaged cables immediately to prevent electric shock and ensure proper current flow.
- Pemeriksaan Terminal: Check the electrode holder and ground clamp connections for tightness and corrosion. Clean any corrosion to ensure good electrical contact.
- Storan: Store the welding machine in a clean, dry, and well-ventilated area, away from direct sunlight, moisture, and corrosive substances.
Menyelesaikan masalah
This section provides solutions to common issues you might encounter during operation. For problems not listed here, contact qualified service personnel.
| Masalah | Kemungkinan Punca | Penyelesaian |
|---|---|---|
| Mesin tidak dihidupkan. | No power supply; Power switch off; Internal fuse blown. | Check power cord and outlet; Turn on power switch; Contact service for fuse replacement. |
| Tiada lengkungan atau lengkungan lemah. | Poor ground connection; Incorrect current setting; Damp or old electrodes; Damaged cables. | Ensure good ground contact; Adjust current; Use dry electrodes; Inspect and replace cables. |
| Elektrod kerap melekat. | Low current setting; Incorrect arc length; Improper electrode angle. | Increase current; Maintain proper arc length; Adjust electrode angle. |
| Overheat indicator light on. | Exceeded duty cycle; Blocked ventilation. | Allow machine to cool down; Clear ventilation openings. |
Spesifikasi
The following are general technical specifications for the Fimer X 176 Inverter 160 Amp Welding Machine. Specifications are subject to change without notice.
- model: Fimer X 176
- Input Voltage: 230V AC, 50/60 Hz (Single Phase)
- Input Semasa: Approximately 20-25A (at max output)
- Julat arus keluaran: 20 - 160 Amps
- Kitaran Tugas: 60% di 160 Amps (This means it can weld at 160A for 6 minutes out of every 10-minute period)
- Electrode Diameter: 1.6 - 4.0 mm
- Kelas Perlindungan: IP21S
- Kelas Penebat: H
- Berat: Approximately 4-6 kg (portable design)
- ASIN: B07KF5SMDW
- Tarikh Pertama Tersedia: 6 Disember 2018
Waranti dan Sokongan
Fimer products are manufactured to high-quality standards. This product comes with a standard manufacturer's warranty against defects in materials and workmanship. The specific terms and duration of the warranty may vary by region and retailer. Please retain your proof of purchase for warranty claims.
For technical support, service, or warranty inquiries, please contact your authorized Fimer dealer or visit the official Fimer webtapak untuk maklumat hubungan.
