Cameron Sino 2600mAh Replacement Battery User Manual

1. Pengenalan

This manual provides essential instructions for the safe and effective use of your Cameron Sino 2600mAh Replacement Battery. Please read this manual thoroughly before installation and operation to ensure optimal performance and longevity of your battery.

This Lithium-Ion battery is designed as a direct replacement for various Brother devices, offering a capacity of 2600mAh and a voltage daripada 14.4V.

Imej: Atas view of the Cameron Sino 2600mAh Replacement Battery, showing its compact design.

2. Keserasian

This Cameron Sino replacement battery is compatible with the following Brother device models and original battery part numbers:

Compatible Brother Device Models:

• Abang TD-2120N
• Brother P touch P 950 NW RuggedJet RJ 4030
• Brother RJ 4040 TD 2130 NHC
• Brother PA-BB-001
• Abang TD-2130N
• Brother TD-2130NSA
• Brother RuggedJet RJ4030-K
• Brother RuggedJet RJ4040-K
• Brother RJ4030
• Brother RJ4040
• Brother PTP900W
• Brother PTP950NW
• Brother PT-E800T/TK
• Brother PT-E850TKW
• Abang PT-P900W
• Abang PT-P950NW
• Brother PT-D800W
• Brother PA-BB-002

Original Battery Part Numbers:

• Brother PA-BT-4000LI
• Brother LBC4090002
• Brother LBF3250001
• Brother HP25B
• Brother LBD709-001

Important: Please ensure both the model and battery part number are matched with your device before purchasing and installation.

3. Persediaan dan Pemasangan

Follow these general steps to install your new replacement battery. Refer to your device's original manual for specific battery compartment access instructions.

1. Matikan Peranti: Ensure your Brother device is completely powered off and disconnected from any power source.
2. Cari Petak Bateri: Identify and open the battery compartment on your device. This may involve removing a cover or panel.
3. Keluarkan Bateri Lama: Carefully remove the old battery. Note its orientation for correct installation of the new battery.
4. Masukkan Bateri Baharu: Insert the Cameron Sino replacement battery into the compartment, ensuring it is correctly oriented and securely seated. Do not force the battery into place.
5. Petak Selamat: Tutup dan pasangkan penutup petak bateri.
6. Caj Permulaan: Adalah disyorkan untuk mengecas sepenuhnya bateri baharu sebelum penggunaannya yang pertama.

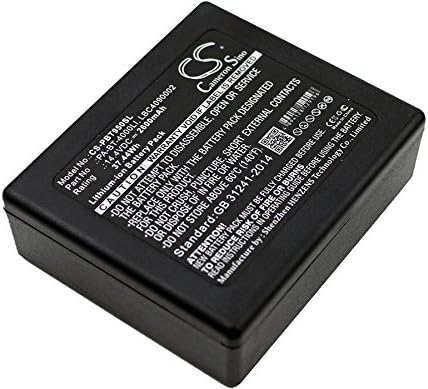

Imej: Bersudut view of the Cameron Sino 2600mAh Replacement Battery, highlighting its label and connectors.

4. Arahan Operasi

Mengecas Bateri:

• Use only the charger supplied with your Brother device or a compatible charger.
• Connect the device to the charger and a power outlet.
• The charging indicator on your device will typically show when the battery is charging and when it is fully charged.
• Avoid overcharging the battery by disconnecting the charger once it is full, especially for prolonged periods.

Penggunaan Umum:

• Untuk jangka hayat bateri yang optimum, elakkan daripada kerap menghabiskan bateri sepenuhnya.
• If the device will not be used for an extended period, store the battery with approximately 50% charge.
• Operating the device in extremely hot or cold environments can affect battery performance and lifespan.

5. Penyelenggaraan

Proper maintenance can extend the life of your battery:

• Storan: Simpan bateri di tempat yang sejuk dan kering jauh dari cahaya matahari langsung dan suhu yang melampau.
• Suhu: Avoid exposing the battery to temperatures above 60°C (140°F) or below 0°C (32°F).
• Pembersihan: Keep battery contacts clean and free from dust or debris. Use a dry, soft cloth for cleaning.
• Pelupusan: Do not dispose of batteries in household waste. Follow local regulations for proper disposal of Lithium-Ion batteries.

6. Penyelesaian masalah

Jika anda menghadapi masalah dengan bateri anda, pertimbangkan perkara berikut:

• Bateri Tidak Dicas:
  • Ensure the charger is properly connected to both the device and a working power outlet.
  • Verify that the battery is correctly seated in the device's compartment.
  • Check if the charger or charging cable is damaged.
• Hayat Bateri Pendek:
  • Pastikan bateri telah dicas sepenuhnya.
  • Reduce power consumption by adjusting device settings (e.g., screen brightness, Wi-Fi/Bluetooth usage).
  • Extreme temperatures can reduce battery performance.
• Peranti Tidak Dihidupkan:
  • Confirm the battery is fully charged and correctly installed.
  • Attempt to power on the device while connected to its charger.

If problems persist, consult your device's original manual or contact customer support.

7. Spesifikasi

8. Waranti dan Sokongan

Your Cameron Sino replacement battery comes with the following:

• Jaminan Wang Dikembalikan 14 Hari: If you are not satisfied with your purchase within 14 days, you may be eligible for a refund.
• 12-Months Warranty: The battery is covered by a 12-month warranty against manufacturing defects.

For warranty claims, technical support, or any inquiries, please contact the seller or Cameron Sino customer service directly. Please have your purchase details ready when contacting support.
