pengenalan
Thank you for choosing the Peski Wired Dynamic Karaoke Microphone. This manual provides essential information for the proper setup, operation, and maintenance of your microphone. Please read these instructions carefully before use to ensure optimal performance and longevity of your device.
Kandungan Pakej
Sila sahkan bahawa semua item yang disenaraikan di bawah disertakan dalam pakej anda:
- Peski Wired Dynamic Microphone
- 13ft (4m) XLR to 1/4" Audio Cable
- Mic Windscreen (Foam)
- Protective Holder
- Manual Pengguna (dokumen ini)
Rajah 1: Kandungan Pakej. This image displays all components included in the Peski Wired Dynamic Karaoke Microphone package, including the microphone, cable, windscreen, holder, and the product box.
Produk Selesaiview
The Peski Wired Dynamic Karaoke Microphone is designed for clear vocal sound reproduction. It features a durable full-metal body and a cardioid pickup pattern to effectively reduce background noise. The microphone comes with a 13ft (4m) XLR to 1/4" audio cable, providing amppanjang le untuk pelbagai aplikasi.

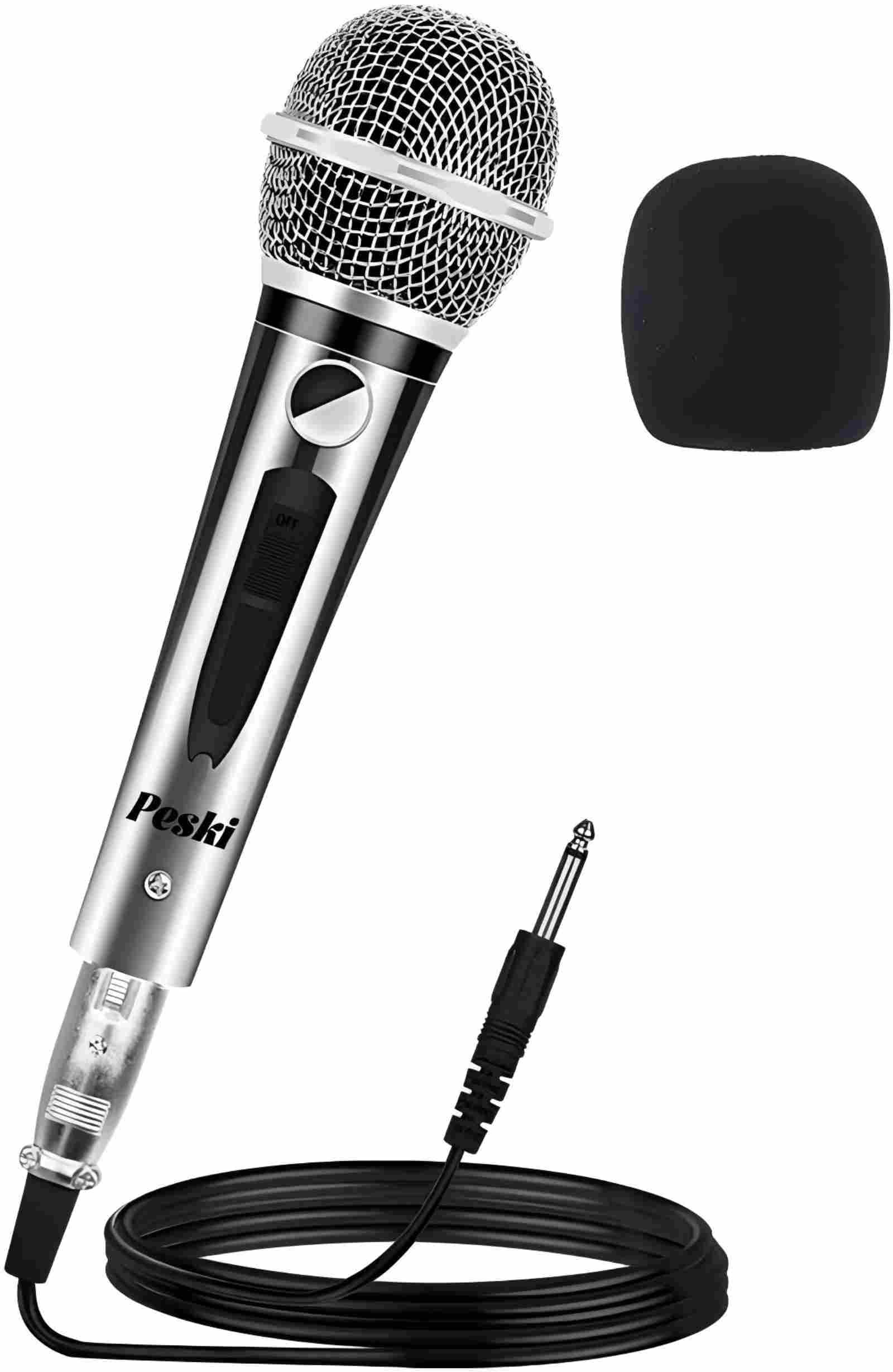

Figure 2: Peski Wired Dynamic Karaoke Microphone. This image shows the microphone and its included cable, demonstrating its robust design and connectivity.
Persediaan
- Sambungkan Kabel: Insert the 3-pin XLR connector of the provided 13ft (4m) cable into the microphone's XLR port. Ensure a secure connection.
- Sambung ke Peranti Audio: Plug the 1/4" (6.35mm) jack of the cable into the microphone input port of your compatible audio device (e.g., karaoke machine, speaker, amplifier, mixer, home theater system).
- Hidupkan kuasa: Ensure your audio device is powered on and its volume is set to a low level before speaking into the microphone.
Figure 3: Classic Cable Set Connection. This diagram illustrates how to connect the XLR cable to the microphone and the 1/4" jack to your audio equipment.
Figure 4: Wide Compatibility. This image demonstrates the microphone's compatibility with a range of audio equipment, including amplifiers, speakers, and home theater systems.
Arahan Operasi
- Suis kuasa: Locate the ON/OFF switch on the microphone body. Slide the switch to the "ON" position to activate the microphone. Slide it to "OFF" when not in use.
- Peletakan Mikrofon: Hold the microphone approximately 2-6 inches (5-15 cm) from your mouth for optimal sound capture. Due to its cardioid pickup pattern, the microphone is most sensitive to sounds directly in front of it, reducing pickup from the sides and rear.
- Laraskan Kelantangan: Gradually increase the volume on your connected audio device until the desired sound level is achieved. Avoid setting the volume too high to prevent feedback or distortion.
Figure 5: Comfortable Switch Button. This image highlights the ON/OFF switch on the microphone handle, along with its general dimensions.
Figure 6: Cardioid Dynamic Microphone. This diagram visually represents the cardioid pickup pattern, indicating how the microphone effectively rejects sounds from other directions.
Penyelenggaraan
- Pembersihan: Use a soft, dry cloth to wipe the microphone body. For the mesh grille, gently clean with a slightly damp cloth if necessary, ensuring no moisture enters the microphone. Do not use harsh chemicals or abrasive cleaners.
- Penjagaan cermin depan: Cermin depan buih boleh dibasuh dengan tangan secara lembut menggunakan sabun dan air yang lembut, kemudian dikeringkan sepenuhnya sebelum dipasang semula.
- Storan: Store the microphone in a dry, cool place, away from direct sunlight and extreme temperatures. Disconnect the cable and coil it neatly to prevent damage.
Menyelesaikan masalah
| Masalah | Kemungkinan Punca | Penyelesaian |
|---|---|---|
| Tiada keluaran bunyi | Suis mikrofon MATI Kabel tidak disambungkan dengan betul Kelantangan peranti audio terlalu rendah Input yang dipilih pada peranti audio salah | Slide microphone switch to ON Pastikan kabel disambungkan dengan selamat di kedua-dua hujungnya Tingkatkan kelantangan pada peranti audio Select the correct microphone input on your audio device |
| Kualiti bunyi yang lemah / Herotan | Jumlah dagangan terlalu tinggi Mikrofon terlalu dekat dengan sumber bunyi Kabel rosak | Reduce volume on audio device Maintain optimal distance (2-6 inches) Try a different XLR to 1/4" cable |
| Feedback (high-pitched squeal) | Mikrofon terlalu dekat dengan pembesar suara Jumlah dagangan terlalu tinggi | Move microphone further from speakers Reduce volume on audio device |
Spesifikasi
- Nombor Model: 8541752112
- Jenama: Peski
- Teknologi Ketersambungan: XLR (Berwayar)
- Jenis Penyambung: 1/4" (6.35mm) Jack
- Corak kutub: Tidak arah (Cardioid)
- Faktor Bentuk Mikrofon: Sistem Mikrofon Pegang Tangan
- Bahan: Metal body, Foam windscreen
- Nisbah Signal-to-Noise: 70 dB
- Berat Barang: 1.21 paun (lebih kurang 0.55 kg)
- Panjang kabel: 13 kaki (4 meter)
- Peranti Serasi: Amplifier, Home Theater, Karaoke Machine, Speaker
- Sumber Kuasa: Corded Electric (via connected device)
Waranti dan Sokongan
For warranty information or technical support, please contact Peski customer service through the retailer where the product was purchased or visit the official Peski webtapak. Sila simpan bukti pembelian anda untuk sebarang tuntutan waranti.
