EDILKAMIN Flat 608690 Original Part User Manual

1. Lebihview

This manual provides essential instructions for the EDILKAMIN Flat 608690 original replacement part. This component is designed to ensure the proper functioning of compatible EDILKAMIN heating systems. Please read this manual thoroughly before installation or use to ensure correct handling and to maintain the safety and efficiency of your appliance.

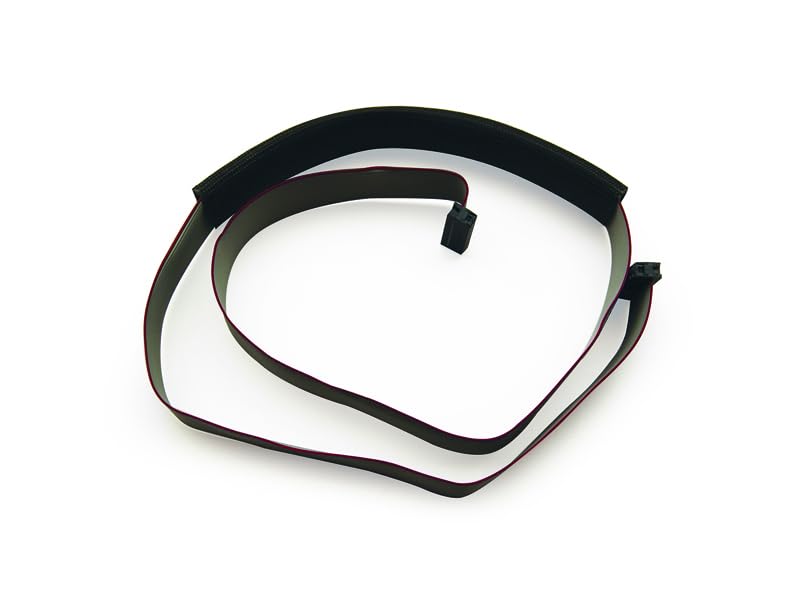

Figure 1: EDILKAMIN Flat 608690 Original Part, front view.

2. Keserasian

The EDILKAMIN Flat 608690 is an original replacement part specifically designed for use with the following EDILKAMIN heating system models:

• Iris Plus
• Lilia Plus
• Tujuh

Using this part with incompatible models may lead to malfunction, damage, or safety hazards. Always verify your appliance model before purchasing dan memasang alat ganti.

Figure 2: EDILKAMIN Flat 608690 Original Part, angled view showing connectors.

3. Maklumat Keselamatan

AMARAN: Failure to follow these safety instructions may result in fire, electric shock, property damage, or personal injury.

• Always disconnect the main heating appliance from the power supply before attempting any installation, maintenance, or repair work.
• Installation and replacement of this part should only be performed by qualified and authorized service personnel.
• Refer to the main appliance's user manual and service manual for specific safety precautions and detailed instructions.
• Pakai peralatan pelindung diri (PPE) yang sesuai seperti sarung tangan dan pelindung mata semasa pemasangan.
• Ensure all connections are secure and correctly made before restoring power to the appliance.

4. Pemasangan

The following steps provide general guidance for installing the EDILKAMIN Flat 608690. For detailed, model-specific instructions, always consult the service manual of your EDILKAMIN Iris Plus, Lilia Plus, or Seven heating system.

1. Sediakan Perkakas: Ensure the main heating appliance is completely turned off and disconnected from the electrical power supply. Allow the appliance to cool down if it has been in operation.
2. Akses Komponen: Carefully open the appliance's access panels or covers as indicated in your appliance's service manual to reach the component to be replaced.
3. Keluarkan Bahagian Lama: Disconnect any wiring or fasteners securing the old component. Note its exact orientation and how it was connected to ensure correct installation of the new part. Remove the old component.
4. Pasang Bahagian Baharu: Position the new EDILKAMIN Flat 608690 part in the same orientation as the old one. Secure it with the appropriate fasteners and reconnect any wiring, ensuring all connections are firm and correct.
5. Pasang semula: Close and secure all access panels and covers.
6. Kefungsian Ujian: Reconnect the appliance to the power supply. Turn on the appliance and carefully test its functionality to ensure the new part is working correctly and the system operates as expected.

5. Operasi

The EDILKAMIN Flat 608690 is a replacement component and does not have independent operational controls. Its function is integrated into the overall operation of your compatible EDILKAMIN heating system. Once correctly installed, it contributes to the proper functioning of the appliance.

For instructions on how to operate your EDILKAMIN Iris Plus, Lilia Plus, or Seven heating system, please refer to the user manual provided with your main appliance.

6. Penyelenggaraan

Proper maintenance of the EDILKAMIN Flat 608690, as part of your heating system, helps ensure its longevity and reliable performance.

• Pemeriksaan Berkala: During routine maintenance of your EDILKAMIN heating system, visually inspect the Flat 608690 part for any signs of wear, damage, or corrosion.
• Pembersihan: Keep the area around the component clean and free from dust, debris, or obstructions. Use a soft, dry cloth for cleaning. Do not use abrasive cleaners, solvents, or harsh chemicals, as these can damage the part.
• Servis profesional: For any specific maintenance procedures or if you notice any issues with the part, consult the service manual of your EDILKAMIN heating appliance or contact a qualified technician.

7. Penyelesaian masalah

If your EDILKAMIN heating system experiences issues after replacing the Flat 608690 part, consider the following common troubleshooting steps:

• Pemasangan yang salah: Double-check that the part was installed correctly and securely, following all steps in the installation section of this manual and your appliance's service manual. Ensure all electrical connections are tight and properly seated.
• Keserasian: Confirm that the Flat 608690 is indeed the correct replacement part for your specific Iris Plus, Lilia Plus, or Seven model. Refer to the compatibility section.
• Isu Sistem Lain: The malfunction may be unrelated to the new part. Consult the troubleshooting section of your main appliance's user manual for general system diagnostics.
• Bantuan Profesional: If the problem persists after checking these points, it is recommended to contact a qualified EDILKAMIN service technician for further diagnosis and repair.

8. Spesifikasi

9. Maklumat Waranti

This EDILKAMIN original replacement part is covered by the standard manufacturer's warranty. The warranty period and terms may vary based on your region and the date of purchase. Please retain your proof of purchase (receipt or invoice) as it is required for any warranty claims.

For detailed warranty terms and conditions, including information on what is covered and the claim process, please refer to the documentation provided with your original EDILKAMIN heating appliance or visit the official EDILKAMIN webtapak.

10. Sokongan Pelanggan

Should you require technical assistance, have questions regarding spare parts, or need service for your EDILKAMIN heating system, please contact EDILKAMIN customer support.

• rasmi Webtapak: Visit the official EDILKAMIN webtapak untuk maklumat hubungan, Soalan Lazim dan lokasi pusat perkhidmatan.
• Pusat Servis Dibenarkan: Locate your nearest authorized EDILKAMIN service center for professional assistance.
• When contacting support, please be prepared to provide your appliance model (e.g., Iris Plus, Lilia Plus, Seven) and the part number (Flat 608690) to ensure efficient service.
