EDILKAMIN 612600 Synoptic Panel User Manual

1. Pengenalan

This manual provides essential instructions for the proper installation, operation, and maintenance of the EDILKAMIN 612600 Synoptic Panel. This panel is an original spare part designed for specific EDILKAMIN heating appliances, including the TORONTO and QUEBEC models. It serves as the primary interface for monitoring and controlling your appliance's functions.

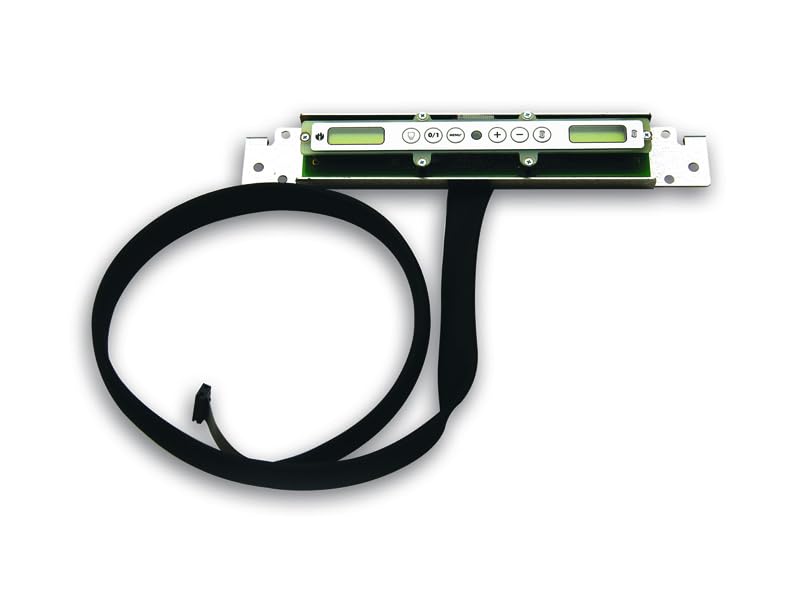

Rajah 1: Utama view of the EDILKAMIN 612600 Synoptic Panel. This image shows the front face of the control panel, typically featuring a display screen and control buttons.

2. Maklumat Keselamatan

• Always disconnect the appliance from the main power supply before attempting any installation, maintenance, or repair.
• Installation and replacement should only be performed by qualified technical personnel to ensure safety and proper function.
• Do not expose the panel to excessive moisture, direct sunlight, or extreme temperatures.
• Use only original EDILKAMIN spare parts for replacement.

3. Persediaan dan Pemasangan

The EDILKAMIN 612600 Synoptic Panel is designed as a direct replacement part. Ensure you have the correct model before proceeding with installation.

1. Pemutusan Kuasa: Turn off and unplug the EDILKAMIN appliance from the electrical outlet. Wait for the appliance to cool down completely if it was recently in operation.
2. Access Old Panel: Carefully locate and access the existing synoptic panel on your appliance. This may involve removing a cover or fascia.
3. Putuskan Sambungan Panel Lama: Gently disconnect all electrical connectors from the old panel. Note the orientation and connection points for reassembly.
4. Buang Panel Lama: Unscrew or unclip the old panel from its mounting.
5. Pasang Panel Baharu: Position the new EDILKAMIN 612600 Synoptic Panel in the mounting location. Secure it using the original screws or clips.
6. Sambungkan Panel Baharu: Reconnect all electrical connectors to the new panel. Ensure connections are firm and correctly oriented. Refer to the appliance's main wiring diagram if unsure.
7. Perlindungan Selamat: Replace any covers or fascia removed during the process.
8. Hidupkan kuasa: Plug the appliance back into the electrical outlet and turn on the power. The panel should illuminate and display initial startup information.

Penting: If you are unsure about any step, consult a qualified technician or the EDILKAMIN service center. Incorrect installation can lead to damage or safety hazards.

Rajah 2: Belakang view of the EDILKAMIN 612600 Synoptic Panel, showing electrical connectors. This image highlights the connection points for wiring the panel to the main appliance.

4. Arahan Operasi

The synoptic panel provides real-time information and control over your EDILKAMIN heating appliance. While specific functions may vary slightly between TORONTO and QUEBEC models, the general operation principles are similar.

4.1. Paparan Lebihview

Paparan biasanya menunjukkan:

• Current operating status (e.g., ON, OFF, Standby, Ignition)
• Set temperature and actual room temperature
• Power level or flame intensity
• Fan speed (if applicable)
• Masa dan tarikh
• Error codes or warning messages

4.2. Kawalan Asas

Most panels feature a set of buttons for navigation and control:

• Butang HIDUP/MATI: To switch the appliance on or off.
• MENU/SET Button: To access the main menu and confirm selections.
• Anak Panah ATAS/BAWAH: To navigate through menu options or adjust values (e.g., temperature, power level).
• ESC/BACK Button: To exit a menu or cancel an operation.

4.3. Menetapkan Parameter

To adjust settings such as temperature, power, or programming:

1. Tekan ke MENU butang untuk masuk ke menu utama.
2. Gunakan ATAS/BAWAH arrows to navigate to the desired setting (e.g., "Temperature," "Power," "Timer").
3. Tekan SET untuk memilih pilihan.
4. guna ATAS/BAWAH arrows to adjust the value.
5. Tekan SET sekali lagi untuk mengesahkan nilai baharu.
6. Tekan ESC untuk keluar dari menu.

For detailed programming instructions, refer to the specific user manual of your EDILKAMIN TORONTO or QUEBEC appliance.

5. Penyelenggaraan

Regular maintenance ensures the longevity and optimal performance of your synoptic panel.

• Pembersihan: Gently wipe the display and buttons with a soft, dry, or slightly damp cloth. Do not use abrasive cleaners, solvents, or excessive moisture, as these can damage the panel.
• Pemeriksaan: Periodically check for any visible damage to the panel or its connections. Ensure the panel is securely mounted.
• Kemas Kini Perisian: If your appliance supports software updates for the control panel, follow the instructions provided in your appliance's main manual or by EDILKAMIN technical support.

6. Penyelesaian masalah

If you encounter issues with your synoptic panel, try the following basic troubleshooting steps:

For more complex issues or if troubleshooting steps do not resolve the problem, contact EDILKAMIN authorized service personnel.

7. Spesifikasi

8. Waranti dan Sokongan

For warranty information regarding your EDILKAMIN 612600 Synoptic Panel, please refer to the documentation provided with your original EDILKAMIN appliance or contact your authorized EDILKAMIN dealer or the manufacturer directly. As this is a spare part, its warranty may be subject to the terms of the original appliance or the specific spare parts policy.

For technical support, service, or to order additional spare parts, please contact EDILKAMIN customer service or an authorized service center. You can typically find contact information on the EDILKAMIN official webtapak atau dalam manual pengguna utama perkakas anda.

EDILKAMIN Official Webtapak: www.edilkami.com
