1. Maklumat Keselamatan Penting
Sentiasa baca dan fahami semua amaran keselamatan, arahan, ilustrasi dan spesifikasi yang disediakan dengan alat kuasa ini. Kegagalan mematuhi semua arahan yang disenaraikan di bawah boleh mengakibatkan renjatan elektrik, kebakaran dan/atau kecederaan serius.
- Keselamatan Kawasan Kerja: Pastikan kawasan kerja bersih dan terang. Jangan kendalikan alatan kuasa dalam atmosfera yang mudah meletup, seperti di hadapan cecair mudah terbakar, gas atau habuk.
- Keselamatan Elektrik: Palam alat kuasa mesti sepadan dengan soket. Jangan sekali-kali mengubah suai palam. Elakkan sentuhan badan dengan permukaan yang dibumikan atau dialas.
- Keselamatan Diri: Sentiasa pakai pelindung mata, pelindung pendengaran dan topeng habuk. Berpakaianlah dengan betul; elakkan pakaian atau barang kemas yang longgar.
- Penggunaan dan Penjagaan Alat Kuasa: Jangan paksa alat kuasa. Gunakan alat kuasa yang betul untuk aplikasi anda. Putuskan sambungan palam daripada sumber kuasa sebelum membuat sebarang pelarasan, menukar aksesori atau menyimpan alatan kuasa.
- Sogokan dan Amaran Berkaitan: Kickback is a sudden reaction to a pinched, bound, or misaligned saw blade. Always maintain a firm grip with both hands on the saw.
2. Produk Lebihview dan Komponen
The TECCPO TACS22P Circular Saw is designed for cutting wood, plastic, and PVC materials. Familiarize yourself with its components for safe operation.
Figure 1: Key components of the TECCPO TACS22P Circular Saw. Labels include Protect Button, Support Handle, Duct Extraction Outlet, Iron Sole, and Blade Guard.
- Butang Lindungi: Engages the safety lock.
- Pemegang Sokongan: Provides a secure grip for control.
- Duct Extraction Outlet: Connects to a dust collection system.
- Iron Sole: Base plate for stable cutting.
- Pengawal Bilah: Retracts during cutting to expose the blade and covers it when not in use.
- Adjustable Depth Lever: Allows setting the cutting depth.
- Adjustable Bevel Lever: Allows setting the cutting angle (0-45 degrees).
- Suis Keselamatan Berganda: Mencegah permulaan yang tidak disengajakan.
3. Persediaan
3.1 Membongkar dan Pemeriksaan
Carefully remove the circular saw and all accessories from the packaging. Inspect for any damage during transit. Ensure all components listed in the package contents are present.
- 1 x TECCPO TACS22P 1200W Circular Saw
- 1 x 185mm Saw Blade (24-tooth carbide)
- 1 x Scale Ruler (Parallel Guide)
- 1 x Kunci Hex
- 1 x Manual Pengguna
3.2 Pemasangan Bilah
Ensure the saw is unplugged before installing or changing the blade.
- Tekan dan tahan butang kunci gelendong untuk mengelakkan bilah daripada berputar.
- Use the provided hex key to loosen the blade clamp screw. Turn the screw in a reverse (counter-clockwise) direction to loosen.
- Tanggalkan bebibir luar dan bilah lama.
- Place the new 185mm blade onto the spindle, ensuring the teeth are pointing in the direction of rotation indicated by the arrow on the saw.
- Reinstall the outer flange and tighten the blade clamp screw firmly using the hex key. Turn the screw in a clockwise direction to tighten.
Figure 2: Illustrated steps for safe blade replacement.
3.3 Melaraskan Kedalaman dan Sudut Pemotongan
Adjust the cutting depth and angle according to your material and desired cut.
- Kedalaman pemotongan: Loosen the depth adjustment lever, move the base plate to the desired depth, and then securely tighten the lever. For optimal cutting, the blade should extend approximately 3-6mm below the workpiece.
- Cutting Angle (Bevel): Loosen the bevel adjustment lever, tilt the saw base to the desired angle (0-45 degrees), and then securely tighten the lever.

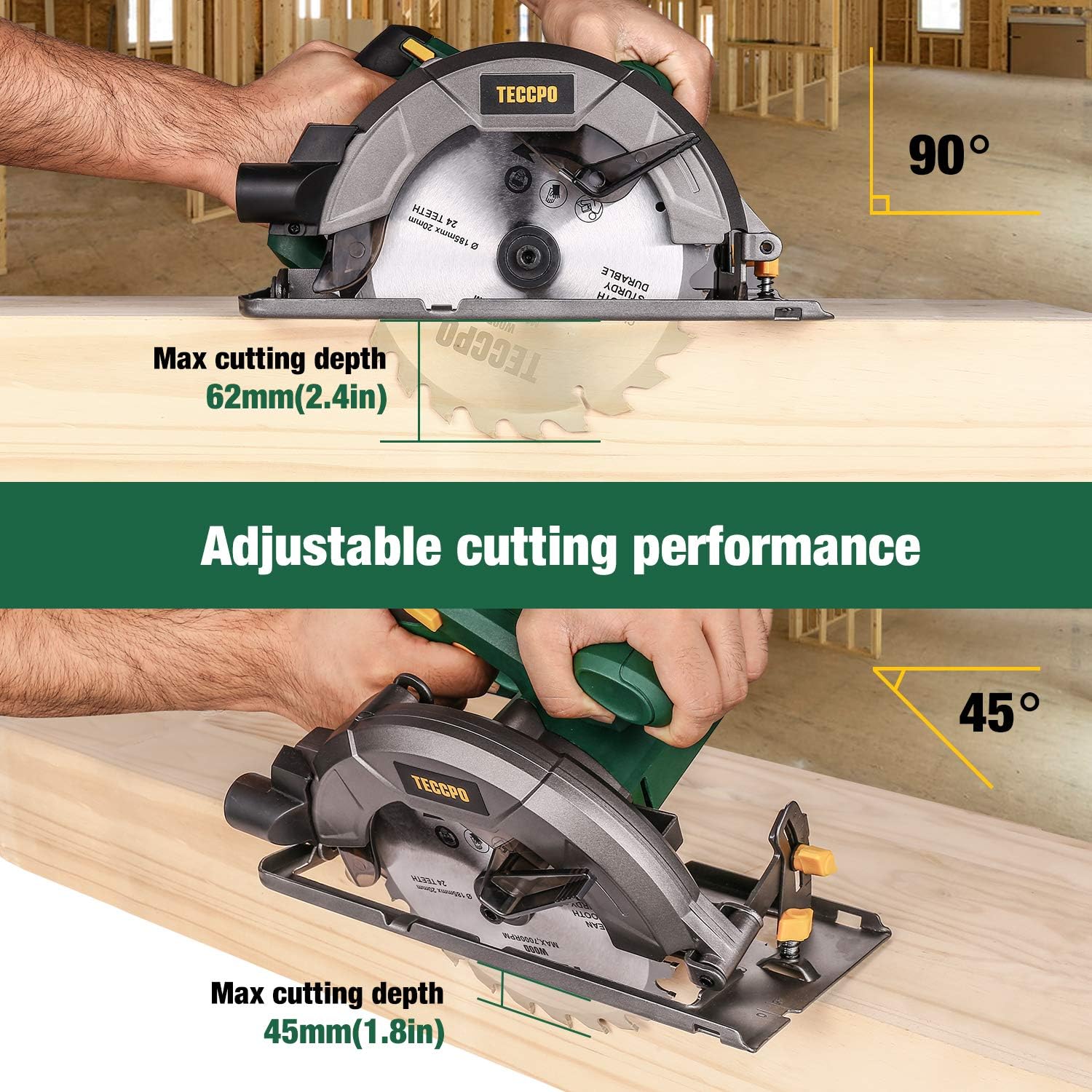

Figure 3: The saw can achieve a maximum cutting depth of 63mm at 90 degrees and 45mm at 45 degrees.
Figure 4: Features including adjustable depth, dust vacuum port, and double safety switch.
4. Arahan Operasi
4.1 Operasi Am
Sebelum memulakan, pastikan bahan kerja anda berada dalam keadaan selamatamped and you have a clear cutting line. Wear appropriate personal protective equipment.
- Plug the saw into a suitable 220V AC power outlet.
- Hold the saw firmly with both hands, ensuring a stable stance.
- To start the saw, press the safety lock button and then squeeze the trigger switch.
- Benarkan bilah mencapai kelajuan penuh sebelum menyentuh bahan kerja.
- Bimbing gergaji dengan lancar di sepanjang garis pemotongan, berikan tekanan yang stabil dan sekata. Jangan paksa gergaji.
- Setelah potongan selesai, lepaskan suis picu dan biarkan bilah berhenti sepenuhnya sebelum mengangkat gergaji dari bahan kerja.
Figure 5: Proper handling and operation of the circular saw.
4.2 Memotong Bahan Berbeza
The TECCPO TACS22P is suitable for cutting various materials with the appropriate blade.
Figure 6: The saw is designed for cutting wood, plastic, and PVC.
- kayu: The included 24-tooth carbide blade is optimized for wood cutting.
- Plastic/PVC: Can be cut with the appropriate blade. Ensure the material is securely supported to prevent vibration and splintering.
5. Penyelenggaraan
Regular maintenance ensures the longevity and safe operation of your circular saw. Always unplug the tool before performing any maintenance.
- Pembersihan: After each use, clean the saw with a dry cloth. Remove sawdust and debris from the blade guard, motor vents, and base plate. Do not use water or chemical cleaners.
- Pemeriksaan Bilah: Regularly check the saw blade for sharpness, cracks, or missing teeth. Replace dull or damaged blades immediately.
- Pemeriksaan Kord: Inspect the power cord for any cuts, fraying, or damage. If damaged, have it repaired by a qualified technician.
- Pelinciran: This tool typically does not require user lubrication. Refer to a service center if internal lubrication is suspected.
- Storan: Simpan gergaji di lokasi yang kering dan selamat, jauh daripada kanak-kanak.
6. Penyelesaian masalah
| Masalah | Kemungkinan Punca | Penyelesaian |
|---|---|---|
| Saw tidak bermula | No power supply; Safety switch not engaged; Faulty power cord/switch | Check power connection; Ensure safety button is pressed before trigger; Inspect cord/switch for damage (seek professional repair if needed) |
| Bilah terpaku atau tersekat semasa dipotong | Bilah tumpul; Kedalaman pemotongan yang salah; Bahan kerja tidak disokong dengan betul; Gergaji dipaksa bergerak | Replace blade; Adjust cutting depth; Secure workpiece; Reduce feed pressure |
| Getaran atau bunyi yang berlebihan | Loose blade; Damaged blade; Internal component issue | Check blade tightness; Replace damaged blade; Contact service center |
| Potongan yang tidak tepat | Incorrect depth/angle setting; Loose base plate; Worn blade | Re-adjust settings; Check base plate for tightness; Replace blade |
If you encounter problems not listed here or if solutions do not resolve the issue, contact TECCPO customer support or a qualified service technician.
7. Spesifikasi
| Nombor Model | TACS22P |
| Input Kuasa | 1200 Watt |
| Voltage | 220 Volt (AC) |
| Kelajuan Tanpa Beban | 5800 RPM |
| Diameter Bilah | 185 mm |
| Lubang Bilah | 20 mm |
| Maks. Kedalaman Pemotongan (90°) | 63 mm |
| Maks. Kedalaman Pemotongan (45°) | 45 mm |
| Kapasiti Serong | 0° - 45° |
| Berat badan | 2.98 kg |
| Sumber Kuasa | Elektrik Bertali |
| Bahan yang Disyorkan | Wood, Plastic, PVC |
8. Waranti dan Sokongan
The TECCPO TACS22P Circular Saw comes with a limited warranty. Please refer to the warranty card included in your package for specific terms and conditions, including coverage duration and claim procedures.
For technical assistance, spare parts, or warranty claims, please contact TECCPO customer support. Contact information can typically be found on the TECCPO official webtapak atau pada pembungkusan produk.
Note: Information regarding specific warranty duration or contact details was not provided in the product data. Please consult your product documentation.
