pengenalan
This manual provides essential information for the safe and effective use of your ULTRAFIRE WF-502B Tactical LED Flashlight. Please read these instructions carefully before operating the device and retain them for future reference.
The ULTRAFIRE WF-502B is a high-brightness, single-mode LED flashlight designed for reliability and ease of use in various situations, including security, outdoor activities, and emergencies.
Produk Selesaiview dan Ciri
The ULTRAFIRE WF-502B flashlight offers robust performance and durability. Key features include:
- Kecerahan yang tinggi: Menyampaikan 1000 lumen untuk pencahayaan yang berkuasa.
- Extended Beam Distance: Projects light up to 656 feet (200 meters).
- Operasi Mod Tunggal: Features one high brightness mode for straightforward use, eliminating cycling through multiple settings.
- Padat dan Mudah Alih: Designed for comfort and easy carrying with a clip for attachment to belts, backpacks, or pockets.
- Pembinaan Tahan Lama: Crafted from military-grade aluminum alloy, offering resistance to abrasion, drops, and pressure.
- Tahan Air: IPX6 waterproof rating ensures reliable operation in various weather conditions.
- Kuasa Tahan Lama: Includes two 2200 mAh rechargeable Lithium Ion batteries.

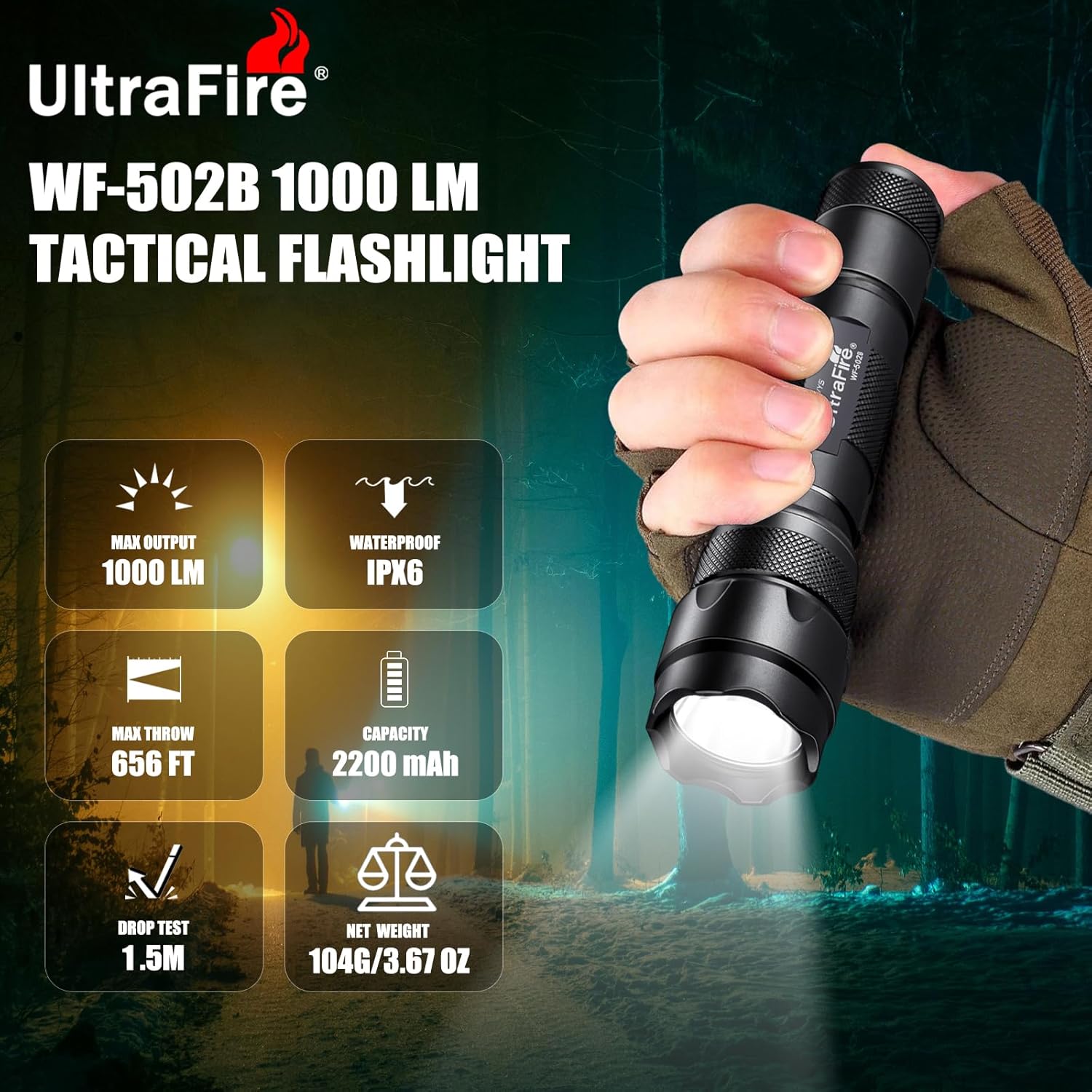

Image: The ULTRAFIRE WF-502B Tactical Flashlight held in hand, illustrating its compact size and highlighting features such as 1000 lumens output, 656 ft max throw, IPX6 waterproof rating, 2200 mAh capacity, and 1.5m drop test resistance.
Kandungan Pakej
Sahkan bahawa semua item terdapat dalam pakej anda:
- 1 x ULTRAFIRE WF-502B Flashlight
- 2 x 2200 mAh UFB22 Lithium Ion Batteries
- 1 x Pengecas Bateri
Image: The ULTRAFIRE WF-502B flashlight alongside its included battery charger, demonstrating the complete package contents.
Persediaan
1. Pemasangan Bateri
- Tanggalkan penutup ekor lampu suluh dengan memusingkannya lawan arah jam.
- Insert one 18650 Lithium Ion battery with the positive (+) end facing towards the flashlight head (LED).
- Skrukan penutup ekor kembali mengikut arah jam sehingga ia diketatkan dengan kukuh.
2. Mengecas Bateri
The included batteries are rechargeable. Use the provided charger for optimal performance and safety.
- Place the 18650 Lithium Ion battery into the charger, ensuring correct polarity.
- Sambungkan pengecas ke sumber kuasa yang sesuai.
- Observe the indicator light on the charger. It will typically change color (e.g., red to green) to indicate a full charge.
- Setelah dicas sepenuhnya, keluarkan bateri daripada pengecas.
It is recommended to fully charge batteries before first use.
Image: The ULTRAFIRE WF-502B flashlight with an overlay indicating 6-12 hours of persistent lighting and a 2200 mAh battery capacity, emphasizing its long-lasting performance.
Operasi
Menghidupkan/Mematikan
The ULTRAFIRE WF-502B features a simple single-mode operation:
- Untuk menghidupkan lampu suluh ON, firmly press the tail cap switch until it clicks.
- Untuk menghidupkan lampu suluh DIMATIKAN, firmly press the tail cap switch again until it clicks.
There are no other modes (e.g., strobe, low, medium) to cycle through, ensuring immediate access to full brightness.
Image: A person in tactical gear holding and operating the ULTRAFIRE WF-502B flashlight, illustrating its simple single-mode functionality for easy on/off operation.
Penyelenggaraan
- Pembersihan: Lap badan lampu suluh dengan kain yang bersih dan lembut. Jangan gunakan pembersih atau pelarut yang kasar.
- Pelinciran: Periodically apply a thin layer of silicone grease to the O-rings and threads to maintain water resistance and smooth operation.
- Penjagaan Bateri: Store batteries in a cool, dry place. If the flashlight will not be used for an extended period, remove the battery to prevent leakage.
- Tahan Air: Ensure the tail cap is fully tightened to maintain the IPX6 water resistance rating.
Menyelesaikan masalah
| Masalah | Kemungkinan Punca | Penyelesaian |
|---|---|---|
| Lampu suluh tidak menyala. | Battery is dead or improperly inserted. | Charge the battery or reinsert it with correct polarity. |
| Cahaya malap atau berkelip. | Low battery charge or loose connections. | Charge the battery. Ensure the tail cap and head are fully tightened. |
| Tail cap is difficult to turn. | Dry threads or debris. | Clean threads and apply silicone grease. |
Spesifikasi
| Ciri | Perincian |
|---|---|
| Model | WF-502B |
| Jenis Sumber Cahaya | LED |
| Kecerahan Putih | 1000 Lumen |
| Jarak Pancaran | 656 kaki (200 meter) |
| Sumber Kuasa | Dikuasakan Bateri |
| Jenis Bateri | 18650 Lithium Ion (2 included) |
| Kapasiti Bateri | 2200 mAh |
| Voltage | 3.7 Volt |
| bahan | Aloi Aluminium |
| warna | Hitam |
| Tahap Ketahanan Air | IPX6 (Tahan Air) |
| Rintangan Jatuh | 1.5 meter |
| Dimensi Produk | 1.3"D x 1.3"W x 1.3"H (anggaran) |
| Berat Barang | 10.6 Auns |
| Ciri Khas | tahan cuaca |
Waranti dan Sokongan
The ULTRAFIRE WF-502B flashlight comes with a Waranti 3 tahun dari tarikh pembelian. Waranti ini meliputi kecacatan pembuatan dan memastikan produk memenuhi piawaian prestasi yang ditetapkan di bawah penggunaan biasa.
For any questions, technical assistance, or warranty claims, please contact our customer service. We offer Perkhidmatan pelanggan 24 jam untuk membantu anda.
Please refer to your purchase documentation for specific contact details or visit the official ULTRAFIRE webtapak untuk maklumat sokongan.
