Bushwacker Flat Style Fender Flares User Manual

1. Pengenalan

Thank you for choosing Bushwacker Flat Style Fender Flares. These flares are engineered to provide enhanced tire coverage and wheel articulation for your Jeep Wrangler JL, ensuring both compliance with local laws and improved off-road performance. Constructed from durable Dura-Flex 2000 TPO material, they are designed to absorb impact and resist warping. This manual provides detailed instructions for proper installation, operation, and maintenance to ensure optimal performance and longevity of your fender flares.

Image: Jeep Wrangler JL equipped with Bushwacker Flat Style Fender Flares.

2. Maklumat Keselamatan

Always prioritize safety during installation and operation. Read all instructions thoroughly before beginning. Professional installation is recommended. Wear appropriate personal protective equipment, including safety glasses and gloves. Ensure the vehicle is parked on a level surface and properly secured before working underneath or around it. Disconnect the vehicle's battery before performing any electrical work.

3. Produk Lebihview

Bushwacker Flat Style Fender Flares are designed for a rugged aesthetic and functional performance. Key features include:

• Bahan: Exclusive Dura-Flex 2000 TPO, known for its thickness, flexibility, impact absorption, and resistance to warping.
• Perlindungan UV: 100% UV protected to prevent chalking and fading.
• Pencahayaan Bersepadu: DOT-compliant LED side marker lights for enhanced visibility.
• Wheel Well Protection: Fully molded design for comprehensive wheel well coverage.
• Tire Coverage: Maximizes tire coverage to accommodate larger wheel and tire packages and comply with regulations.
• Wheel Articulation: Engineered to maximize wheel articulation for intense off-road use.

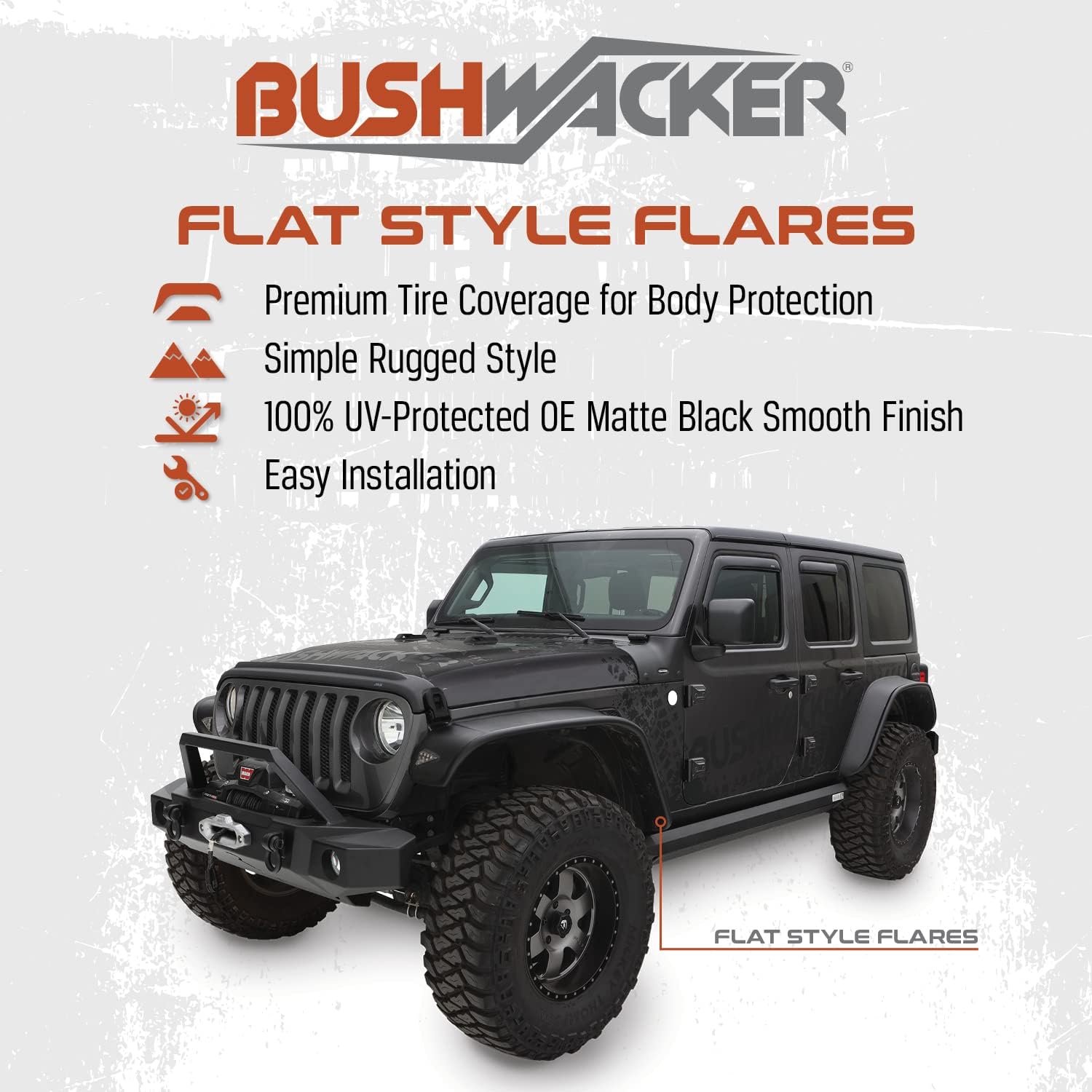

Image: Key features of the Flat Style Fender Flares.

4. Keserasian

These Bushwacker Flat Style Fender Flares (Model 10923-07) are compatible with the following Jeep Wrangler JL models:

• 2018 - 2025 Jeep Wrangler JL 2-Door
• 2018 - 2025 Jeep Wrangler JL Unlimited 4-Door

5. Apa yang ada di dalam Kotak

Your Bushwacker Flat Style Fender Flares kit includes:

• Fender Flares (4 pieces: Front Left, Front Right, Rear Left, Rear Right)
• Mounting Hardware (bolts, nuts, washers, clips)
• Integrated LED Side Marker Lights (pre-installed or to be installed)
• Arahan Pemasangan (manual ini)

6. Persediaan dan Pemasangan

The installation process involves assembling the flares and then mounting them to your vehicle. Basic hand tools such as an Allen wrench, wrench, pliers, and screwdriver will be required. Refer to the video guides for visual assistance.

6.1. Langkah Pra-Pemasangan

1. Buka bungkusan dan Periksa: Carefully unpack all components and inspect for any damage or missing parts.
2. Clean Vehicle: Thoroughly clean the fender well areas and surrounding body panels where the flares will be installed.
3. Remove Existing Flares: If applicable, carefully remove any existing fender flares and associated hardware from your Jeep.

6.2. Assembling the Fender Flares

Each fender flare typically consists of multiple sections that need to be joined together using the provided hardware. This often involves attaching inner brackets or support pieces.

1. Align the sections of the fender flare and secure them using the small bolts and nuts provided. Ensure all holes are properly aligned before tightening.
2. Attach any additional support brackets or inner liners to the main flare assembly.

6.3. Mounting the Fender Flares to the Vehicle

Once assembled, the flares are ready to be mounted to your Jeep. This typically involves using existing mounting points and potentially some drilling or rivet nut installation.

1. Carefully position the assembled fender flare onto the vehicle's fender well.
2. Align the mounting holes on the flare with the corresponding holes on the vehicle body.
3. Insert the provided bolts and secure them with nuts and washers. Hand-tighten all fasteners initially.
4. If rivet nuts are used, follow the instructions for the rivet nut tool to properly install them before securing the bolts.
5. Once all fasteners are in place, progressively tighten them to the manufacturer's specifications. Do not overtighten.

6.4. Wiring the LED Side Marker Lights

The integrated LED side marker lights require electrical connection. It is recommended to connect these to your vehicle's existing turn signal or parking light wiring for proper function.

1. Locate the vehicle's turn signal or parking light wiring harness.
2. Carefully splice the wires from the LED side marker lights into the corresponding vehicle wires (e.g., positive to positive, negative to negative). Use appropriate wiring connectors or solder and heat shrink tubing for a secure and weather-resistant connection.
3. Test the lights to ensure they function correctly (DRL and turn signal).

7. Arahan Operasi

Once properly installed, the Bushwacker Flat Style Fender Flares require no special operation. The integrated LED side marker lights will function in conjunction with your vehicle's existing lighting system (parking lights and turn signals) once wired correctly.

• Daytime Running Lights (DRL): If wired to DRLs, the LED lights will illuminate when the vehicle is running.
• Isyarat Belok: The LED lights will flash when the corresponding turn signal is activated.

8. Penyelenggaraan

To maintain the appearance and functionality of your Bushwacker Flat Style Fender Flares:

• Pembersihan tetap: Wash the flares regularly with mild soap and water to remove dirt, mud, and road grime. Avoid abrasive cleaners or harsh chemicals that could damage the finish.
• Periksa Perkakasan: Periodically check all mounting hardware for tightness. Re-tighten any loose bolts or nuts to prevent vibration and potential damage.
• Pemeriksaan LED: Ensure the LED side marker lights are clean and free from debris. Check for any signs of damage to the wiring or light housing.
• Perlindungan UV: While the flares are UV protected, occasional application of a UV protectant spray designed for automotive plastics can further extend their lifespan and maintain their matte black finish.

9. Penyelesaian masalah

If you encounter issues with your fender flares or LED lights, consider the following:

• Loose Flares: If flares feel loose, check and tighten all mounting hardware.
• Lampu LED Tidak Berfungsi:
  • Sahkan semua sambungan elektrik adalah kukuh dan berpenebat dengan betul.
  • Check for blown fuses in your vehicle's fuse box related to the parking lights or turn signals.
  • Ensure correct polarity (positive to positive, negative to negative) if you performed the wiring.
• Error Message on Vehicle Screen: If your car's screen displays an error message related to lighting, double-check the wiring connections, especially if you spliced into existing circuits. Incorrect wiring can sometimes trigger vehicle computer warnings.

10. Spesifikasi

11. Waranti

Bushwacker products are proudly made in the USA with global materials and are backed by a limited lifetime warranty against defects in materials and workmanship. For specific warranty details and claims, please refer to the official Bushwacker webtapak atau hubungi sokongan pelanggan.

12. Sokongan

For further assistance, technical support, or to inquire about replacement parts, please visit the official Bushwacker website or contact their customer service department. When contacting support, please have your product model number (10923-07) and vehicle information readily available.
