Fresca Tiempo 24x30 Inch Wall Mount Medicine Cabinet with Dimmable LED Lights - User Manual
Model: Tiempo (FMC012430-R)
Maklumat Keselamatan Penting
Sila baca semua arahan dengan teliti sebelum pemasangan dan penggunaan. Simpan manual ini untuk rujukan pada masa hadapan.
- Always keep the door open within a safe angle to prevent it from swinging back and causing injury.
- Ensure proper wall support and use appropriate safety measures when installing the cabinet to avoid damage or injury.
- Installation should be performed by a qualified professional if you are unsure about electrical connections or wall mounting procedures.
- Disconnect power at the circuit breaker before performing any electrical work.
- Jangan dedahkan kabinet kepada kelembapan berlebihan atau semburan air langsung.
- Avoid using abrasive cleaners or sharp objects on the mirror surface or frame.
Produk Selesaiview
The Fresca Tiempo Medicine Cabinet is designed to provide functional storage and enhanced lighting for your bathroom. It features a frameless mirrored door, integrated dimmable LED task lighting, an anti-fog mirror, and an internal electrical/USB outlet. The interior includes three adjustable glass shelves and a mirrored back wall.

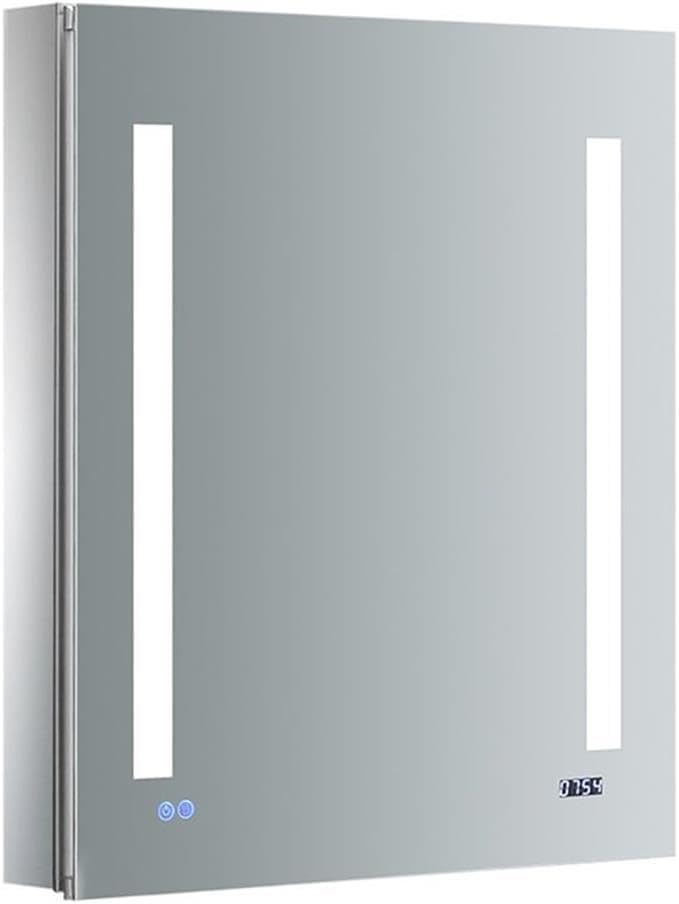

Imej 1: Depan view of the Fresca Tiempo medicine cabinet with LED lights illuminated and the digital clock displaying time.
Kandungan Pakej
Sahkan bahawa semua komponen hadir sebelum memulakan pemasangan:
- Fresca Tiempo Medicine Cabinet (1 unit)
- Adjustable Glass Shelves (3 units)
- Mounting Hardware (screws, anchors, etc. - specific types may vary)
- Manual Arahan (dokumen ini)
Spesifikasi
| Dimensi (W x H x D) | 23 5/8" x 29 1/2" x 4 7/8" (60cm x 75cm x 12.4cm) |
| Bahan Bingkai | IP44 Rated Anodized Aluminum |
| Jenis Cermin | 5mm Copper Free Silver Mirrors |
| Jenis Engsel | BLUM Hinges (170-degree swing, Right Hinge) |
| Pencahayaan | High Output Dimmable LED (Surface Task Light), Interior LED Light |
| Ciri Khas | Defogger with Touch Switch, Digital Clock, Electrical / USB Outlet Combo, Infrared Touch Switch for Interior LED Light |
| Bilangan Rak | 3 (Adjustable Glass) |
| Berat badan | Kira-kira 50 paun (22.7 kg) |
Persediaan dan Pemasangan
This medicine cabinet is designed for wall-mount installation. Professional installation is recommended, especially for electrical connections.
Alat dan Bahan Diperlukan (Tidak Termasuk):
- Pita pengukur
- Pensel
- Tahap
- Gerudi dengan mata gerudi yang sesuai
- Pemutar skru (Phillips dan/atau kepala rata)
- Wire strippers (for electrical connection)
- Cermin mata keselamatan
Langkah Pemasangan:
- Sediakan Dinding: Identify the desired mounting location. Ensure there are no hidden electrical wires or plumbing. Use a stud finder to locate wall studs for secure mounting, if possible. If mounting to drywall without studs, use appropriate heavy-duty wall anchors (not always included).
- Tandakan Titik Pelekap: Hold the cabinet against the wall at the desired height and use a level to ensure it is straight. Mark the locations for the mounting screws.
- Gerudi Lubang Juruterbang: Drill pilot holes at the marked locations. If using wall anchors, install them according to their instructions.
- Sambungan Elektrik:
- AMARAN: Disconnect power at the main circuit breaker before proceeding with electrical connections.
- Route the electrical wiring from the wall opening to the cabinet's junction box.
- Connect the cabinet's wires to the household electrical supply wires (typically black to black, white to white, and ground to ground) using appropriate wire connectors.
- Pastikan semua sambungan selamat dan terlindung.
- Pasang Kabinet: Carefully lift the cabinet and align the mounting holes with the drilled holes/anchors. Secure the cabinet to the wall using the provided screws. Do not overtighten.
- Pasang Rak: Insert the shelf pins into the desired slots inside the cabinet. Place the glass shelves onto the pins.
- Pulihkan Kuasa: Setelah pemasangan selesai dan semua sambungan selamat, pulihkan kuasa pada pemutus litar.
Imej 2: Dalaman view of the medicine cabinet showing the adjustable glass shelves and mirrored back wall.
Arahan Operasi
1. Dimmable LED Task Lighting
The cabinet features integrated LED lighting on the mirror surface. This light is controlled by a touch switch located on the mirror.
- Untuk Menghidupkan/Mematikan: Lightly touch the power icon on the mirror surface.
- To Dim: Press and hold the power icon. The light intensity will cycle through its dimming range. Release when the desired brightness is achieved.
Image 3: The medicine cabinet installed in a bathroom, demonstrating the illuminated LED task lighting.
2. Anti-Fog Mirror (Defogger)
The anti-fog feature helps keep the mirror clear in steamy bathroom conditions. It is activated by a separate touch switch.
- To Activate/Deactivate: Lightly touch the defogger icon on the mirror surface. An indicator light may illuminate when active.
- For optimal performance, activate the defogger a few minutes before showering or bathing.
3. Jam Digital
The integrated digital clock displays the time. Refer to the specific instructions provided with the cabinet for setting the time, as this may vary slightly by production batch.
4. Electrical / USB Outlet Combo
An electrical outlet and USB charging port are located inside the cabinet for convenient power access for devices such as electric toothbrushes, shavers, or other small electronics.
- Ensure the cabinet door is fully open when plugging or unplugging devices to prevent obstruction.
- Do not overload the outlet. Refer to the electrical specifications for maximum wattage.
Image 4: Interior of the cabinet showing stored items, adjustable shelves, and the internal electrical/USB outlet.
5. Rak Kaca Boleh Laras
The three glass shelves can be adjusted to different heights to accommodate various item sizes.
- To adjust, carefully remove items from the shelf. Lift the shelf slightly and pull it out.
- Relocate the shelf pins to the desired slots.
- Reinsert the glass shelf onto the pins, ensuring it is level and secure.
Penyelenggaraan
Cleaning the Mirror and Frame:
- Gunakan yang lembut, damp cloth with a mild, non-abrasive glass cleaner or water.
- Wipe dry immediately with a clean, lint-free cloth to prevent water spots.
- Do not spray cleaner directly onto the mirror or frame; apply it to the cloth first.
- Avoid cleaners containing ammonia, vinegar, or abrasive particles, as these can damage the mirror coating or frame finish.
Membersihkan Bahagian Dalaman:
- Remove shelves for easier cleaning.
- Wipe interior surfaces with a soft, damp kain dan sabun lembut, kemudian keringkan dengan teliti.
- Clean glass shelves with glass cleaner and a soft cloth.
Menyelesaikan masalah
| Masalah | Kemungkinan Punca | Penyelesaian |
|---|---|---|
| Lampu LED tidak menyala. | No power supply; loose electrical connection; faulty touch switch. | Check circuit breaker. Verify electrical connections (power off first!). Contact customer support if issue persists. |
| Anti-fog feature not working. | Penyahkabus tidak diaktifkan; masalah elektrik. | Ensure defogger touch switch is activated. Check power supply. |
| Digital clock is blank or incorrect. | Gangguan kuasa; jam tidak ditetapkan. | Reset and set the clock according to specific instructions (if provided separately). Check power supply. |
| Electrical/USB outlet not providing power. | No power supply; internal wiring issue. | Check circuit breaker. Ensure cabinet is properly wired. Test with another device. |
| Pintu tidak ditutup dengan betul. | Hinges misaligned; obstruction. | Check for obstructions. Adjust hinges if necessary (refer to hinge manufacturer's instructions if available). |
Maklumat Waranti
Fresca products are manufactured to high-quality standards. For specific warranty details regarding your Fresca Tiempo medicine cabinet, please refer to the warranty card included with your purchase or visit the official Fresca webtapak. Simpan bukti pembelian anda untuk tuntutan waranti.
Sokongan Pelanggan
If you have any questions, require technical assistance, or need to report a missing or damaged part, please contact Fresca customer support:
- Webtapak: www.frescabath.com (Nota: Ini ialah pemegang tempat URL, please verify the actual Fresca support webtapak.)
- e-mel: Refer to the Fresca webtapak untuk e-mel hubungan.
- telefon: Refer to the Fresca webtapak untuk nombor telefon untuk dihubungi.
When contacting support, please have your model number (FMC012430-R) and purchase date available.
