1. Pengenalan
This instruction manual provides comprehensive guidance for the setup, operation, and maintenance of your Enter 2.0 USB Bluetooth Dongle. Please read this manual carefully before using the device to ensure optimal performance and longevity.
2. Produk Lebihview
The Enter 2.0 USB Bluetooth Dongle is a compact and portable device designed to add Bluetooth connectivity to your computer or other compatible devices. It enables wireless communication for data transfer, networking, and audio streaming.
Rajah 1: Depan view of the Enter 2.0 USB Bluetooth Dongle.
Its plug-and-play functionality ensures ease of use across various operating systems, making it an ideal solution for expanding your device's wireless capabilities.
3. Ciri-ciri
- Penghantaran Data yang Cekap: Designed for seamless sending and receiving of data.
- High Processing Speed: Features a 2GHz processing speed for reliable performance.
- Ketersambungan Serbaguna: Connects to notebooks, laptops, PCs, PDAs, and mobile phones via USB.
- Julat Lanjutan: Operates within a range of 0 to 100 meters for data transfer.
- Broad Application Support: Supports LAN access, fax, dial-up networking, and headset connections.
- Keserasian OS yang Luas: Compatible with Windows 98, 98SE, Me, 2000, 7 (32-bit), Vista, and XP.
- Sokongan berbilang bahasa: Offers support for multiple languages.
- Voice Data Function: Includes functionality for voice data.
- Fast Data Rate: Achieves a data transmission rate of 3Mbps.
- Piawaian USB: Compliant with USB v1.1 and v2.0.
- Plug-and-Play: Simple installation without the need for complex driver setup.
- Penstriman Audio Tanpa Wayar: Enables streaming music to Bluetooth-enabled earphones, speakers, or audio receivers.
- Reka bentuk padat: Portable and small in size for easy transport.
4. Arahan Persediaan
- Masukkan Dongle: Locate an available USB port on your computer (desktop, laptop) or compatible device. Gently insert the Enter 2.0 USB Bluetooth Dongle into the USB port. Ensure it is fully seated.

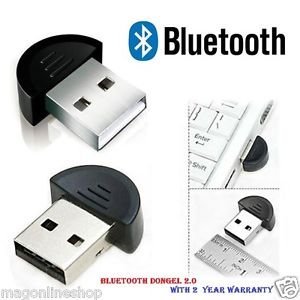

Figure 2: The dongle inserted into a USB port, demonstrating its compact size.
- Pemasangan Pemandu (Automatik): The dongle is designed for plug-and-play operation. Your operating system (Windows 98/98SE/Me/2000/7 32-bit/Vista/XP) should automatically detect the device and install the necessary drivers. This process may take a few moments.
- Pengesahan: Once the drivers are installed, a notification may appear, or you can check your device manager to confirm that the Bluetooth adapter is recognized and functioning correctly. A Bluetooth icon should appear in your system tray.
5. Arahan Operasi
5.1. Berpasangan dengan Peranti Bluetooth
- Dayakan Bluetooth: Ensure Bluetooth is enabled on your computer. You can usually find this option in your operating system's settings or control panel.
- Aktifkan Mod Berpasangan: Put your desired Bluetooth device (e.g., headphones, speaker, phone) into pairing mode. Refer to your device's manual for specific instructions on how to do this.
- Cari untuk Peranti: On your computer, open the Bluetooth settings and initiate a search for new devices. The Enter Bluetooth Dongle will facilitate this search.
- Select and Pair: From the list of discovered devices, select your device and click "Pair" or "Connect." You may be prompted to enter a PIN (usually "0000" or "1234") if required by the device.
- Pengesahan: Once paired, your device should show as "Connected" in your Bluetooth settings.
5.2. Pemindahan Data
Untuk memindahkan files between your computer and a paired Bluetooth device:
- Klik kanan pada file anda ingin menghantar.
- Select "Send to" and then "Bluetooth device."
- Choose the paired device from the list and follow the on-screen prompts to complete the transfer.
5.3. Penstriman Audio
After pairing Bluetooth headphones or speakers:
- Pastikan peranti audio Bluetooth anda dipilih sebagai peranti main balik lalai dalam tetapan bunyi komputer anda.
- Play any audio on your computer, and it will be streamed wirelessly to your connected Bluetooth device.
6. Penyelenggaraan
The Enter 2.0 USB Bluetooth Dongle requires minimal maintenance. Follow these guidelines to ensure its longevity:
- Jaga kebersihan: Use a soft, dry cloth to gently wipe the dongle if it becomes dusty. Avoid using liquid cleaners or abrasive materials.
- Lindungi daripada Kerosakan: Avoid dropping the dongle or exposing it to extreme temperatures, humidity, or direct sunlight.
- Storan yang Betul: When not in use, store the dongle in a safe place to prevent physical damage.
- Tangani dengan Berhati-hati: Always insert and remove the dongle gently from the USB port.
7. Penyelesaian masalah
| Masalah | Kemungkinan Punca | Penyelesaian |
|---|---|---|
| Dongle not detected by computer. | Loose connection, faulty USB port, or driver issue. |
|
| Tidak boleh berpasangan dengan peranti Bluetooth. | Peranti tidak dalam mod berpasangan, di luar julat atau gangguan. |
|
| Slow data transfer or intermittent connection. | Distance, obstacles, or interference. |
|
8. Spesifikasi
| Jenama | Masuk |
| Model | e-ubtv |
| Dimensi Produk (LxWxH) | 12.8 x 1.2 x 10.6 cm |
| Berat Barang | 290 g |
| Keserasian Sistem Pengendalian | Windows 98/ 98SE/ Me/ 2000/ 7 (32-bit)/ Vista/ XP |
| Antara Muka Perkakasan | Bluetooth, USB |
| Peranti Serasi | Desktop, Komputer riba |
| Ciri Khas | Bluetooth v2.0 Compliance |
| Jenis Wayarles | Bluetooth |
| Protokol Pautan Data | Bluetooth, USB |
| Kelajuan Pemproses | 2GHz |
| Kadar Penghantaran Data | 3Mbps |
| Range of Data Sending-Receiving | 0 hingga 100 m |
9. Waranti dan Sokongan
For any technical assistance or inquiries regarding your Enter 2.0 USB Bluetooth Dongle, please refer to the manufacturer's official website or contact their customer support. Specific warranty details, if applicable, are typically provided with the product packaging or on the manufacturer's webtapak.
Figure 3: The Enter 2.0 USB Bluetooth Dongle, highlighting the brand logo.
