LcFun Electric USB Rechargeable Lighter User Manual

1. Pengenalan

Thank you for choosing the LcFun Electric USB Rechargeable Lighter. This device utilizes advanced plasma dual arc technology, offering a windproof and flameless ignition solution. Designed for durability and convenience, it features a Type-C charging port and a long-lasting battery. Please read this manual carefully to ensure proper use and maintenance of your lighter.

Diagram showing the LcFun Electric USB Rechargeable Lighter with labels for Dual Arc, Arc Switch Button, Lid, Dragon Winding Pattern, and USB C Charging Port.

Figure 1: LcFun Electric USB Rechargeable Lighter Overview

2. Persediaan

2.1 Membongkar

Carefully remove the lighter and accessories from the packaging. Verify that all components are present: the LcFun Electric USB Rechargeable Lighter and a USB Type-C charging cable.

2.2 Pengecasan Awal

Before first use, fully charge the lighter. The lighter is equipped with a 280 mAh large-capacity battery.

Connect the provided USB Type-C cable to the lighter's charging port.
Connect the other end of the cable to a suitable plasma charger. The charger's maximum output voltage should be DC 5.0±0.25V, and the output current should be 4A. Using a charger with a larger output may lead to circuit board and battery damage.
A full charge typically takes about 1 hour. The indicator light will show charging status (e.g., blinking during charge, solid when full).

Image showing the LcFun Electric USB Rechargeable Lighter connected to a Type-C charging cable, with an illustration of a battery charging and various charging sources like a Type-C charger, power bank, computer, and car.

Figure 2: Type-C Charging for the Lighter

3. Arahan Operasi

3.1 Powering On and Ignition

Open the lighter's lid.
Press and hold the arc switch button located on the side of the lighter. The dual plasma arcs will activate.
Position the item to be lit (e.g., candle wick, paper) directly into the plasma arcs.
The lighter features an automatic power-off function after approximately 7 seconds of continuous use to prevent overheating and protect internal components. Release the button and press again if further ignition is needed.

3.2 Windproof and Flameless Operation

The dual arc design ensures the lighter operates effectively in windy conditions, making it suitable for outdoor activities like camping and hiking. Since it is flameless, it eliminates the need for butane or other fuels.

Close-up image of the LcFun Electric USB Rechargeable Lighter's dual arc plasma, highlighting its windproof, no open flame, and efficient features.

Figure 3: Dual Arc Plasma Technology

Video 1: Demonstration of the LcFun Electric USB Rechargeable Lighter's operation and features.

4. Penyelenggaraan

4.1 Membersihkan Elektrod

Over time, residue may accumulate on the plasma electrodes, affecting performance. Use a soft, dry cloth or a small brush to gently clean the electrodes. Ensure the lighter is turned off and cool before cleaning.

4.2 Penyimpanan

Store the lighter in a cool, dry place away from direct sunlight and extreme temperatures. Keep the lid closed to protect the electrodes from dust and debris.

Image illustrating the durable and safe features of the LcFun Electric USB Rechargeable Lighter, including certified safe battery, overheating protection, short circuit protection, 7s automatic power off, leakage protection, overcharge protection, discharge protection, and chip protection.

Figure 4: Safety and Durability Features

5. Penyelesaian masalah

Lighter not igniting: Ensure the lighter is fully charged. Clean the plasma electrodes as described in the Maintenance section.
Hayat bateri pendek: Confirm you are using a suitable charger (DC 5.0±0.25V, 4A output current). Avoid overcharging or using incompatible chargers, which can damage the battery.
Arc is weak or inconsistent: This is often due to residue on the electrodes. Clean them thoroughly. Ensure no metal objects are interfering with the arc.
Lighter not charging: Check the USB Type-C cable and charger for damage. Try a different compatible charging setup.

6. Spesifikasi

Ciri	Spesifikasi
Jenama	LcFun
Model	Electric USB Rechargeable Lighter
bahan	Aloi Zink
Jenis Bahan Api	Elektrik
Kapasiti Bateri	280 mAh
Port Pengecasan	Jenis-C
Masa Mengecas	lebih kurang 1 jam
Ignition Cycles per Charge	Approx. 35 times (7s each)
Berat Barang	55 Gram
Dimensi Produk (P x L x T)	2.9" x 1.4" x 0.47"

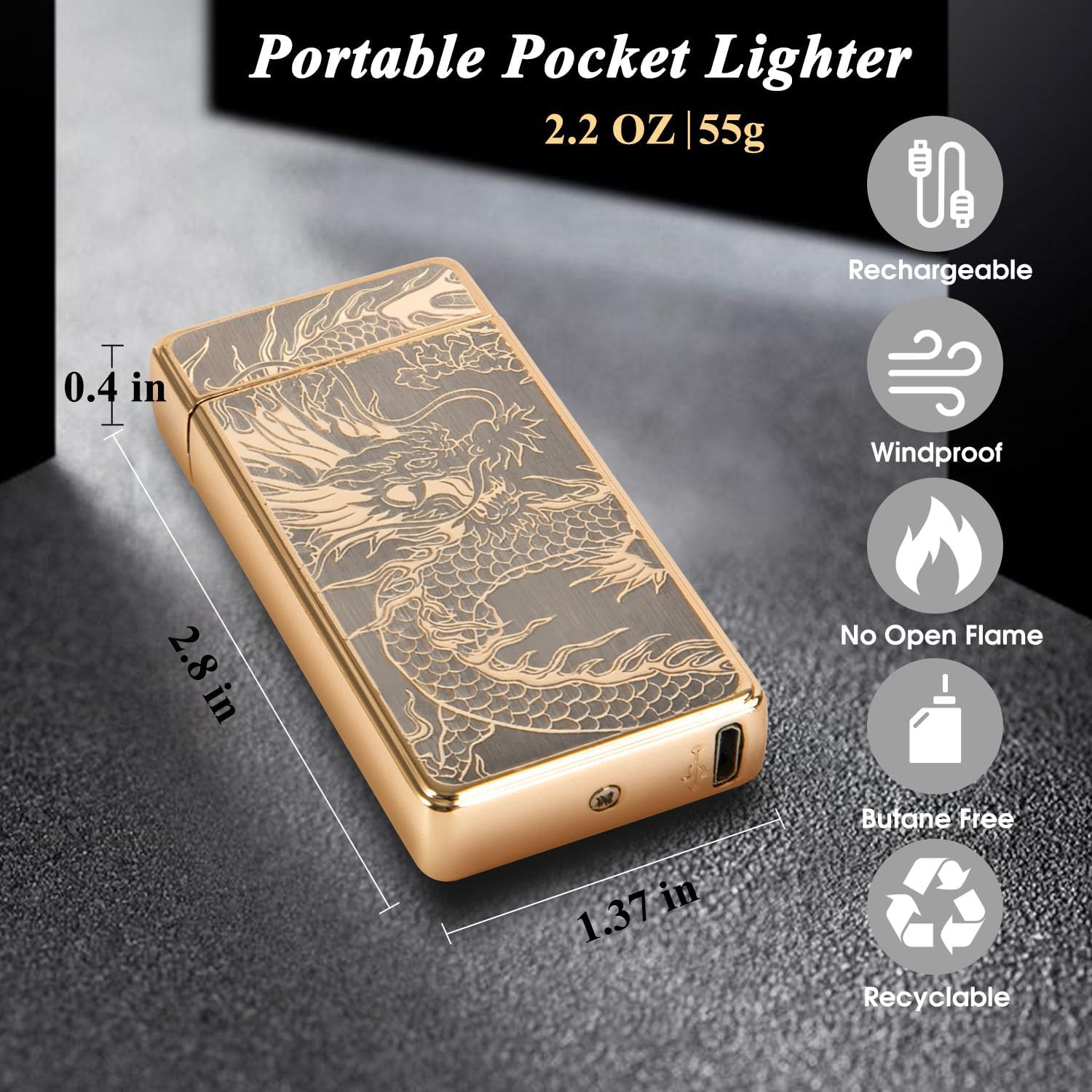

Image showing the dimensions of the LcFun Electric USB Rechargeable Lighter, indicating its compact size and portability.

Figure 5: Lighter Dimensions

7. Maklumat Keselamatan

AMARAN: Do not use this lighter with metal products.
Ensure the charging adapter meets the specified output voltage (DC 5.0±0.25V) and current (4A). Using an incompatible charger can cause circuit board and battery damage.
Jauhkan daripada kanak-kanak.
Do not expose the lighter to extreme temperatures (above 50°C / 122°F) or direct sunlight for prolonged periods.
Do not immerse the lighter in water or other liquids.
Do not attempt to disassemble or modify the lighter. This will void the warranty and may pose a safety risk.
Avoid touching the plasma arcs directly, as they can cause burns.
Do not use the lighter near flammable materials or gases.

8. Waranti dan Sokongan

8.1 Waranti

The LcFun Electric USB Rechargeable Lighter comes with a 90-day guarantee from the date of purchase. This warranty covers manufacturing defects under normal use. It does not cover damage resulting from misuse, accidents, unauthorized modifications, or failure to follow the instructions in this manual.

8.2 Sokongan Pelanggan

If you have any questions, concerns, or require assistance with your LcFun lighter, please contact our customer support team. Refer to the product packaging or the retailer's webtapak untuk butiran hubungan khusus.
