Brightech Hudson 2 LED Floor Lamp Manual Arahan

1. Produk Lebihview

The Brightech Hudson 2 LED Floor Lamp is a contemporary arc lamp designed for indoor use. It features an adjustable arm and a weighted base for stability. The lamp is equipped with energy-efficient LED bulbs, providing long-lasting illumination.

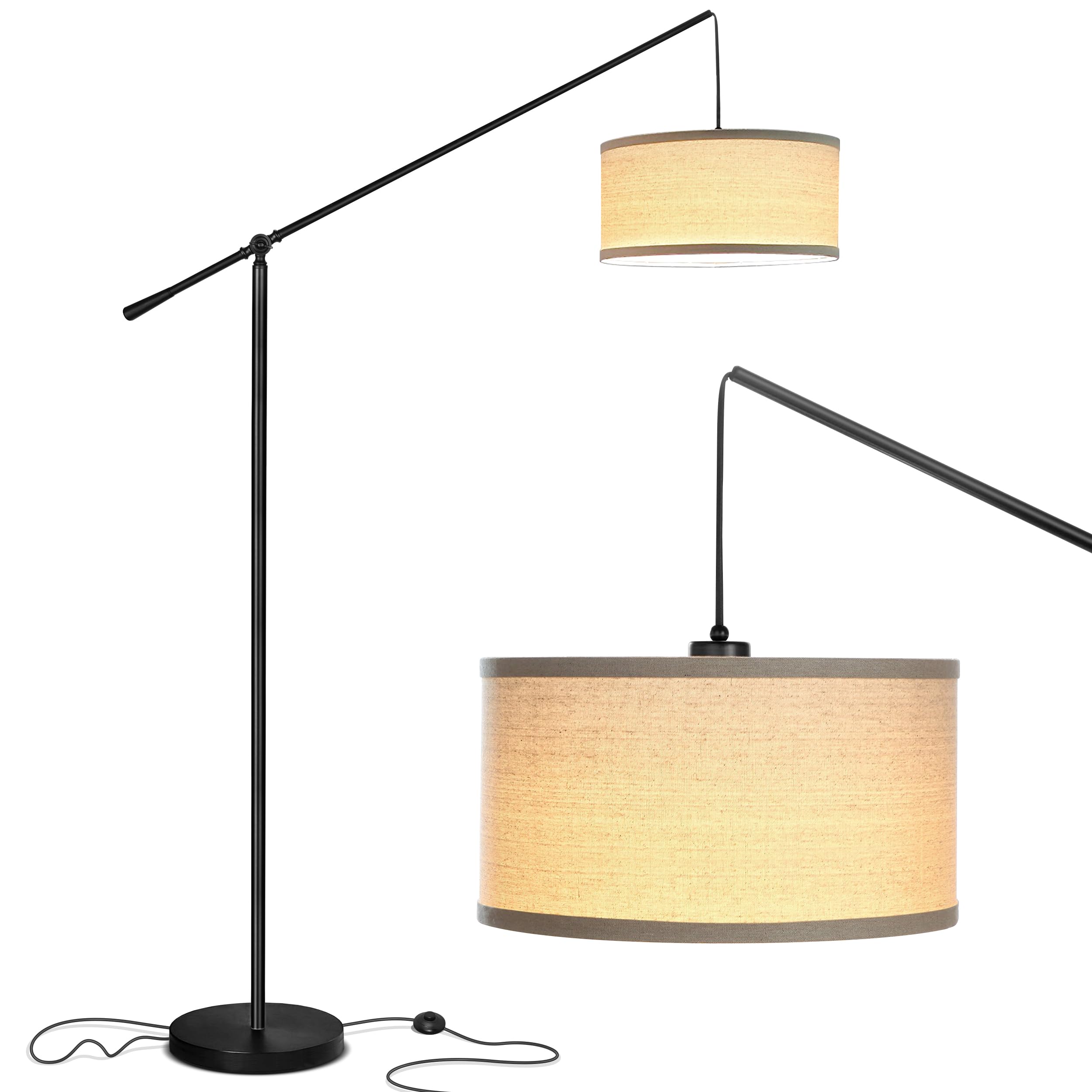

Image 1: The Brightech Hudson 2 LED Floor Lamp in Jet Black, showcasing its arc design and linen shade.

Ciri-ciri Utama:

• Adjustable Arm: Allows for flexible positioning of the light source.
• Energy-Efficient LED: Includes two LED bulbs designed for long life and lower energy consumption.
• Weighted Base: Provides enhanced stability to prevent tipping.
• Foot Switch: Convenient on/off operation.
• Durable Construction: Made with cast metal and linen materials.

2. Kandungan Pakej

Sila pastikan semua komponen ada sebelum memulakan pemasangan:

• Lamp badan
• Mentol LED
• Lamp teduh

3. Arahan Perhimpunan

Follow these steps to assemble your Brightech Hudson 2 LED Floor Lamp:

1. Buka Pembungkusan Komponen: Keluarkan semua bahagian dari bungkusan dengan berhati-hati dan letakkannya di atas permukaan yang bersih dan rata.
2. Assemble the Base and Pole: Securely attach the main pole sections to the weighted base. Ensure all connections are tightened to prevent wobbling.
3. Attach the Adjustable Arm: Connect the adjustable arc arm to the main pole. The joint allows for height adjustment. Tighten the knob on the joint to secure the arm at your desired height.


Image 2: Detail of the adjustable joint on the lamp's pole, which allows for height and angle adjustments of the arc arm.

4. Pasang Lamp teduh: Lamp shade may require minor assembly. Follow the instructions provided with the shade to attach it to its frame.


Imej 3: Gambar jarak dekat view of the beige linen lamp shade, highlighting its texture and construction.

5. Pasang Mentol LED: Skru mentol LED yang disediakan ke dalam lamp socket. Do not overtighten.
6. Letakkan Lamp: Letakkan lamp in your desired location. The adjustable arm allows the light to extend over furniture such as a couch or armchair.

4. Arahan Operasi

The Brightech Hudson 2 LED Floor Lamp is designed for simple operation:

• Hidupkan/Mati Kuasa: Lamp is operated by a foot switch located on the power cord. Press the switch once to turn the lamp on, and press it again to turn it off.
• Fungsi Peredupan: If using a compatible dimmable LED bulb and smart outlet (sold separately), the light output can be adjusted. Refer to the instructions for your smart device for dimming controls.

5. Penjagaan dan Penyelenggaraan

Untuk memastikan jangka hayat dan prestasi optimum peranti andaamp, ikut garis panduan penjagaan ini:

• Membersihkan Naungan: Periodically dust the linen lamp shade with a soft, dry cloth. For deeper cleaning, gently wipe with a damp cloth and mild soap, then allow to air dry completely. Avoid harsh chemicals.
• Cleaning the Base and Pole: Wipe the metal base and pole with a soft, dry cloth. Do not use abrasive cleaners.
• Penggantian mentol: Pastikan lamp is unplugged before replacing the LED bulb. Use only E26 base LED bulbs.

6. Penyelesaian masalah

Jika anda menghadapi sebarang masalah dengan l andaamp, rujuk kepada penyelesaian biasa berikut:

• Lamp Tidak Dihidupkan:
  • Periksa sama ada kord kuasa dipasang dengan selamat ke salur keluar elektrik yang berfungsi.
  • Ensure the foot switch is pressed correctly.
  • Verify that the LED bulb is screwed in tightly and is not faulty. Try testing with a known working bulb.
• Kelipan Cahaya:
  • Ensure the bulb is screwed in firmly.
  • If using a dimmable bulb, ensure it is compatible with your dimmer switch or smart outlet.
• Lamp is Unstable:
  • Ensure all pole sections and the base are securely tightened.
  • Letakkan lamp pada permukaan yang rata dan rata.

7. Spesifikasi

Image 4: Diagram illustrating key features and dimensions, including adjustable height, LED bulb, foot switch, and weighted base.

8. Waranti dan Sokongan

Waranti:

Brightech USA offers an industry-leading 3-year warranty covering defects, malfunctions, or sudden failures to your standing lamp when purchased through them.

Sokongan Pelanggan:

For any questions or support needs, please contact the Brightech USA support team. Refer to your purchase documentation or the Brightech webtapak untuk maklumat hubungan semasa.
