Tvilum Homeline 8 Drawer Double Dresser User Manual

1. Pengenalan

This manual provides comprehensive instructions for the assembly, safe operation, and proper maintenance of your Tvilum Homeline 8 Drawer Double Dresser. Please read all instructions carefully before beginning assembly and retain this manual for future reference.

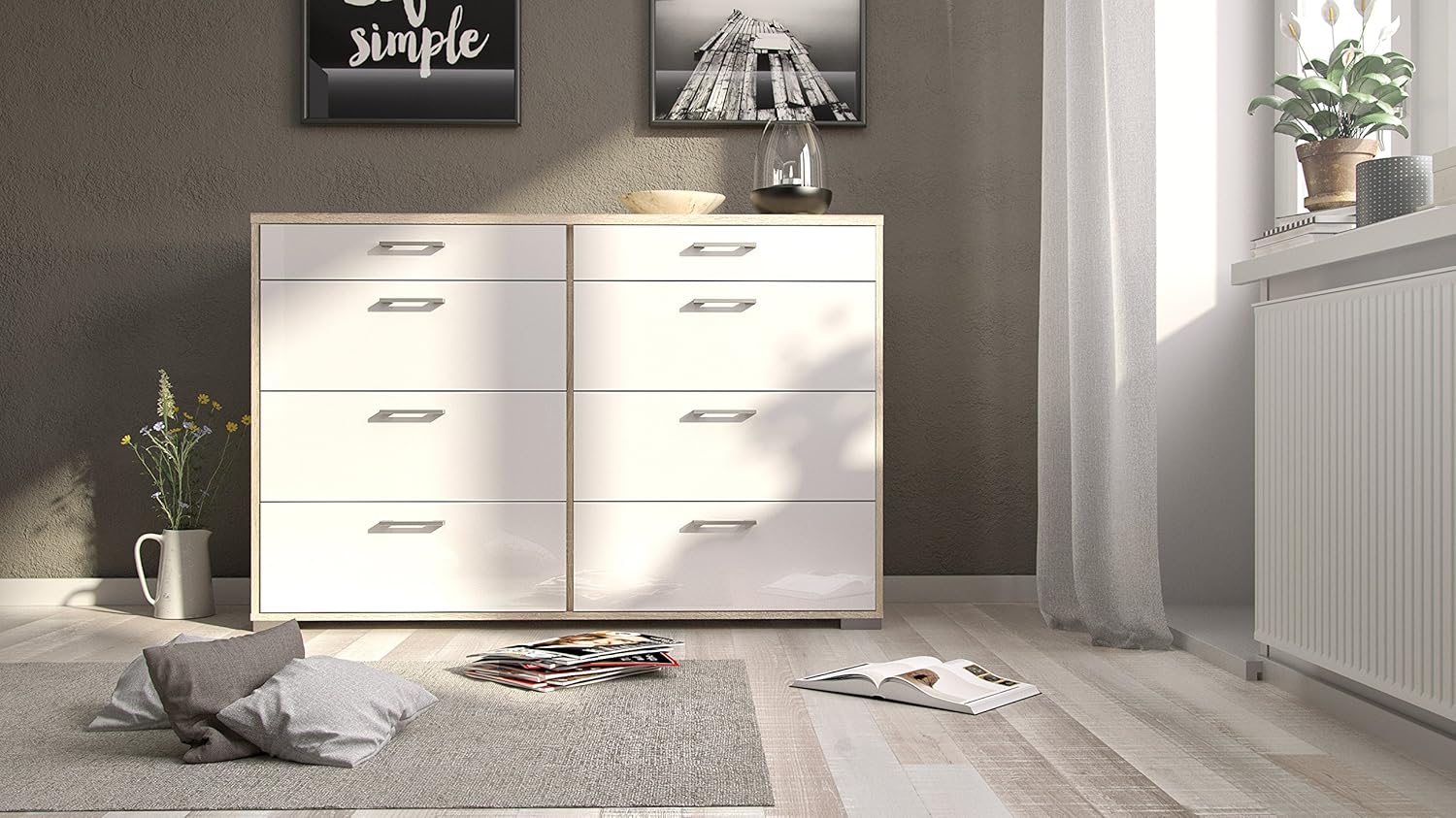

Image 1.1: Tvilum Homeline 8 Drawer Double Dresser (Oak Structure/White High Gloss) in a room.

2. Maklumat Keselamatan

Your safety is paramount. Follow these guidelines to prevent injury and damage to the product.

• Peranti Anti-Petua: Always secure the dresser to a wall using the provided anti-tip kit. Furniture tip-over can cause serious or fatal crushing injuries.
• Perhimpunan: Assemble the dresser on a soft, clean surface to prevent scratches. Ensure all fasteners are tightened securely before use. Periodically check and re-tighten all fasteners.
• Kanak-kanak: Jauhkan bahagian kecil dan bahan pembungkusan daripada kanak-kanak semasa pemasangan. Jangan benarkan kanak-kanak memanjat atau bermain dengan almari.
• Kapasiti Berat: Do not overload drawers. Distribute weight evenly. The top surface is not designed for heavy items that could cause instability.

3. Kandungan Pakej

Before assembly, verify that all components are present and undamaged. If any parts are missing or damaged, do not proceed with assembly. Contact customer support for assistance.

• Dresser panels (top, bottom, sides, back)
• Komponen laci (bahagian hadapan, sisi, belakang, bawah)
• Slaid dan pelari laci
• Handles and associated hardware
• Fasteners (screws, dowels, cam locks, etc.)
• Anti-tip safety kit
• Assembly instructions (this document)

4. Pemasangan dan Persediaan

Assembly is required for this product. It is recommended that two adults perform the assembly. Tools required: Phillips head screwdriver, hammer (optional, for dowels).

1. Buka bungkus dan Kenalpasti Bahagian: Carefully remove all components from the packaging. Lay them out on a clean, soft surface. Refer to the included parts list (if provided separately) to identify each piece.
2. Pasang Kerangka Utama: Follow the step-by-step diagrams to connect the side panels, bottom panel, and back panel. Ensure all cam locks and screws are securely fastened.
3. Pasang Pelari Laci: Attach the drawer runners to the inside of the dresser frame according to the diagrams. Ensure they are level and correctly oriented.
4. Pasang Laci: Construct each of the eight drawers by attaching the side panels, back panel, and bottom panel to the drawer front. Install the drawer slides onto the assembled drawers.
5. Sisipkan Laci: Carefully slide each assembled drawer into its corresponding runners in the dresser frame. Test each drawer for smooth operation.
6. Lampirkan Pemegang: Secure the metal handles to the front of each drawer using the provided screws.
7. Pasang Kit Anti-Petua: Position the dresser in its desired location. Attach the anti-tip bracket to the back of the dresser and to a wall stud using the provided hardware. This step is critical for safety.

Image 4.1: Tvilum Homeline 8 Drawer Double Dresser with drawers partially open, showing internal structure.

5. Arahan Operasi

The Tvilum Homeline 8 Drawer Double Dresser is designed for storing clothing and other household items.

• Membuka Laci: Gently pull the handle of the desired drawer to open it.
• Laci Penutup: Push the drawer firmly until it is fully closed and flush with the dresser frame.
• Pengagihan Berat: Distribute items evenly within the drawers. Avoid placing excessively heavy items in a single drawer or on the top surface to maintain stability and prevent damage.

6. Penyelenggaraan dan Penjagaan

Penjagaan yang betul akan memanjangkan hayat dan penampilan almari anda.

• Pembersihan: Wipe the surfaces with a dry cloth. For stubborn marks, a slightly damp cloth followed immediately by a dry cloth can be used. Avoid abrasive cleaners, harsh chemicals, or polishes that may damage the finish.
• Pengikat: Periodically check all screws, bolts, and cam locks to ensure they remain tight. Re-tighten as necessary.
• Persekitaran: Elakkan meletakkan meja solek di bawah cahaya matahari langsung atau berhampiran sumber haba, kerana ini boleh menyebabkan warna pudar atau melengkung. Kekalkan suhu dan kelembapan bilik yang stabil.
• Tumpahan: Lap tumpahan dengan segera untuk mengelakkan kerosakan akibat kelembapan.

7. Penyelesaian masalah

Refer to these common issues and solutions before contacting customer support.

• Laci tidak meluncur dengan lancar:
  • Check that the drawer slides are correctly aligned and free of obstructions.
  • Ensure all screws securing the slides to both the drawer and the frame are tight.
  • Verify that the drawer is not overloaded or unevenly weighted.
• Dresser wobbles or is unstable:
  • Pastikan almari diletakkan di atas permukaan yang rata.
  • Check all assembly fasteners throughout the dresser frame and re-tighten any loose connections.
  • Sahkan bahawa kit anti-hujung telah dipasang dan dilekatkan dengan betul pada dinding.
• Gaps between panels:
  • Pastikan semua kunci dan skru sesondol diketatkan sepenuhnya.
  • Verify that panels are correctly oriented and inserted into their designated slots.

8. Spesifikasi

9. Maklumat Waranti

This Tvilum product is covered by a manufacturer's warranty. The warranty covers manufacturer defects and parts only for a period of 12 months from the date of purchase. Please retain your proof of purchase for warranty claims. For full warranty terms and conditions, refer to the documentation included with your product or contact Tvilum customer support.

10. Sokongan Pelanggan

If you require further assistance, have questions about assembly, or need to report missing/damaged parts, please contact Tvilum customer support. Contact information can typically be found on the product packaging, Tvilum's official webtapak, atau melalui peruncit anda.

When contacting support, please have your product model name (Homeline 8) and proof of purchase readily available.
