Manual Pengguna Pemancar FM Bluetooth ToHayie

Model: BC17 | Brand: ToHayie

pengenalan

This manual provides detailed instructions for the operation and maintenance of your ToHayie Bluetooth FM Transmitter. Please read thoroughly before use to ensure proper functionality and to maximize your device's potential.

Ciri-ciri Utama

  • Kualiti Bunyi Jelas: Features CVC Noise Suppression Technology to effectively reduce background noise, providing CD-like sound quality with deep, static-free bass. The built-in microphone allows for hands-free calls without driving distraction.
  • 4 Mod Main Semula: Connects to smart devices via Bluetooth for easy music streaming. Includes an SD card slot for playing music or audiobooks, a USB port for flash drives (MP3, WMA, APE, FLAC, WAV formats), and a 3.5mm Aux output for wired connections.
  • Bluetooth 5.0 and Siri/Google Assistant: Utilizes the latest Bluetooth 5.0 technology for stable signal transmission and FM signal. Supports Siri and Google Assistant for convenient voice commands to make calls, send texts, or get directions.
  • Kawalan Jauh: Comes with a 21-key remote control, allowing anyone in the car to freely control music playback or calls, enhancing safety by minimizing driver distraction.
  • 180 Degree Rotating LED Screen: A large 1.4-inch screen displays phone calls, FM channels, music information, and the car's battery level. The rotating design provides optimal viewing comfort for safe, distraction-free driving.

Kandungan Pakej

Pakej standard termasuk item berikut:

  • ToHayie Bluetooth FM Transmitter
  • Kawalan Jauh 21-Kekunci
  • Kabel Audio 3.5mm
  • Manual Pengguna
ToHayie Bluetooth FM Transmitter with included remote control.

The main unit of the FM transmitter, featuring a display screen and control buttons, alongside its compact 21-key remote control.

Produk Selesaiview

Familiarize yourself with the various parts of your FM Transmitter:

Diagram showing components of the FM transmitter including microphone, IR remote receiver, TF card slot, LCD display, power plug, fuse, and control buttons.

Sebuah meletup view diagram highlighting key components such as the microphone, infrared remote control receiving window, TF card expansion slot, LCD display, power plug, fuse, and various control buttons for navigation and playback.

  • mikrofon: Untuk panggilan bebas tangan.
  • IR Remote Control Receiving Window: Menerima isyarat dari alat kawalan jauh.
  • Slot Kad TF: For inserting a TF (microSD) card (supports up to 32GB).
  • Tetingkap Paparan LCD: Shows frequency, mode, call information, and more.
  • Palam Kuasa: Connects to your car's cigarette lighter socket.
  • Fius: Internal safety component.
  • Next Track / CH+ Button: Advances track or increases FM frequency.
  • Menu / Adjust Volume / Exit Button: Navigates menus, adjusts volume, or exits current function.
  • Play / Pause / Pick Up / Hang Up / Confirm Button: Controls playback and call functions.
  • Previous Track / CH- Button: Goes to previous track or decreases FM frequency.

Persediaan Awal

  1. Insert the FM transmitter firmly into your vehicle's 12V/24V cigarette lighter socket.
  2. Ensure the power switch located on the side of the device is in the "ON" position.
    Close-up of the FM transmitter showing the power switch on the side.

    A terperinci view of the FM transmitter's side, indicating the location of the ON/OFF power switch. Ensure this switch is engaged before use.

  3. The device will power on and display the current FM frequency on its screen.
  4. Tune your car radio to an empty FM frequency (one with no active broadcast or minimal static).
  5. Adjust the FM transmitter's frequency to match your car radio's frequency. Use the CH+ and CH- buttons on the device or the remote control to change the frequency.

Arahan Operasi

The ToHayie FM Transmitter supports four primary playback modes for your audio convenience: Bluetooth, TF Card, USB Disk, and AUX.

Diagram illustrating the four playing modes: Bluetooth Function, TF Card, USB Disk, and AUX Port.

A visual guide demonstrating the four versatile audio input options: wireless Bluetooth connectivity, direct playback from a TF (microSD) card, music streaming from a USB flash drive, and wired connection via the 3.5mm AUX port.

Mod Bluetooth

  1. After initial setup, the device will automatically enter Bluetooth pairing mode (indicated by "BT Connected" or similar on the screen).
  2. On your mobile device, enable Bluetooth and search for "BC17" (or the specific device name displayed).
  3. Select "BC17" to pair. Once successfully connected, you will hear an audio confirmation.
  4. You can now stream audio from your mobile device to your car's stereo system.
FM transmitter screen displaying 'BT Connected' and the FM frequency.

The 1.4-inch LED screen showing the 'BT Connected' status, indicating a successful Bluetooth pairing with a mobile device, along with the active FM frequency (e.g., 87.5MHz).

Panggilan Bebas Tangan

  • When a call comes in while in Bluetooth mode, the device will display the incoming number on its screen.
  • Press the Play/Pause/Call button on the device or remote to answer an incoming call.
  • Press the Play/Pause/Call button again to end an active call.
  • Press and hold the Play/Pause/Call button to reject an incoming call.

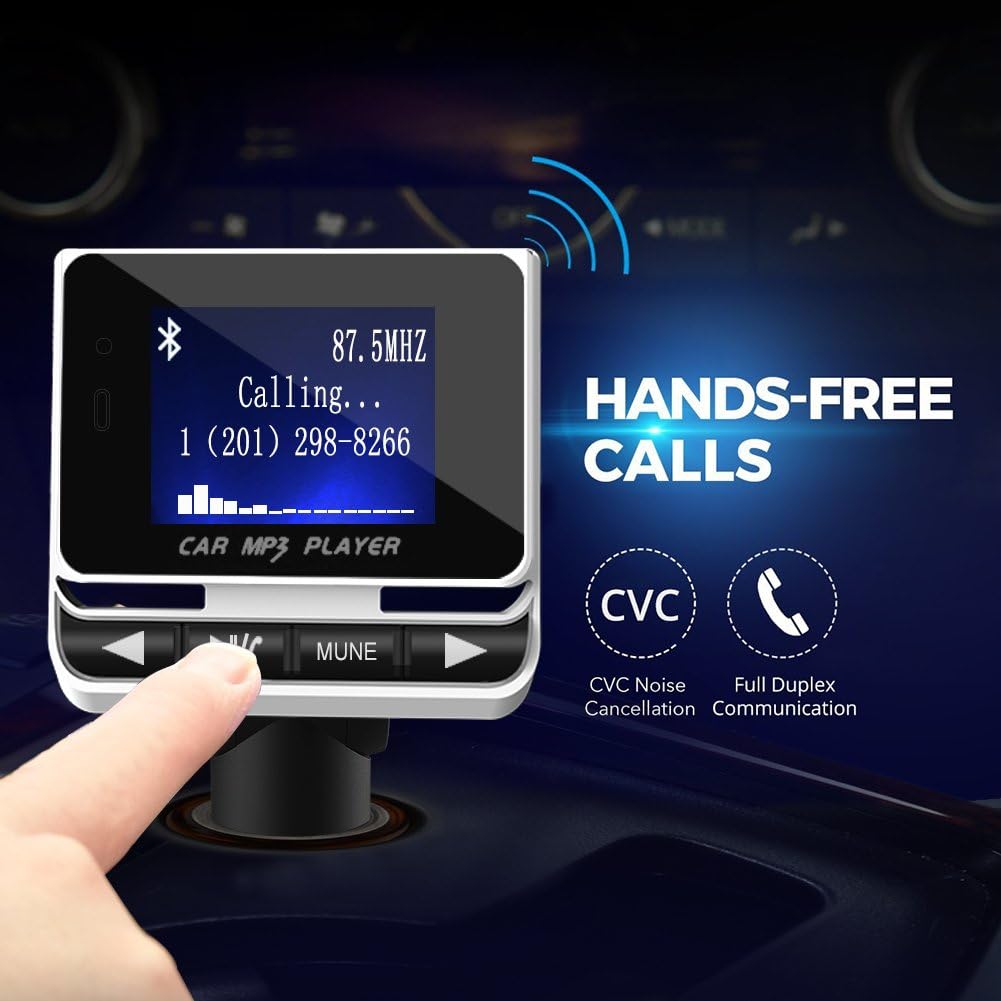

FM transmitter screen showing an incoming call with CVC Noise Cancellation and Full Duplex Communication icons.

The device screen during an incoming call, demonstrating its hands-free capabilities. Icons for CVC Noise Cancellation and Full Duplex Communication are visible, highlighting enhanced call clarity.

Mod Kad TF

Insert a TF (microSD) card (up to 32GB) containing compatible audio files (MP3, WMA, APE, FLAC, WAV) into the designated TF card slot. The device will automatically switch to TF card playback mode.

Mod Cakera USB

Masukkan pemacu kilat USB yang mengandungi audio yang serasi files (MP3, WMA, APE, FLAC, WAV) into the USB port marked with a music icon. The device will automatically switch to USB disk playback mode.

Mod AUX

Connect your external audio device (e.g., smartphone, MP3 player) to the FM transmitter's 3.5mm AUX input using the provided audio cable. The device will automatically switch to AUX mode for audio input.

Fungsi Pengecasan

The dedicated USB port (separate from the music playback USB port) can be used to charge your mobile devices with an output of 5V/1A.

ToHayie FM Transmitter charging a smartphone in a car's center console.

The ToHayie FM Transmitter is shown plugged into a car's power outlet, actively charging a smartphone placed in the console, demonstrating its dual functionality as an audio transmitter and a charging port.

Penjagaan dan Penyelenggaraan

  • Keep the device dry. Avoid exposure to moisture, rain, or extreme temperatures.
  • Clean the device with a soft, dry cloth. Do not use harsh chemicals, solvents, or abrasive cleaners.
  • Handle the remote control with care to prevent loss or damage.
  • Periodically check the car's cigarette lighter socket for debris to ensure a secure and stable connection.

Menyelesaikan masalah

Masalah Penyelesaian
Static or Poor Sound Quality Ensure your car radio and the transmitter are tuned to the same, clear FM frequency. Avoid frequencies used by strong local radio stations. Adjust the volume on both the transmitter and your car stereo.
Peranti Tidak Dihidupkan Check if the device is securely plugged into the cigarette lighter socket. Verify the car's cigarette lighter fuse. Ensure the ON/OFF switch on the device is in the "ON" position.
Pemutusan Bluetooth Ensure your mobile device's Bluetooth is enabled and within range. Re-pair the device if necessary. Restart both the transmitter and your mobile device.
Alat Kawalan Jauh Tidak Berfungsi Check the battery in the remote control. Ensure there are no obstructions between the remote and the transmitter's IR receiver.
Cannot Change Modes Without Remote The device primarily relies on the remote for mode changes. If the remote is lost, you may need to power cycle the device by unplugging and re-plugging it, or use the limited on-device controls if available for basic functions.

Spesifikasi Produk

  • Dimensi Produk: 2.17"L x 2.13"W x 3.54"H
  • Berat Barang: 3.88 auns
  • Nombor Model: BC17
  • Teknologi Ketersambungan: Bluetooth, Tambahan, USB
  • Sumber Kuasa: Corded Electric (Car Cigarette Lighter)
  • Ciri Khas: FM Transmitter, Noise Cancellation (CVC), Remote Control, 1.4-inch Rotating LED Screen
  • Pengeluar: ToHayie
  • Negara Asal: China

Waranti dan Sokongan

ToHayie stands behind its products. This FM Transmitter comes with a Jaminan Wang Dikembalikan 45 Hari dan a Waranti Penggantian 12 Bulan.

For customer service, technical support, or warranty claims, please refer to the contact information provided with your original purchase or visit the official ToHayie store on Amazon.

You can also download the official User Manual in PDF format for additional details:

Muat turun Manual Pengguna (PDF)
