Maklumat Keselamatan Penting
Always use the chair in the upright position when not in use. Keep the chair away from heat sources and direct sunlight. Do not use the chair if you have any medical conditions that could be affected by massage. This chair is designed for adult use and may not be suitable for all users. Always check the chair's stability before use. Do not exceed the maximum weight capacity of 300 lbs.
Produk Selesaiview
The Human Touch HT-5320 WholeBody Massage Chair is designed to provide a comprehensive full-body massage experience. It features a range of advanced functionalities including a full-body massage system, seat massage, and stowable massaging cuffs for arm or thigh air massage. The chair incorporates an extendable calf and foot boot style massager, power lift and recline functions, a pulsating seat system, and an adjustable height footrest. Key technologies include Acupoint Detection for precise massage mapping, an ergonomic remote for intuitive control, and a unique Subtraction System allowing users to customize their massage by removing features as desired.

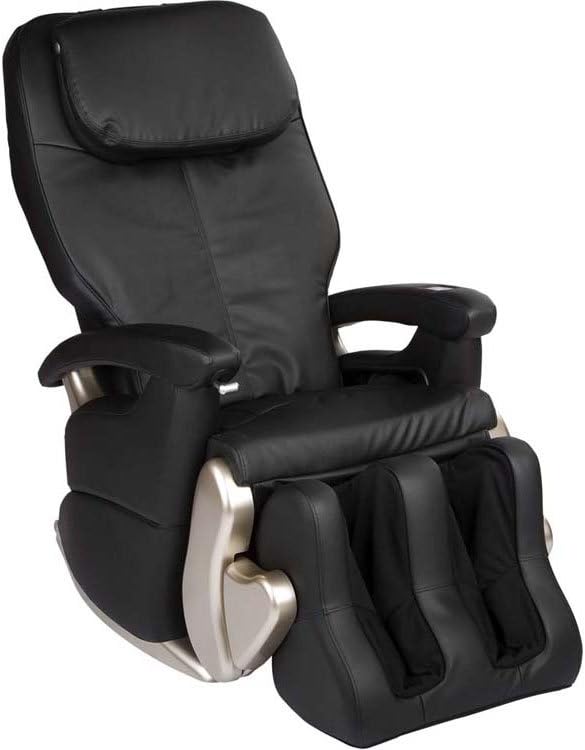

Rajah 1: Depan view of the Human Touch HT-5320 WholeBody Massage Chair in black. This image shows the chair in its upright position, highlighting its sleek design and integrated foot and calf massager.
Figure 2: A detailed diagram highlighting the main features of the HT-5320 massage chair, including the contoured-comfort neck pillow, Acupoint Detection System, power-recline backrest, full-body stretch, arm and thigh massage sleeves, pulsating seat massage system, and extendable foot and calf massager.
Persediaan
Membongkar dan Meletakkan
- Carefully remove all packaging materials from the chair. Retain packaging for future transport or storage.
- Place the massage chair on a level, stable surface. Ensure there is adequate space around the chair for full recline and extension (approximately 12 inches from a wall for the backrest and 20 inches for the footrest).
- Connect the power cord to the chair's power input, then plug it into a grounded electrical outlet.
Perhimpunan Awal (jika diperlukan)
The HT-5320 typically comes pre-assembled. If any components, such as the remote holder or headrest, require attachment, refer to the quick start guide included in the packaging. Ensure all connections are secure before use.
Arahan Operasi
Kawalan Jauh Lebihview
The ergonomic remote control provides full command over all massage functions. Familiarize yourself with the button layout before operation.
Figure 3: An illustration detailing the functions of each button on the HT-5320 remote control. This includes power, navigation, massage program selection, intensity adjustments, and specific massage area controls for full, upper, lower body, seat, calf kneading, foot vibration, arm/thigh, and stretch functions.
Starting a Massage Program
- Duduk dengan selesa di kerusi.
- Tekan ke kuasa button on the remote to turn on the chair.
- Select a pre-programmed massage from the available options (e.g., Full, Upper, Lower) or choose a manual massage technique.
- Adjust the recline position using the Kaki Atas dan Kaki Ke Bawah buttons for the foot and calf massager, and Sandarkan dan Kembali ke Bawah for the backrest.
Customizing Your Massage
- Acupoint Detection: The chair automatically detects acupressure points for a personalized massage.
- Foot and Calf Massager: Activate the two-speed vibration and kneading functions for the lower legs.
- Arm and Thigh Massage Sleeves: Utilize the stowable air massage cuffs for targeted relief.
- Seat Massage: Engage the pulsating seat system for hip and glute massage.
- Stretch Mode: Tekan ke Regangan button to initiate a full-body stretch, gently extending the spine.
- Subtraction System: Begin with a full-feature massage and use the remote to subtract specific features you do not desire.
Penyelenggaraan
Pembersihan
- Putuskan sambungan kord kuasa sebelum membersihkan.
- Lap permukaan kerusi dengan lembut, damp cloth. For bonded leather or vinyl, use a mild, non-abrasive cleaner specifically designed for these materials.
- Jangan gunakan bahan kimia yang keras, pembersih yang kasar atau pelarut.
- Allow the chair to dry completely before reconnecting power.
Penyimpanan
If storing the chair for an extended period, ensure it is clean and dry. Store in a cool, dry place away from direct sunlight and extreme temperatures. Cover the chair to protect it from dust.
Menyelesaikan masalah
| Masalah | Kemungkinan Punca | Penyelesaian |
|---|---|---|
| Kerusi tidak boleh dihidupkan. | Power cord not securely plugged in; power outlet malfunction. | Check power cord connection at both the chair and the wall outlet. Test the outlet with another device. |
| Massage rollers are not moving. | Chair is in an incorrect mode; safety feature activated. | Ensure a massage program is selected. If the chair has been running for an extended period, it may have entered a cool-down phase. Turn off and restart after 15 minutes. |
| Foot and calf massager not working. | Not activated; connection issue. | Press the dedicated foot and calf massage button on the remote. Check for any obstructions. |
| Alat kawalan jauh tidak bertindak balas. | Batteries low or dead; remote not paired (if applicable). | Replace batteries in the remote. If the issue persists, contact customer support. |
If the problem persists after attempting the suggested solutions, please contact Human Touch Customer Support.
Spesifikasi
- Jenama: Sentuhan Manusia
- Nombor Model: HT-5320
- warna: Hitam
- Product Dimensions (Upright): 47"D x 32"W x 57"H
- Product Dimensions (Reclined): Kira-kira 70"D x 32"W x 30"H
- Kapasiti Berat: Sehingga 300 lbs
- ciri-ciri: Full-body massage, Seat massage, Arm/Thigh air massage, Extendable calf/foot massager, Power recline/lift, Pulsating seat, Adjustable footrest, Acupoint Detection, Ergonomic remote, Stretch Mode, Subtraction System.
- Bahan: Leather-like vinyl or bonded leather
- UPC: 066243192247
Figure 4: This image provides the key dimensions of the HT-5320 massage chair in its upright position (47" depth, 32" width, 57" height).
Figure 5: A comprehensive diagram showing both upright and reclined dimensions (approx. 56.5" x 46.5" upright, 70" x 30" reclined) along with a re-illustration of key features like the contoured-comfort neck pillow, Acupoint Detection System, and various massage components.
Waranti dan Sokongan
Maklumat Waranti
The Human Touch HT-5320 WholeBody Massage Chair typically comes with a Waranti Terhad 1 Tahun. This warranty covers manufacturing defects and issues arising from normal use. Please refer to the warranty card included with your product for specific terms, conditions, and registration instructions. Keep your proof of purchase for warranty claims.
Sokongan Pelanggan
For technical assistance, troubleshooting beyond this manual, or warranty service, please contact Human Touch Customer Support. Visit the official Human Touch weblaman web untuk maklumat hubungan terkini, termasuk nombor telefon dan pilihan sokongan dalam talian.
Anda juga boleh melawat Human Touch Store on Amazon untuk maklumat dan sumber produk tambahan.
