SANIFLO Sanimarin 31 Electric Marine Macerating Toilet (12V)

1. Pengenalan

This manual provides detailed instructions for the installation, operation, and maintenance of your SANIFLO Sanimarin 31 Electric Marine Macerating Toilet. The Sanimarin 31 is a compact, low-profile automatic toilet system designed for marine environments, featuring a stainless steel macerating blade and a control panel.

Ciri-ciri utama termasuk:

• Compact and efficient design suitable for limited spaces.
• Quiet operation with a soft-close seat.
• Powerful stainless steel macerating blade for waste processing.
• Dual flush modes (Eco and Normal) for water and energy efficiency.

Imej 1.1: Depan view of the SANIFLO Sanimarin 31 Electric Marine Macerating Toilet.

2. Maklumat Keselamatan

Read all instructions carefully before installation and operation. Failure to follow these instructions may result in product damage, property damage, or personal injury.

• Pastikan bekalan kuasa diputuskan sambungan sebelum melakukan sebarang pemasangan, penyelenggaraan atau penyelesaian masalah.
• This unit operates on 12V DC. Verify your vessel's electrical system matches this requirement.
• Installation should be performed by a qualified technician if you are unfamiliar with marine plumbing and electrical systems.
• Do not dispose of foreign objects (e.g., sanitary products, paper towels, wipes, plastics) into the toilet, as this can cause blockages and damage the macerator.
• Pastikan pengudaraan yang betul di kawasan pemasangan.

3. Kandungan Pakej

Sahkan bahawa semua komponen ada dan tidak rosak semasa membongkar:

• Sanimarin 31 Electric Marine Macerating Toilet unit
• Panel Kawalan
• Tempat duduk tandas rapat-lembut
• Perkakasan pemasangan
• Manual Arahan

4. Persediaan dan Pemasangan

The Sanimarin 31 is designed for floor-mounted installation. Ensure adequate space and access for plumbing and electrical connections.

4.1. Dimensi

Refer to the diagram below for product dimensions to ensure proper fit in your desired location.

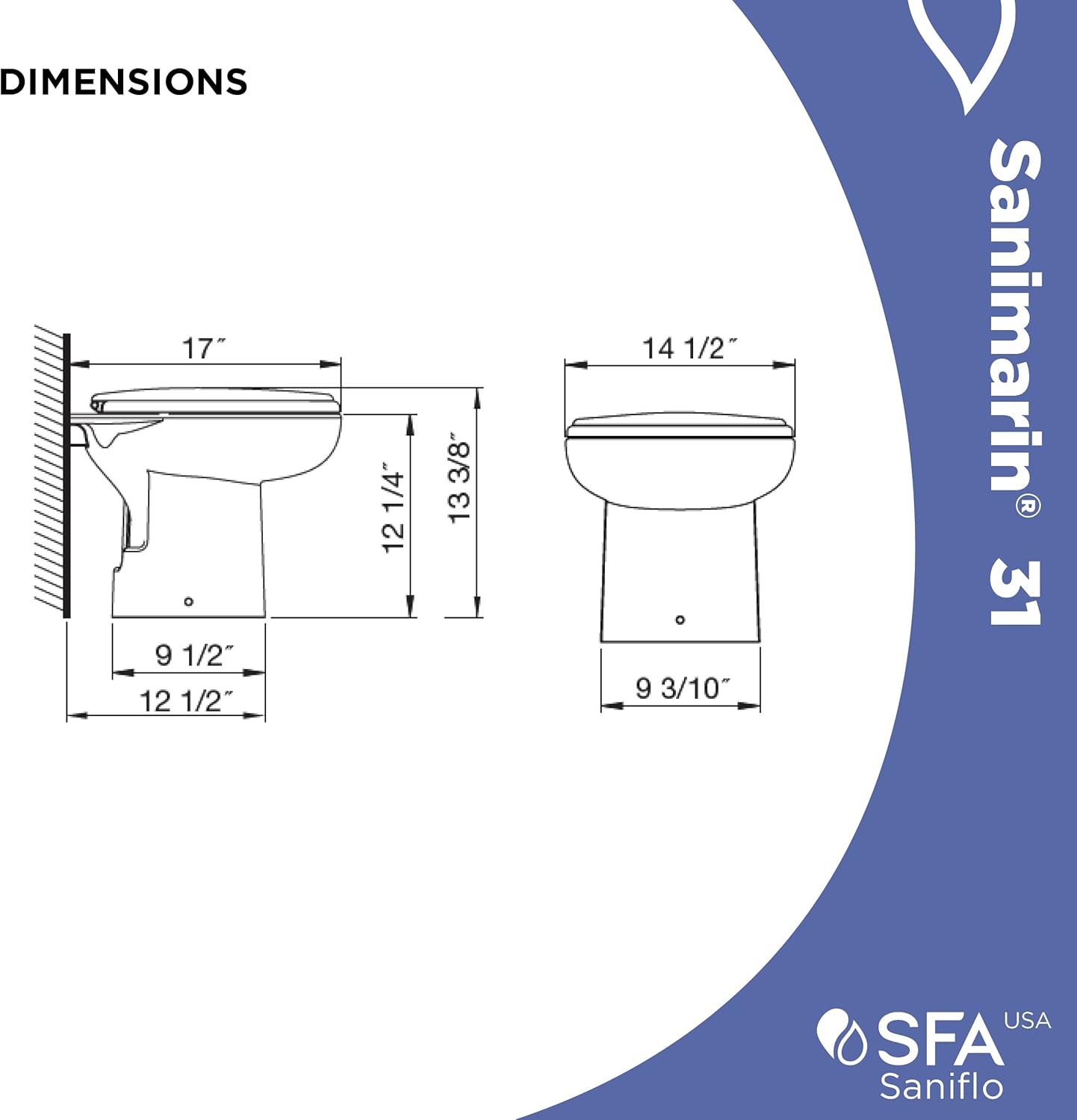

Image 4.1: Dimensional drawing of the Sanimarin 31 toilet, showing height, width, and depth measurements.

4.2. Sambungan Bekalan Air

• The toilet uses onboard freshwater or outside pressurized water.
• Minimum water supply pressure required is 25 PSI (1.7 bar).
• Recommended pump flow rate is 2.9 GPM.
• Connect the water inlet to a suitable freshwater supply line. A shutoff valve is recommended for maintenance.

4.3. Waste Discharge Connection

• The macerator can discharge waste up to 10 feet vertically or 100 feet horizontally.
• The discharge outlet is located at the top left rear of the toilet when viewed dari hadapan.
• Use appropriate marine-grade discharge hose and fittings. A 1-1/4" Fernco adapter may be required for connection to your drain system.

4.4. Sambungan elektrik

• The unit requires a 12V DC power supply.
• Sambung ke 25 khusus amp litar.
• Pastikan semua sambungan elektrik kukuh dan dilindungi daripada kelembapan.

4.5. Pemasangan

• Pasangkan tandas ke lantai menggunakan perkakasan pelekap yang disediakan.
• Ensure the toilet is stable and level after installation.

5. Operasi

The Sanimarin 31 is operated via a control panel with distinct flush options.

Image 5.1: The Sanimarin 31 control panel with Eco, Normal, and Empty buttons.

5.1. Fungsi Panel Kawalan

• Penunjuk Kuasa Hidup: A light on the control panel indicates when the unit is powered.
• Petunjuk Penuh Tangki: An optional connection to your black water tank gauge can illuminate an indicator when the tank is full.
• ECO Flush: Initiates an economical flush using approximately 0.32 gallons of water.
• NORMAL Flush: Initiates a standard flush using approximately 0.63 gallons of water. The flush volume is adjustable up to 1 gallon.
• EMPTY Button: Activates the macerator to remove water from the bowl. This function is also used for maintenance procedures.

5.2. Flushing Procedure

1. Pastikan unit dihidupkan.
2. Pilih sama ada ECO or BIASA flush button based on your requirement.
3. The macerator will activate, and water will enter the bowl to rinse and discharge waste.
4. Release the button once the flush cycle is complete and the bowl is clean.

6. Penyelenggaraan

Regular maintenance ensures optimal performance and longevity of your Sanimarin 31 toilet.

6.1. Pembersihan

• Use mild, non-abrasive cleaners specifically designed for marine toilets. Avoid harsh chemicals, bleach, or abrasive pads, as these can damage the toilet's surfaces and internal components.
• Clean the bowl and exterior regularly.
• For thorough cleaning, use the KOSONG button to remove water from the bowl before applying cleaner.

6.2. Musim sejuk

If the toilet will be exposed to freezing temperatures, proper winterization is essential to prevent damage.

• Flush the toilet with fresh water several times to clear any waste.
• Putuskan sambungan bekalan air.
• Gunakan KOSONG button to remove as much water as possible from the bowl and internal pump.
• Introduce non-toxic marine-grade antifreeze into the bowl and flush until antifreeze is visible in the discharge line.

7. Penyelesaian masalah

This section addresses common issues you might encounter with your Sanimarin 31 toilet.

8. Spesifikasi

9. Waranti dan Sokongan

SANIFLO products are manufactured to high standards. For specific warranty details, please refer to the warranty card included with your product or visit the official SANIFLO website. EU spare part availability is typically 2 years.

For technical assistance, troubleshooting beyond this manual, or to inquire about spare parts, please contact SANIFLO customer support. Contact information can be found on the SANIFLO webtapak atau dalam pembungkusan produk anda.
