BLACK+DECKER 7.2V Cordless Li-Ion Wet & Dry Cyclonic Dustbuster Hand Vacuum WD7201G Instruction Manual

pengenalan

This manual provides essential information for the safe and efficient operation, maintenance, and care of your BLACK+DECKER 7.2V Cordless Li-Ion Wet & Dry Cyclonic Dustbuster Hand Vacuum, model WD7201G. Please read these instructions thoroughly before using the appliance and retain them for future reference.

Maklumat Keselamatan

Always observe basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, and personal injury. This appliance is intended for household use only. Do not use it for industrial or commercial purposes. Keep the appliance out of reach of children.

• Ensure the charging adapter is compatible with your local power supply.
• Jangan rendamkan perkakas dalam air atau cecair lain.
• Jangan ambil cecair mudah terbakar atau mudah terbakar, seperti petrol, atau gunakan di kawasan yang mungkin terdapat.
• Jangan ambil apa-apa yang terbakar atau berasap, seperti rokok, mancis, atau abu panas.
• Jangan gunakan tanpa penapis di tempatnya.
• Jika kord bekalan rosak, ia mesti diganti oleh pengilang, ejen servisnya, atau orang yang berkelayakan yang serupa untuk mengelakkan bahaya.

Kandungan Pakej

Pastikan semua komponen berada dalam keadaan baik dan lengkap:

• BLACK+DECKER 7.2V Cordless Li-Ion Wet & Dry Cyclonic Dustbuster Hand Vacuum
• Charging wall/stand mount
• Penapis boleh basuh
• Accessory Kit (specific accessories may vary)
• Manual Arahan

Persediaan

Mengecas Perkakas

Before first use, fully charge the vacuum for approximately 10-16 hours. Subsequent charges will typically take less time. The appliance is powered by a Lithium-ion battery.

1. Connect the charging adapter to the charging wall/stand mount.
2. Palamkan penyesuai ke soket elektrik standard.
3. Place the hand vacuum onto the charging mount. Ensure the charging indicator light illuminates, confirming proper connection.

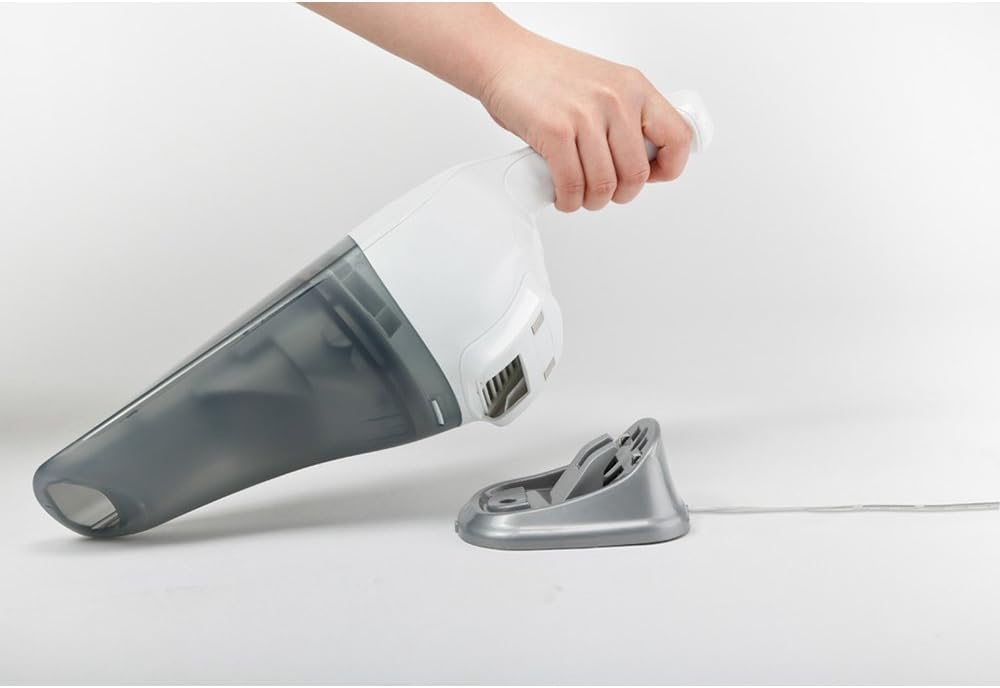

Rajah 1: The hand vacuum placed on its charging stand, connected to power. The charging stand allows for convenient storage and ensures the vacuum is always ready for use.

Arahan Operasi

Kegunaan Umum

To turn the vacuum on, slide the power switch to the 'ON' position. To turn it off, slide the switch to the 'OFF' position. The vacuum is designed for both wet and dry cleaning tasks.

Cucian Kering

For dry debris such as crumbs, dust, or pet hair, ensure the wet pick-up nozzle is removed (if attached) and the filter is clean and dry. Position the nozzle over the debris and activate the vacuum. Move the vacuum slowly over the area to ensure thorough cleaning.

Rajah 2: The hand vacuum effectively picking up dry crumbs from a kitchen counter. Its compact design allows for easy maneuverability for quick clean-ups.

Pembersihan Basah

For liquid spills, attach the wet pick-up nozzle (if included in your accessory kit). Ensure the dust container is empty before picking up liquids. Do not exceed the maximum liquid fill line indicated on the dust container. After picking up liquids, always empty and clean the dust container and filter immediately to prevent odors and maintain performance.

Rajah 3: The hand vacuum demonstrating its wet cleaning capability by suctioning a liquid spill from a table surface. This feature makes it versatile for various household accidents.

Penyelenggaraan

Mengosongkan Bekas Habuk

For optimal suction performance, empty the dust container after each use or when the debris reaches the 'MAX' fill line. To empty:

1. Pastikan vakum dimatikan.
2. Tekan butang pelepas untuk menanggalkan bekas habuk daripada badan utama.
3. Carefully remove the filter assembly.
4. Kosongkan kandungan bekas habuk ke dalam tong sampah.
5. Reassemble the filter and dust container, ensuring they click securely into place.

Membersihkan Penapis

The washable filter should be cleaned regularly to maintain suction power. For best results, clean the filter after every 5-10 uses, or more frequently if vacuuming fine dust.

1. Remove the dust container and filter as described above.
2. Tap the filter gently over a waste bin to dislodge loose dirt.
3. Rinse the filter under running water until the water runs clear. Do not use hot water or detergents.
4. Allow the filter to air dry completely for at least 24 hours before reinserting it into the vacuum. Using a wet filter can damage the motor.

Menyelesaikan masalah

Spesifikasi

Waranti dan Sokongan

This BLACK+DECKER appliance comes with a Waranti Pengeluar Tempatan (Singapura) 1 Tahun. For warranty claims, technical support, or service inquiries, please contact your local BLACK+DECKER service center or the retailer from whom the product was purchased. Keep your proof of purchase for warranty validation.
