DreamLine Charisma Frameless Bypass Shower Door and SlimLine Shower Base Kit

1. Pengenalan

This instruction manual provides detailed guidance for the installation, operation, and maintenance of your DreamLine Charisma Frameless Bypass Shower Door and SlimLine Shower Base Kit, Model DL-6940R-22-01. The DreamLine Charisma shower door features a contemporary, frameless design with a double sliding bypass action, offering both functionality and modern aesthetics to your bathing area. The SlimLine Shower Base is designed for durability and ease of use. Please read all instructions carefully before beginning installation to ensure proper setup and long-term performance.

2. Ciri-ciri Produk

• Frameless Bypass Design: The Charisma shower door glides smoothly on sleek top and bottom guide rails, providing an open concept design without the significant framing of typical bypass shower doors.
• ClearMax Glass Coating: The glass is treated with DreamLine's exclusive ClearMax water repellant and stain resistant coating, offering superior protection from stains and simplifying maintenance.
• Adjustable Guide Rails: Upper and lower guide rails can be trimmed up to 4 inches for width adjustment, allowing for a customized fit. Note: This model has no adjustment for out-of-plumb (uneven) walls. Ensure walls are perfectly vertical for installation.
• SlimLine Shower Base: The included SlimLine Shower Base features a glossy acrylic finish that is scratch, slip, and stain resistant for safe showering. It is reinforced with fiberglass for enhanced durability. The base is designed for a right drain configuration.
• Dual Sliding Panels: Two sliding glass panels allow for entry from either the left or right side of the shower.

3. Kandungan Kit

The DreamLine Charisma Shower Door and SlimLine Shower Base Kit includes the following main components:

• Charisma Frameless Bypass Shower Door (Chrome hardware)
• SlimLine Shower Base (Biscuit color, Right Drain)
• Semua perkakasan pemasangan yang diperlukan

Note: A standard 2-inch compression fitted drain is required but not included with this kit.

4. Dimensi dan Spesifikasi

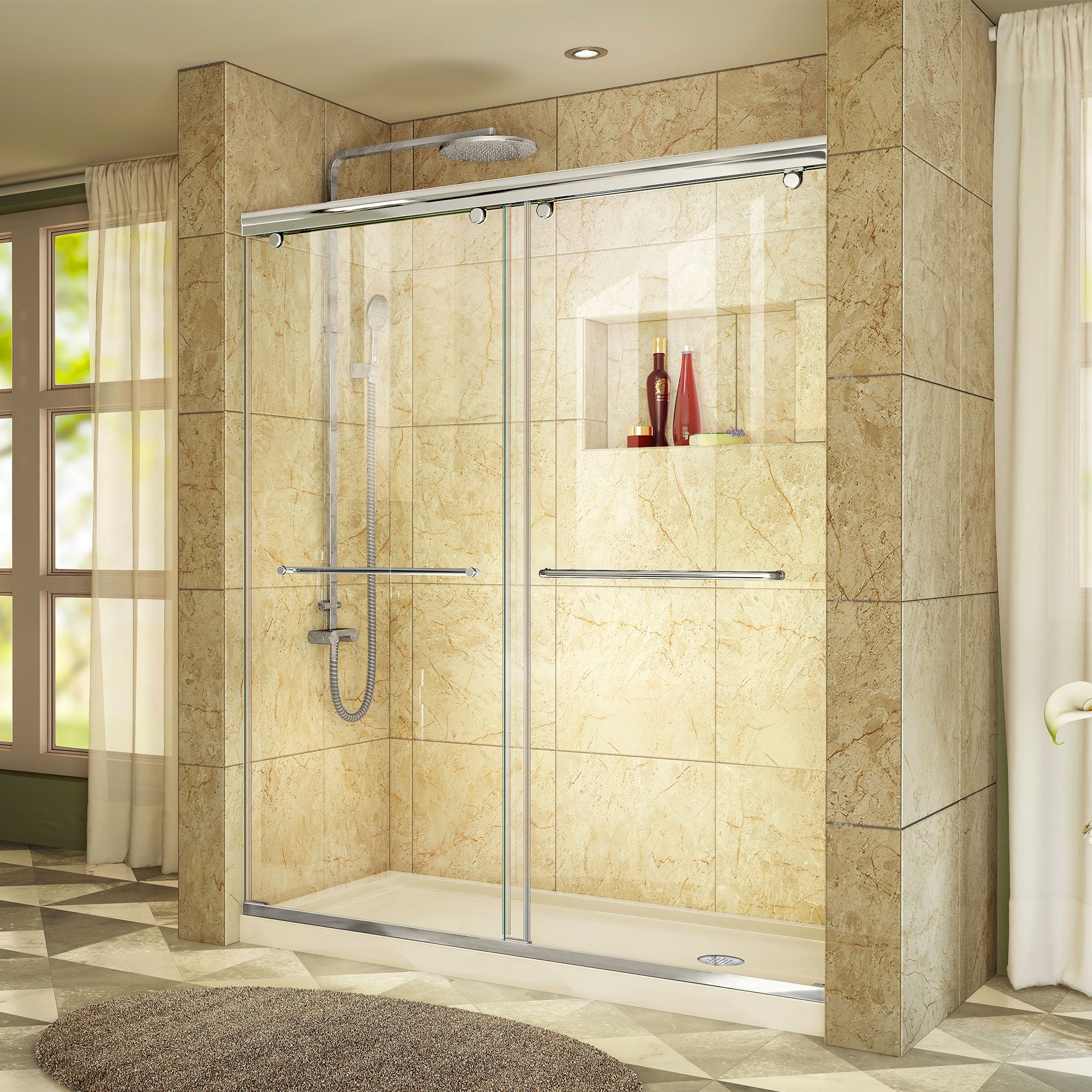

Rajah 1: Secara keseluruhan view of the DreamLine Charisma Shower Door and SlimLine Shower Base Kit.

Figure 2: Model information and configuration dimensions for the Charisma shower door and base.

Figure 3: The SlimLine Shower Base in Biscuit color with a right drain.

Figure 4: Close-up of the slip-resistant surface pattern on the SlimLine Shower Base.

Figure 5: Illustration of the fiberglass reinforcement and structural support foundation of the shower base.

5. Garis Panduan Pemasangan

Professional installation is highly recommended for the DreamLine Charisma Shower Door and SlimLine Shower Base Kit to ensure proper fit, functionality, and safety. The shower base is designed for direct-to-stud installation, meaning it should be installed when wall studs are still visible or in a rough opening. Backer board and tile used on walls will decrease the shower space opening. Therefore, the size of the base will always be larger than the size of the matching shower door by approximately 2 inches. Shower doors are made for a finished opening installation, when the walls are completely tiled. It is imperative to only use finished opening measurements when choosing a shower door.

Ensure that your walls are perfectly vertical (90 degrees) for the installation of the Charisma, as this model does not offer adjustment for out-of-plumb or uneven walls. Detailed instructions and diagrams are included in the full product manual provided with your purchase.

6. Operasi

The DreamLine Charisma features a double bypass sliding door system. To open or close the shower door, gently slide either glass panel along the top and bottom guide rails. The frameless design ensures smooth and quiet operation. The dual sliding panels allow for flexible entry and exit from either the left or right side of the shower enclosure, adapting to your bathroom layout and personal preference.

Figure 6: Illustration of the frameless bypass design with two sliding glass panels, allowing entry from either side.

7. Penjagaan dan Penyelenggaraan

To maintain the pristine appearance and functionality of your DreamLine Charisma shower door and base, follow these care instructions:

• Pembersihan Kaca: The ClearMax coating helps prevent water spots and stains. For regular cleaning, wipe the glass panels with a soft cloth and warm water after each use. For deeper cleaning, use a non-abrasive glass cleaner specifically designed for shower doors. Avoid using abrasive cleaners, scouring pads, or harsh chemicals, as these can damage the ClearMax coating and glass surface.
• Pembersihan Perkakasan: Clean chrome hardware with a soft, damp cloth. Avoid abrasive cleaners or polishes that could scratch or dull the finish.
• Shower Base Cleaning: The acrylic surface of the SlimLine shower base is scratch, slip, and stain resistant. Clean with mild soap and water using a soft sponge or cloth. Rinse thoroughly. Do not use abrasive cleaners, steel wool, or harsh chemicals like acetone, as these can damage the acrylic finish.
• Pemeriksaan Berkala: Periodically check all screws and fasteners to ensure they are tight. Do not overtighten. Inspect the silicone seals for any signs of wear or damage and replace if necessary to prevent leaks.

8. Penyelesaian masalah

If you encounter any issues with your DreamLine Charisma Shower Door and SlimLine Shower Base Kit, consider the following common troubleshooting steps:

• Bocor: Ensure all silicone seals are properly applied and intact. Check that the shower base is level and correctly installed. Verify that the door panels are properly aligned and closing completely.
• Kesukaran Pintu Gelongsor: Inspect the top and bottom guide rails for any obstructions or debris. Clean the rails thoroughly. Check if the rollers are clean and moving freely. Lubricate rollers with a silicone-based lubricant if necessary.
• Glass Stains/Water Spots: While ClearMax coating reduces these, hard water can still leave residue. Use a squeegee after each shower. For stubborn spots, use a vinegar-based cleaner or a specialized hard water stain remover designed for glass.
• Unstable Door: Check all mounting hardware to ensure it is securely fastened to the walls and the shower base. If walls are not perfectly vertical, this can affect stability; professional re-installation may be required.

If these steps do not resolve the issue, please refer to the detailed troubleshooting section in the complete manual or contact DreamLine customer support.

9. Maklumat Waranti

DreamLine stands behind its products with a limited lifetime manufacturer warranty. This warranty covers defects in materials and workmanship under normal use and service. For specific details regarding coverage, limitations, and how to file a claim, please refer to the warranty documentation included with your product or visit the official DreamLine webtapak.

10. Sokongan Pelanggan

For further assistance, technical support, or to inquire about replacement parts, please contact DreamLine customer support. Our dedicated team is available to help you with any questions or concerns you may have regarding your Charisma Shower Door and SlimLine Shower Base Kit.

Please have your model number (DL-6940R-22-01) and proof of purchase ready when contacting support to ensure efficient service.
