Kaiser KAS-9012 Wireless Amplified Speaker Kit

pengenalan

Thank you for choosing the Kaiser KAS-9012 Wireless Amplified Speaker Kit. This manual provides essential information for the safe and efficient operation of your new speaker system. Please read it thoroughly before use and retain it for future reference.

The KAS-9012 is a portable amplified speaker system featuring 9700W PMPO / 28W RMS audio power, a 12-inch woofer, 2x3-inch speakers, audio-rhythmic LED lights, and a rechargeable battery offering up to 8 hours of continuous music playback. It supports Bluetooth connectivity and includes scratch discs for volume and playback control.

Maklumat Keselamatan

• Jangan dedahkan unit kepada hujan atau lembapan untuk mengelakkan kebakaran atau kejutan elektrik.
• Do not open the speaker cabinet. There are no user-serviceable parts inside. Refer all servicing to qualified personnel.
• Pastikan pengudaraan yang betul. Jangan sekat sebarang bukaan pengudaraan.
• Jauhkan pembesar suara daripada sumber haba seperti radiator, daftar haba, dapur atau peralatan lain (termasuk amppenghidup) yang menghasilkan haba.
• Lindungi kord kuasa daripada berjalan atau tersepit, terutamanya pada palam, bekas kemudahan dan tempat keluar dari radas.
• Cabut plag radas ini semasa ribut petir atau apabila tidak digunakan untuk jangka masa yang lama.
• Produk ini bukan kalis air. Elakkan sentuhan dengan cecair.

Kandungan Pakej

Sila pastikan semua item yang disenaraikan di bawah disertakan dalam pakej anda:

• Kaiser KAS-9012 AmpUnit Pembesar Suara Terpadu
• Mikrofon
• Alat Kawalan Jauh
• Kabel Kuasa
• Manual Pengguna (dokumen ini)

Produk Selesaiview

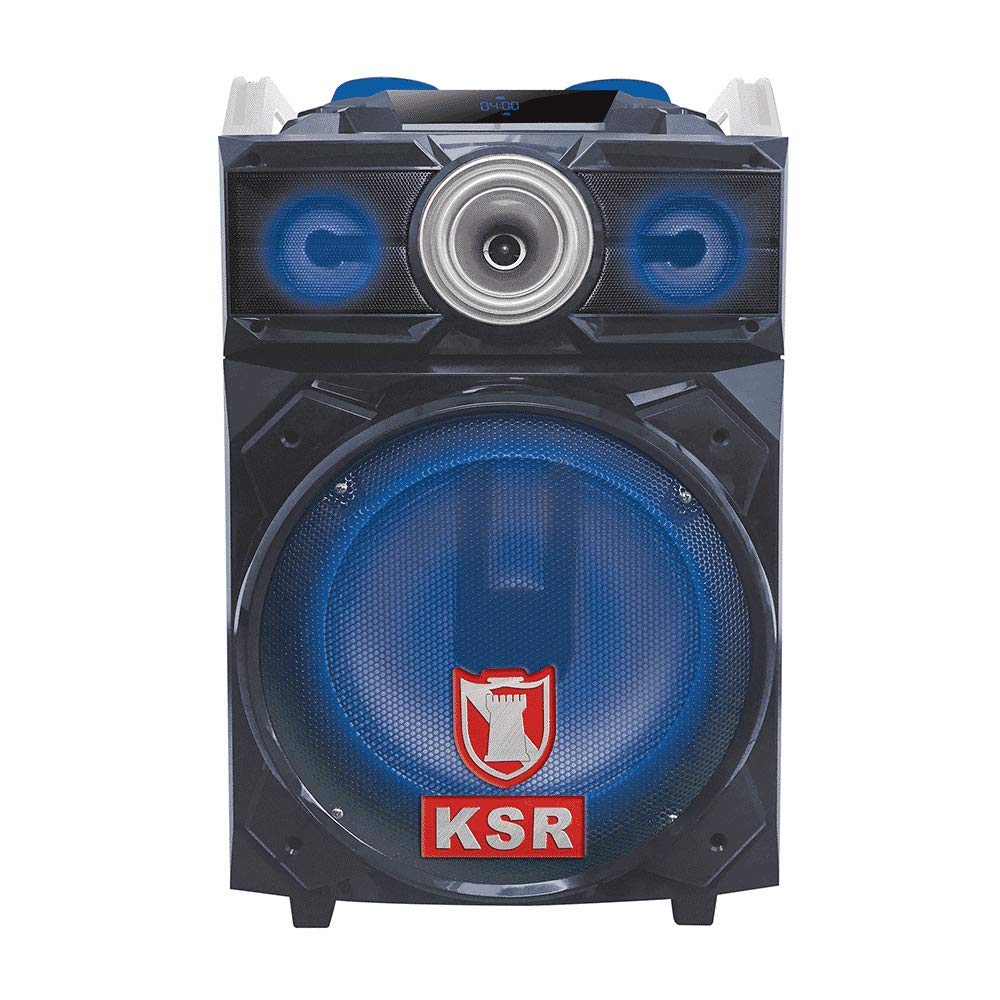

Rajah 1: Depan view of the Kaiser KAS-9012 Wireless Amplified Speaker Kit, showing the main speaker, control panel, and LED lights.

The Kaiser KAS-9012 is designed for powerful and portable audio. It features a robust enclosure, a comprehensive control panel, and various connectivity options to suit different audio sources.

Ciri-ciri Utama:

• High Power Output: 9700W PMPO / 28W RMS.
• Integrated 12-inch Woofer and 2x3-inch Speakers.
• Bluetooth Wireless Connectivity.
• Audio-Rhythmic LED Lights (deactivatable).
• Rechargeable Battery with up to 8 hours playback.
• Scratch Discs for Volume and Playback Control.
• Multiple Input Options: USB, SD Card, AUX, Microphone.
• Operasi Kawalan Jauh.

Kawalan dan Sambungan

Familiarize yourself with the control panel and connection ports on your KAS-9012 speaker.

Kawalan Panel Depan:

• Butang Kuasa: Menghidupkan atau mematikan unit.
• Butang Mod: Switches between Bluetooth, USB, SD, AUX, and FM radio modes.
• Butang Main/Jeda: Memainkan atau menjeda main balik audio.
• Butang Trek Sebelumnya/Seterusnya: Menavigasi melalui trek.
• Tombol Kelantangan: Adjusts master volume, microphone volume, and echo.
• Scratch Discs: For DJ-style sound effects and fine-tuning volume/playback.
• Butang Lampu LED: Activates or deactivates the audio-rhythmic LED lights.
• Skrin Paparan: Shows current mode, track information, and battery status.

Sambungan Panel Belakang:

• Port Pengecasan: Connect the power cable to recharge the internal battery.
• Port USB: Untuk memainkan audio daripada pemacu kilat USB.
• Slot Kad SD: For playing audio from SD memory cards.
• Input AUX (3.5mm): Connect external audio devices using an AUX cable.
• Microphone Input (6.35mm): Connect the included microphone or another compatible microphone.

Persediaan

1. Mengecas Bateri

1. Before first use, fully charge the speaker's internal battery.
2. Connect the provided power cable to the charging port on the rear panel of the speaker.
3. Pasangkan hujung kabel kuasa yang satu lagi ke soket elektrik standard.
4. The charging indicator light (if present) will illuminate. Once fully charged, the light may change color or turn off.
5. A full charge typically takes several hours and provides up to 8 hours of playback.

2. Hidupkan Kuasa Awal

1. Tekan dan tahan butang Butang Kuasa on the front panel for a few seconds until the display screen illuminates.
2. The speaker will typically start in Bluetooth mode by default.

Arahan Operasi

1. Berpasangan Bluetooth

1. Ensure the speaker is powered on and in Bluetooth mode. The display will show "BLUE" or a Bluetooth icon, and you may hear an audible prompt.
2. Pada peranti mudah alih anda (telefon pintar, tablet, dll.), dayakan Bluetooth dan cari peranti yang tersedia.
3. Select "KAS-9012" from the list of devices.
4. Once paired, the speaker will confirm with an audible sound, and the Bluetooth indicator on the display will become solid.
5. You can now play audio from your device through the KAS-9012 speaker.

2. Main semula USB/Kad SD

1. Masukkan pemacu kilat USB atau kad SD (dengan audio MP3 files) ke dalam port/slot masing-masing.
2. Tekan ke Butang Mod until the display shows "USB" or "SD". The speaker will automatically begin playing audio files.
3. Gunakan Main/Jeda dan Trek Sebelumnya / Seterusnya butang untuk mengawal main balik.

3. Input AUX

1. Sambungkan peranti audio luaran (cth, pemain MP3, komputer riba) ke Input AUX menggunakan kabel audio 3.5mm.
2. Tekan ke Butang Mod until the display shows "AUX".
3. Kawal main balik dan kelantangan daripada peranti anda yang disambungkan.

4. Penggunaan Mikrofon

1. Plug the microphone into the Input Mikrofon pelabuhan.
2. Adjust the microphone volume using the dedicated knob on the control panel.
3. Adjust the echo effect using the echo knob for desired vocal effects.

5. LED Lights Control

Tekan ke Butang Lampu LED to toggle the audio-rhythmic LED lights on or off according to your preference.

6. Scratch Discs

The scratch discs allow for DJ-style sound manipulation and can also be used for precise volume adjustments or track scrubbing depending on the active mode.

Penyelenggaraan

Pembersihan

• Sentiasa tanggalkan plag pembesar suara daripada sumber kuasa sebelum membersihkannya.
• Gunakan kain lembut dan kering untuk mengelap permukaan luar pembesar suara.
• Jangan gunakan pembersih, lilin atau pelarut yang melelas kerana ia boleh merosakkan kemasan.
• Elakkan menyembur cecair terus ke pembesar suara.

Penyimpanan

• Apabila tidak digunakan untuk tempoh yang lama, simpan pembesar suara di tempat yang sejuk dan kering.
• It is recommended to fully charge the battery every 3-6 months to maintain its lifespan.

Menyelesaikan masalah

Spesifikasi

Waranti dan Sokongan

Waranti Produk

The Kaiser KAS-9012 Wireless Amplified Speaker Kit comes with a Waranti terhad 3 bulan from the date of purchase. This warranty covers manufacturing defects under normal use. It does not cover damage caused by misuse, accidents, unauthorized modifications, or normal wear and tear.

Sila simpan bukti pembelian anda untuk tuntutan waranti.

Sokongan Pelanggan

For technical assistance, troubleshooting, or warranty inquiries, please contact Kaiser customer support. Refer to the contact information provided on the product packaging or the official Kaiser webtapak.

Anda juga boleh melawat Kaiser Store on Amazon untuk maklumat lanjut produk.
