HA-412 Replacement Remote Control for GoldStar Air Conditioners

1. Pengenalan

This manual provides instructions for the HA-412 replacement remote control, designed for use with various GoldStar air conditioner models. This remote offers essential functions for convenient operation of your air conditioning unit.

Nota Penting: This remote control is specifically designed for GoldStar air conditioners and may not be compatible with other brands like LG, as GoldStar utilizes its own unique remote control codes.

Compatible GoldStar Remote Control Model Numbers:

• 6711A20034A, 6711A20034C, 6711A20034E, 6711A20034G, 6711A20034N, 6711A20034S, 6711A20034T, 6711A20034U, 6711A20034V
• 6711A20035A, 6711A20056B, 6711A20056Q, 6711A20066A
• 6711A90019A, 6711A90024E, 6711A90024G
• AKB73016002

Compatible GoldStar Air Conditioner Models:

• BG5200ER, WG5200R, M2400HR, GWHD6005R, WG8000R, M2403R, GWHD6500R, WG8000RY4, M2404ER, GWHD6500RY6, WG8005R, M8003L, GWHD6507R, KG1000R, WG1800R, GWHD6507RY7, KG1200R, WG1804R, GWHD650OR, KG6000R, WG1805R, HWC061JAMK7, KG8000R, WG1805RY6, WG1205RY7, LWC061JGMK1, WG2400R, WG6000RH4, LWC081GGMK1, WG2404R, WG6005R, LWC101GGMK0, WG2405R, WG6007R, LWC101GGMK1, WG2405RY6, XV6513, M1293R, WG2405RY7, BG8000ER, M5203R, LWC071JGMK0, L1811ER, M5403R, LWJ0611PCG, M1203R, M6003R, WM-6011, M5200R, M8003ER, WM-6021, M6004R, WG1200R, LWM1836QCG, M8003R, WG1204R, MT7314, M8003RY3, WG5200ER, M5203L, WG1000R, WG6000R, LT7101, WG1000RY3, L6011ER, M8004R, WG1005R, MT9262, WG5004R, WG1005RY6, LWC051JGMK2, WG5005R, WG1205R, M1003R, WG5005RY6

2. Persediaan

Pemasangan Bateri

The HA-412 remote control requires batteries for operation. Please note that batteries are not included with the remote control and must be purchased separately. Typically, two AAA batteries are required.

1. Cari penutup petak bateri di belakang alat kawalan jauh.
2. Luncurkan atau buka klip penutup untuk membuka petak.
3. Masukkan dua bateri AAA baharu, pastikan terminal positif (+) dan negatif (-) sejajar dengan tanda di dalam petak.
4. Gantikan penutup petak bateri, pastikan ia terpasang dengan selamat pada tempatnya.

Imej: Depan view of the HA-412 remote control. The battery compartment is located on the back.

3. Arahan Operasi

The HA-412 remote control provides essential functions for your GoldStar air conditioner. Point the remote directly at the air conditioner unit when operating.

Fungsi Asas:

• KUASA: Tekan butang ini untuk menghidupkan atau mematikan penghawa dingin.
• SUHU (Suhu): Use the ▼ (down) and ▲ (up) buttons to adjust the desired temperature setting.
• KELAJUAN KIPAS: Press this button to cycle through available fan speed settings (e.g., Low, Medium, High, Auto).
• ARAHAN: Press this button to select the operating mode (e.g., Cool, Heat, Fan, Dry, Auto).

Fungsi Pilihan:

The following functions are available only if your specific GoldStar air conditioner model supports them. If your unit does not have these features, pressing these buttons will have no effect.

• PEMASA: Used to set a timer for the air conditioner to turn on or off automatically. Refer to your air conditioner's manual for specific timer programming instructions.
• PENJIMAT TENAGA: Activates or deactivates the energy-saving mode on your air conditioner.
• AUTO SWING: Controls the automatic oscillation of the air conditioner's louvers for wider air distribution.

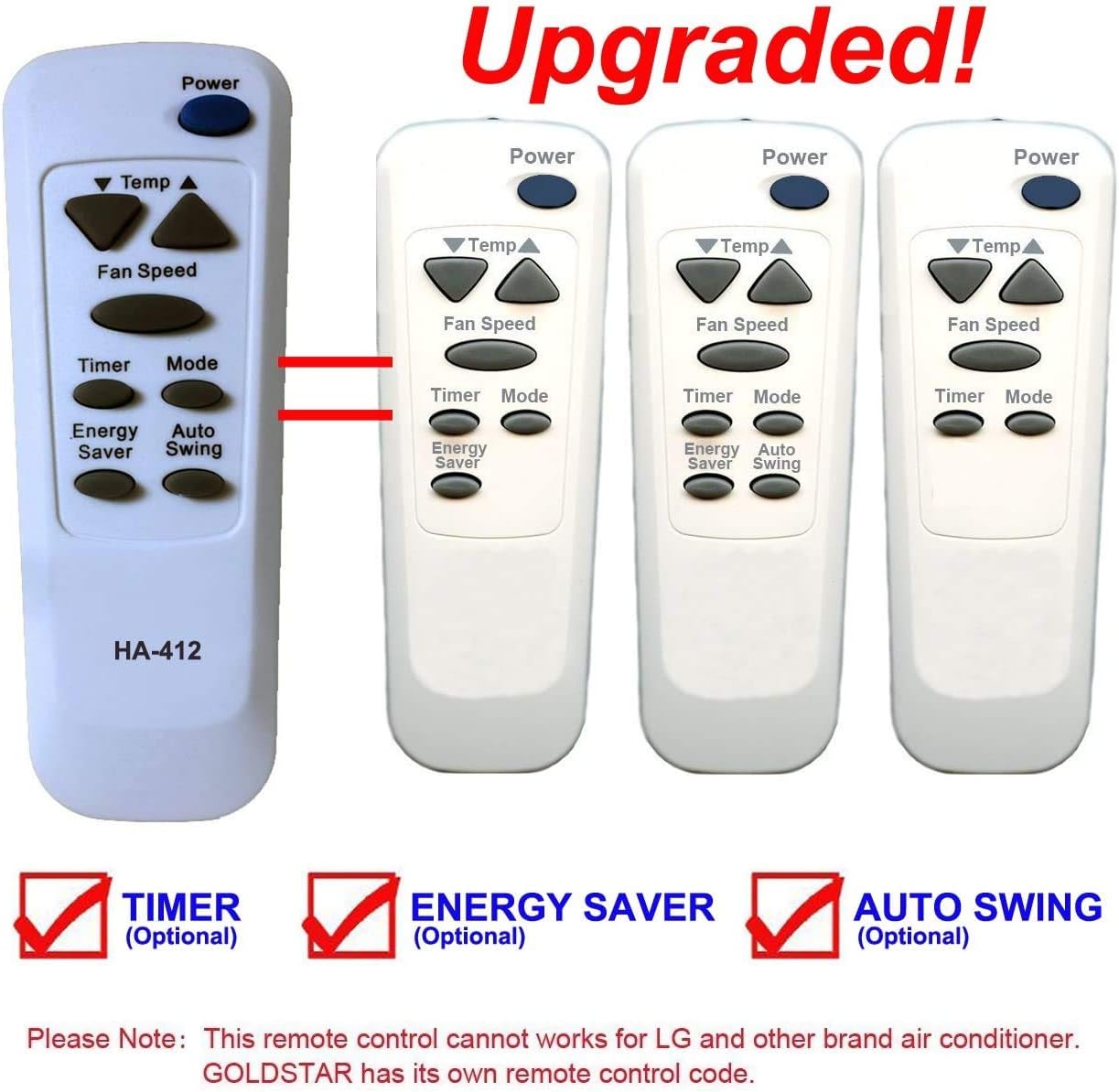

Image: The HA-412 remote control showing POWER, TEMP, FAN SPEED, TIMER, MODE, ENERGY SAVER, and AUTO SWING buttons. The image also indicates that TIMER, ENERGY SAVER, and AUTO SWING are optional functions.

4. Penyelenggaraan

Membersihkan Alat Kawalan Jauh

Untuk mengekalkan rupa dan fungsi alat kawalan jauh:

• Lap permukaan dengan kain lembut dan kering.
• Do not use liquid cleaners, abrasive cleaners, or chemical solvents, as these can damage the remote's finish or internal components.

Penggantian Bateri

Replace batteries when the remote control's range decreases or if it stops responding. Always replace both batteries at the same time with new ones of the same type (AAA). Remove batteries if the remote will not be used for an extended period to prevent leakage.

5. Penyelesaian masalah

If you experience issues with your HA-412 remote control, try the following troubleshooting steps:

• Jauh tidak bertindak balas:
  • Periksa sama ada bateri dimasukkan dengan betul dengan polariti yang betul.
  • Gantikan bateri lama dengan yang baru.
  • Pastikan tiada halangan antara alat kawalan jauh dan penerima penghawa dingin.
  • Sahkan anda berada dalam julat pengendalian berkesan penghawa dingin.
• Specific functions not working (e.g., Timer, Energy Saver, Auto Swing):
  • Verify that your GoldStar air conditioner model actually supports these optional functions. Refer to your air conditioner's original user manual.
• Kerja jarak jauh berfungsi secara berselang-seli:
  • Ini selalunya menunjukkan kuasa bateri rendah. Gantikan bateri.
  • Pastikan pemancar inframerah alat kawalan jauh bersih dan tidak terhalang.

6. Spesifikasi

7. Pengesahan

Before ordering or using this replacement remote, please verify that it is the correct model for your specific GoldStar air conditioner unit. Cross-reference your air conditioner's model number with the comprehensive list provided in the 'Introduction' section of this manual to ensure full compatibility and functionality.
