MJX X401H FPV Quadcopter Drone User Manual

1. Pengenalan

Welcome to the MJX X401H FPV Quadcopter Drone User Manual. This guide provides detailed instructions for the safe operation, assembly, maintenance, and troubleshooting of your new drone. Please read this manual thoroughly before operating the drone to ensure proper function and to prevent damage or injury.

Safety Warning: Always operate the drone in open areas, away from people, animals, and obstacles. Ensure all components are correctly assembled and batteries are fully charged before each flight. Adult supervision is recommended for younger users.

2. Produk Lebihview

2.1 Ciri-ciri Utama

• Altitude-Hold Technology: Integrated air pressure sensor for stable hovering, making it easier to capture high-quality photos and videos.
• Penghantaran Masa Nyata FPV: Experience first-person view flight by streaming live video directly to your mobile device via Wi-Fi.
• Easy to Fly: Equipped with One Key Return and Headless Security System for simplified control, suitable for beginners.
• Satu Kunci Berlepas dan Mendarat: Simplifies the most challenging parts of flight with a single button press.
• 3D Flip and Roll: Perform impressive aerial stunts with ease.
• Left and Right Hand Switch Mode: Adaptable control scheme for various pilot preferences.

2.2 Kandungan Pakej

Pastikan semua item berikut disertakan dalam pakej anda:

• 1x MJX X401H Drone
• 1x C4005 FPV Camera
• 1x Transmitter (Remote Control)
• 1x Pemegang Telefon Mudah Alih
• 1x 7.4V 350mAh Li-Po Battery
• 4x Spare Propellers
• 1x Kabel Pengecasan USB Mikro
• 1x Pemutar Skru
• 1x Manual Pengguna (Bahasa Inggeris)

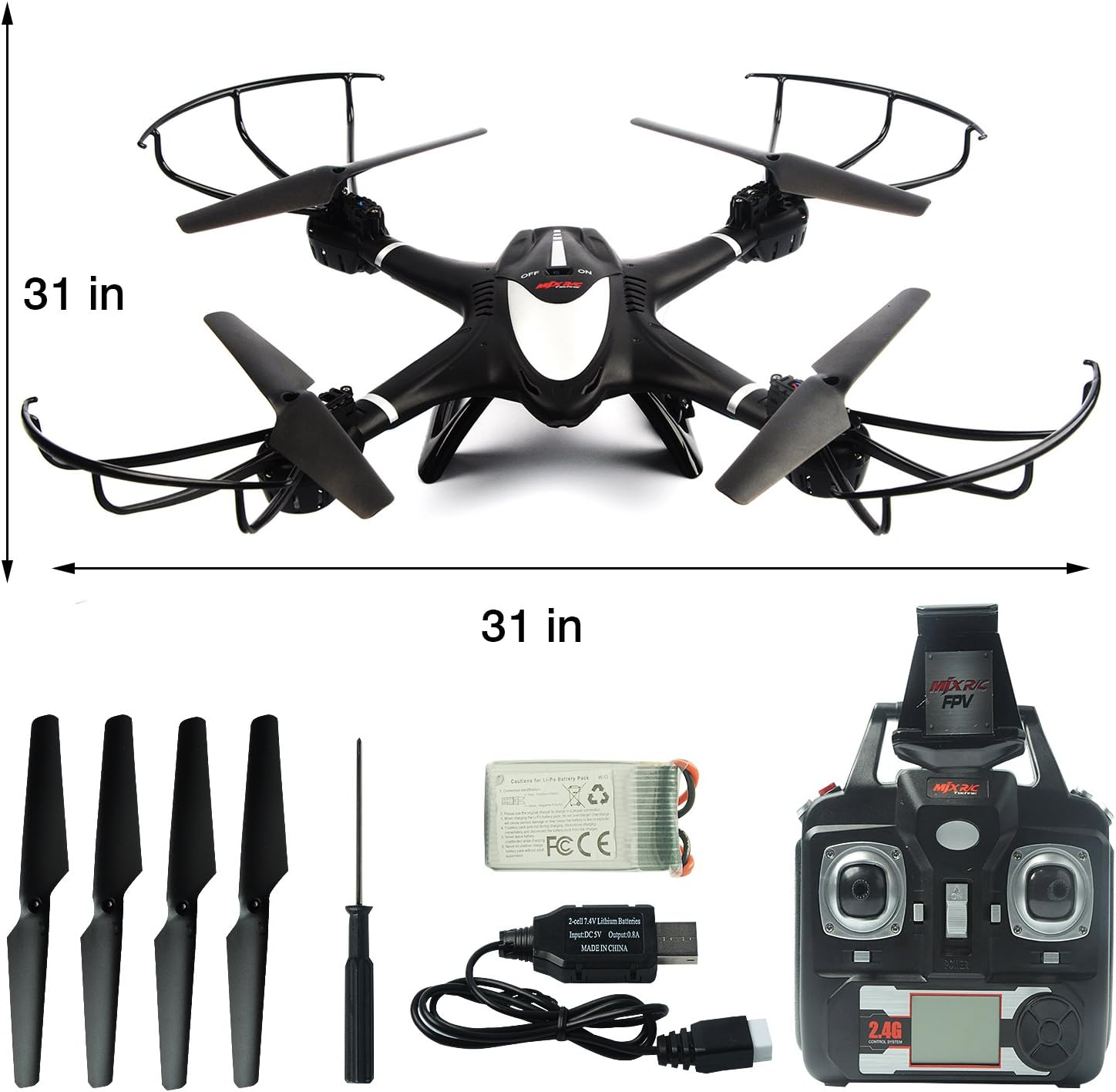

Rajah 2.2.1: MJX X401H Drone and its included accessories, including the remote control, battery, spare propellers, and charging cable. The image also indicates the drone's approximate dimensions of 31 inches by 31 inches.

3. Panduan Persediaan

3.1 Drone Assembly

1. Pasang Kipas: Carefully attach the propellers to the motor shafts. Ensure the correct propeller (A or B) is installed on the corresponding motor as indicated in the drone's manual or markings. Secure them with the provided tiny screws using the screwdriver. Be careful not to lose the screws.
2. Install Propeller Guards: Attach the propeller guards to the drone's arms for added protection.
3. Install Landing Skids: Secure the landing skids to the bottom of the drone.
4. Install Camera and Mobile Phone Holder: Attach the C4005 FPV camera to the designated slot on the drone. Mount the mobile phone holder onto the transmitter.

3.2 Pengecasan dan Pemasangan Bateri

1. Charge Drone Battery: Connect the 7.4V 350mAh Li-Po battery to the Micro USB charging cable. Connect the USB cable to a USB power source (e.g., computer USB port or a USB wall adapter). The charging indicator light will show the charging status. A full charge typically takes 60-90 minutes. Do not overcharge.
2. Install Drone Battery: Once charged, carefully insert the battery into the battery compartment on the drone. Ensure it is securely connected and the compartment cover is closed.
3. Pasang Bateri Pemancar: Open the battery compartment on the back of the transmitter. Insert 4x AA batteries (not included) according to the polarity markings. Close the compartment.

4. Arahan Operasi

4.1 Pairing the Drone and Transmitter

1. Letakkan drone di permukaan rata dan rata.
2. Turn on the drone's power switch. The indicator lights will flash.
3. Turn on the transmitter. The transmitter's indicator light will flash.
4. Push the left throttle stick (vertical) all the way up, then all the way down. The drone and transmitter lights will become solid, indicating successful pairing.

4.2 FPV App Connection (Real-Time Transmission)

Rajah 4.2.1: Illustration of the FPV (First Person View) real-time transmission feature, showing a smartphone mounted on the controller displaying the drone's live camera feed.

1. Download the "MJX H" or "MJX FPV" app from your mobile device's app store (iOS or Android).
2. Turn on the drone and the transmitter.
3. On your mobile device, go to Wi-Fi settings and connect to the Wi-Fi network named "MJX_XXXXXX" (the specific name will be on the drone or in its packaging).
4. Open the MJX app. You should see the live video feed from the drone's camera.
5. You can now control the drone via the physical remote and view the FPV feed on your phone. Note: Some models may require switching between FPV mode and control mode within the app, meaning you cannot always have both simultaneously.

4.3 Kawalan Asas Penerbangan

Biasakan diri anda dengan kawalan pemancar:

• Tongkat Kiri (Pendikit/Kuap):
  • Push up/down: Increase/decrease altitude (Throttle).
  • Push left/right: Rotate drone left/right (Yaw).
• Right Stick (Forward/Backward/Left/Right):
  • Push up/down: Move drone forward/backward.
  • Push left/right: Move drone left/right (Strafe).

4.4 Fungsi Khas

4.4.1 Altitude Hold

Rajah 4.4.1: Visual representation of the Altitude Hold feature, where the drone automatically maintains a set height, indicated by a lock icon.

The drone automatically maintains its altitude once the throttle stick is released to the center position. This allows for more stable flight and easier photo/video capture.

4.4.2 Mod Tanpa Kepala

Rajah 4.4.2: Depiction of Headless Mode, where the drone's orientation is relative to the pilot, simplifying control regardless of the drone's front direction.

Press the Headless Mode button on the transmitter. In Headless Mode, the drone's forward direction will always be the direction the pilot is facing when Headless Mode was activated, regardless of the drone's actual orientation. This simplifies control for beginners.

4.4.3 Satu Pulangan Kunci

Rajah 4.4.3: Illustration of the One Key Return function, showing the drone automatically flying back towards the take-off point after a button press.

Press the One Key Return button. The drone will automatically fly back towards its take-off point. Ensure there are no obstacles in its return path. This function works best when the drone is within a reasonable range and has a clear signal.

4.4.4 3D Flip and Roll

Rajah 4.4.4: Dynamic image showing the drone executing a 360-degree 3D Flip and Roll maneuver in the sky.

To perform a 3D flip, fly the drone to a height of at least 3 meters (10 feet). Press the 3D Flip button (usually a dedicated button or a combination of stick presses). Then, quickly push the right control stick in the direction you want the drone to flip (forward, backward, left, or right). The drone will perform a 360-degree flip.

4.4.5 Gravity Control Mode (via App)

Rajah 4.4.5: Illustrates the Gravity Control Mode, where the drone's movement (turn left, turn right, forward, backward) is controlled by tilting the connected mobile device.

Within the MJX FPV app, you can activate Gravity Control Mode. This allows you to control the drone's movement by tilting your mobile device. Tilt forward to move forward, tilt backward to move backward, and tilt left/right to turn left/right. Ensure you are in a safe, open area when using this mode.

4.5 Taking Off and Landing

• One Key Take-off: After pairing, press the One Key Take-off button. The drone will automatically ascend to a stable hovering height.
• Berlepas Manual: After pairing, push both control sticks to the bottom-outer corners simultaneously to arm the motors. Then, slowly push the left throttle stick up to ascend.
• Satu Pendaratan Utama: Press the One Key Landing button. The drone will automatically descend and land gently.
• Pendaratan Manual: Slowly pull the left throttle stick down until the drone lands. Once landed, hold the throttle stick down for a few seconds until the propellers stop spinning.

5. Penyelenggaraan

• Pembersihan: Use a soft, dry cloth to clean the drone and transmitter. Do not use water or chemical cleaners.
• Propeller Inspection and Replacement: Regularly check propellers for damage (cracks, bends). Replace any damaged propellers immediately using the spare propellers provided. Ensure correct A/B propeller placement.
• Penjagaan Bateri:
  • Do not overcharge or over-discharge the Li-Po battery.
  • Simpan bateri di tempat yang sejuk dan kering, jauh daripada cahaya matahari langsung dan haba.
  • Jika menyimpan untuk tempoh yang lama, cas bateri kepada kapasiti kira-kira 50%.
• Storan: When not in use, store the drone and its components in a safe, dry place, away from extreme temperatures and direct sunlight.

6. Penyelesaian masalah

7. Spesifikasi

8. Waranti dan Sokongan

MJX provides customer support for their products. For any issues not covered in this manual, or for warranty inquiries, please contact MJX customer service directly. Refer to the product packaging or the official MJX webtapak untuk maklumat hubungan terkini.

Sila simpan bukti pembelian anda untuk tuntutan waranti.
