Southbend BGS/12SC Gas Convection Oven User Manual

pengenalan

This manual provides essential instructions for the safe and efficient operation, installation, and maintenance of your Southbend BGS/12SC Gas Convection Oven. Please read this manual thoroughly before operating the appliance and retain it for future reference. The Southbend BGS/12SC is a single-deck, standard-depth gas convection oven designed for commercial use, featuring solid-state controls, electronic ignition, and a durable stainless steel exterior with a porcelain interior.

Produk Selesaiview

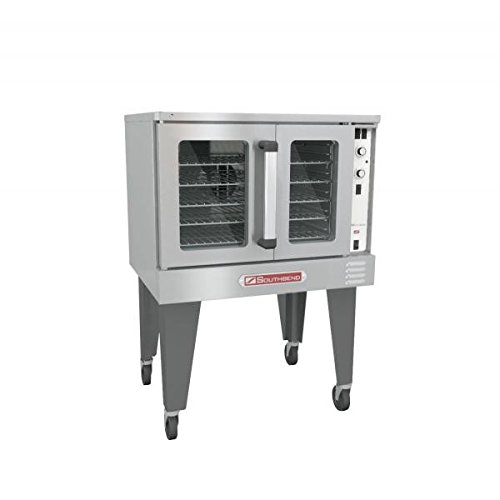

Rajah 1: Depan view of the Southbend BGS/12SC Gas Convection Oven. This image displays the stainless steel exterior, dual glass doors, control panel on the right side, and the black triangular legs with casters.

Maklumat Keselamatan Penting

Always follow basic safety precautions when using this appliance to reduce the risk of fire, electric shock, or injury. This oven operates on natural gas or propane and requires proper ventilation and electrical connection. Installation and service must be performed by a qualified installer, service agency, or gas supplier.

• Jangan simpan atau gunakan petrol atau wap dan cecair mudah terbakar lain di sekitar ini atau mana-mana perkakas lain.
• Pastikan kawasan perkakas bersih dan bebas daripada bahan mudah terbakar.
• Jangan sekali-kali menghalang aliran udara pembakaran dan pengudaraan.
• Pastikan pembumian yang betul untuk sambungan elektrik.
• Do not attempt to repair or replace any part of the oven unless specifically recommended in this manual. All other servicing should be referred to a qualified technician.
• Sentiasa putuskan kuasa sebelum diservis.

Unpacking and Installation (Setup)

1. Membongkar

Carefully remove the oven from its packaging. Inspect the oven for any shipping damage. Report any damage immediately to the carrier and your dealer. Ensure all components listed in the "What's in the Box" section are present.

2. Lokasi

Place the oven on a level, non-combustible surface. Ensure adequate clearance around the oven for proper ventilation and maintenance. The oven is equipped with black triangular legs for stability.

3. Sambungan Gas

This appliance is designed for use with natural gas or propane. The gas supply line must be of adequate size to provide the specified BTU rating (54,000 Btu). All gas connections must comply with local codes and be performed by a licensed gas technician.

4. Sambungan elektrik

The oven requires a 120V/60Hz/1-phase electrical supply with a Nema 5-15p plug. Ensure the electrical circuit is properly grounded and protected by a circuit breaker. The oven's blower motor is 1/2hp.

5. Pengudaraan

Proper ventilation is crucial for safe operation. Install the oven under an approved commercial exhaust hood system that complies with all local and national codes.

Arahan Operasi

1. Permulaan Awal

Before first use, wipe down the interior with a damp cloth. Turn on the gas supply and connect the electrical power. The oven features electronic ignition.

2. Kawalan

The oven is equipped with solid-state controls for precise temperature management. A 60-minute cook timer allows for accurate cooking durations. Refer to the control panel for specific temperature and timer settings.

3. Pemanasan awal

Set the desired temperature using the control panel. Allow the oven to preheat fully before placing food inside. The convection fan will circulate hot air for even heating.

4. Memasak

Place food items on the oven racks. Close the oven doors securely. Monitor cooking progress through the oven interior light and adjust the timer as needed. The oven features a porcelain interior for easy cleaning.

5. Mematikan

When cooking is complete, turn off the oven controls. For extended periods of non-use, it is recommended to turn off the gas supply and disconnect electrical power.

Penyelenggaraan dan Pembersihan

Regular cleaning and maintenance will ensure the longevity and optimal performance of your Southbend BGS/12SC oven.

• Pembersihan Harian: Wipe down the stainless steel exterior (front, top, sides, and door) with a mild detergent and a soft cloth. Clean the porcelain interior after each use to prevent food buildup.
• Dulang Kerak: The oven includes a crumb tray. Remove and empty the crumb tray regularly to prevent accumulation of debris.
• Rak ketuhar: Remove and clean oven racks as needed. They can typically be washed with warm, soapy water.
• Pemeriksaan: Periodically inspect gas connections and electrical cords for any signs of wear or damage.
• Servis profesional: Annual inspection and maintenance by a qualified service technician are recommended to ensure safe and efficient operation.

Menyelesaikan masalah

Sebelum menghubungi perkhidmatan, semulaview isu dan penyelesaian biasa berikut:

For issues not listed or if solutions do not resolve the problem, contact a qualified service technician.

Spesifikasi

Apa yang ada dalam Kotak

• Southbend BGS/12SC Gas Convection Oven Unit
• Dulang serbuk
• Manual Pengguna (dokumen ini)

Waranti dan Sokongan

Specific warranty information for the Southbend BGS/12SC Gas Convection Oven is typically provided with the purchase documentation or can be obtained directly from Southbend or your authorized dealer. Please retain your proof of purchase for warranty claims.

For technical support, service, or to order replacement parts, please contact your authorized Southbend service provider or visit the official Southbend webtapak.
