NEXT-SHINE POC-P225-CA1
NEXT-SHINE Gram Scale Model POC-P225-CA1 User Manual
Precision Digital Mini Pocket Scale
1. Pengenalan
Thank you for choosing the NEXT-SHINE Gram Scale Model POC-P225-CA1. This digital mini pocket scale is designed for precise weighing of various items, from jewelry and gemstones to cooking ingredients and mail. With a maximum capacity of 500g and an accuracy of 0.01g, it offers reliable measurements for your daily needs. This manual provides detailed instructions for proper setup, operation, calibration, and maintenance to ensure optimal performance and longevity of your scale.
2. Maklumat Keselamatan Penting
Please read and understand the following safety guidelines before using your scale:
- Stable Surface Required: Always use the scale on a flat, stable, and level surface. Avoid placing it near sources of vibration or drafts, which can affect measurement accuracy.
- Had Berat: The precision range of this scale is 0.04g to 500g. Do not overload the scale beyond its maximum capacity of 500g, as this may cause permanent sensor damage.
- Keselamatan Bateri: Remove batteries during prolonged storage periods to prevent potential leakage and damage to the device.
- Pembersihan: To clean the surface of the scale, wipe it with a slightly damp cloth only. Avoid using harsh chemicals, abrasive cleaners, or submerging the scale in water.
- Tahan Air: This scale is bukan kalis air. Never immerse it in water or expose it to excessive moisture.

3. Kandungan Pakej
Upon opening your NEXT-SHINE Gram Scale package, you should find the following items:
- NEXT-SHINE Gram Scale (Model POC-P225-CA1)
- Two transparent protective trays (can also be used as weighing containers)
- Manual Pengguna
Nota: 2 AAA batteries are required for operation and are not included in the package.
4. Ciri-ciri Produk
- Ketepatan Tinggi: Equipped with a high-precision sensor, capable of measuring from 0.04g up to 500g with 0.01g accuracy.
- Penukaran Berbilang Unit: Easily switch between 9 different units: grams (g), pennyweights (dwt), ounces (oz), carats (ct), troy ounces (ozt), grains (gn), pounds (lb), taels (tl), and milliliters (ml).
- Padat & Mudah Alih: Mini pocket-sized design (4.92 x 4.13 x 0.59 inches) with a food-grade stainless steel panel.
- Paparan LCD dengan lampu latar: Ensures clear readability of measurements, even in low-light conditions.
- Protective Trays: Includes two transparent plastic trays that serve as both protective covers and convenient weighing containers.
- Fungsi Pintar: Features Tare function for zeroing containers, PCS function for counting items, and a 60-second automatic shutdown to conserve battery life.
- Petunjuk: Low battery warning ("LO") and overweight prompt ("O-LD").


5. Persediaan
5.1. Pemasangan Bateri
- Buka penutup petak bateri yang terletak di bahagian bawah penimbang.
- Masukkan dua (2) bateri AAA, pastikan kekutuban (+/-) betul.
- Tutup penutup petak bateri dengan selamat.

5.2. Penempatan Awal
Place the scale on a hard, flat, and stable surface. Ensure there are no vibrations or air currents that could interfere with accurate readings.
6. Operasi

6.1. Hidupkan/Mati Kuasa
- Tekan ke kuasa butang (
) to turn the scale on. - Tekan dan tahan butang kuasa butang untuk mematikan penimbang.
- The scale will automatically shut off after 60 seconds of inactivity to save battery life.
6.2. Penukaran Unit
Untuk menukar unit ukuran:
- Dengan penimbang dihidupkan, tekan butang M butang (
) repeatedly to cycle through the available units (g, dwt, oz, ct, ozt, gn, lb, tl, ml). - Unit yang dipilih akan dipaparkan pada skrin LCD.

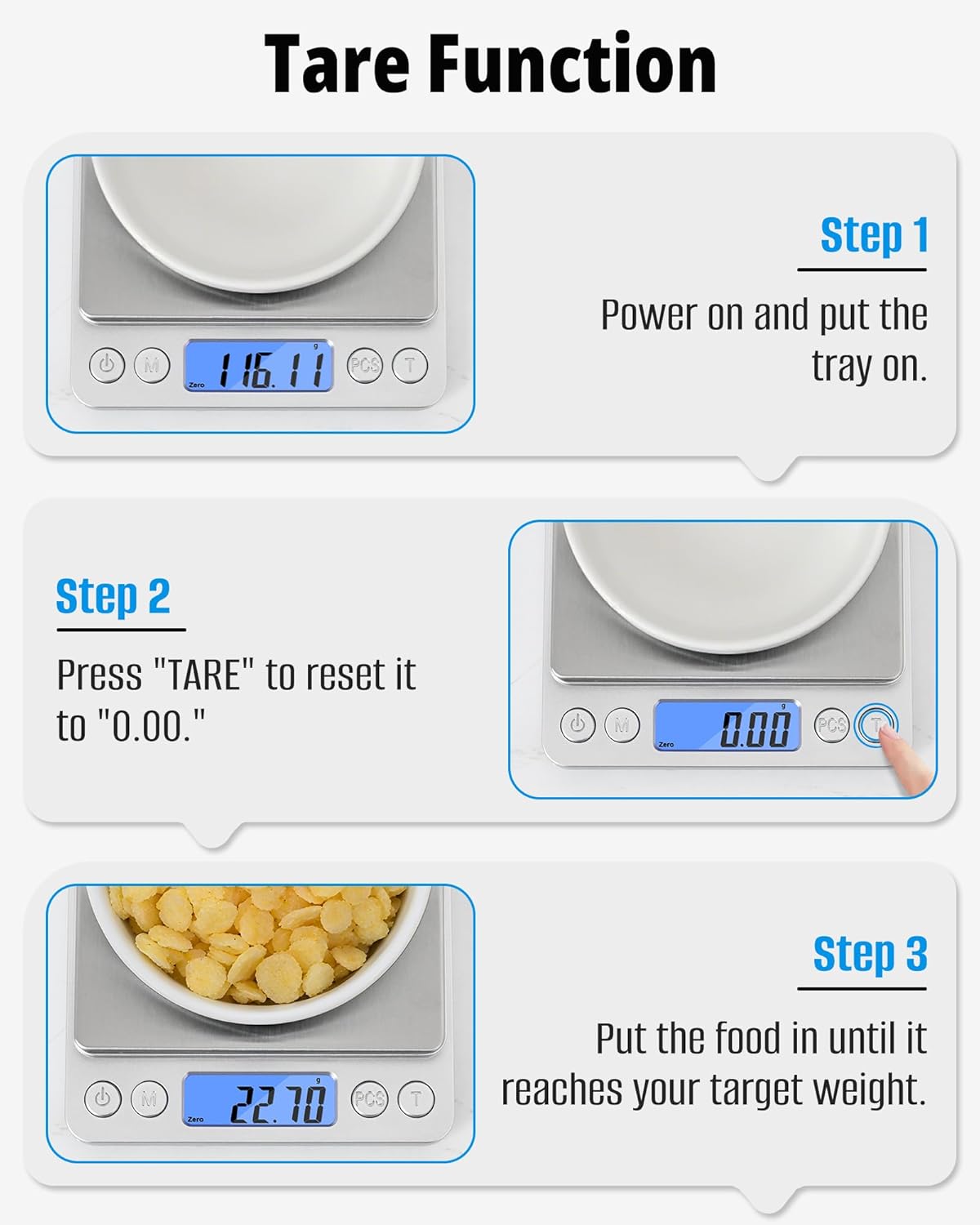

6.3. Fungsi Tare
The Tare function allows you to subtract the weight of a container, so you only measure the contents.
- Place an empty container (e.g., a tray or bowl) on the scale platform.
- Tekan ke T butang (
). The display will reset to "0.00". - Masukkan barang yang ingin ditimbang ke dalam bekas. Paparan hanya akan menunjukkan berat bersih barang tersebut.

6.4. Counting Function (PCS)
The PCS function allows you to count multiple small, identical items.
- Turn on the scale and ensure it reads "0.00".
- Letakkan sebagaiample quantity of identical items (e.g., 25 pieces) on the scale.
- Tekan lama pada PCS butang (
) until a number (e.g., "25") appears and the icon flashes. - Tekan ke PCS butang sekali lagi untuk mengesahkanample quantity. The scale will now be in counting mode.
- Add more items to the scale, and the display will show the total count of items.

7. Penentukuran
Calibration ensures the accuracy of your scale. It is recommended to calibrate the scale periodically or if you suspect inaccurate readings. You will need a known calibration weight (e.g., 500g or 100g, depending on the model's specific calibration points).
- Turn on the scale. Ensure the display reads "0.00".
- Tekan lama pada M button until "CAL" appears on the display, followed by a flashing weight value (e.g., "500.00" or "100.00").
- Tekan ke T button to select the desired calibration weight value if multiple options are available.
- Place the corresponding calibration weight (e.g., 500g) onto the center of the scale platform.
- Tekan ke M button to confirm. The display will show "PASS" or "CAL" briefly, then return to normal weighing mode.
- Remove the calibration weight. The scale is now calibrated.

8. Penyelenggaraan
8.1. Pembersihan
- Lap permukaan skala dengan lembut, damp kain.
- Do not use abrasive cleaners, solvents, or immerse the scale in water.
8.2. Penyimpanan
- Simpan skala di tempat yang sejuk dan kering.
- Tanggalkan bateri jika penimbang tidak akan digunakan untuk tempoh yang lama bagi mengelakkan kebocoran.
- Keep the protective trays on the scale during storage to prevent dust and damage.
9. Penyelesaian masalah
| Masalah | Kemungkinan Punca | Penyelesaian |
|---|---|---|
| Paparan menunjukkan "LO" | Kuasa bateri rendah. | Ganti bateri AAA. |
| Display shows "O-LD" | Skala terlebih beban. | Remove excess weight immediately. Do not exceed 500g. |
| Bacaan tidak tepat | Unstable surface, air currents, scale not calibrated, or dirty sensor. | Place scale on a stable, flat surface. Avoid drafts. Recalibrate the scale. Ensure the platform is clean. |
| Skala tidak dihidupkan | Bateri dipasang dengan salah atau mati. | Periksa kekutuban bateri atau gantikan dengan bateri baharu. |
10. Spesifikasi
| Ciri | Perincian |
|---|---|
| Jenama | NEXT-SHINE |
| Nombor Model | POC-P225-CA1 |
| Had berat | 500 Gram |
| Ketepatan Bacaan | 0.01 Gram |
| Berat Minimum | 0.04 Gram |
| Unit Pengukuran | g, dwt, oz, ct, ozt, gn, lb, tl, ml (9 units) |
| Jenis Paparan | LCD bercahaya belakang |
| bahan | Akrilonitril Butadiene Stirena, Keluli Tahan Karat |
| Dimensi Produk | 4.92 x 4.13 x 0.59 inci |
| Berat Barang | 231 Gram (8.1 auns) |
| Sumber Kuasa | 2 x Bateri AAA (tidak termasuk) |
| Automatikan | 60 saat |
