Oreck Upright Flat Vacuum Belt (Model 030-0604) Instruction Manual

1. Pengenalan

This instruction manual provides essential information for the proper installation and maintenance of your Oreck Upright Flat Vacuum Belt, Model 030-0604. Adhering to these guidelines will help ensure the optimal performance and longevity of your Oreck upright vacuum cleaner. This product is an Original Equipment Manufacturer (OEM) authorized part, designed for compatibility with various Oreck models.

2. Produk Lebihview

The Oreck Upright Flat Vacuum Belt (Model 030-0604) is a critical component for the brush roll operation in compatible Oreck upright vacuum cleaners. This belt transmits power from the motor to the brush roll, enabling it to agitate carpet fibers and effectively pick up debris. Regular inspection and timely replacement of the belt are crucial for maintaining cleaning efficiency.

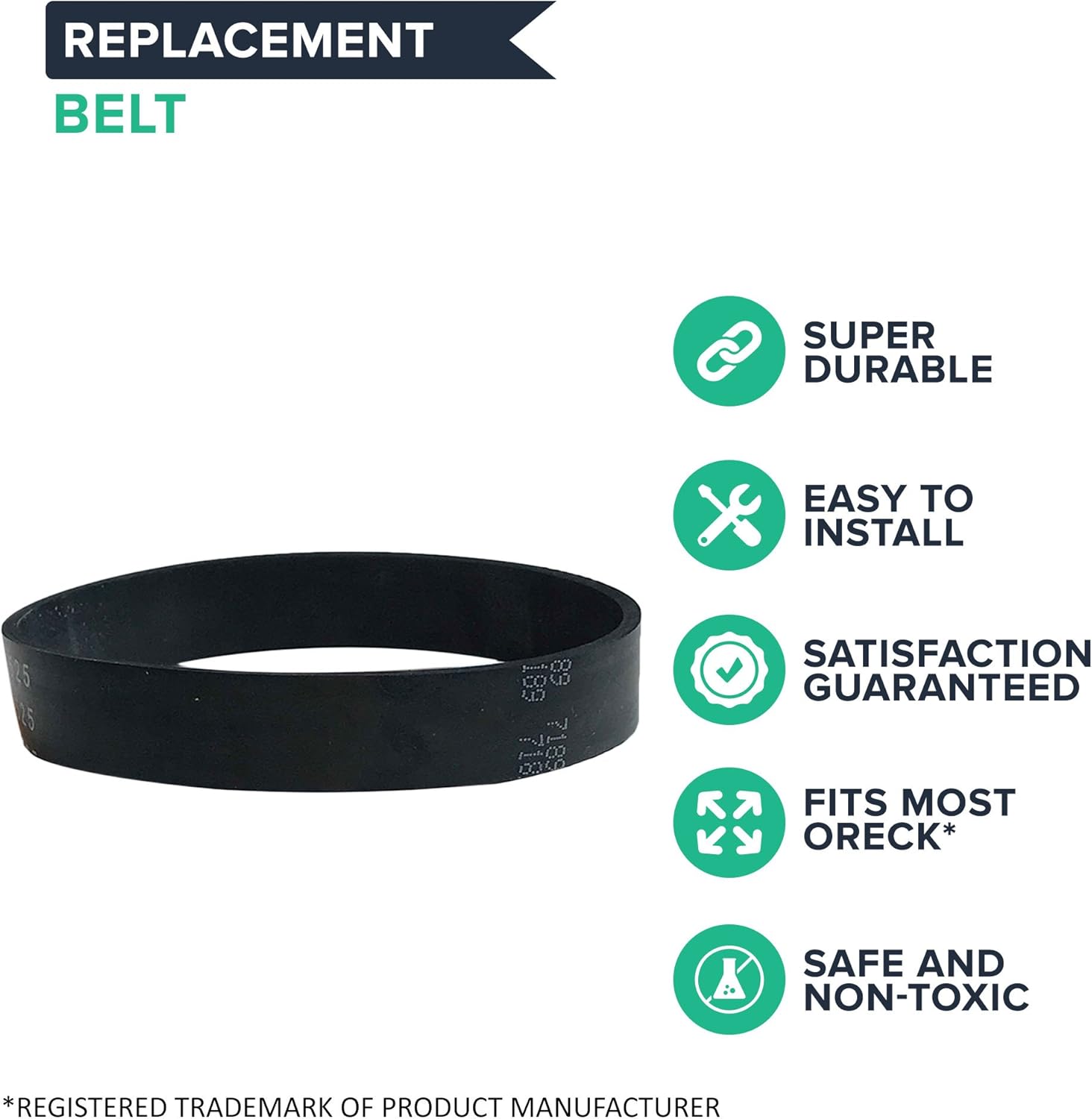

Figure 1: An Oreck Upright Flat Vacuum Belt, Model 030-0604. This belt is essential for the vacuum's brush roll function.

This product is supplied as a pack of three belts, ensuring you have spares for future replacements.

Figure 2: A pack containing three Oreck Upright Flat Vacuum Belts, providing multiple replacements.

3. Arahan Pemasangan

Follow these steps carefully to replace the flat vacuum belt in your Oreck upright vacuum cleaner. Always ensure the vacuum is unplugged before performing any maintenance.

1. Keselamatan Diutamakan: Unplug the vacuum cleaner from the electrical outlet to prevent accidental startup and potential injury.
2. Prepare the Vacuum: Lay the vacuum cleaner flat on its front side, exposing the bottom plate and brush roll area.
3. Remove Bottom Plate: Locate and remove the screws securing the bottom plate or brush roll cover. Carefully lift off the plate.
4. Tanggalkan Gulungan Berus: Gently lift out the brush roll assembly from its housing. Note the position of the old belt around the brush roll and motor shaft.
5. Tanggalkan Tali Pinggang Lama: Carefully remove the worn or broken belt from both the brush roll and the motor shaft. Dispose of the old belt responsibly.
6. Pasang Tali Pinggang Baharu: Loop one end of the new Oreck flat belt around the motor shaft. Then, stretch the belt around the brush roll. Ensure the belt is seated correctly in the grooves on both the motor shaft and the brush roll.
7. Reinstall Brush Roll: Place the brush roll back into its housing, ensuring the belt remains properly seated and tensioned. Rotate the brush roll manually a few times to confirm the belt moves freely and is not twisted.
8. Reattach Bottom Plate: Position the bottom plate or brush roll cover back onto the vacuum and secure it with the screws removed earlier. Ensure all screws are tightened appropriately.
9. Kefungsian Ujian: Plug the vacuum cleaner back into the electrical outlet and turn it on briefly to confirm the brush roll spins correctly.

Figure 3: The Oreck replacement belt, highlighting its ease of installation and durable design.

4. Penyelenggaraan

The vacuum belt is a wear-and-tear item and requires periodic inspection and replacement. A worn or stretched belt can lead to reduced cleaning performance, as the brush roll may not spin effectively or at all.

• Pemeriksaan: Regularly inspect your vacuum belt for signs of wear, cracking, stretching, or breakage. This can be done during routine brush roll cleaning.
• Kekerapan Penggantian: The frequency of belt replacement depends on usage. For average household use, it is recommended to replace the belt every 6 to 12 months, or immediately if signs of wear are observed.
• Petunjuk Prestasi: If your vacuum's brush roll stops spinning, or if suction seems diminished, a worn or broken belt is a common cause. Refer to the "Installation Instructions" section for replacement steps.

5. Penyelesaian masalah

If your Oreck upright vacuum is not performing as expected after belt replacement, consider the following:

• Gulungan Berus Tidak Berputar:
  • Ensure the new belt is correctly installed and seated on both the motor shaft and the brush roll.
  • Check for any obstructions (e.g., hair, debris) wrapped around the brush roll or motor shaft that might prevent movement.
  • Verify the vacuum is properly assembled and all screws are tightened.
• Sedutan Berkurangan:
  • While a belt primarily affects brush roll action, a non-spinning brush roll can impact overall cleaning.
  • Check other common causes of reduced suction, such as a full dust bag, clogged filters, or blockages in the hose or nozzle.
• Bunyi Luar Biasa:
  • A squealing or grinding noise might indicate a misaligned or improperly installed belt, or an issue with the brush roll bearings.
  • Immediately turn off and unplug the vacuum to inspect for the source of the noise.

If issues persist, consult a qualified service technician or contact Oreck customer support.

6. Spesifikasi

7. Waranti dan Sokongan

For specific warranty information regarding your Oreck Upright Flat Vacuum Belt (Model 030-0604), please refer to the documentation provided with your Oreck vacuum cleaner or visit the official Oreck website. For further assistance or technical support, please contact Oreck customer service directly.

You can find more information and contact details on the official Oreck store: Oreck Official Store.
