pengenalan
This manual provides detailed instructions for the EMOS E0042 Wireless Digital Thermometer. This device is designed to accurately measure and display both indoor and outdoor temperatures using a main unit and a remote wireless sensor. Please read this manual thoroughly before use to ensure proper operation and longevity of your device.
Image showing the EMOS E0042 Wireless Digital Thermometer in its retail packaging.
Kandungan Pakej
The EMOS E0042 package includes the following components:
- 1x EMOS E0042 Main Display Unit
- 1x EMOS Wireless Outdoor Sensor
Image showing the EMOS E0042 main display unit and the wireless outdoor sensor.
Ciri-ciri Produk
The EMOS E0042 Wireless Digital Thermometer offers a range of features for convenient temperature monitoring:
- Clear and easy-to-read LCD display with large digits.
- Simultaneous display of indoor and outdoor temperatures.
- Wireless outdoor sensor with a transmission range of up to 100 meters (open area).
- Temperature measurement range: Indoor 0 °C to 60 °C, Outdoor -40 °C to +60 °C.
- Temperature resolution: 0.1 °C.
- Main unit suitable for tabletop placement or wall mounting.
- Sensor designed for outdoor use.
- Powered by AAA batteries (not included).
Icon indicating indoor and outdoor temperature measurement capabilities.
Persediaan
1. Pemasangan Bateri
The main unit and the wireless sensor each require 2x AAA 1.5V batteries (not included).
Unit Paparan Utama:
- Locate the battery compartment on the back of the main display unit.
- Buka penutup petak bateri.
- Insert 2x AAA batteries, ensuring correct polarity (+/-).
- Tutup penutup petak bateri dengan selamat.

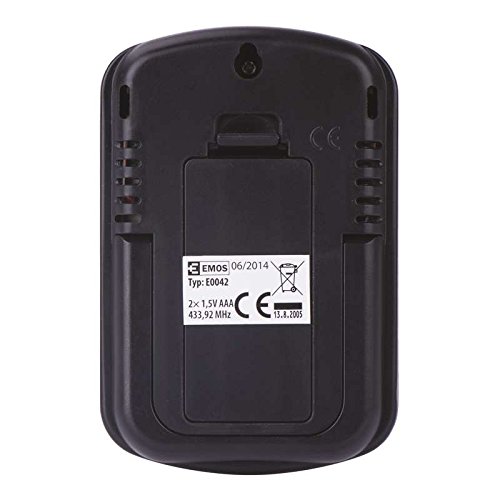

belakang view of the EMOS E0042 main display unit, showing the battery compartment and wall-mount hole.
Sensor Luaran Tanpa Wayar:
- Locate the battery compartment on the back of the wireless outdoor sensor.
- Buka penutup petak bateri.
- Insert 2x AAA batteries, ensuring correct polarity (+/-).
- Tutup penutup petak bateri dengan selamat.
- The sensor will automatically begin transmitting data.

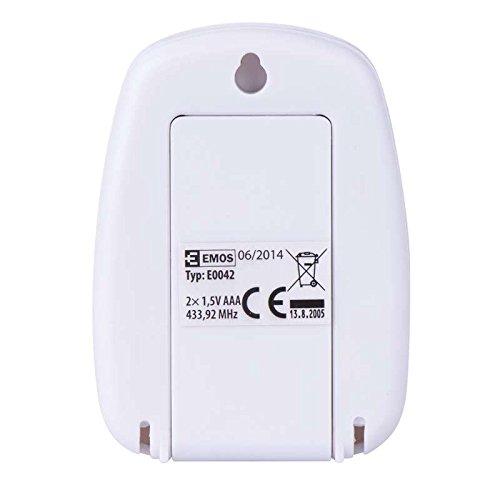

belakang view of the EMOS wireless outdoor sensor, showing the battery compartment.
2. Berpasangan Sensor
The main unit and sensor should automatically pair once batteries are installed. If the outdoor temperature is not displayed, ensure both units are within range and try re-inserting the batteries in both units.
3. penempatan
Unit Paparan Utama:
Place the main unit indoors on a flat surface using its integrated stand, or mount it on a wall using the hanging hole on the back. Ensure it is in a location where the display is easily visible and not exposed to direct sunlight or extreme temperature fluctuations.
sebelah view of the EMOS E0042 main display unit, showing its integrated stand for tabletop placement.
Sensor Luaran Tanpa Wayar:
Position the wireless sensor outdoors in a shaded area, protected from direct rain and sunlight, to ensure accurate temperature readings. The maximum effective range between the sensor and the main unit is 100 meters in an open area. Walls, obstacles, and electronic interference can reduce this range.
Arahan Operasi
Reading Temperatures
Once powered on and paired, the main display unit will show two temperature readings:
- KELUAR: This indicates the outdoor temperature measured by the wireless sensor.
- DALAM: This indicates the indoor temperature measured by the main display unit itself.
The temperature is displayed in degrees Celsius (°C).
Paparan
The large LCD screen provides clear, simultaneous readings of both indoor and outdoor temperatures.
Penyelenggaraan
Pembersihan
Untuk membersihkan peranti, lap dengan lembut, damp kain. Jangan gunakan pembersih atau pelarut yang kasar, kerana ini boleh merosakkan paparan atauasing.
Penggantian Bateri
When the display becomes dim or readings are inconsistent, it is time to replace the batteries in both the main unit and the wireless sensor. Follow the battery installation steps outlined in the "Setup" section.
Menyelesaikan masalah
| Masalah | Kemungkinan Punca | Penyelesaian |
|---|---|---|
| Tiada paparan pada unit utama. | Bateri mati atau tidak dimasukkan dengan betul. | Periksa kekutuban bateri dan gantikan dengan bateri AAA baru. |
| Outdoor temperature not displayed or shows "--". | Sensor out of range, batteries dead, or interference. | Move sensor closer to the main unit. Replace sensor batteries. Ensure no strong electronic interference sources are nearby. Re-pair by removing and re-inserting batteries in both units. |
| Bacaan suhu tidak tepat. | Sensor exposed to direct sunlight, rain, or heat sources. | Relocate the sensor to a shaded, protected area. Ensure proper ventilation around both units. |
Spesifikasi
| Ciri | Perincian |
|---|---|
| Nombor Model | E0042 |
| Jenama | EMOS |
| Julat Suhu Dalaman | 0 °C hingga 60 °C |
| Julat Suhu Luar | -40 °C hingga +60 °C |
| Resolusi Suhu | 0.1 °C |
| Julat Tanpa Wayar | Sehingga 100 meter (kawasan terbuka) |
| Kekerapan | 433 MHz |
| Main Unit Power Supply | 2x bateri AAA 1.5V (tidak termasuk) |
| Bekalan Kuasa Sensor | 2x bateri AAA 1.5V (tidak termasuk) |
| Dimensi Unit Utama (P x L x T) | 8.5 x 5.6 x 1.8 cm |
| Dimensi Penderia (L x W x H) | 6.8 x 4.9 x 2.0 cm |
| Jenis Paparan | LCD Digital |
| Teknologi Ketersambungan | RF (Frekuensi Radio) |
| bahan | plastik |
| Pensijilan | CE |
Maklumat Keselamatan
For detailed safety guidelines and important warnings, please refer to the official Safety Information PDF document provided by the manufacturer. Muat turun Maklumat Keselamatan (PDF)
Waranti dan Sokongan
EMOS products are manufactured to high-quality standards. For warranty information or technical support, please contact your retailer or the official EMOS customer service. Keep your purchase receipt as proof of purchase.
