Feiss Fusion Glass Flush Mount Ceiling Lighting User Manual

1. Pengenalan

This manual provides detailed instructions for the installation, operation, and maintenance of your Feiss Fusion Glass Flush Mount Ceiling Lighting fixture. The Feiss Fusion two-light flush mount fixture, featuring a Grecian Bronze finish, is designed to provide ample illumination while enhancing the aesthetic appeal of your space. Its design incorporates elements from both Asian and Arts & Crafts styles, creating a distinctive look with vertical and horizontal linear banding that contrasts beautifully against the Amber Ribbed glass shades and diffuser.

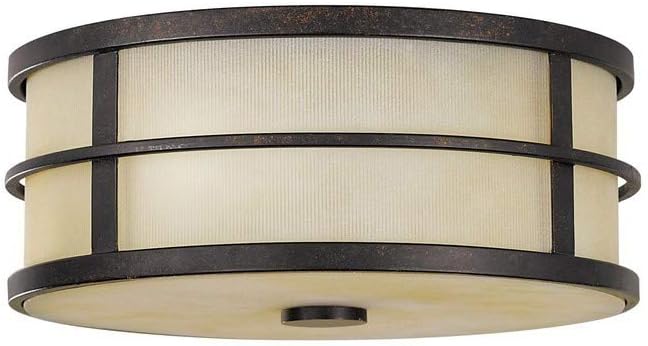

Figure 1: Feiss Fusion Glass Flush Mount Ceiling Lighting (Model FM256GBZ)

2. Maklumat Keselamatan

Please read all instructions carefully before beginning installation. Failure to do so may result in electric shock, fire, or other injuries that could be hazardous or even fatal. Always consult a qualified electrician if you are unsure about any part of the installation process.

• Sentiasa putuskan sambungan kuasa pada pemutus litar utama sebelum pemasangan atau servis.
• Pastikan semua sambungan elektrik mematuhi kod dan ordinan tempatan, serta Kod Elektrik Kebangsaan (NEC).
• This fixture is UL Approved for Indoor Locations. Do not install in damp atau lokasi basah.
• Gunakan hanya jenis mentol dan wat yang ditentukantage to avoid overheating and potential fire hazards.
• Kendalikan komponen kaca dengan berhati-hati untuk mengelakkan pecah.

3. Kandungan Pakej

Sahkan bahawa semua komponen ada dan tidak rosak sebelum meneruskan pemasangan.

• Feiss Fusion Flush Mount Fixture (Model FM256GBZ)
• Ribbed Amber Glass Shade
• Penyebar
• Perkakasan Pemasangan
• 8" Black and White Wire
• Manual Arahan

4. Persediaan dan Pemasangan

Installation should be performed by a qualified electrician or a competent individual with knowledge of electrical wiring.

4.1 Alat Diperlukan (Tidak Termasuk)

• Pemutar Skru Kepala Phillips
• Pemutar Skru Flathead
• Pelucut Kawat
• Pita Elektrik
• Cermin Mata Keselamatan

4.2 Langkah Pemasangan

1. Matikan Kuasa: Locate the circuit breaker that supplies power to the light fixture location and turn it off. Verify power is off using a voltage penguji.
2. Sediakan Pendawaian: If replacing an existing fixture, carefully remove it. Pull the electrical wires from the junction box.
3. Pasang Pendakap Pelekap: Secure the fixture's mounting bracket to the junction box using the provided screws. Ensure it is firmly attached.
4. Buat Sambungan Elektrik:
   • Sambungkan wayar hitam dari lekapan ke wayar hitam (panas) dari kotak simpang.
   • Sambungkan wayar putih dari lekapan ke wayar putih (neutral) dari kotak simpang.
   • Connect the bare copper or green ground wire from the fixture to the ground wire from the junction box (or to the green ground screw on the mounting bracket).
   • Secure all connections with wire nuts and wrap with electrical tape for added security.
5. Lekapan Lekapan: Carefully push the wired connections into the junction box. Align the fixture base with the mounting bracket and secure it using the provided screws.
6. Pasang Mentol: Insert two A19 style bulbs (not included) into the E26 medium base light sockets. Do not exceed 60 watts per bulb.
7. Attach Glass Shade and Diffuser: Carefully place the ribbed amber glass shade and diffuser onto the fixture. Secure them using the thumb screws or retaining clips as per the design.
8. Pulihkan Kuasa: Hidupkan semula kuasa pada pemutus litar utama.

Gambar 2: Cthample of Feiss Fusion Glass Flush Mount Ceiling Lighting in a room setting.

5. Arahan Operasi

The Feiss Fusion Flush Mount Ceiling Lighting operates like a standard ceiling light fixture. Once installed and powered, it can be controlled via a wall switch.

• Keserasian Mentol: This fixture is compatible with Incandescent, CFL, Halogen, or LED bulbs with an E26 medium base.
• Fungsi Peredupan: The fixture supports full range dimming when used with dimmable bulbs and a compatible dimmer switch (sold separately).
• Wattage: Wat maksimumtage for this fixture is 120 total watts (2 x 60 Watt Max A19 Style Bulbs).

6. Penyelenggaraan

Regular cleaning will help maintain the appearance and performance of your lighting fixture.

• Membersihkan Naungan: Use a clean, soft, dry cloth to wipe the glass shade. If necessary, you may use a white cloth dampened with a mild solution of soapy water to gently wash the shade. Rinse thoroughly with a white cloth dipped in clean water, then dry completely.
• Cleaning the Fixture Body: Wipe the metal parts with a soft, dry cloth. Avoid using abrasive cleaners or solvents, as they may damage the finish.
• Penggantian mentol: Always turn off power at the circuit breaker before replacing bulbs. Allow bulbs to cool completely before touching them.

7. Penyelesaian masalah

If you encounter issues with your lighting fixture, refer to the following common problems and solutions.

8. Spesifikasi

9. Waranti dan Sokongan

This Feiss lighting fixture comes with a Waranti 1 tahun dari tarikh pembelian. Waranti ini melindungi kecacatan pada bahan dan mutu kerja di bawah penggunaan biasa.

For technical support, replacement parts, or warranty claims, please contact Feiss customer service. Refer to the Feiss official webtapak atau dokumentasi pembelian anda untuk maklumat hubungan terkini.

Sumber Dalam Talian: For additional information and product details, you may visit the official Feiss store on Amazon: Feiss Store
