Pantone PSC-PS1755 Plastic Standard Chips Collection User Manual

1. Pengenalan

The Pantone Plastic Standard Chips Collection (model PSC-PS1755) provides a comprehensive set of 1,755 Pantone Plus Series colors as plastic standards. This collection is designed for designers and manufacturers working with plastic products, enabling precise color specification, communication, and matching. It facilitates color visualization and instrumental evaluation for quality control in various applications, including toys, consumer electronics, home furnishings, and appliances.

Key features of this collection include:

• A complete set of 1,755 Pantone Plus Series colors.
• Large-sized chips, measuring 3 inches by 1-7/8 inches, for clear visual assessment.
• Chips available in both gloss and matte finishes.
• Tiered thickness of 1mm and 2mm for enhanced color visualization.
• Included Pantone Formula Guide Coated for quick printed color reference.
• Electronic pigment formulations provided to aid in accurate color reproduction.

2. Persediaan

The Pantone Plastic Standard Chips Collection is organized into three carousel towers. Each tower features modular tiers that can be easily removed for working with specific color groupings. To set up your collection:

1. Buka bungkusan semua komponen daripada pembungkusan.
2. Place the three carousel towers on a stable, flat, and level surface.
3. Ensure each tier is securely seated within its respective tower.
4. Familiarize yourself with the color organization within the towers.

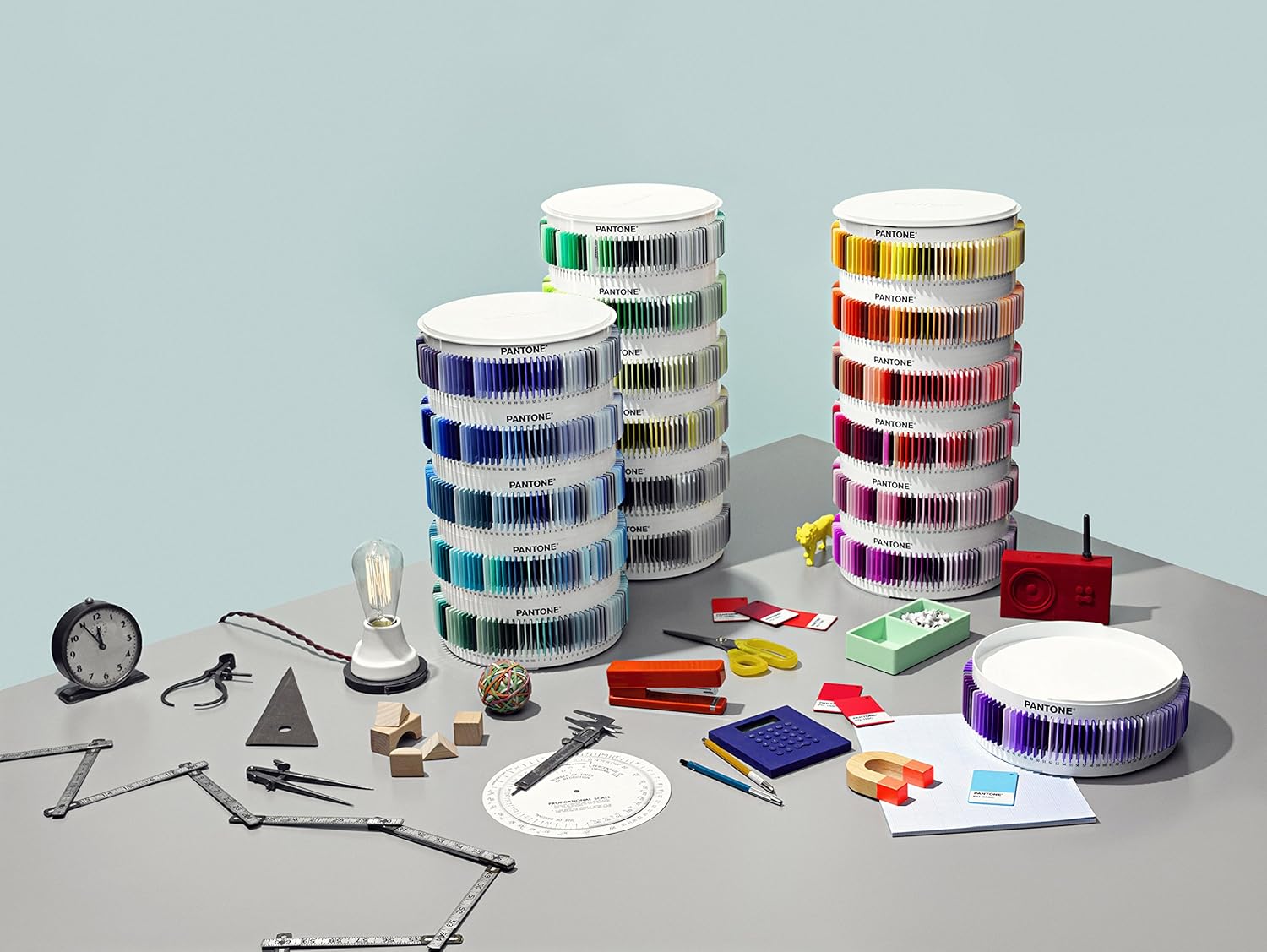

Image 2.1: The complete Pantone Plastic Standard Chips Collection, showcasing the three carousel towers filled with color chips.

Imej 2.2: Perincian view of the individual plastic chips within a carousel tier, highlighting their arrangement.

3. Arahan Operasi

Using the Pantone Plastic Standard Chips Collection for accurate color matching and communication:

1. Pilihan Warna: Rotate the carousel tower to locate the desired color chip. Each chip is clearly labeled with its unique Pantone color code.
2. Visual Assessment: The large 3" x 1-7/8" polypropylene chips allow for clear visual assessment. Observe the color under controlled lighting conditions, such as a D65 daylight simulator, to ensure accurate perception.
3. Finish and Thickness Evaluation: Utilize both the gloss and matte finishes, as well as the 1mm and 2mm tiered thicknesses, to understand how the color will appear on different material surfaces and under varying light interactions. This helps in predicting the final product's color appearance.
4. Instrumental Evaluation: The chip size facilitates instrumental evaluation using spectrophotometers for optimum quality control and precise color measurement.
5. Color Communication: When communicating color choices to clients or manufacturers, always refer to the specific Pantone color code found on the chip. This ensures consistent and unambiguous color specification.
6. Cross-Referencing: Use the included Pantone Formula Guide Coated to cross-reference plastic designs with corresponding printed colors, ensuring brand consistency across different media.
7. Pigment Formulations: Access the provided electronic pigment formulations to guide the development of custom color compounds, saving time and reducing trial-and-error in production.

Image 3.1: A close-up of Pantone plastic chips, illustrating the different finishes and thicknesses for comprehensive color evaluation.

4. Penyelenggaraan

Proper maintenance ensures the longevity and accuracy of your Pantone Plastic Standard Chips Collection:

• Pembersihan: Keep the plastic standard chips clean and free from dust, fingerprints, and debris. Use a soft, dry, lint-free cloth for gentle cleaning. Avoid abrasive cleaners or solvents, as these can damage the chip surface or alter its color.
• Storan: Store the chips in their carousel towers when not in use. This protects them from physical damage, dust accumulation, and exposure to environmental factors.
• Keadaan Persekitaran: Avoid exposing the chips to direct sunlight, high humidity, or extreme temperatures. Prolonged exposure to these conditions can cause color fading or material degradation, affecting the accuracy of the standards. Store in a cool, dry place.
• Pengendalian: Handle chips by their edges to minimize contact with the color surface, preventing smudges or scratches.

5. Penyelesaian masalah

This section addresses common issues you might encounter with your Pantone Plastic Standard Chips Collection.

• Issue: Difficulty locating a specific color chip.
  Penyelesaian: Ensure the carousel towers are properly organized. Each tier is modular and can be removed to facilitate easier access to specific color groupings. Refer to the included documentation or the Pantone website for the organizational structure of the colors.
• Issue: Inconsistent color appearance or perception.
  Penyelesaian: Sahkan bahawa viewing conditions are consistent and controlled (e.g., using a standardized light booth with D65 illumination, neutral gray background). The chips offer both gloss and matte finishes and varying thicknesses; ensure you are comparing the appropriate finish and thickness for your application. Avoid viewing chips under direct sunlight, incandescent, or standard fluorescent lights, as these light sources can significantly alter color perception.
• Issue: Chips appear dirty or smudged.
  Penyelesaian: Gently clean the chips with a soft, dry, lint-free cloth. Avoid using any liquids or chemical cleaners. If the smudges are persistent, contact Pantone support for advice.

6. Spesifikasi

7. Maklumat Waranti

For detailed warranty information regarding your Pantone Plastic Standard Chips Collection, please refer to the official documentation included with your purchase. Alternatively, you may visit the official Pantone website or contact Pantone customer support directly for the most current warranty terms and conditions.

8. Sokongan

Should you require technical assistance, have product inquiries, or need additional support, please utilize the following resources:

• Official Pantone Webtapak: Visit the official Pantone website for product information, FAQs, and support resources.
• Perkhidmatan Pelanggan: Contact Pantone customer service directly. Contact details (phone numbers, email addresses) can typically be found on the product packaging or the official Pantone webtapak.
• Sumber Dalam Talian: Explore online forums or communities dedicated to Pantone products for peer support and shared knowledge.

Anda juga boleh melawat Pantone Store on Amazon untuk maklumat dan sumber produk tambahan.
