Severin Multi Sandwich Toaster SA 2968 Instruction Manual

pengenalan

This manual provides essential information for the safe and efficient use of your Severin Multi Sandwich Toaster SA 2968. Please read these instructions carefully before operating the appliance and retain them for future reference.

The Severin Multi Sandwich Toaster SA 2968 is a versatile 3-in-1 appliance designed for preparing sandwiches, waffles, and grilled items. It features interchangeable plates, a non-stick coating for easy cleaning, and indicators for precise cooking control.

Arahan Keselamatan

Langkah-langkah Keselamatan Penting:

• Always ensure the appliance is unplugged from the power outlet before cleaning, assembly, or disassembly.
• Jangan rendamkan perkakas, kord, atau palam ke dalam air atau sebarang cecair lain.
• Perkakas ini tidak dimaksudkan untuk digunakan oleh orang (termasuk kanak-kanak) yang kurang keupayaan fizikal, deria atau mental, atau kurang pengalaman dan pengetahuan, melainkan mereka telah diberi pengawasan atau arahan mengenai penggunaan perkakas oleh orang yang bertanggungjawab untuk keselamatan mereka.
• Kanak-kanak harus diawasi untuk memastikan bahawa mereka tidak bermain dengan perkakas.
• Do not operate the appliance if the power cord or plug is damaged, or if the appliance malfunctions or has been damaged in any manner. Contact customer service for repair.
• Gunakan perkakas hanya untuk tujuan isi rumah yang dimaksudkan.
• Do not use abrasive cleaning agents or sharp objects on the non-stick plates, as this can damage the coating.
• Ensure the appliance is placed on a stable, heat-resistant surface, away from flammable materials.
• The appliance surfaces become hot during use. Use the heat-insulated handle and wear oven mitts if necessary.
• Jangan biarkan perkakas tanpa pengawasan semasa beroperasi.

Komponen Produk

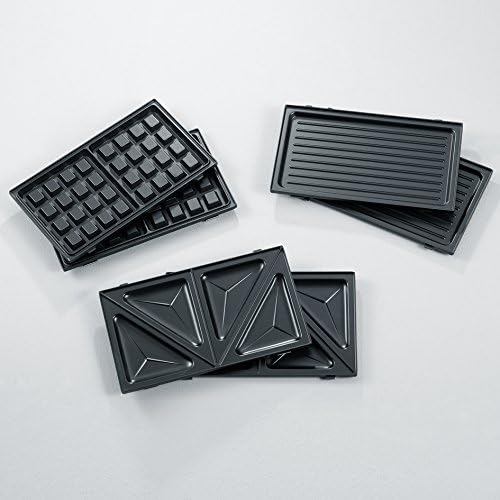

The Severin Multi Sandwich Toaster SA 2968 includes the main unit and three sets of interchangeable non-stick plates:

• Unit Utama: Features a heat-resistant housing, heat-insulated handle with locking clip, and indicator lights.
• Pinggan Sandwic: Designed for making sealed sandwiches.
• Pinggan Panggang: Ideal for grilling meats, vegetables, or paninis.
• Brussels Waffle Plates: For preparing classic Belgian waffles.

Persediaan

1. Membongkar: Carefully remove the appliance and all accessories from the packaging. Dispose of packaging materials responsibly.
2. Pembersihan Awal: Sebelum penggunaan pertama, lap bahagian luar perkakas dengan iklanamp cloth. Clean the interchangeable plates with warm soapy water, rinse thoroughly, and dry completely.
3. Pemasangan Plat: Ensure the appliance is unplugged and cool. Select the desired plates (sandwich, grill, or waffle). Align the plates with the slots in the main unit and press down until they click securely into place.
4. Kedudukan: Place the appliance on a flat, stable, heat-resistant surface, ensuring adequate ventilation around it.

Arahan Operasi

The appliance features a pilot standby light (red) and a ready-to-use indicator (green) for precise cooking time control.

Operasi Am:

1. Ensure the correct plates are installed and locked.
2. Close the appliance and plug it into a suitable 230V power outlet. The red pilot light will illuminate, indicating the appliance is heating up.
3. Wait for the green ready indicator light to illuminate. This signifies that the appliance has reached the optimal cooking temperature.
4. Open the appliance, place your food item(s) on the lower plate, and close the lid, ensuring the locking clip is engaged.
5. Cook for the recommended time (refer to specific food instructions below). The green light may cycle on and off during cooking as the thermostat maintains temperature.
6. Once cooking is complete, open the appliance and carefully remove the food using a heat-resistant plastic or wooden utensil. Do not use metal utensils, as they can damage the non-stick coating.
7. Unplug the appliance from the power outlet after use.

Using Sandwich Plates:

1. Install the sandwich plates.
2. Preheat the appliance until the green light illuminates.
3. Lightly butter or oil the outer sides of your bread slices. Place one slice of bread on each lower plate, add your desired filling, and cover with the second slice of bread.
4. Close the lid and lock the clip. Cook for approximately 3-5 minutes, or until the sandwiches are golden brown and the filling is heated through.
5. Carefully remove the sandwiches.

Using Waffle Plates:

1. Install the Brussels waffle plates.
2. Preheat the appliance until the green light illuminates.
3. Lightly grease the waffle plates with cooking spray or oil.
4. Pour approximately 1/2 to 3/4 cup of waffle batter onto the center of the lower plate, ensuring it spreads evenly. Do not overfill.
5. Close the lid and lock the clip. Cook for approximately 4-7 minutes, or until the waffles are golden brown and crisp.
6. Carefully remove the waffles.

Using Grilling Plates:

1. Install the grilling plates.
2. Preheat the appliance until the green light illuminates.
3. Lightly grease the grilling plates with cooking spray or oil.
4. Place your food items (e.g., chicken breast, vegetables, panini) on the lower grilling plate.
5. Close the lid and lock the clip. Cook for the desired time, turning if necessary, until the food is cooked to your preference.
6. Carefully remove the grilled food.

Pembersihan dan Penyelenggaraan

Pembersihan tetap memastikan prestasi optimum dan memanjangkan hayat perkakas anda.

1. Sejukkan Diri: Sentiasa cabut plag perkakas dan biarkan ia sejuk sepenuhnya sebelum dibersihkan.
2. Tanggalkan Plat: Once cool, press the plate release buttons (if applicable) and carefully remove the cooking plates.
3. Pinggan Bersih: Wash the non-stick plates in warm, soapy water. For stubborn residue, soak the plates for a few minutes before cleaning. Use a soft sponge or cloth. Do not use abrasive cleaners, steel wool, or metal utensils, as these will damage the non-stick coating. The plates are dishwasher safe.
4. Luaran Bersih: Wipe the exterior housing of the appliance with a damp kain. Jangan gunakan bahan kimia yang keras atau bahan yang melelas.
5. Keringkan dengan teliti: Pastikan semua bahagian kering sepenuhnya sebelum memasang semula atau menyimpan perkakas.

Menyelesaikan masalah

Spesifikasi

• model: SA 2968
• Jenama: Severin
• warna: Black-Chrome
• Bahan: Stainless Steel (housing), BPA Free (plates)
• Kuasa: 1000 watt
• Voltage: 230 Volt

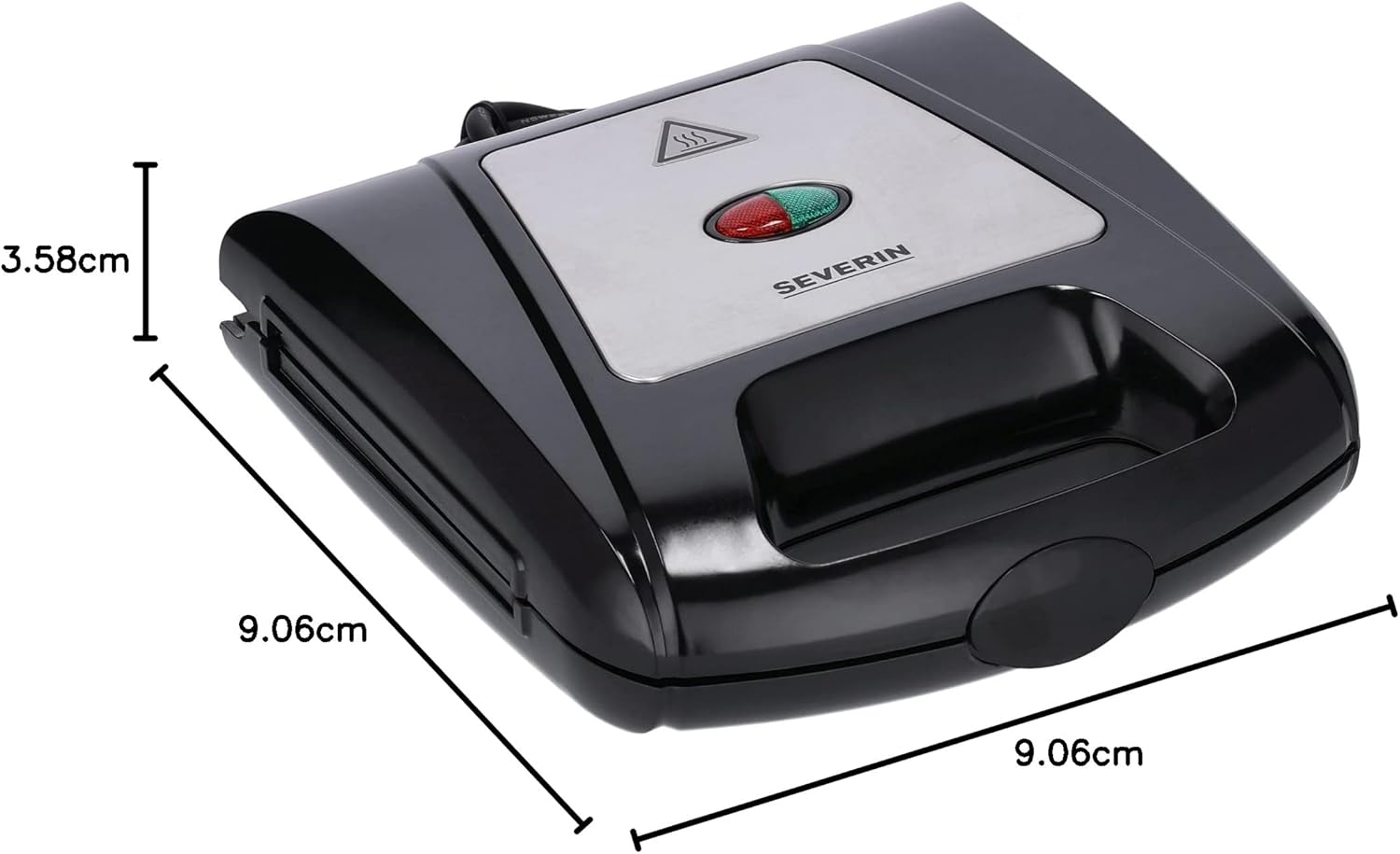

• Dimensi Produk (D x W x H): 9D x 23W x 23H sentimeter
• Berat Barang: 2.9 Kilogram

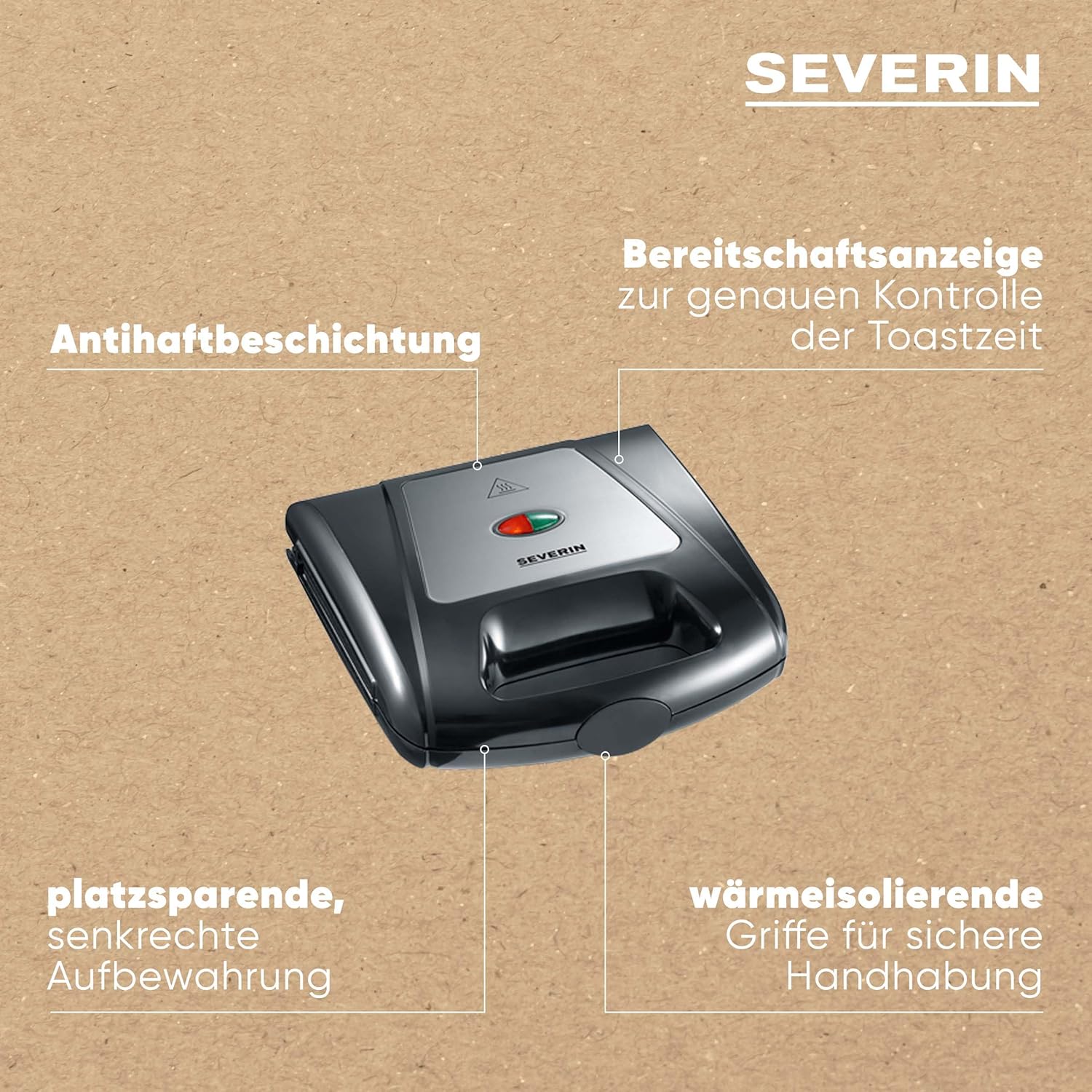

• Ciri Khas: Non-stick coating, 3-in-1 interchangeable plates, pilot standby and ready indicators, heat-insulated handle, vertical storage capability.

Penyimpanan

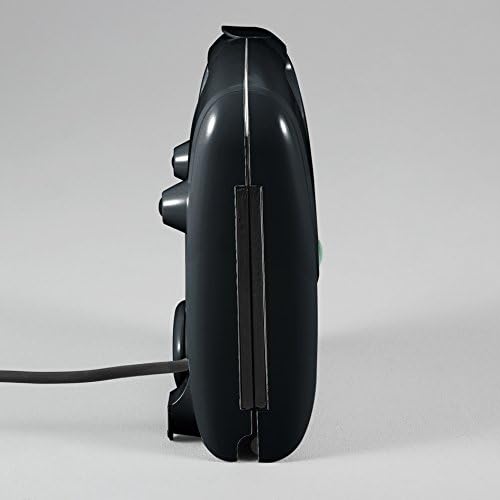

The Severin Multi Sandwich Toaster SA 2968 is designed for space-saving vertical storage.

1. Ensure the appliance is completely cool and clean.
2. Balut kord kuasa dengan kemas.
3. Simpan alat dalam kedudukan tegak di tempat yang kering.

Waranti dan Sokongan

For warranty information, product registration, or technical support, please refer to the official Severin webtapak atau hubungi terus bahagian perkhidmatan pelanggan mereka. Simpan bukti pembelian anda untuk tuntutan waranti.
