DOBE FOMIS ELECTRONICS Dobe PS4

DOBE FOMIS ELECTRONICS PS4 Dual Charging Dock Instruction Manual

Model: Dobe PS4

pengenalan

The DOBE FOMIS ELECTRONICS PS4 Dual Charging Dock is designed to provide a convenient and efficient solution for charging your PlayStation 4 wireless controllers. This dock allows for simultaneous charging of two PS4 controllers, featuring a charging light indicator to display the charging status. Its compact and lightweight design ensures ease of use and portability. The standard DC5V input voltage allows for flexible power sourcing via a PS4 console USB port, computer USB port, or other compatible 5V power adapters.

Maklumat Keselamatan

  • Keep the charging dock away from water, moisture, and extreme temperatures.
  • Jangan cuba membuka atau mengubah suai peranti. Ini boleh membatalkan jaminan dan menyebabkan kerosakan.
  • Use only the provided charging cable or a compatible DC5V USB cable.
  • Pastikan pengudaraan yang betul di sekeliling dok pengecasan semasa digunakan.
  • Jauhkan daripada kanak-kanak.

Kandungan Pakej

Sila semak kandungan pakej untuk memastikan semua item ada:

  • 1 x DOBE FOMIS ELECTRONICS PS4 Dual Charging Dock
  • 1 x Kabel Pengecasan (USB)

Persediaan

  1. Buka pembungkusan Dok Pengecasan: Carefully remove the charging dock and its accessories from the packaging.
  2. Sambungkan Kuasa: Insert the small end of the provided charging cable into the DC5V input port on the back of the charging dock.
  3. Sambungkan ke Sumber Kuasa: Plug the USB-A end of the charging cable into a compatible DC5V USB power source, such as a PS4 console USB port, a computer USB port, or a 5V USB wall adapter (not included).
  4. penempatan: Place the charging dock on a stable, flat surface.

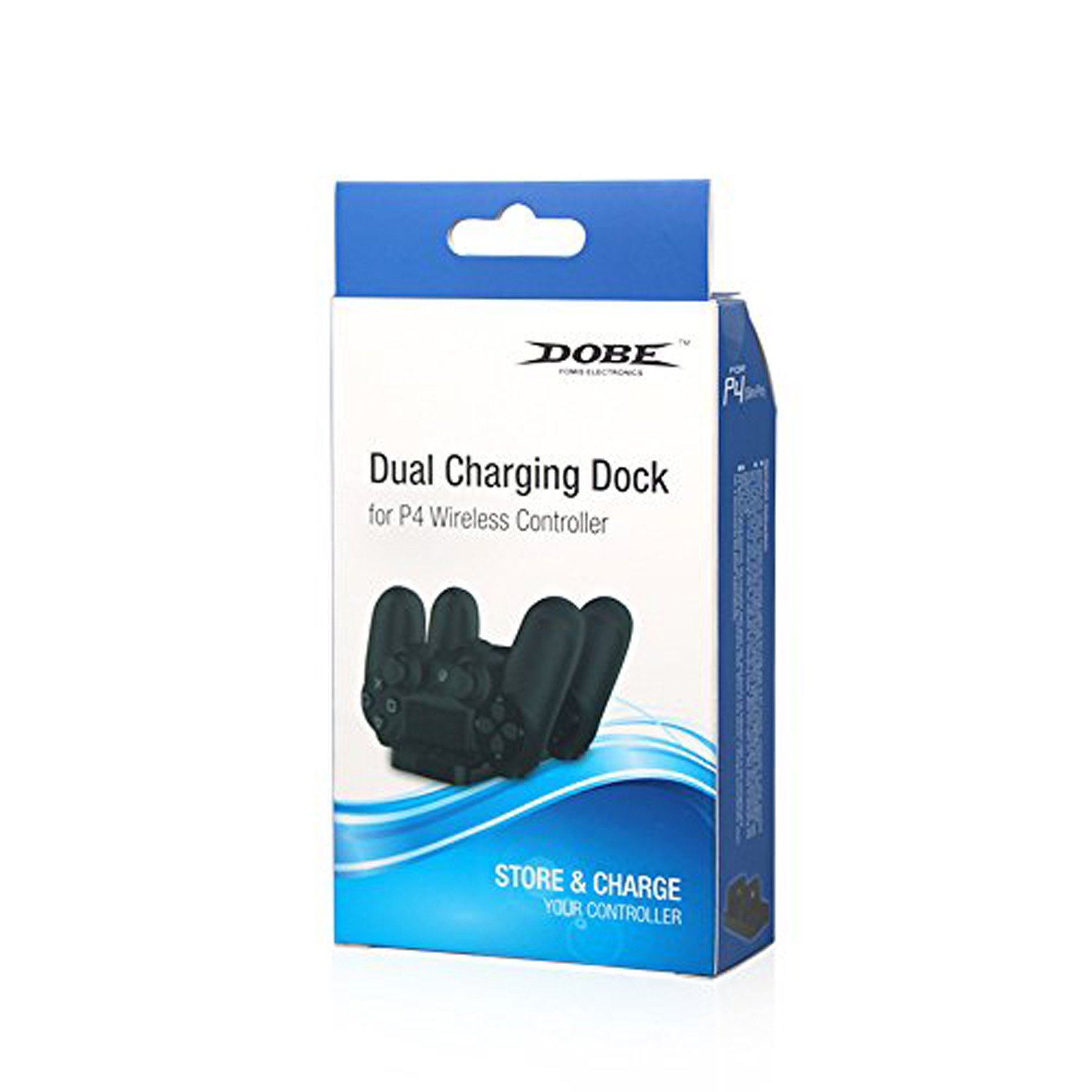

DOBE FOMIS ELECTRONICS PS4 Dual Charging Dock
Image: The DOBE FOMIS ELECTRONICS PS4 Dual Charging Dock, showing its dual controller slots and compact design. This image illustrates the overall appearance of the charging station.

Arahan Operasi

  1. Insert Controllers: Gently align the charging port of your PS4 wireless controller with one of the charging slots on the dock. Push down firmly until the controller is securely seated.
  2. Penunjuk Pengecasan: The charging light indicator on the dock will illuminate to show that the controller is charging. The specific color or behavior of the light indicates the charging status (e.g., red for charging, blue/green for fully charged, or off when not charging/fully charged, refer to controller manual for exact light behavior).
  3. Pengecasan serentak: You can charge two PS4 controllers simultaneously by inserting them into both available slots.
  4. Remove Controllers: Once charging is complete, gently lift the controller from the charging slot.
Close-up of DOBE FOMIS ELECTRONICS PS4 Dual Charging Dock charging slot
Imej: Dari dekat view of one of the charging slots on the DOBE FOMIS ELECTRONICS PS4 Dual Charging Dock, highlighting the connector pins where the controller docks for charging.

Penyelenggaraan

  • Pembersihan: Use a soft, dry cloth to wipe the surface of the charging dock. Do not use liquid cleaners or abrasive materials.
  • Storan: When not in use, store the charging dock in a cool, dry place, away from direct sunlight and dust.
  • Penjagaan Kabel: Avoid bending or twisting the charging cable excessively to prevent damage.

Menyelesaikan masalah

MasalahKemungkinan PuncaPenyelesaian
Pengawal tidak mengecas.
  • Kabel pengecas tidak disambungkan dengan betul.
  • Power source is not active or insufficient.
  • Controller not seated correctly in the dock.
  • Faulty charging cable or dock.
  • Ensure the charging cable is securely plugged into both the dock and the power source.
  • Cuba port USB atau penyesuai kuasa yang berbeza.
  • Remove and re-insert the controller, ensuring it clicks into place.
  • Test with a different controller or cable if available.
Lampu penunjuk pengecasan tidak berfungsi.
  • Tiada kuasa ke dok.
  • Controller is already fully charged.
  • Lampu penunjuk yang rosak.
  • Verify power connection as described above.
  • Check if the controller is fully charged by connecting it directly to the console.
  • If the dock is powered and controllers are not charged but the light remains off, contact support.

Spesifikasi

  • Nombor Model: Dobe PS4
  • Input Voltage: DC5V
  • Kapasiti Mengecas: 2 x PS4 Controllers simultaneously
  • Dimensi Produk (LxWxH): 20 x 12 x 4 cm
  • Berat Barang: 0.28 g
  • Negara Asal: China
  • Pengeluar: Dobe, yinghong information co ltd, Guangdong, China
  • Komponen yang Disertakan: 1 Kabel Pengecasan

Waranti dan Sokongan

For product support or warranty inquiries, please contact your retailer or the manufacturer directly. While this product does not explicitly state a manufacturer's warranty in the provided information, extended warranty options may be available from third-party providers, such as the "1 Year Extended Warranty by Onsitego" mentioned during purchase. Please retain your proof of purchase for any warranty claims.

Untuk bantuan lanjut, anda boleh melawati DOBE FOMIS ELECTRONICS Store.
