Sugatsune Industries ZwEi L Stainless Steel (SUS316) Push Knob

pengenalan

This manual provides detailed instructions for the installation, operation, and maintenance of the Sugatsune ZwEi L Stainless Steel Push Knob, Model ZL-1908. The ZwEi L series represents supreme architectural hardware, featuring a mirror-shine and high-quality satin finish. This push knob is designed to offer a flat, smart appearance when closed, ensuring safety by eliminating protrusions from the door surface. Constructed from SUS316 stainless steel, it boasts excellent corrosion resistance and a superior Zweil L Finish.

Maklumat Keselamatan

• Sentiasa memakai peralatan pelindung diri (PPE) yang sesuai seperti sarung tangan dan pelindung mata semasa pemasangan.
• Ensure the installation surface is clean, dry, and structurally sound before proceeding.
• Jauhkan bahagian kecil dan alatan daripada kanak-kanak.
• Do not modify the product in any way, as this may compromise its functionality and safety.
• Refer to local building codes and regulations for proper installation practices.

Kandungan Pakej

Sahkan bahawa semua komponen hadir sebelum memulakan pemasangan:

• 1 x Sugatsune ZwEi L Push Knob (ZL-1908)
• 1 x Cross Hole Truss Machine Screw M3 x 25 (Stainless Steel)

Spesifikasi

For a visual reference of the product's size, please see the image below:

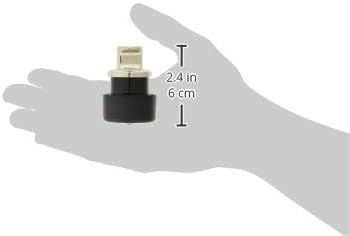

Figure 1: Product size reference, showing the knob's height of approximately 2.4 inches (6 cm) when held in a hand.

Persediaan dan Pemasangan

The Sugatsune ZwEi L Push Knob is designed for easy installation. Follow these steps carefully:

1. Sediakan Pintu: Ensure the door surface is clean and free of debris. Determine the exact location for the push knob installation.
2. Drill Through-Hole: Based on your door thickness, drill the appropriate through-hole. Refer to the installation diagram below for precise measurements.
3. Insert the Knob: Insert the main body of the push knob through the drilled hole from the front side of the door.
4. Selamatkan dengan Skru: From the back side of the door, use the provided M3 x 25 stainless steel cross hole truss machine screw to secure the knob firmly in place. Ensure it is tightened sufficiently but do not overtighten.

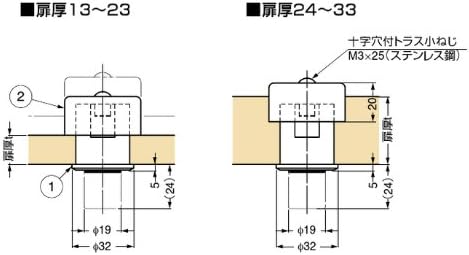

Figure 2: Installation diagram illustrating drilling requirements for door thicknesses 13-23mm and 24-33mm. Note the different 'H' dimensions for stove depth based on door thickness.

Stove Depth 'H' Reference:

• For door thickness 13 - 23 mm: H = 28 mm (through holes)
• For door thickness 24 - 33 mm: H = Door Thickness - 23 mm (back of door)

Operasi

The Sugatsune ZwEi L Push Knob operates with a simple push mechanism. When the knob is pushed, it retracts to sit flush with the door surface, providing a sleek and unobtrusive appearance. To engage or disengage the knob, simply push it. Its design ensures a smooth and reliable action.

Figure 3: The Sugatsune ZwEi L Push Knob in its extended position, showcasing its high-quality finish.

Penyelenggaraan

To ensure the longevity and appearance of your Sugatsune ZwEi L Push Knob, follow these simple maintenance guidelines:

• Pembersihan: Wipe the knob regularly with a soft, damp cloth. For stubborn marks, use a mild, non-abrasive cleaner specifically designed for stainless steel. Avoid harsh chemicals, abrasive pads, or solvents, as these can damage the finish.
• Pemeriksaan: Periodically check the screw for tightness. If the knob feels loose, gently retighten the screw.
• Pelinciran: The internal mechanism is designed for smooth operation and typically does not require lubrication. If you notice any stiffness, consult a professional or contact Sugatsune support.

Menyelesaikan masalah

Most issues with the ZwEi L Push Knob can be resolved with simple checks:

• Knob feels loose: Check the M3 x 25 screw on the back of the door and tighten it if necessary.
• Knob does not retract/extend smoothly: Ensure there is no debris obstructing the mechanism. Clean the knob thoroughly. If the issue persists, verify that the installation was done correctly according to the door thickness specifications.
• Scratches or damage to finish: The ZwEi L finish is durable, but surface damage can occur from abrasive materials. Refer to the maintenance section for proper cleaning. Significant damage may require professional attention or replacement.

Waranti dan Sokongan

Specific warranty information for the Sugatsune ZwEi L Push Knob ZL-1908 is not provided in this manual. For details regarding warranty coverage, technical support, or replacement parts, please contact Sugatsune Industries directly through their official website or customer service channels. Always provide your model number (ZL-1908) when seeking support.
