Tamron 80-210mm f/3.8-4 CF Tele-Macro Compact Zoom Adaptall 2 Lens User Manual

pengenalan

This manual provides essential instructions for the proper use and care of your Tamron 80-210mm f/3.8-4 CF Tele-Macro Compact Zoom Adaptall 2 lens. This versatile telephoto zoom lens features a variable aperture and a close-focusing (CF) tele-macro function, designed for use with various camera systems via the Adaptall 2 interchangeable mount system. Please read this manual thoroughly before using the lens to ensure optimal performance and longevity.

Persediaan

1. Attaching the Adaptall 2 Mount

The Tamron Adaptall 2 system allows this lens to be used with various camera bodies by changing the mount adapter. Ensure you have the correct Adaptall 2 mount for your specific camera system (e.g., Canon FD, Nikon AI, Pentax K, Minolta MD).

Align the red dot on the Adaptall 2 mount with the red dot on the lens barrel.
Gently push the mount onto the lens and rotate it clockwise until it clicks into place. Ensure it is securely locked.
To remove the mount, press the release button on the mount and rotate it counter-clockwise.

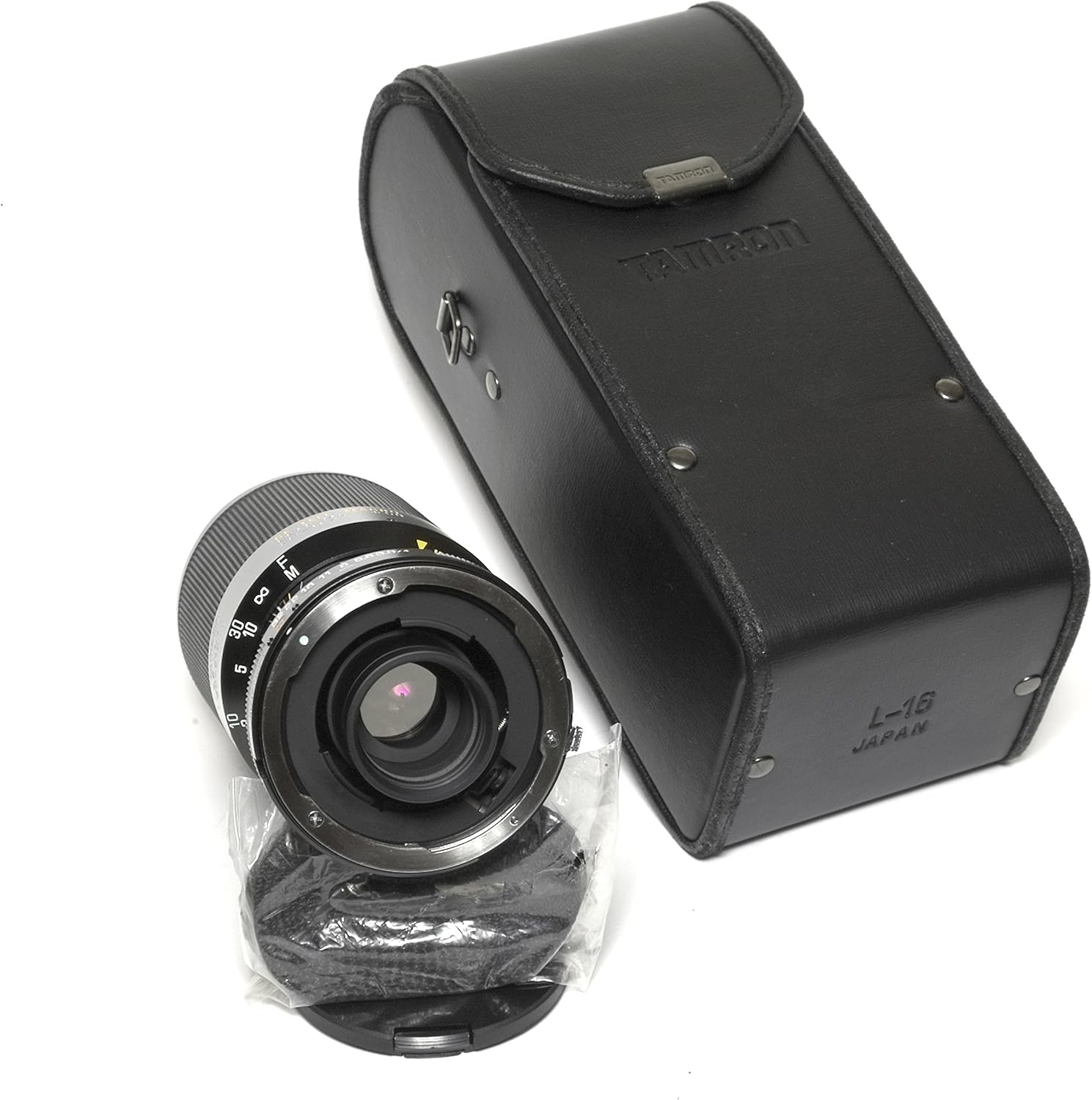

belakang view of Tamron 80-210mm lens with Adaptall 2 mount attached, next to its carrying case and lens cap.

Imej: Belakang view of the Tamron 80-210mm lens, showing the Adaptall 2 mount connection point. The lens is positioned next to its protective carrying case and a rear lens cap.

2. Attaching the Lens to Your Camera

Once the Adaptall 2 mount is securely attached to the lens, you can mount the lens onto your camera body.

Remove the rear lens cap from the Adaptall 2 mount and the body cap from your camera.
Align the mounting index (usually a red dot or white line) on the Adaptall 2 mount with the corresponding index on your camera body.
Insert the lens into the camera's lens mount and rotate it clockwise until it locks into place with a click.

Depan view of Tamron 80-210mm lens with front cap, next to its carrying case.

Imej: Depan view of the Tamron 80-210mm lens with its front lens cap in place, alongside its protective carrying case. This illustrates the lens ready for attachment or storage.

3. Removing the Lens from Your Camera

To remove the lens from your camera body:

While holding the lens firmly, press the lens release button on your camera body.
Rotate the lens counter-clockwise until it detaches from the camera mount.
Immediately attach the rear lens cap to the Adaptall 2 mount and the body cap to your camera to protect against dust and damage.

Mengendalikan Lensa

1. Mengezum

This is a push-pull zoom lens. To change the focal length:

Grasp the zoom ring (the wider, textured ring on the lens barrel).
Push the ring forward to zoom in (increase focal length towards 210mm).
Pull the ring backward to zoom out (decrease focal length towards 80mm).

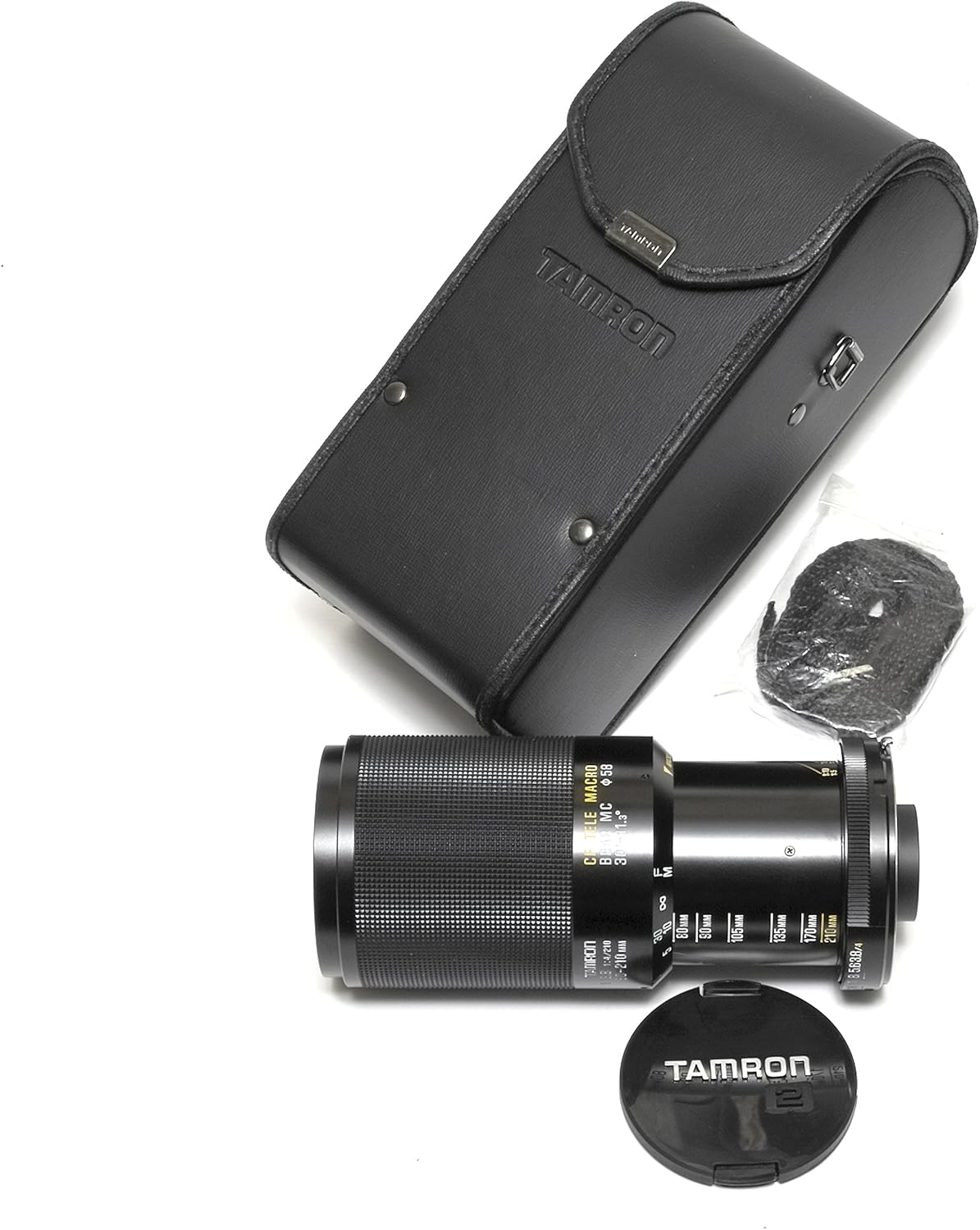

Tamron 80-210mm lens extended to its telephoto setting, with its carrying case and front lens cap.

Image: The Tamron 80-210mm lens shown extended, indicating its telephoto zoom capability. The lens is accompanied by its protective case and front cap.

2. Memberi tumpuan

This lens features manual focus. To achieve sharp focus:

Set your camera to manual focus (MF) mode.
Lihat melalui viewfinder or use live view pada kamera anda.
Rotate the focusing ring (the narrower ring closer to the front of the lens) until your subject appears sharp.
Many cameras offer focus peaking or magnification aids in live view to assist with manual focusing.

3. Aperture Control

The aperture ring is located near the camera mount. It allows you to control the amount of light entering the lens and the depth of field.

Rotate the aperture ring to select your desired f-stop (e.g., f/3.8, f/5.6, f/8).
A smaller f-number (e.g., f/3.8) means a wider aperture, allowing more light and creating a shallower depth of field.
A larger f-number (e.g., f/16) means a narrower aperture, allowing less light and creating a greater depth of field.

4. Tele-Macro Function (CF)

The "CF" (Close Focusing) Tele-Macro feature allows for closer focusing distances, enabling macro-like photography at the telephoto end.

To engage the tele-macro function, zoom the lens to its maximum telephoto setting (210mm).
There may be a dedicated switch or a specific point on the zoom ring to engage the macro range. Consult your specific Adaptall 2 mount instructions if available, as operation can vary slightly.
Once in macro mode, you can focus on subjects at a much closer distance than in normal zoom mode.

Tamron 80-210mm lens showing its zoom and focus rings with distance markings, next to its carrying case.

Image: The Tamron 80-210mm lens displaying its various rings for zoom and focus, along with distance scales. The lens is placed beside its protective case.

Penyelenggaraan

1. Membersihkan Lensa

habuk: Use a blower brush to remove loose dust from lens surfaces. Avoid wiping dry lens elements, as this can cause scratches.
Smudges/Fingerprints: Use a clean, soft microfiber cloth specifically designed for optics, along with a small amount of lens cleaning fluid. Apply the fluid to the cloth, not directly to the lens. Wipe gently in a circular motion from the center outwards.
Laras Kanta: Wipe the lens barrel with a soft, damp kain. Jangan gunakan bahan kimia atau pelarut yang keras.

2. Penyimpanan

Always attach front and rear lens caps when the lens is not in use.
Simpan kanta di tempat yang sejuk dan kering, jauh dari cahaya matahari langsung dan suhu yang melampau.
If storing for extended periods, consider using a dehumidifying cabinet or silica gel packets to prevent mold growth, especially in humid environments.
Store the lens in its protective case when transporting.

Tamron 80-210mm lens, front cap, and carrying case laid out on a white surface.

Image: The Tamron 80-210mm lens, its front lens cap, and its protective carrying case are neatly arranged on a white background, illustrating the complete package for storage and transport.

3. Mengendalikan Langkah Berjaga-jaga

Elakkan daripada menjatuhkan atau mendedahkan kanta kepada hentaman yang kuat.
Do not expose the lens to water or excessive moisture, as it is not water-resistant.
Jauhkan kanta daripada medan magnet yang kuat.
When changing lenses, do so in a clean environment to minimize dust entering the camera body or settling on the lens elements.

Menyelesaikan masalah

Masalah	Kemungkinan Punca	Penyelesaian
Imej kabur atau tidak fokus.	Incorrect focus, camera shake, dirty lens elements, or incorrect camera settings.	Ensure the lens is manually focused correctly. Use focus peaking or magnification if available. Use a faster shutter speed or a tripod to prevent camera shake. Bersihkan elemen kanta hadapan dan belakang. Check camera's aperture and shutter speed settings.
Lens not attaching to camera.	Incorrect Adaptall 2 mount, misaligned mount, or obstruction.	Verify you have the correct Adaptall 2 mount for your camera system. Ensure the Adaptall 2 mount is correctly attached to the lens. Align the mounting indexes precisely before rotating to lock. Check for any debris or damage on the lens mount or camera mount.
Debu atau bintik kelihatan dalam imej.	Dust on lens elements or camera sensor.	Clean the front and rear lens elements thoroughly. If spots persist, the dust may be on your camera's sensor. Refer to your camera's manual for sensor cleaning procedures or consult a professional.

Spesifikasi

Below are the key specifications for the Tamron 80-210mm f/3.8-4 CF Tele-Macro Compact Zoom Adaptall 2 lens:

Jenama: Tamron
Nama Model: 80-210mm f/3.8-4 CF Tele-Macro Compact Zoom Adaptall 2
Panjang Fokus: 80-210mm (Zoom)
Bukaan Maksimum: f/3.8 (at 80mm) - f/4 (at 210mm)
Panjang Fokus Minimum: 80 Milimeter
Panjang Fokus Maksimum: 210 Milimeter
Jenis Kanta: Zum Telefoto
Jenis Fokus: Manual Focus (Fixed Focus refers to the lens not having autofocus)
Ciri Khas: CF Tele-Macro (Close Focusing)
Photo Filter Size: 58 Milimeter
Jenis Kawalan Pendedahan: Automatic (refers to camera body control with appropriate Adaptall mount)
Tahap Rintangan Air: Bukan Tahan Air
Berat Barang: Kira-kira 22.4 Auns (635 gram)
Mount System: Adaptall 2 (requires specific camera mount adapter)

Waranti & Sokongan

For detailed information regarding warranty coverage, service, and technical support for your Tamron lens, please refer to the official Tamron website or contact your local Tamron distributor. Warranty terms and conditions may vary based on region and purchase date. Please retain your proof of purchase for warranty claims.
