pengenalan
Welcome to the user manual for the Lindy 4x2 HDMI 1.4 Switching Splitter, Model 38054. This device allows you to connect up to four HDMI or DVI source devices to two HDMI display devices, distributing signals simultaneously or switching between sources. Please read this manual thoroughly to ensure proper installation and operation.
Maklumat Keselamatan
Please observe the following safety guidelines to prevent damage to the unit and ensure user safety:
- Do not expose this unit to rain, moisture, or liquids.
- Do not attempt to open the unit casing. Tiada bahagian yang boleh diservis pengguna di dalamnya.
- Use only the provided power adapter. Using an unauthorized adapter may damage the unit and void the warranty.
- Pastikan pengudaraan yang betul di sekeliling unit. Jangan sekat sebarang bukaan pengudaraan.
- Disconnect power before cleaning. Clean the unit with a soft, dry cloth only.
Kandungan Pakej
Sahkan bahawa pakej anda mengandungi item berikut:
- Lindy 4x2 HDMI 1.4 Switching Splitter (Model 38054)
- Penyesuai Kuasa
- Alat kawalan jauh inframerah
- Manual Pengguna (dokumen ini)
Ciri-ciri Produk
- Connects up to 4 HDMI/DVI source devices to 2 HDTV displays or projectors.
- Supports 1080p resolution and 3D video formats.
- Compatible with digital video formats in deep color mode (up to 36 bit).
- Supports lossless compressed digital audio formats, including Dolby TrueHD and DTS-HD Master Audio.
- Each selected input signal is simultaneously sent to both connected display devices.
- Includes an infrared remote control for convenient switching.
- Features signal re-timing, compensation, and regeneration for output signal transmission up to 10 meters.
Produk Selesaiview
The Lindy 4x2 HDMI 1.4 Switching Splitter is designed for efficient signal management in home theater or professional AV setups.

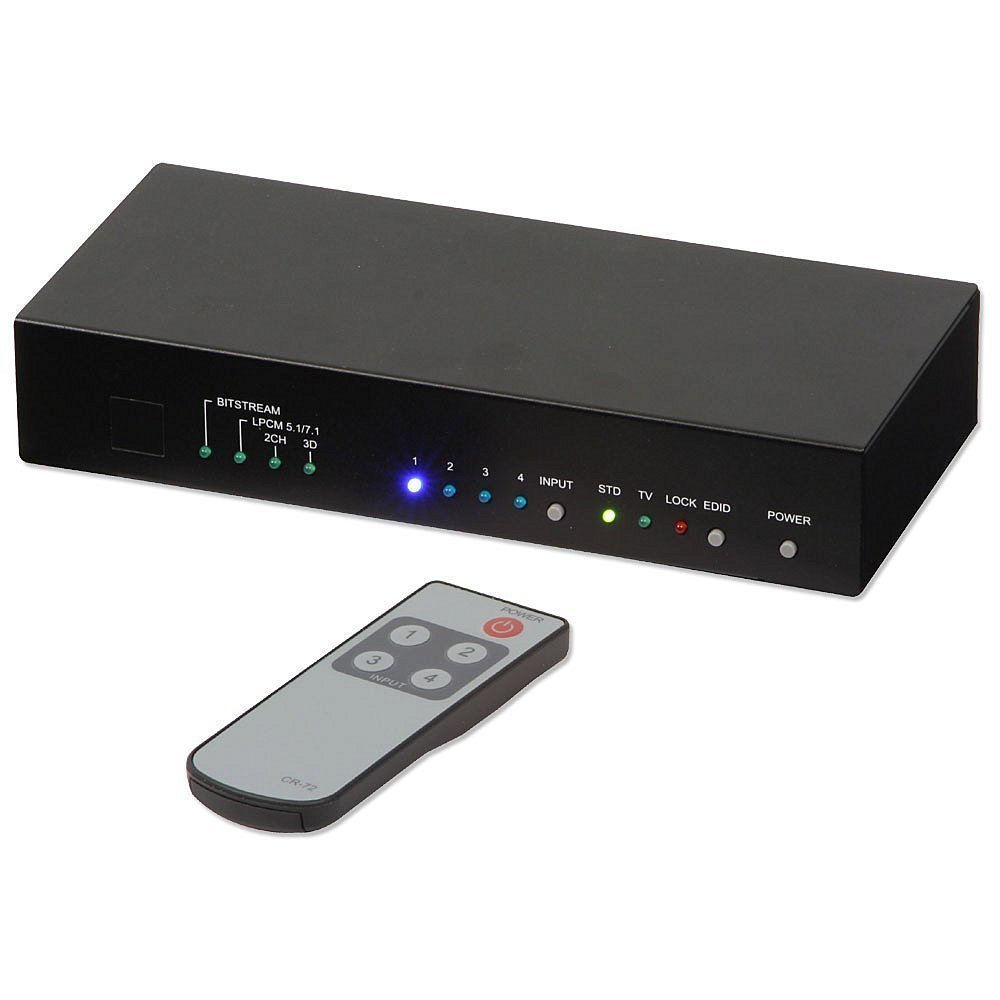

This image shows the front and top view of the Lindy 4x2 HDMI 1.4 Switching Splitter. The front panel typically features LED indicators for active inputs and outputs, along with buttons for manual switching. The rear panel, not fully visible, would contain the HDMI input and output ports, and the power input.
Panel Depan
The front panel typically includes:
- Butang Pemilihan Input: For manually selecting the desired HDMI input source (e.g., Input 1, Input 2, etc.).
- Penunjuk LED: To show which input is currently active and which outputs are connected.
- Penerima IR: For receiving signals from the infrared remote control.
Panel Belakang
Panel belakang biasanya merangkumi:
- Port Input HDMI (x4): Connect your source devices (e.g., Blu-ray player, game console, PC).
- HDMI Output Ports (x2): Connect to your display devices (e.g., HDTV, projector).
- Input Kuasa DC 5V: Untuk menyambungkan penyesuai kuasa yang disediakan.
Persediaan dan Pemasangan
Follow these steps to set up your Lindy 4x2 HDMI 1.4 Switching Splitter:
- Ensure all devices (source, display, and splitter) are powered off and unplugged from their power outlets.
- Connect your HDMI source devices (e.g., DVD player, game console, PC) to the HDMI Input ports (HDMI IN 1-4) on the rear of the splitter using high-quality HDMI cables.
- Connect your HDMI display devices (e.g., HDTV, projector) to the HDMI Output ports (HDMI OUT 1-2) on the rear of the splitter using high-quality HDMI cables.
- Connect the provided power adapter to the DC 5V Power Input on the splitter, then plug the adapter into a suitable power outlet.
- Power on your display devices, then your source devices, and finally the Lindy 4x2 HDMI 1.4 Switching Splitter.
- Select the desired input source using the buttons on the front panel or the infrared remote control.
Arahan Operasi
Penukaran Manual
To switch between input sources manually, press the corresponding input selection button on the front panel of the splitter. The LED indicator for the active input will illuminate.
Operasi Kawalan Jauh
Use the provided infrared remote control to select input sources. Point the remote control towards the IR receiver on the front panel of the splitter.
- Input 1-4 Buttons: Press the button corresponding to the desired HDMI input source (1, 2, 3, or 4).
- Butang Kuasa: (If available on your remote) To power the unit on or off.
The selected input will be displayed on both connected output devices simultaneously.
Penyelenggaraan
To ensure optimal performance and longevity of your Lindy 4x2 HDMI 1.4 Switching Splitter:
- Keep the unit in a cool, dry place, away from direct sunlight and heat sources.
- Clean the unit with a soft, dry cloth. Do not use liquid or aerosol cleaners, as they may damage the finish or internal components.
- Ensure proper ventilation and do not block any vents on the unit.
Menyelesaikan masalah
If you encounter issues with your Lindy 4x2 HDMI 1.4 Switching Splitter, refer to the following common solutions:
| Masalah | Kemungkinan Punca | Penyelesaian |
|---|---|---|
| No picture or sound on display. | Loose cable connections, incorrect input selection, power issue, incompatible resolution. |
|
| Isyarat sekejap-sekejap atau kelip-kelip. | Poor quality HDMI cables, signal interference, long cable runs, HDCP issues. |
|
| Alat kawalan jauh tidak berfungsi. | Dead battery, obstructed IR path, remote too far. |
|
Spesifikasi
| Ciri | Perincian |
|---|---|
| Nombor Model | 38054 |
| Jenama | Lindy |
| Input | 4 x HDMI |
| Keluaran | 2 x HDMI |
| Piawaian HDMI | HDMI 1.4 |
| Resolusi yang Disokong | Sehingga 1080p |
| Sokongan 3D | ya |
| Warna Dalam | Sehingga 36 bit |
| Sokongan Audio | Dolby TrueHD, Audio Induk DTS-HD |
| Max Output Cable Length | 10m (32.8 ft) |
| Berat Barang | 2.9 paun (1.32 kg) |
Waranti dan Sokongan
This Lindy product comes with a Waranti 2 tahun dari tarikh pembelian.
For technical support, troubleshooting assistance, or warranty claims, please contact your local Lindy customer service or visit the official Lindy website for further assistance. Please retain your proof of purchase for warranty validation.
