ZyXEL NWA3160-N Wireless Access Point User Manual

pengenalan

This manual provides detailed instructions for the installation, configuration, and operation of your ZyXEL NWA3160-N IEEE 802.11n 300 Mbps Wireless Access Point. Please read this manual thoroughly before using the device to ensure proper setup and optimal performance. Keep this manual for future reference.

Produk Selesaiview

The ZyXEL NWA3160-N is a high-performance wireless access point designed to provide reliable 802.11n wireless connectivity. It supports Power over Ethernet (PoE) for flexible deployment and offers a wireless transmission speed of up to 300 Mbps across dual-band frequencies (2.4 GHz and 5 GHz).

Kandungan Pakej

• ZyXEL NWA3160-N Wireless Access Point
• Penyesuai Kuasa (jika tidak menggunakan PoE)
• Kabel Ethernet
• Panduan Mula Pantas
• Kit Pelekap Dinding (jika berkenaan)

Reka Letak Peranti

Familiarize yourself with the ports and indicators on your NWA3160-N device.

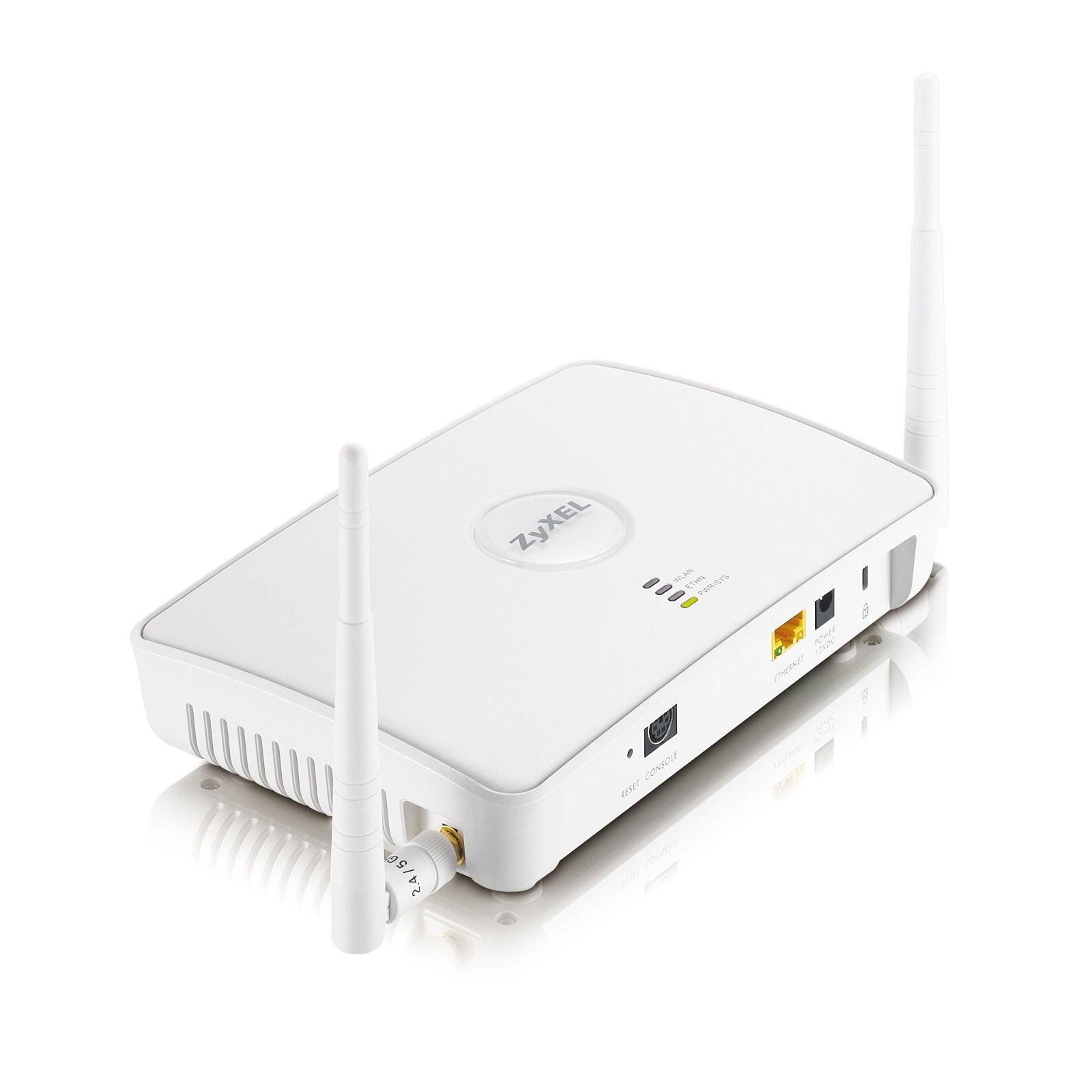

Rajah 1: Depan view of the ZyXEL NWA3160-N Wireless Access Point, showing LED indicators for power, WLAN, and LAN status. The device features a compact design suitable for desktop or wall mounting.

Komponen utama biasanya merangkumi:

• LED kuasa: Menunjukkan status kuasa.
• LED WLAN: Menunjukkan aktiviti tanpa wayar.
• LED LAN: Indicates Ethernet port activity.
• Port Ethernet (RJ-45): For network connection and PoE input.
• Butang Tetapkan Semula: Untuk tetapan semula kilang.
• Antena: Two dipole antennas for wireless signal transmission.

Persediaan

1. Pemasangan Fizikal

The NWA3160-N can be placed on a desktop or mounted on a wall. Choose a central location for optimal wireless coverage, away from obstructions and sources of interference.

• Peletakan Desktop: Letakkan peranti pada permukaan yang rata dan stabil.
• Pemasangan Dinding: Use the provided wall mount kit. Mark the desired positions for screws, drill pilot holes, insert anchors, and secure the device.

2. Sambungan Kuasa

The NWA3160-N supports Power over Ethernet (PoE).

• Menggunakan PoE: Connect an Ethernet cable from a PoE-enabled switch or injector to the Ethernet port on the NWA3160-N. The device will power on automatically.
• Using Power Adapter (Optional): If PoE is not available, connect the included power adapter to the device's power input and then to a power outlet.

3. Sambungan Rangkaian

Connect an Ethernet cable from your network router or switch to the Ethernet port on the NWA3160-N. This provides network access to the access point.

4. Konfigurasi Awal

To configure the NWA3160-N, you will typically access its webantara muka pengurusan berasaskan.

• Connect a computer to the same network as the NWA3160-N.
• Buka a web browser and enter the default IP address of the access point (refer to the Quick Start Guide or manufacturer's website for the default IP and login credentials).
• Log masuk menggunakan nama pengguna dan kata laluan lalai.
• Follow the on-screen wizard or navigate to the wireless settings to configure your Wi-Fi network.

Arahan Operasi

Konfigurasi Rangkaian Wayarles

Sebaik sahaja log masuk ke web interface, navigate to the wireless settings section to configure your Wi-Fi network.

• SSID (Nama Rangkaian): Set a unique name for your wireless network.
• Mod Keselamatan: Select a strong security protocol, such as WPA2-PSK or WPA3-PSK, and set a strong password.
• Jalur Kekerapan: Configure settings for both 2.4 GHz and 5 GHz bands if desired.
• Saluran: For optimal performance, select a less congested wireless channel.

Mod Titik Akses

The NWA3160-N primarily functions as an Access Point, extending your existing wired network wirelessly. Ensure it is connected to your main router or switch.

WPS (Persediaan Dilindungi Wi-Fi)

WPS allows for easy connection of WPS-compatible devices to your wireless network without manually entering the password. Refer to the device's web interface for WPS activation and instructions.

• Press the WPS button on the NWA3160-N (if available, or activate via software).
• Within two minutes, press the WPS button on your client device.
• Peranti akan mewujudkan sambungan selamat secara automatik.

Penyelenggaraan

Kemas kini Perisian Tegar

Periksa sokongan ZyXEL secara berkala weblaman web untuk kemas kini perisian tegar. Kemas kini perisian tegar boleh meningkatkan prestasi, menambah ciri baharu dan menangani kelemahan keselamatan. Ikut arahan yang disediakan bersama pakej kemas kini perisian tegar dengan teliti.

Pembersihan

Clean the device with a soft, dry cloth. Do not use liquid or aerosol cleaners, as they may damage the device.

Menyelesaikan masalah

If you encounter issues with your NWA3160-N, refer to the following common troubleshooting steps:

• Tiada Kuasa: Ensure the power adapter is securely connected or that the PoE source is active and providing power. Check the Power LED.
• Tiada Sambungan Rangkaian: Verify that the Ethernet cable is properly connected to both the NWA3160-N and your network device (router/switch). Check the LAN LED.
• Tiada Isyarat Wi-Fi: Ensure the WLAN LED is active. Check wireless settings in the web interface (SSID broadcast, security).
• Tidak Boleh Akses Web Antara muka: Confirm your computer is on the same network segment as the NWA3160-N. Verify the IP address. Try clearing your browser's cache.
• Kelajuan Wayarles Perlahan: Check for interference from other devices (cordless phones, microwaves). Try changing the wireless channel. Ensure client devices support 802.11n.
• Tetapan semula kilang: If all else fails, use a paperclip to press and hold the Reset button for 5-10 seconds while the device is powered on. This will restore default settings.

Spesifikasi

Maklumat Waranti

The ZyXEL NWA3160-N Wireless Access Point comes with a Waranti 2 Tahun Terhad. Please retain your proof of purchase for warranty claims. For full warranty terms and conditions, refer to the official ZyXEL webtapak atau dokumentasi yang disertakan dengan produk anda.

Sokongan

For technical support, additional documentation, or frequently asked questions, please visit the official ZyXEL support webtapak:

www.zyxel.com/us/en/support

When contacting support, please have your product model (NWA3160-N) and serial number ready.
