BLACK+DECKER SPCM1936 19-Inch 36-Volt Cordless Electric Self-Propelled Lawn Mower User Manual

1. Pengenalan dan Lebihview

The BLACK+DECKER SPCM1936 is a 19-inch, 36-volt cordless electric self-propelled lawn mower designed for efficient lawn care without the need for gasoline or power cords. This mower features a removable battery, variable speed self-propulsion, and a 3-in-1 deck design for mulching, bagging, or rear discharge.

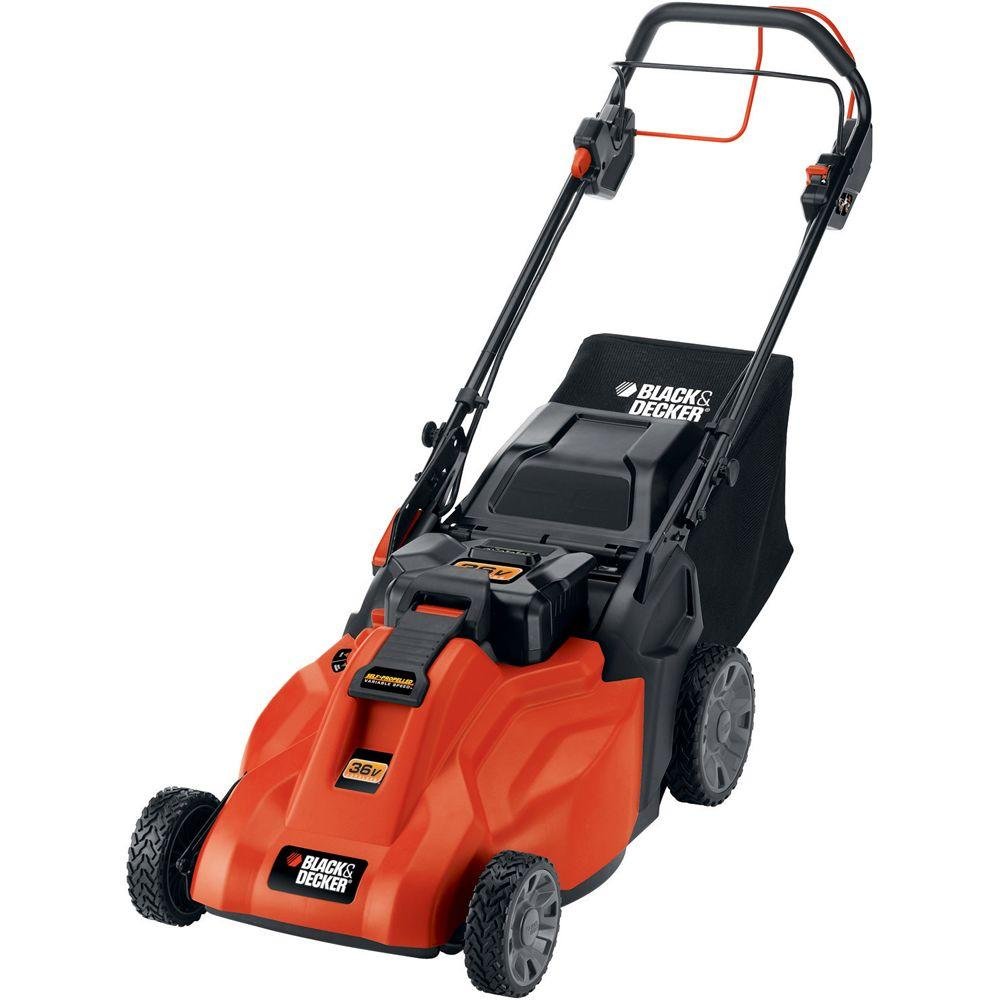

Gambar 1.1: Lebihview of the BLACK+DECKER SPCM1936 Lawn Mower.

Ciri-ciri Utama:

• Operasi tanpa wayar: Powered by a 36-volt removable battery, eliminating the need for cords and gasoline.
• Self-Propelled System: Variable speed system adjusts to your preferred mowing pace, reducing effort.
• 3-in-1 Deck Design: Offers mulching, bagging, or rear discharge capabilities for versatile lawn care.
• Permulaan Segera: Starts with the push of a button, no pull cords required.
• Durable Deck: High-impact polymer deck designed for longevity and rust resistance.

2. Persediaan dan Pemasangan

2.1 Membongkar dan Perhimpunan Awal

Carefully remove all components from the packaging. The mower requires minimal assembly. Attach the handle to the main unit using the provided bolts. Ensure all connections are secure before proceeding.

2.2 Pengecasan Bateri

The SPCM1936 includes one 36V battery and a charger. For optimal performance, fully charge the battery before its first use. The battery can be charged while installed in the mower or removed for charging in a convenient location.

1. Locate the 36V battery and charger.
2. Sambungkan pengecas ke soket elektrik standard.
3. Insert the battery into the charger or connect the charger cable directly to the battery port on the mower if charging in place.
4. Allow the battery to charge until the indicator lights on the charger or battery show a full charge. Charging times may vary.

2.3 Inserting the Safety Key

Before operation, insert the safety key into its designated slot on the mower. The mower will not start without the safety key properly inserted.

3. Arahan Operasi

3.1 Memulakan Mesin Pemotong

To start the mower, ensure the safety key is inserted. Press the start button, then pull the blade control bar towards the handle. Release the start button once the blade begins to spin.

3.2 Adjusting Self-Propelled Speed

The mower features a variable speed self-propelled system. Use the speed adjustment lever on the handle to set the pace that is most comfortable for your walking speed. The self-propelled system moves the mower forward, reducing physical effort.

3.3 Selecting Cutting Mode (3-in-1 Deck)

The 3-in-1 deck design allows you to choose between mulching, bagging, or rear discharge. Adjust the mode by turning the dial on the mower deck. For bagging, ensure the rear bag with frame is properly attached.

Figure 3.1: Detail of the 3-in-1 deck design and adjustment dial.

3.4 Melaraskan Ketinggian Potongan

The cutting height can be easily adjusted using a single lever that controls all four wheels simultaneously. Select the desired height based on your lawn's condition and preferred grass length.

3.5 Menghentikan Mesin Pemotong

To stop the mower, release the blade control bar. The blade will cease rotation. To completely power off the mower, remove the safety key.

3.6 Video Operasi

4. Penyelenggaraan

4.1 Cleaning the Mower Deck

Regularly clean the underside of the mower deck to prevent grass clippings from accumulating. Excessive buildup can affect cutting performance and battery life. The polymer deck is easy to clean; caked grass often falls off with a simple push from a stick or scraper.

4.2 Penjagaan dan Penyimpanan Bateri

To prolong battery life, store the battery in a cool, dry place. Always charge the battery fully before storing for extended periods. If the mower is stored vertically, ensure the battery is removed if charging in the mower is not desired.

4.3 Pemeriksaan Bilah

Periodically inspect the mower blade for sharpness and damage. A dull or damaged blade can lead to uneven cuts and increased strain on the motor. Replace the blade if it shows significant wear, dents, or chips.

5. Penyelesaian masalah

5.1 Mower Bogs Down or Stalls

• Thick or Tall Grass: If the mower bogs down in thick or tall grass, disengage the self-propel function. Stop the mower or back up to a clear area, then lift the front wheels slightly to clear the blades from the grass, reducing strain.
• Restarting After Stall: If the mower stalls, move it to a clear area. It may not restart immediately; allow 30 seconds before attempting to restart.
• Clogged Discharge: Check the grass exhaust chute for clogs, especially when mowing thick or damp grass. Clear any obstructions. Consider mowing at a higher cutting height for the first pass in very tall grass.

5.2 Reduced Battery Life or Power

• Battery Degradation: Battery performance can decrease over time with use. For larger yards (e.g., 0.15-0.25 acres or over 12,000 sq ft), consider purchasing an additional 36V battery (Model # RB-3612) to ensure sufficient runtime.
• Isu Pengecasan: Ensure the battery is fully charged before each use. The charger's LED indicator (red for charging, green for full) is the most reliable way to confirm charge status.
• Heavy Load: Mowing very thick, wet, or tall grass, or frequently using the self-propelled feature on inclines, can drain the battery faster. Adjust mowing habits as needed.

6. Spesifikasi

6.1 Penyimpanan

The mower features a convenient folding handle for compact storage. It can be stored vertically to save garage space.

Figure 6.1: The mower's folding handle allows for vertical storage.

7. Waranti dan Sokongan

7.1 Waranti Pengilang

The BLACK+DECKER SPCM1936 Lawn Mower comes with a Full 2-Year Warranty. Additionally, the high-impact polymer deck is guaranteed for life against rust.

7.2 Satisfaction Guarantee

A 30-Day Satisfaction Guarantee is offered. If you are not completely satisfied, you may return the product for a full refund within 30 days of purchase.

7.3 Sokongan Pelanggan

For technical assistance, warranty claims, or to inquire about replacement parts, please contact BLACK+DECKER customer support directly. Refer to the contact information provided in your product packaging or on the official BLACK+DECKER webtapak.
